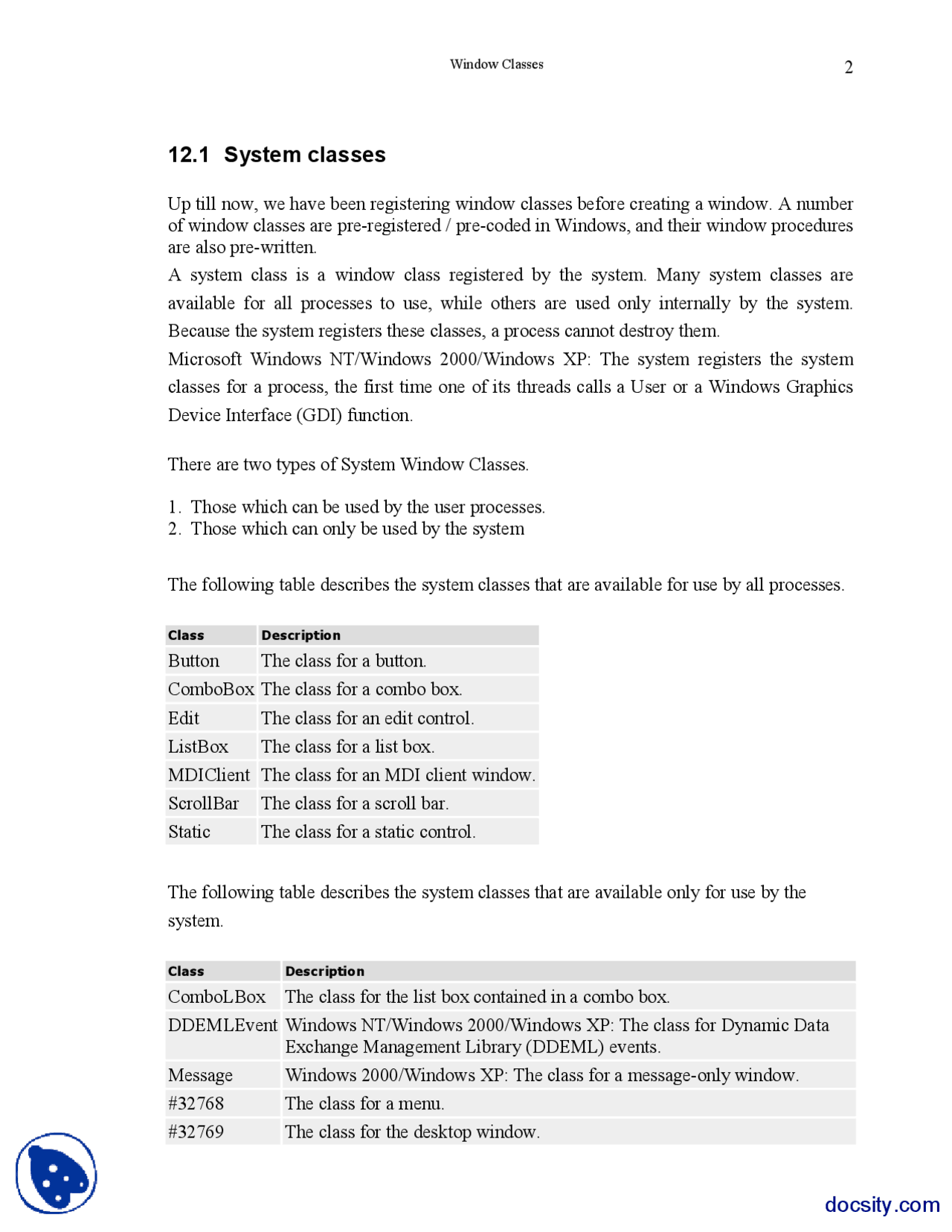

12.1 System classes
Up till now, we have been registering window classes before creating a window. A number
of window classes are pre-registered / pre-coded in Windows, and their window procedures
are also pre-written.
A system class is a window class registered by the system. Many system classes are
available for all processes to use, while others are used only internally by the system.
Because the system registers these classes, a process cannot destroy them.
Microsoft Windows NT/Windows 2000/Windows XP: The system registers the system
classes for a process, the first time one of its threads calls a User or a Windows Graphics
Device Interface (GDI) function.
There are two types of System Window Classes.
- Those which can be used by the user processes.
- Those which can only be used by the system
The following table describes the system classes that are available for use by all processes.
Class Description
Button The class for a button.
ComboBox The class for a combo box.
Edit The class for an edit control.
ListBox The class for a list box.
MDIClient The class for an MDI client window.
ScrollBar The class for a scroll bar.
Static The class for a static control.
The following table describes the system classes that are available only for use by the
system.
Class Description
ComboLBox The class for the list box contained in a combo box.
DDEMLEvent Windows NT/Windows 2000/Windows XP: The class for Dynamic Data
Exchange Management Library (DDEML) events.
Message Windows 2000/Windows XP: The class for a message-only window.
#32768 The class for a menu.
#32769 The class for the desktop window.
#32770 The class for a dialog box.
#32771 The class for the task switch window.
#32772 Windows NT/Windows 2000/Windows XP: The class for icon titles.
Because these classes are pre-registered, that’s why we do not call RegisterClass or do not
need to register the window class before creating such a window.
12.2 Styles of System Classes
The Following are the styles of some of the system window classes
Button Styles
BS_3STATE
This style creates a button that is the same as a check box, except that the check box can be
grayed, as well as, checked or cleared. Use the grayed state to show that the state of the
check box is not determined.
BS_AUTO3STATE
This style creates a button that is the same as a three-state check box, except that the box
changes its state when the user selects it. The state cycles through checked, grayed, and
cleared.
BS_AUTOCHECKBOX
This style creates a button that is the same as a check box, except that the check state
automatically toggles between checked and cleared, each time the user selects the check box.
BS_AUTORADIOBUTTON
This style creates a button that is the same as a radio button, except that when the user
selects it, the system automatically sets the button's check state to checked and automatically sets the check state for all other buttons in the same group to cleared.
BS_CHECKBOX
This style creates a small, empty check box with text. By default, the text is displayed to
the right of the check box. To display the text to the left of the check box, combine this flag with the BS_LEFTTEXT style (or with the equivalent BS_RIGHTBUTTON style).
BS_DEFPUSHBUTTON
This style creates a push button that behaves like a BS_PUSHBUTTON style, but it has
also a heavy black border. If the button is in a dialog box, the user can select the button by pressing the ENTER key, even when the button does not have the input focus. This style is
useful for enabling the user to quickly select the most likely (default) option.
BS_GROUPBOX
This style creates a rectangle in which other controls can be grouped. Any text associated with this style is displayed in the rectangle's upper left corner.
BS_NOTIFY
This style enables a button to send BN_KILLFOCUS and BN_SETFOCUS to help
notification messages to its parent window.
Note that buttons send the BN_CLICKED notification message regardless of whether it has this style. To get BN_DBLCLK notification messages, the button must have the BS_RADIOBUTTON or BS_OWNERDRAW style.
BS_PUSHLIKE
This style makes a button (such as a check box, three-state check box, or radio button) and
look and act like a push button. The button looks raised when it isn't pushed or checked,
and sunken when it is pushed or checked.
BS_RIGHT
This style right-justifies text in the button rectangle. However, if the button is a check box
or radio button that does not have the BS_RIGHTBUTTON style, the text is right justified
on the right side of the check box or radio button.
BS_RIGHTBUTTON
This style positions a radio button's circle or a check box's square on the right side of the
button rectangle. This is same as the BS_LEFTTEXT style.
BS_TEXT
This style specifies that the button displays text.
BS_TOP
This style places text at the top of the button rectangle.
BS_TYPEMASK
Microsoft Windows 2000: A composite style bit that results from using the OR operator on
BS_* style bits. It can be used to mask out valid BS_* bits from a given bitmask. Note that
this is out of date and does not correctly include all valid styles. Thus, you should not use this style.
BS_VCENTER
This style places text in the middle (vertically) of the button rectangle.
12.3 Creating Button Window Class ( Example )
For button, we will use our well known API CreateWindow to create a button.
hWnd = CreateWindow( "BUTTON", "Virtual University", BS_RADIOBUTTON |
WS_VISIBLE | WS_OVERLAPPEDWINDOW | WS_CAPTION, 50, 50, 200, 100,
NULL, NULL, hInstance, NULL);
This button has no parent. If you want to place this button on any window, you should
provide hWndParent member with parent Window handle and add WS_CHILD style in its
dwStyle member.
12.4 Get and Set Window Long
The SetWindowLong function changes an attribute of the specified window. The function also sets the 32-bit (long) value at the specified offset into the extra window memory.
LONG SetWindowLong(
HWND hWnd, // handle to window int nIndex, // offset of value to set LONG dwNewLong // new value
);
hWnd Handle to the window and, indirectly, the class to which the Window belongs. nIndex This member specifies the zero-based offset to the value to be set. Valid values are in the range zero through the number of bytes of extra window memory, minus the size of an integer. To set any other value, specify one of the following values.
GWL_EXSTYLE, Sets a new extended window style. GWL_STYLE, Sets a new Window Style
GWL_WNDPROC :Sets a new address for the window procedure.
In Windows NT/2000/XP, You cannot change this attribute if the window does not belong to the same process as the calling thread.
GWL_HINSTANCE: Sets a new application instance handle. GWL_ID, Sets a new identifier of the window.
GWL_USERDATA: Sets the user data associated with the window. This data is intended for use by the application that created the window. Its value is initially zero.
The following values are also available when the hWnd parameter identifies a dialog box.
DWL_DLGPROC: Sets the new address of the dialog box procedure. DWL_MSGRESULT: Sets the return value of a message processed in the dialog box procedure.
DWL_USER: Sets new extra information that is private to the application, such as handles or pointers. dwNewLong This style specifies the replacement value.
LONG GetWindowLong( HWND hWnd, // handle to window int nIndex // offset of value to retrieve );
window by substituting the window procedure address with the new window procedure address. When an application subclasses a window, it can take three actions with the message: (1) pass the message to the original window procedure; (2) modify the message and pass it to the original window procedure; (3) not pass the message. The application subclassing a window can decide when to react to the messages it receives. The application can process the message before, after, or both before and after passing the message to the original window procedure.
Types of Subclassing
The two types of subclassing are instance subclassing and global subclassing. Instance subclassing is subclassing an individual window's information structure. With instance subclassing, only the messages of a particular window instance are sent to the new window procedure. Global subclassing is replacing the address of the window procedure in the WNDCLASS structure of a window class. All subsequent windows created with this class have the substituted window procedure's address. Global subclassing affects only windows created after the subclass has occurred. At the time of the subclass, if any windows of the window class that is being globally subclassed exist, the existing windows are not affected by the global subclass. If the application needs to affect the behavior of the existing windows, the application must subclass each existing instance of the window class.
Win32 Subclassing Rules
Two sub-classing rules apply to instance and global sub-classing in Win32.
Subclassing is allowed only within a process. An application cannot subclass a window or
class that belongs to another process.
The reason for this rule is simple: Win32 processes have separate address spaces. A window procedure has an address in a particular process. In a different process, that address does not contain the same window procedure. As a result, substituting an address from one process with an address from another process does not provide the desired result, so the 32-bit versions of Windows do not allow this substitution (that is, subclassing from a different process) to take place. The SetWindowLong and SetClassLong functions prevent this type of subclassing. You can not subclass a window or class that is in another process. End of story.
One way to add subclassing code into another process is much more complicated: It involves using the OpenProcess, WriteProcessMemory, and CreateRemoteThread functions to inject code into the other process. I don't recommend this method and won't go into any details on how to do it. For developers who insist on using this method,
The subclassing process may not use the original window procedure address directly.
In Win16, an application could use the window procedure address returned from SetWindowLong or SetClassLong to call the procedure directly. After all, the return value is simply a pointer to a function, so why not just call it? In Win32, this is a definitive no-no. The value returned from SetWindowLong and GetClassLong may not be a pointer to the previous window procedure at all. Win32 may return a pointer to a data structure that it can use to call the actual window procedure. This occurs in Windows NT when an application subclasses a Unicode window with a non-Unicode window procedure, or a non-Unicode window with a Unicode window procedure. In this case, the operating system must perform a translation between Unicode and ANSI for the messages the window receives. If an application uses the pointer to this structure to directly call the window procedure, the
application will immediately generate an exception. The only way to use the window procedure address returned from SetWindowLong or SetClassLong is as a parameter to CallWindowProc.
Instance Subclassing
The SetWindowLong function is used to subclass an instance of a window. The application must have the address of the subclass function. The subclass function is the function that receives the messages from Windows and passes the messages to the original window procedure. The subclass function must be exported in the application's or the DLL's module definition file. The application subclassing the window calls SetWindowLong with the handle to the window the application wants to subclass, the GWL_WNDPROC option (defined in WINDOWS.H), and the address of the new subclass function. SetWindowLong returns a DWORD, which is the address of the original window procedure for the window. The application must save this address to pass the intercepted messages to the original window procedure and to remove the subclass from the window. The application passes the messages to the original window procedure by calling CallWindowProc with the address of the original window procedure and the hWnd, Message, wParam, and lParam parameters used in Windows messaging. Usually, the application simply passes the arguments it receives from Windows to CallWindowProc. The application also needs the original window procedure address for removing the subclass from the window. The application removes the subclass from the window by calling SetWindowLong again. The application passes the address of the original window procedure with the GWL_WNDPROC option and the handle to the window being subclassed.
The following code subclasses and removes a subclass to an edit control:
LONG FAR PASCAL SubClassFunc(HWND hWnd,UINT Message,WPARAM wParam, LONG lParam);
FARPROC lpfnOldWndProc; HWND hEditWnd;
// // Create an edit control and subclass it. // The details of this particular edit control are not important. // hEditWnd = CreateWindow("EDIT", "EDIT Test", WS_CHILD | WS_VISIBLE | WS_BORDER , 0, 0, 50, 50, hWndMain, NULL, hInst, NULL); // // Now subclass the window that was just created. // lpfnOldWndProc = (FARPROC)SetWindowLong(hEditWnd, GWL_WNDPROC, (DWORD) SubClassFunc); . . . // // Remove the subclass for the edit control.
GCL_CBWNDEXTRA: Sets the size, in bytes, of the extra window memory associated with each window in the class. Setting this value does not change the number of extra bytes already allocated.
GCL_HBRBACKGROUND: Replaces a handle to the background brush associated with the class.
GCL_HCURSOR: Replaces a handle to the cursor associated with the class. GCL_HICON: Replaces a handle to the icon associated with the class.
GCL_HICONSM: Replace a handle to the small icon associated with the class.
GCL_HMODULE: Replaces a handle to the module that registered the class.
GCL_MENUNAME: Replaces the address of the menu name string. The string identifies the menu resource associated with the class.
GCL_STYLE: Replaces the window-class style bits.
GCL_WNDPROC: Replaces the address of the window procedure associated with the class. dwNewLong This member specifies the replacement value. Return Value If the function succeeds, the return value is the previous value of the specified 32- bit integer. If the value was not previously set, the return value is zero. If the function fails, the return value is zero. To get extended error information, call GetLastError.
LONG GetClassLong(
HWND hWnd, // handle to window int nIndex // offset of value to retrieve
);
If you use the SetClassLong function and the GCL_WNDPROC index to replace the window procedure, the window procedure must conform to the guidelines specified in the description of the WindowProc callback function. Calling SetClassLong with the GCL_WNDPROC index creates a subclass of the window class that affects all windows subsequently created with the class. An application can subclass a system class, but should not subclass a window class created by another process. Reserve extra class memory by specifying a nonzero value in the cbClsExtra member of the WNDCLASSEX structure used with the RegisterClass function. Use the SetClassLong function with care. For example, it is possible to change the background color for a class by using SetClassLong , but this change does not immediately repaint all windows belonging to the class.
Difference between SetWindowLong and SetClassLong
- In SetWindowLong(), behavior of a single window is modified.
- In SetClassLong(), behavior of the window class is modified.
12.7 Sub-Classing ( Elaboration )
We elaborate sub-classing by using following examples.
DLGPROC oldWindowProc; hWnd = CreateWindow("BUTTON", "Virtual University", BS_AUTOCHECKBOX |
WS_VISIBLE | WS_OVERLAPPEDWINDOW,
50, 50, 200, 100,
NULL, NULL, hInstance, NULL);
oldWindowProc = (WNDPROC) SetWindowLong ( hWnd,
GWL_WNDPROC, (LONG) myWindowProc);
while(GetMessage(&msg, NULL, 0, 0) > 0)
{ DispatchMessage(&msg);
}
return msg.wParam;
New Window Procedure
LRESULT CALLBACK myWindowProc(HWND hWnd, UINT message, WPARAM
wParam, LPARAM lParam)
{ switch (message) { case WM_LBUTTONDOWN: MessageBox(hWnd, "Left mouse button pressed.", "Message", MB_OK); DestroyWindow(hWnd); break;
case WM_DESTROY: PostQuitMessage(0); break;
default: return CallWindowProc(oldWindowProc, hWnd, message, wParam, lParam); }
return 0;
}
12.8 Supper-Classing
Super-classing defines a class that adds new functionality to a predefined window class,
such as the button or list box controls.
return msg.wParam
New Window Procedure
This new windows procedure myWindowProc will call the old window procedure after its
normal message processing.
LRESULT CALLBACK myWindowProc(HWND hWnd, UINT message,
WPARAM wParam, LPARAM lParam)
{
switch (message) { case WM_LBUTTONDOWN: MessageBeep(0xFFFFFFFF); Break; default: return CallWindowProc(oldWindowProc, hWnd, message, wParam, lParam);
return 0; }
Tips: After implementation of Sub-classing or Super Classing don’t forget to call window procedure function.
Summary
In this lecture, we learnt about system windows classes. System window classes include
buttons, combo boxes, list box, etc. We studied about Button System Window class. We
discussed how to change windows attributes by using SetWindowLong and GetWindowLong APIs. Using SetWindowLong and GetWindowLong, we can also make a
new procedure and change the message behavior of a window. Using SetClassLong and
GetClassLong, we can change one of the attributes of a registered class. Changing class
values will effect the change for every window that is using this class. This is called sub-
classing. We also knew about Super-classing in which we register new window class by using the properties of previous window class.
