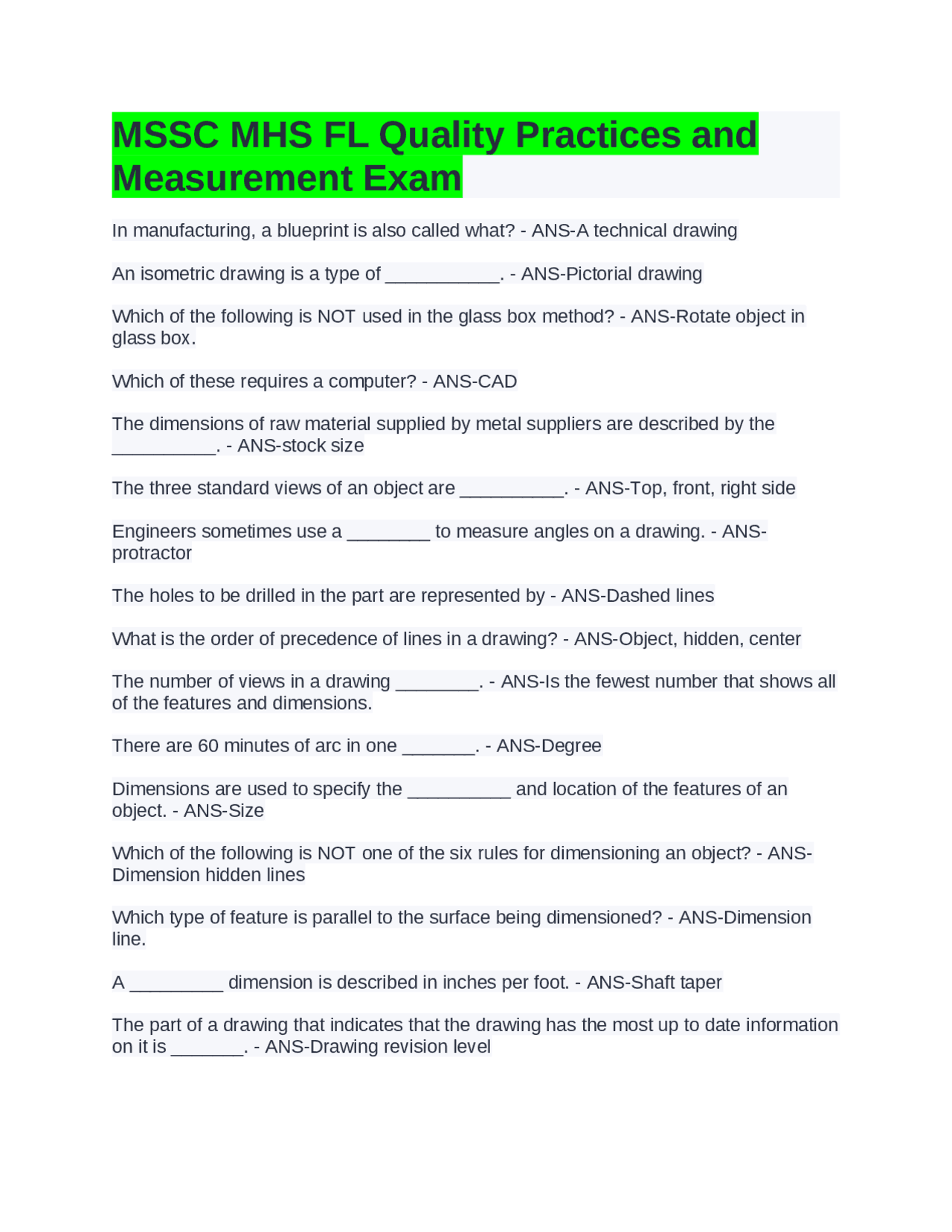

MSSC MHS FL Quality Practices and
Measurement Exam
In manufacturing, a blueprint is also called what? - ANS-A technical drawing
An isometric drawing is a type of ___________. - ANS-Pictorial drawing
Which of the following is NOT used in the glass box method? - ANS-Rotate object in
glass box.
Which of these requires a computer? - ANS-CAD
The dimensions of raw material supplied by metal suppliers are described by the
__________. - ANS-stock size
The three standard views of an object are __________. - ANS-Top, front, right side
Engineers sometimes use a ________ to measure angles on a drawing. - ANS-
protractor
The holes to be drilled in the part are represented by - ANS-Dashed lines
What is the order of precedence of lines in a drawing? - ANS-Object, hidden, center
The number of views in a drawing ________. - ANS-Is the fewest number that shows all
of the features and dimensions.
There are 60 minutes of arc in one _______. - ANS-Degree
Dimensions are used to specify the __________ and location of the features of an
object. - ANS-Size
Which of the following is NOT one of the six rules for dimensioning an object? - ANS-
Dimension hidden lines
Which type of feature is parallel to the surface being dimensioned? - ANS-Dimension
line.
A _________ dimension is described in inches per foot. - ANS-Shaft taper
The part of a drawing that indicates that the drawing has the most up to date information
on it is _______. - ANS-Drawing revision level
