bg1
1

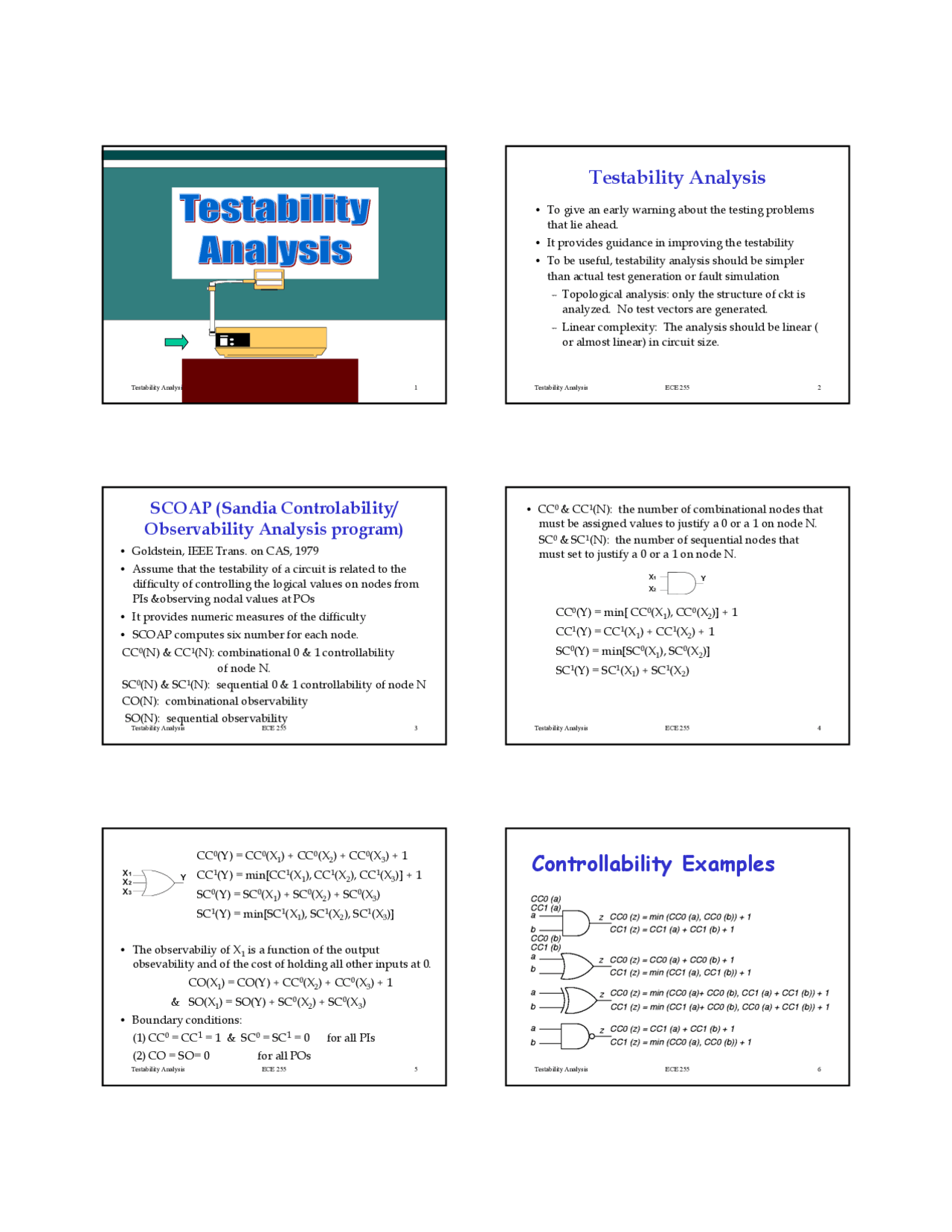

Testability Analysis ECE 255 1 Testability Analysis ECE 255 2
Testability Analysis
• To give an early warning about the testing problems
that lie ahead.
• It provides guidance in improving the testability
• To be useful, testability analysis should be simpler
than actual test generation or fault simulation
– Topological analysis: only the structure of ckt is
analyzed. No test vectors are generated.
– Linear complexity: The analysis should be linear (
or almost linear) in circuit size.
Testability Analysis ECE 255 3
SCOAP (Sandia Controlability/
Observability Analysis program)
• Goldstein, IEEE Trans. on CAS, 1979
• Assume that the testability of a circuit is related to the
difficulty of controlling the logical values on nodes from
PIs &observing nodal values at POs
• It provides numeric measures of the difficulty
• SCOAP computes six number for each node.
CC0(N) & CC1(N): combinational 0 & 1 controllability
of node N.
SC0(N) & SC1(N): sequential 0 & 1 controllability of node N
CO(N): combinational observability
SO(N): sequential observability
Testability Analysis ECE 255 4
•CC
0 & CC1(N): the number of combinational nodes that
must be assigned values to justify a 0 or a 1 on node N.
SC0& SC1(N): the number of sequential nodes that
must set to justify a 0 or a 1 on node N.
X
1
X
2
Y
CC0(Y) = min[ CC0(X1), CC0(X2)] + 1
CC1(Y) = CC1(X1) + CC1(X2) + 1
SC0(Y) = min[SC0(X1), SC0(X2)]
SC1(Y) = SC1(X1) + SC1(X2)
Testability Analysis ECE 255 5
CC0(Y) = CC0(X1) + CC0(X2) + CC0(X3) + 1
CC1(Y) = min[CC1(X1), CC1(X2), CC1(X3)] + 1
SC0(Y) = SC0(X1) + SC0(X2) + SC0(X3)
SC1(Y) = min[SC1(X1), SC1(X2), SC1(X3)]
• The observabiliy of X1is a function of the output
obsevability and of the cost of holding all other inputs at 0.
CO(X1) = CO(Y) + CC0(X2) + CC0(X3) + 1
&SO(X
1) = SO(Y) + SC0(X2) + SC0(X3)
• Boundary conditions:
(1) CC0= CC1= 1 & SC0= SC1= 0 for all PIs
(2) CO = SO= 0 for all POs
X
1
X
2
Y
X
3
Testability Analysis ECE 255 6
Controllability Examples
pf3

Partial preview of the text

Download Testability Analysis: Understanding Controllability and Observability in ECE 255 and more Study notes Spanish Language in PDF only on Docsity!

Testability Analysis ECE 255 1 Testability Analysis ECE 255 2

Testability Analysis

  • To give an early warning about the testing problems that lie ahead.
  • It provides guidance in improving the testability
  • To be useful, testability analysis should be simpler than actual test generation or fault simulation - Topological analysis: only the structure of ckt is analyzed. No test vectors are generated. - Linear complexity: The analysis should be linear ( or almost linear) in circuit size.

Testability Analysis ECE 255 3

SCOAP (Sandia Controlability/

Observability Analysis program)

  • Goldstein, IEEE Trans. on CAS, 1979
  • Assume that the testability of a circuit is related to the difficulty of controlling the logical values on nodes from PIs &observing nodal values at POs
  • It provides numeric measures of the difficulty
  • SCOAP computes six number for each node. CC^0 (N) & CC^1 (N): combinational 0 & 1 controllability of node N. SC^0 (N) & SC^1 (N): sequential 0 & 1 controllability of node N CO(N): combinational observability SO(N): sequential observability Testability Analysis ECE 255 4
  • CC^0 & CC^1 (N): the number of combinational nodes that must be assigned values to justify a 0 or a 1 on node N. SC^0 & SC^1 (N): the number of sequential nodes that must set to justify a 0 or a 1 on node N. X 1 X 2

Y

CC^0 (Y) = min[ CC^0 (X 1 ), CC^0 (X 2 )] + 1 CC^1 (Y) = CC^1 (X 1 ) + CC^1 (X 2 ) + 1 SC^0 (Y) = min[SC^0 (X 1 ), SC^0 (X 2 )] SC^1 (Y) = SC^1 (X 1 ) + SC^1 (X 2 )

Testability Analysis ECE 255 5

CC^0 (Y) = CC^0 (X 1 ) + CC^0 (X 2 ) + CC^0 (X 3 ) + 1

CC^1 (Y) = min[CC 1 (X 1 ), CC^1 (X 2 ), CC^1 (X 3 )] + 1 SC^0 (Y) = SC^0 (X 1 ) + SC^0 (X 2 ) + SC^0 (X 3 ) SC^1 (Y) = min[SC^1 (X 1 ), SC^1 (X 2 ), SC^1 (X 3 )]

  • The observabiliy of X 1 is a function of the output obsevability and of the cost of holding all other inputs at 0. CO(X 1 ) = CO(Y) + CC^0 (X 2 ) + CC^0 (X 3 ) + 1 & SO(X 1 ) = SO(Y) + SC^0 (X 2 ) + SC^0 (X 3 )
  • Boundary conditions: (1) CC 0 = CC^1 = 1 & SC^0 = SC^1 = 0 for all PIs (2) CO = SO= 0 for all POs

X 1 X 2 Y X 3

Testability Analysis ECE 255 6

Controllability Examples

Testability Analysis ECE 255 7

More Controllability Examples

Testability Analysis ECE 255 8

Observability Examples

To observe a gate input: Observe output and make other input values non-controlling

Testability Analysis ECE 255 9

More Observability Examples

To observe a fanout stem: Observe it through branch with best observability

Testability Analysis ECE 255 10

Error Due to Stems &

Reconverging Fanouts

SCOAP measures wrongly assume that controlling or

observingx,y,z are independent events

  • CC0 (x), CC0 (y), CC0 (z) correlate
  • CC1 (x), CC1 (y), CC1 (z) correlate
  • CO (x), CO (y), CO (z) correlate x

y

z

Testability Analysis ECE 255 11

Correlation Error Example

  • Exact computation of measures is NP-Complete and impractical
  • Italicized (green) measures show correct values – SCOAP measures are in red or bold CC0,CC1 (CO)

x

y z

1,1(6) 1,1(5, ) 1,1(5) 1,1(4,6)

1,1(6) 1,1(5, )

6,2(0) 4,2(0)

2,3(4) 2,3(4, ) (5) (4,6) (6)

(6) 2,3(4) 2,3(4, (^8) )

8 8

8 Testability Analysis ECE 255 12

Applications of Testability Measures

  • Can be used to guide the selection of test points for improving testability
  • Can be used to guide the search in test generation
    • For example, used to determine “hardest” & “easiest” inputs in backtrace of PODEM
  • Note that testability measures are only approximate.
    • Reconvergent fanouts cause inaccuracy.
