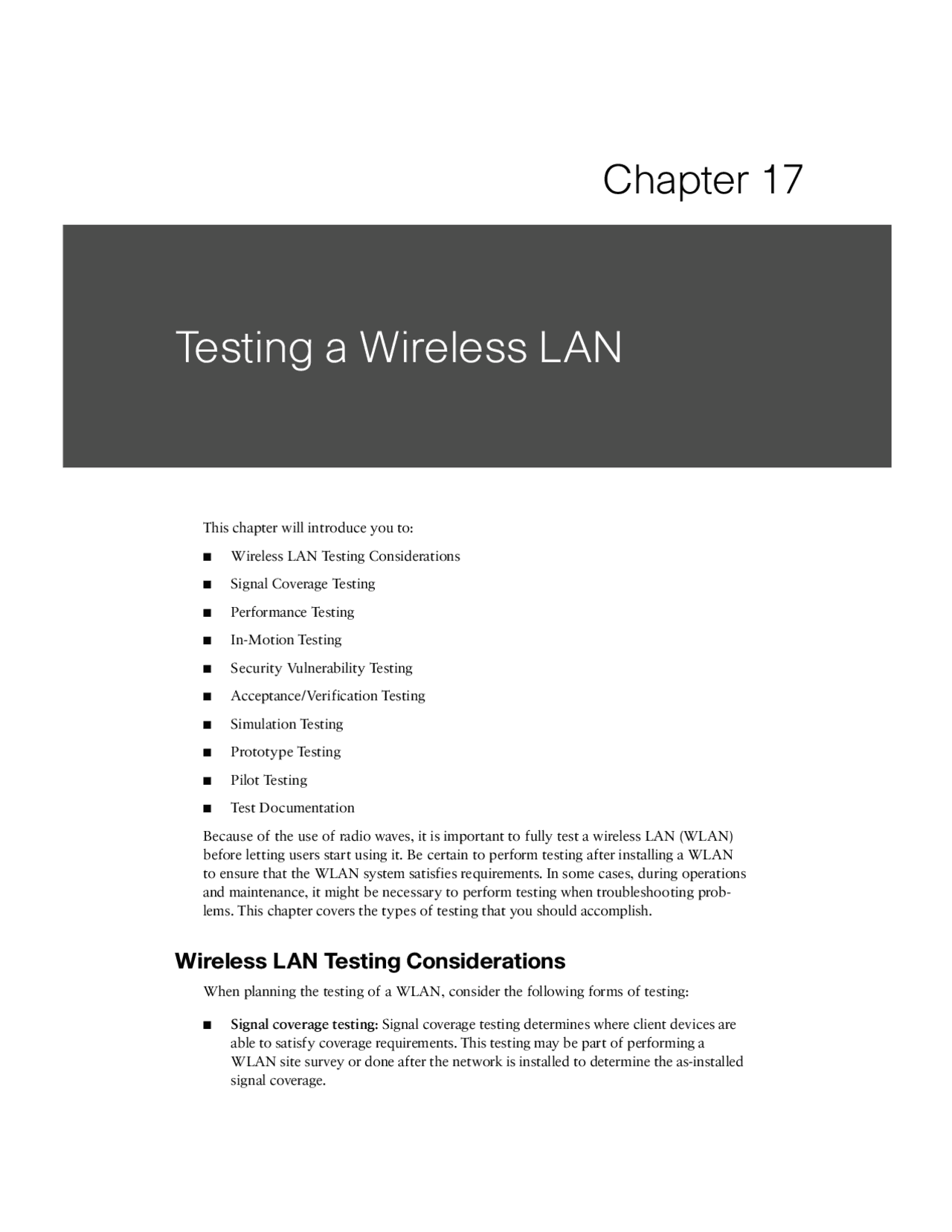

Chapter 17
Testing a Wireless LAN
This chapter will introduce you to: ■ Wireless LAN Testing Considerations ■ Signal Coverage Testing ■ Performance Testing ■ In-Motion Testing ■ Security Vulnerability Testing ■ Acceptance/Verification Testing ■ Simulation Testing ■ Prototype Testing ■ Pilot Testing ■ Test Documentation Because of the use of radio waves, it is important to fully test a wireless LAN (WLAN) before letting users start using it. Be certain to perform testing after installing a WLAN to ensure that the WLAN system satisfies requirements. In some cases, during operations and maintenance, it might be necessary to perform testing when troubleshooting prob- lems. This chapter covers the types of testing that you should accomplish.
Wireless LAN Testing Considerations
When planning the testing of a WLAN, consider the following forms of testing:
■ Signal coverage testing: Signal coverage testing determines where client devices are able to satisfy coverage requirements. This testing may be part of performing a WLAN site survey or done after the network is installed to determine the as-installed signal coverage.
406 Designing and Deploying 802.11n Wireless Networks
■ Performance testing: Performance testing determines whether the WLAN can satis- fy user needs for using specific applications over the WLAN. ■ In-motion testing: In-motion testing determines whether users can continue to make use of applications while roaming throughout the coverage areas, especially when the roaming requires handoffs between access points. ■ Security vulnerability testing: Security vulnerability testing ensures that the WLAN implements required security mechanisms and offers sufficient protection to unau- thorized access and passive monitoring. ■ Acceptance/verification testing: After installing a WLAN, it is important to run a series of acceptance/verification tests to ensure that the WLAN satisfies all require- ments. This is especially important if the organization is having a contractor install the WLAN. ■ Simulation testing: In some cases, such as when implementing a very large WLAN, it may be beneficial to simulate the behavior of the WLAN before actually installing it. This can provide helpful feedback when designing the system, especially if the WLAN will have critical performance requirements. ■ Prototype testing: Prototype testing involves implementing an individual function of the WLAN that is not well understood before deploying the complete system. For example, an organization may not be very familiar with 802.1X authentication sys- tems and may benefit by implementing the 802.1X authentication in a lab environ- ment with a limited number of test client devices. ■ Pilot testing: Before installing the WLAN across the entire organization, which may include numerous buildings and different applications, it is strongly advisable to in- stall the system in a limited number of facilities (ideally one) and make that one work effectively first. After you work out all the problems, you can install the WLAN at the remaining location without the need for extensive rework because the problems will likely have been solved during the pilot testing.
The remainder of this chapter explains the details of these forms of testing.
Signal Coverage Testing
Signal coverage testing involves using a signal coverage tester (sometimes referred to as a signal meter) to measure WLAN signals throughout the coverage areas. The main objec- tive is to ensure that signal levels are high enough to support the levels of performance that the users need when using applications over the WLAN.
Wireless Site Survey Coverage Testing
Signal coverage testing is often part of performing a wireless site survey and should be done before installing the WLAN. This is done by positioning a test access point at vari- ous locations throughout the required coverage area and using a signal meter to measure
408 Designing and Deploying 802.11n Wireless Networks
are assured of the access points or mesh nodes transmitting a beacon while the survey tool is measuring the signals on a particular channel. In fact, at least two beacons will occur during that time, so the survey tool will not miss any of the beacons. A possible problem may occur, however, if the beacon interval on the access points or mesh nodes is set to a longer value. For example, Tropos mesh nodes generally have default beacon intervals of 250 milliseconds. They do this to reduce overhead traffic (that is, beacons) on the network. In this case, if your survey tool is set to a scan time of 250 milliseconds or less, then there is a possibility that a beacon will not occur during the 250 milliseconds. In most cases, the scan time is adjustable. To ensure the survey tool you are using is measuring all possible signal data, it is a good idea to be certain that the scan time of the survey tool is greater than the beacon interval.
Citywide Indoor Signal Coverage Testing Considerations To create a municipal wireless network that enables full public access to the Internet, the network must offer signal coverage inside businesses and homes. At some point, you will need to verify that sufficient signal coverage exists in the percentage (for example, 70 per- cent) of inside locations. This type of testing is easier said than done. A major problem is that the majority of indoor areas are not open to the public. As a result, a system integrator completing system testing or the municipality performing acceptance testing does not have ready access to indoor places. Understandably, businesses and home- owners are usually reluctant to let strangers inside their private establishments. Therefore, it might be possible to test only a very small number of indoor areas, those that are acces- sible to the public, such as restaurants, grocery stores, and so on. A municipality may be able to boost the number of indoor test locations, however, by soliciting volunteers that allow test teams to enter their private businesses and homes. For example, a municipality may setup a system that automatically calls utility customers, explains the need to perform the testing, and asks the customer to participate in the test- ing (possibly by having the customer press a specific numbered key on their phone). The municipality could then provide the volunteer list to the test team, which would greatly expand the umber of indoor test locations. This also gets the community involved in the deployment in a positive way, which based on my experiences is always a good thing.
Performance Testing
The WLAN must specific applications defined in the requirements, and to do so, it must be capable of passing a variety of tests.
Association Tests
Make sure that each of the client device types will associate with at least one or more access points that are part of the installed system. This is an initial test to see whether the client devices can establish a wireless connection, which primarily involves the 802.
Chapter 17: Testing a Wireless LAN 409
protocols and any vendor-specific enhancements. Confirm sufficient associations before moving on with other testing. This is important because sometimes client device radios are not fully compatible with the access points, even though they both comply with 802.11n. If you do not ensure that the client devices have stable associations, other per- formance tests may indicate erratic and inaccurate results.
Note A problem with using client radio devices from different manufacturers on the same network is that vendor-enhanced features may not be usable. In this case, the func- tionality of the network may be reduced to the least common denominator, which are the functions specified only by the 802.11 standard. Test the use of these enhanced features, such as network monitoring tools and performance enhancements.
For example, with a wireless IP phone implementation, the phone should have an indica- tor that confirms that association has been made. Power up the phone and check whether the phone indicates an association. If the phone will not associate with an access point, recheck the phone configuration, especially the service set identifier (SSID), authentica- tion type, and security password. These parameters must match those configured on the access point for association to be successful. Also, ensure that you are operating the phone in an area where signal coverage exists. You can generally do this by observing the signal status on the phone. When performing an association test, connect the client device to an access point and monitor the connection for at least 10 minutes. In some cases, the client device may ini- tially associate with an access point without any issues, but it might inadvertently disas- sociate after a few minutes. If problems occur, research similar problems regarding the types of client radios and access points that you are using, and upgrade the firmware if necessary to fix the problem. Sometimes you must upgrade the firmware in the client device radios, access points, or both, for the association process to work effectively.
Registration Tests
After confirming that the client devices associate effectively with access points, the next step is to ensure that each of the client device types register successfully with the net- work and applicable applications. This involves protocols and processes that operate over the 802.11 protocols.
Network Connection Tests
As a basis for communications between the client devices and the application, most wire- less systems implement either TCP or UDP. In either case, ensure that the client device successfully connects to the network and has a valid IP address. This can generally be done by observing the association table found in the access point. It is also a good idea to ensure that the client device is capable of responding to a ping generated from the same subnet where the application resides. The ping result should indicate that the client
Chapter 17: Testing a Wireless LAN 411
you should only observe from the phone’s location a single access point on a particular nonoverlapping channel (1, 6 or 11) with a signal level that is at least 15 dB higher than other access points set to the same nonoverlapping channel. The presence of more than one access point set to the same RF channel and having similar signal levels may cause significant interference that reduces voice quality. In addition to checking the wireless network, you might recheck the quality of service settings on the call manager software to be sure that it is set properly.
Note In mixed mode implementations, ensure that 802.11n devices are in deed operating at 802.11n rates by checking client association tables.
Load Tests
As final step when testing the performance of the WLAN, ensure that multiple users can use applications on the network. The goal here is to verify that the WLAN can con- tinue to satisfy all requirements while a typical (and maximum) number of users are using the system. The best way to test load on the network is with actual users and client devices. In some cases, however, you may need to resort to simulation as explained later in this chapter. For example, with a wireless IP phone system, make use of multiple wireless IP phones throughout the facility. Ideally, distribute and use the phones in a similar manner as they will actually be used when operational. Find volunteers or actual users to help you with these tests. You can give them each a phone, instruct them on how to use it, and have them initiate calls with others. To simplify testing, you can start by having the group of callers place calls from the same location, and then have them separate uniformly throughout the facility while continuing voice conversations and monitoring voice quali- ty. If requirements in parts of the facility specify a need for higher capacity, have an appropriate number of test users make use of the phones from that area. Again, strive to test the system as users will use it. While performing the load tests, monitor the system using network analyzers or system management tools, if available. Also, be sure to receive feedback from the users actually using the devices, and identify any related issues. If problems arise, note the applicable time and location in the facility where the problem occurred. Doing so makes it easier when looking through the results of the monitoring tools to identify the underlying problems.
Note Consider using load test tools, such as PureLoad, to simulate multiple user connec- tions to the wireless network.
412 Designing and Deploying 802.11n Wireless Networks
In-Motion Testing
Once stationary usage of the applications is working satisfactorily, run tests to verify that users moving throughout the coverage areas are able to continue operating the applica- tions successfully. When testing, be certain to move about the coverage area at typical and maximum speeds that users will operate the applications. This is necessary because roaming tends to break down at higher speeds. Also, run a wireless packet sniffer to record packet transmissions between the client device and the network. This will help you better understand the underlying issues if you run into problems. For example, you might see significant delays when the system is reestablishing the flow of packets when the client device radio hands off from one access point to another. By looking at the packet trace, you may also see that a client device is experiencing significant retransmis- sions with a particular access point before handing off to another access point with bet- ter signal quality, which would point to issues with the client radio’s ability to roam. For wireless IP applications, place a call and walk through the facility while talking to someone on a wired phone. As you walk, monitor the voice quality. If everything is work- ing okay, you should hear consistent quality as you traverse the facility and the phone roams from one access point to another. If you detect poor sound quality at any point, check the signal strength indicator on the phone. A reduction of sound quality may occur when the signal strength is low. To make roaming phone call tests easier to perform, wear an earpiece for listening to the voice quality and monitoring the signal strength indicator on the phone at the same time. When performing the roaming tests, ensure that the phone can “see” at least two access points (each on nonoverlapping channels) from anywhere within the covered area. This can often be done by observing the phone’s wireless connection utility. If two or more access points cannot be seen on nonoverlapping channels, a phone roaming from one access point to another may not be smooth enough to maintain good voice quality. To make voice quality consistent, you might need to reengineer the wireless network by moving access points or adding additional access point. If the phone is connected to a particular access point and does not roam even if located directly under another access point, there may be more than one access point having rela- tively high signal strengths on overlapping RF channels. In this case, you may be able to fix the problem by adjusting the transmit power of one of the access points. Or, you might need to reengineer the WLAN. Another reason that the phone may not be roaming in this scenario is that the nearby access point is not operating. So, check the status of the access point. Another problem with roaming is that the phone may roam from one access point to the other too slowly. In this case, check the phone wireless utility to ensure that there is indeed another acceptable access point to roam to. The problem could be that there are no other access points having strong enough signal strength for the phone to roam. If the phone appears to roaming promptly to the next access point, there might still be exces- sive delay problems on the wired network infrastructure.
414 Designing and Deploying 802.11n Wireless Networks
Penetration Testing
The ability of authorized client devices being able to connect to the network is only part of security testing. You also need to verify that unauthorized client devices cannot con- nect to the private side of the network or reach the protected network from the public side of the network.
Private-Side Testing
A good place to start with penetration testing is to attempt to connect unauthorized devices to the private side of the network, which should be configured with encryption and authentication mechanisms that only allows authorized client devices to successfully connect. Assume that you know the SSID of the private network because that can be eas- ily found by monitoring 802.11 association requests from client device radios. Configure an unauthorized client device with this SSID and verify that you cannot connect to the network. Of course if it is possible to connect to the private side of the network without applicable encryption passwords, there are major problems with the security of the net- work. In this case, review the security settings on the access point.
Public-Side Testing
Of course some networks, such as public hotspots may not have any security mecha- nisms and encourage open connections, but the network may also include a private net- work as well. In this case, run tests to verify that client devices connecting to the public side of the network cannot access any sensitive resources. As part of analyzing the security vulnerabilities of a wireless network, run a TCP port scanner, such as SuperScan or Retina, to find open TCP or UDP ports that may offer security holes. SuperScan runs on a Windows laptop and scans all ports via the wireless network. Most of the time, SuperScan returns information (for example, IP address) about open port 80 (HTTP) interfaces on access points and printers, but it also finds other open ports made available by the installation of various applications.
Note You can download a SuperScan, a free port scanner, from http://www.foundstone.com/us/resources/proddesc/superscan.htm.
Of course, you can place the found IP address of the node, such as a printer, in your web browser and reach the configuration screen for the associated device or application. Because most users do not implement an admin username and password on printers, for example, hackers could (on some printers) configure the printer to send all printed data to a capture file on their laptop, which of course is not good. Be sure that there are no ports available that will make the network vulnerable to a hacker. If open ports are found, con- sider redesigning the security of the network.
Chapter 17: Testing a Wireless LAN 415
When running penetration tests, use a port scanner with a test computer, which should be the same as the target client device, connected to the network at various locations, as follows:
■ Scan test computer from within the same subnet: This test determines the extent to which a public wireless user can access user devices that are in the same subnet as an- other user. This scenario is common with public hotspots, where the hacker is con- necting to the network from the same area as a targeted user (for example, from the same coffee shop). With the port scanner connected to the same subnet as the test computer, initiate a scan of all applicable TCP/UDP ports of the IP address of the test computer. ■ Scan test computer from a different subnet: This test determines the extent to which a public wireless user can access user devices that are in a different subnet. This scenario is common with public hotspots, where the hacker is connecting to the network from a different area than a targeted user (for example, from different parts of an airport). With the port scanner connected to a different subnet as the test com- puter, initiate a scan of all applicable TCP/UDP ports of the IP address of the test computer. ■ Scan test laptop located on a private subnet from a public subnet: This test deter- mines the extent to which a public wireless user located on a public subnet can access devices that are on a private subnet. This scenario is applicable where a hacker is try- ing to compromise the security of users connecting to the protected side of the net- work. With the port scanner connected to the public subnet and the test computer connected to the private network, initiate a scan of all applicable TCP/UDP ports of the IP address of the test computer.
In addition to scanning a test computer, perform a scan of all devices that connect to the network, such as access points, controllers, switches, and application servers. In addition to wireless components, be certain to include devices that are not part of the wireless network, such as printers. If scanning all ports, you will probably need to limit the num- ber of devices (by IP address) or the scanned ports to a limited set. Otherwise, the scans may run for days. Be sure to hit the more vulnerable ports, such as port 80. Before run- ning the tests, talk to your local network security manager to decide which ports are most important to scan.
Acceptance/Verification Testing
In cases where an organization hires a contractor to implement the WLAN, it is impor- tant for the organization to conduct acceptance/verification testing to ensure that all technical system requirements are met and that the overall system is functioning effective- ly. The tests verify that the overall system has adequate signal coverage, performance, capacity, and security, and that management systems are in place and operating properly. Therefore, acceptance/verification testing includes the testing explained previously in this
Chapter 17: Testing a Wireless LAN 417
The main attributes of using simulation to verify the technologies are the following:
■ Results are only as accurate as the model; in many cases, you will need to estimate traffic flows and utilization. ■ After building the initial model, you can easily make changes and rerun tests. ■ Simulation does not require access to network hardware and software. ■ It does not require much geographical space, just the space for the hardware running the simulation software. ■ Simulation software is fairly expensive, making simulation not economically feasible for most one-time designs. ■ The people working with the simulation program will probably need training.
Consider using simulation for the following situations:
■ When developing a type of WLAN product that does not yet exist ■ When it is not feasible or possible to obtain applicable WLAN hardware and associ- ated software for testing purposes ■ When testing performance requirements based on predicted user activity (because it is often not practical to do this with physical prototyping) ■ When it is cost-effective to maintain a baseline model of a product or system to test changes to the baseline
Prototype Testing
A physical prototype is a part of the product or system you want to verify through con- struction and testing. It consists of the actual hardware and software you may eventually deploy. Prototyping generally takes place in a laboratory or testbed. The main attributes of physical prototyping are as follows:
■ Yields accurate (real) results because you are using the actual hardware and software, assuming you can include applicable user utilization loads ■ Relatively inexpensive as part of a system installation because you can obtain com- ponents under evaluation from vendors ■ Takes time to reconfigure the prototype to reflect changes in requirements ■ Requires access to network components, which can be a problem if you do not have easy access to vendors ■ Requires space to lay out the hardware and perform the testing
418 Designing and Deploying 802.11n Wireless Networks
Consider using physical prototyping for the following situations:
■ When initially testing the design of a new WLAN product before going into mass production ■ When testing the system design of a WLAN solution before vendor selection, espe- cially when the operating environment may have a high degree of signal impairment (such as multipath distortion and RF interference)
Typically, you do not need to physically prototype the entire system, especially those parts that other companies have implemented without encountering problems. Consider prototyping any solutions that have not been tested before, especially those elements dealing with performance and range.
Pilot Testing
Pilot testing involves installing a real version of the WLAN system that users actually operate. This testing enables the evaluation of realistic use and long-term performance issues. The results of this testing will also provide a blueprint for the installation of WLANs in other common facilities. The main attributes of pilot testing are as follows:
■ Yields the most accurate (real) results because you are using the actual hardware and software under realistic conditions. ■ Involves the purchase of applicable hardware and software ■ Depends on relatively firm requirements to minimize costly changes to the installed system ■ Requires a live facility to install and use the system
Consider using pilot testing for the following situations:
■ When testing the design of a new product before going into mass production ■ When testing the system design of a WLAN solution before installing the system
The implementation of a WLAN pilot test generally involves the installation of multiple access points to cover a significant portion of the overall intended coverage area. Before installing the pilot system, perform a wireless site survey to determine the number and location of access points (see Chapter 15). This data will provide a warning of issues that you might need to consider before installing WLANs at other facilities.
