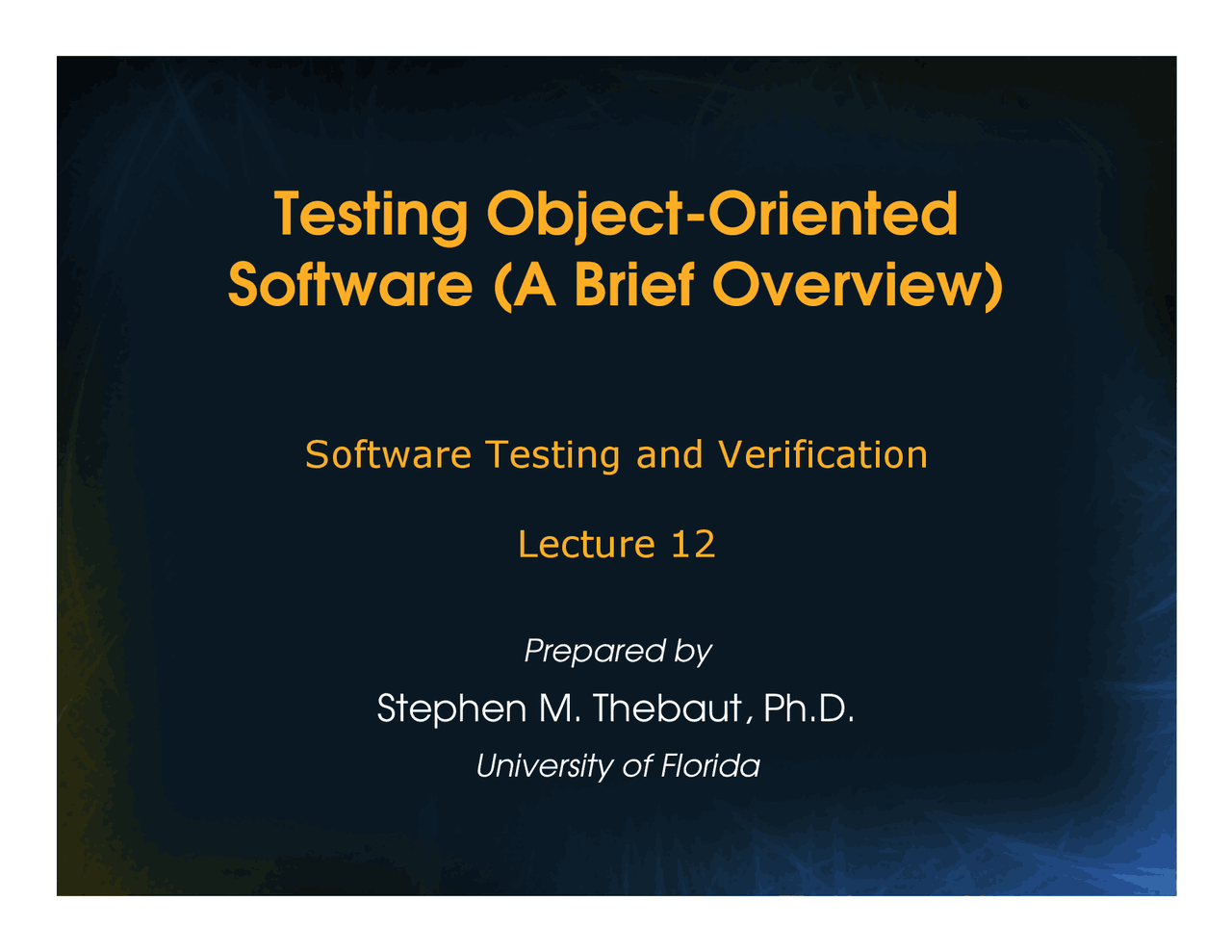

Testing Object-Oriented

Software (A Brief Overview)

Prepared by

Stephen M. Thebaut, Ph.D.

University of Florida

Software Testing and Verification

Lecture 12

Reference:

Software Test and Analysis: Process, Principles, and Techniques

, by Michal

Young and Mauro Pezze. Projectedpublication Spring 2007 by John Wiley& Sons.(Other sources are readily identifiablevia your favorite Internet searchengine.)

Similarities and Differences (cont’d) •

Such features include:^ –

the inherently

state dependent

behavior of methods,

• encapsulation

of methods and state,

• inheritance

, and

• polymorphism

and

run-time binding

of methods.

The impact of these features lessens astesting level increases, however.

Similarities and Differences (cont’d) •

We begin by briefly summarizing theissue(s) and testing related considerationsassociated with each of these features.

Next, we present simple models for unit(object class) and the initial instance ofintegration (inter-object class) testing.

Higher-level testing of object-orientedsystems is basically similar to that of othersystems, and is not considered further.

State Dependent Behavior ofMethods (cont’d) •

Thus, when testing object-orientedsoftware, techniques which assumestateless method behavior should beavoided.

How would one extend the input partitionand combinatorial test case designapproaches considered previously to dealwith state-dependent program behavior?

State Dependent Behavior ofMethods (cont’d) •

Ad-hoc adaptations of these approachesare straightforward when combined withstandard state machine models ofprogram behavior.

We discuss the use of such models whenconsidering object class testing.

Encapsulation of Methods and State(cont’d) • Special instrumentation may be required

to interpret the results of methods thatresult in hidden state changes, or toaccess methods that are themselvesprivate.

Inheritance •

Inheritance is an

abstraction mechanism

that allows object classes to bespecialized or extended from one ormore other object classes.

The resultant child object class

inherits

attributes and methods

from these

ancestor classes, changing some, andadding others.

Inheritance (cont’d) •

In general, testers must determine whennew tests must be designed, when oldtests can be re-run, and when re-testingcan be avoided all together.

Polymorphism and Dynamic Binding •

Many object-oriented languages allow variables types

and

method bindings

to

change dynamically.

For example, when the generic elementsof object class “list” are dynamicallybound to particular types, list operationssuch as “append(value)” will be boundto particular methods.

Object Class Testing •

“Unit testing” of object-oriented softwarenormally focuses on object classes asopposed to individual methods.

Methods often interact in altering objectstate, and their individual behavior can beobscured (due to encapsulation) whenconsidered in isolation.

Therefore, treating individual methods as“units” is usually not practical.

State Machine Models •

State machine models provide a useful meansfor describing object states and transitions.

States can be inferred from descriptions ofmethods that act differently or return differentresults depending on the state of the object.

Input partition and combinatorial test casedesign approaches may be applied on a state-by-state basis.

A Simple Example (cont’d)

Retract

• Remove the top element

from a stack and return the modifiedstack Is_Empty

• True if and only if there

are no elements on a stack

A Simple Example (cont’d)

With method signatures: New

Stack

Push (Stack, Elem)

Stack

Top (Stack)

Elem

Retract (Stack)

Stack

Is_Empty (Stack)

Boolean
