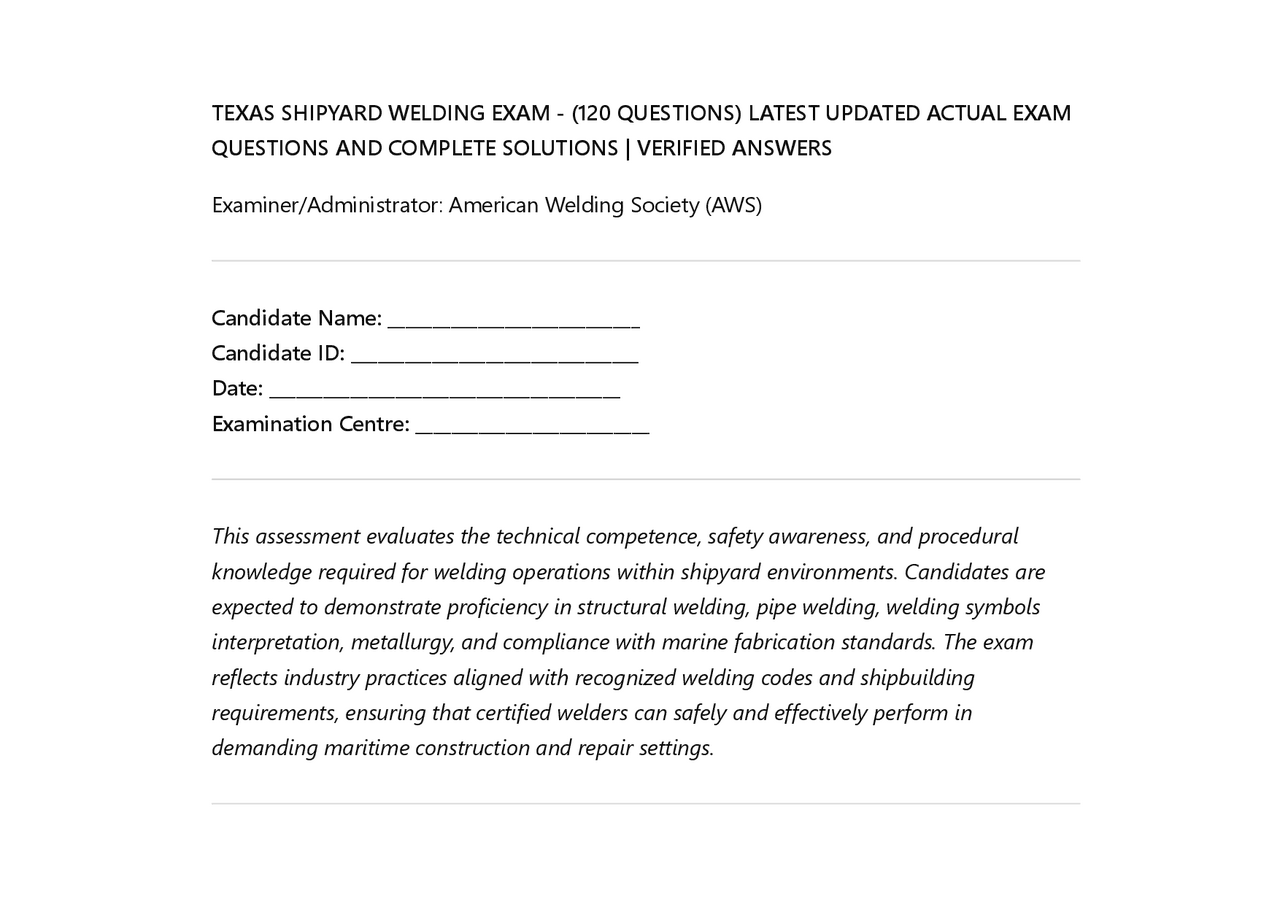

TEXAS SHIPYARD WELDING EXAM - (120 QUESTIONS) LATEST UPDATED ACTUAL EXAM
QUESTIONS AND COMPLETE SOLUTIONS | VERIFIED ANSWERS
Examiner/Administrator: American Welding Society (AWS)
Candidate Name: ____________________________ Candidate ID: ________________________________ Date: _______________________________________ Examination Centre: __________________________
This assessment evaluates the technical competence, safety awareness, and procedural knowledge required for welding operations within shipyard environments. Candidates are expected to demonstrate proficiency in structural welding, pipe welding, welding symbols interpretation, metallurgy, and compliance with marine fabrication standards. The exam reflects industry practices aligned with recognized welding codes and shipbuilding requirements, ensuring that certified welders can safely and effectively perform in demanding maritime construction and repair settings.
Core Competency Areas:
Welding Processes (SMAW, FCAW, GMAW, GTAW) Shipyard Structural Welding Techniques Welding Symbols and Blueprints Metallurgy and Heat Control Marine Safety Standards and Practices Inspection, Testing, and Defect Analysis
Candidate Instructions:
_- Total Questions: 120 (Answer the first 30 in this section)
- Time Allowed: 90 minutes
- Read each question carefully before selecting the best answer.
- Only one correct answer per question.
- Calculators are permitted; mobile devices are prohibited.
- Follow all safety and examination protocols._
⚠ DO NOT OPEN THIS BOOKLET UNTIL INSTRUCTED
C. Reduce welding speed D. Improve arc visibility
Correct Answer: 🔵 B. Shield molten metal from contamination Explanation: Flux generates shielding gases and slag to protect molten weld metal from atmospheric contamination. Option A is incorrect as flux does not primarily enhance conductivity. Option C is unrelated. Option D is incorrect because flux does not improve visibility; it may even obscure the weld pool.
Q3. A welder detects porosity in a weld bead on a ship’s structural frame. What is the most likely cause?
A. Excessive electrode diameter B. Contaminated base metal C. Low welding current D. Short arc length
Correct Answer: 🔵 B. Contaminated base metal Explanation: Porosity is typically caused by contaminants such as oil, rust, or moisture. Electrode size (A) is not a direct cause. Low current (C) may affect penetration but not primarily porosity. Short arc length (D) generally improves shielding rather than causing porosity.
Q4. Which welding position is most challenging in shipyard operations?
A. Flat B. Horizontal C. Vertical D. Overhead
Correct Answer: 🔵 D. Overhead Explanation: Overhead welding is the most difficult due to gravity acting against the weld pool, increasing the risk of defects. Flat (A) is easiest. Horizontal (B) and vertical (C) are intermediate in difficulty.
Q5. When interpreting a welding symbol, what does a triangle represent?
A. Spot weld B. Fillet weld C. Groove weld D. Plug weld
Correct Answer: 🔵 B. Fillet weld Explanation: A triangular symbol indicates a fillet weld. Spot welds (A) use a circle. Groove welds (C) use different groove shapes. Plug welds (D) are represented differently.
Q8. What defect is caused by insufficient fusion between weld metal and base metal?
A. Undercut B. Lack of fusion C. Porosity D. Slag inclusion
Correct Answer: 🔵 B. Lack of fusion Explanation: Lack of fusion occurs when weld metal does not properly bond. Undercut (A) is groove erosion. Porosity (C) involves gas pockets. Slag inclusion (D) involves trapped slag.
Q9. Which gas is commonly used in GMAW for shipyard steel welding?
A. Oxygen B. Argon-CO₂ mixture C. Nitrogen D. Hydrogen
Correct Answer: 🔵 B. Argon-CO₂ mixture Explanation: Argon-CO₂ provides stable arc and good penetration. Oxygen (A) is reactive. Nitrogen (C) causes brittleness. Hydrogen (D) leads to cracking.
Q10. What is the purpose of a root pass in pipe welding?
A. Improve surface finish B. Ensure penetration at joint base C. Reduce welding time D. Increase bead width
Correct Answer: 🔵 B. Ensure penetration at joint base Explanation: The root pass ensures proper penetration and joint integrity. Surface finish (A) is secondary. Time reduction (C) is not the goal. Bead width (D) is unrelated.
Q11. What is the main hazard of welding in confined ship compartments?
A. Excessive light B. Poor ventilation C. Low voltage D. High humidity
Correct Answer: 🔵 B. Poor ventilation Explanation: Confined spaces trap fumes and gases, posing serious health risks. Light (A) is not hazardous. Voltage (C) is unrelated. Humidity (D) is minor compared to ventilation risks.
Q14. What does undercut indicate?
A. Excess weld metal B. Groove melted into base metal C. Gas pockets D. Slag trapped
Correct Answer: 🔵 B. Groove melted into base metal Explanation: Undercut is a groove along the weld toe. Excess metal (A) is reinforcement. Gas pockets (C) are porosity. Slag (D) is inclusion.
Q15. Which welding process is best for thin ship panels?
A. SMAW B. GTAW C. FCAW D. SAW
Correct Answer: 🔵 B. GTAW Explanation: GTAW offers precise control and low heat input, ideal for thin materials. SMAW (A) and FCAW (C) are less precise. SAW (D) is for thick materials.
Q16. What is arc blow?
A. Arc instability due to magnetic fields B. Excessive heat input C. Gas contamination D. Electrode melting
Correct Answer: 🔵 A. Arc instability due to magnetic fields Explanation: Arc blow occurs due to magnetic interference. Heat (B), gas (C), and melting (D) are unrelated.
Q17. What inspection method uses sound waves?
A. Radiographic B. Ultrasonic C. Visual D. Magnetic particle
Correct Answer: 🔵 B. Ultrasonic Explanation: Ultrasonic testing uses sound waves. Radiographic (A) uses X-rays. Visual (C) uses sight. Magnetic (D) uses magnetic fields.
Q20. What does a welding procedure specification (WPS) define?
A. Worker salary B. Welding parameters C. Company policy D. Equipment cost
Correct Answer: 🔵 B. Welding parameters Explanation: WPS outlines voltage, current, materials, and techniques. Other options are unrelated.
Q21. What is a common cause of cracking in welds?
A. Low heat input B. Hydrogen presence C. High speed D. Clean surface
Correct Answer: 🔵 B. Hydrogen presence Explanation: Hydrogen causes delayed cracking. Other options are less significant contributors.
Q22. What PPE is essential for welding?
A. Safety glasses only B. Welding helmet C. Gloves only D. Boots only
Correct Answer: 🔵 B. Welding helmet Explanation: Helmet protects eyes and face. Other PPE are important but helmet is critical.
Q23. What is the function of tack welds?
A. Final weld B. Hold parts in position C. Improve strength D. Reduce heat
Correct Answer: 🔵 B. Hold parts in position Explanation: Tack welds align components. They are not final welds.
Q24. What is penetration in welding?
C. Improve color D. Reduce size
Correct Answer: 🔵 B. Relieve stresses Explanation: PWHT reduces residual stresses and improves properties.
Q27. What is a groove weld used for?
A. Thin sheets only B. Joining thick sections C. Decorative work D. Temporary joints
Correct Answer: 🔵 B. Joining thick sections Explanation: Groove welds are used for full penetration in thick materials.
Q28. What does a welder qualification test verify?
A. Salary level B. Skill competency C. Equipment type D. Work hours
Correct Answer: 🔵 B. Skill competency Explanation: Qualification ensures welder can perform required welds.
Q29. What is the main function of a welding electrode?
A. Provide filler metal B. Increase voltage C. Reduce heat D. Improve color
Correct Answer: 🔵 A. Provide filler metal Explanation: Electrodes supply filler material and conduct current.
Q30. What is the primary risk of welding fumes?
A. Eye irritation only B. Respiratory hazards C. Noise pollution D. Heat exposure
Correct Answer: 🔵 B. Respiratory hazards Explanation: Welding fumes contain harmful particles and gases affecting lungs. Other
A. Lap joint B. Butt joint C. Corner joint D. Edge joint
Correct Answer: 🔵 B. Butt joint Explanation: Butt joints are widely used in hull construction for joining plates edge-to- edge, providing strong, flush surfaces. Lap joints (A) are less common due to added weight. Corner (C) and edge (D) joints are used in limited applications.
Q33. What is the effect of excessive travel speed during welding?
A. Increased penetration B. Reduced penetration C. Increased slag formation D. Improved fusion
Correct Answer: 🔵 B. Reduced penetration Explanation: High travel speed reduces heat input, leading to shallow penetration. Option A is incorrect as penetration decreases. Option C is not directly caused by speed. Option D is incorrect because fusion quality worsens.
Q34. Which testing method is best for detecting internal weld defects in ship structures?
A. Visual inspection B. Dye penetrant testing C. Radiographic testing D. Hammer testing
Correct Answer: 🔵 C. Radiographic testing Explanation: Radiographic testing (X-ray) detects internal defects like voids and inclusions. Visual (A) and dye penetrant (B) are surface methods. Hammer testing (D) is not reliable for internal flaws.
Q35. What is the main purpose of interpass temperature control?
A. Improve weld color B. Maintain consistent metallurgical properties C. Increase welding speed D. Reduce arc length
Correct Answer: 🔵 B. Maintain consistent metallurgical properties Explanation: Controlling interpass temperature ensures uniform microstructure and prevents defects. Other options are unrelated to metallurgical consistency.
