Software Development December 2003

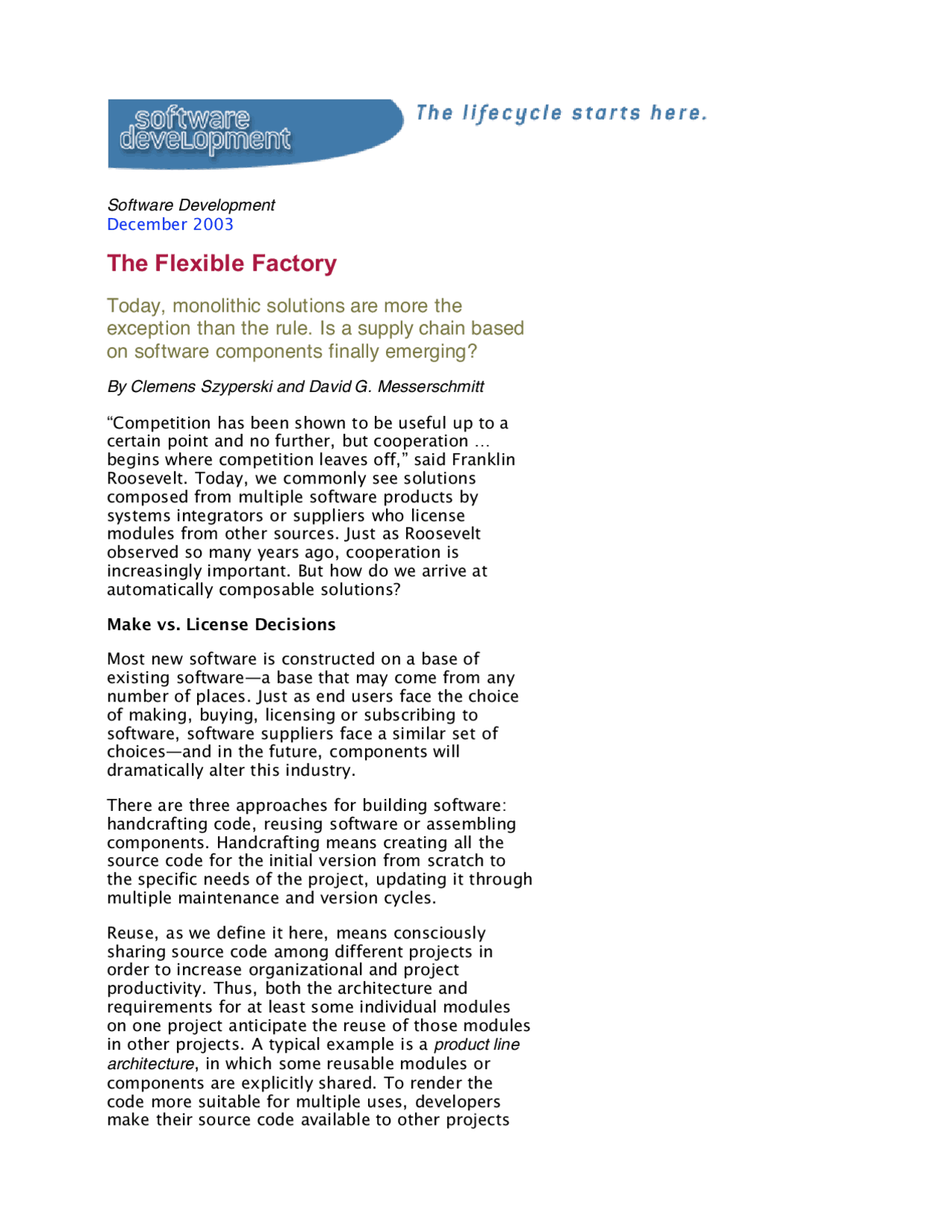

The Flexible Factory
Today, monolithic solutions are more the
exception than the rule. Is a supply chain based
on software components finally emerging?
By Clemens Szyperski and David G. Messerschmitt
“Competition has been shown to be useful up to a certain point and no further, but cooperation … begins where competition leaves off,” said Franklin Roosevelt. Today, we commonly see solutions composed from multiple software products by systems integrators or suppliers who license modules from other sources. Just as Roosevelt observed so many years ago, cooperation is increasingly important. But how do we arrive at automatically composable solutions?
Make vs. License Decisions
Most new software is constructed on a base of existing software—a base that may come from any number of places. Just as end users face the choice of making, buying, licensing or subscribing to software, software suppliers face a similar set of choices—and in the future, components will dramatically alter this industry.
There are three approaches for building software: handcrafting code, reusing software or assembling components. Handcrafting means creating all the source code for the initial version from scratch to the specific needs of the project, updating it through multiple maintenance and version cycles.
Reuse, as we define it here, means consciously sharing source code among different projects in order to increase organizational and project productivity. Thus, both the architecture and requirements for at least some individual modules on one project anticipate the reuse of those modules in other projects. A typical example is a product line architecture, in which some reusable modules or components are explicitly shared. To render the code more suitable for multiple uses, developers make their source code available to other projects
and allow modifications to that source code to fit any distinctive application needs. Because it’s uncommon to share source code outside an organization (except, of course, for open-source software), reuse normally occurs within one IT shop. A notable exception is contract custom development, where one firm contracts to another the creation of modules to specific requirements and maintains ownership of the source code.
Reused modules can be used in multiple contexts, even simultaneously. This is very different from the material world, where reuse carries connotations of recycling, and simultaneous uses of the same entity are generally impossible. The difference between handcrafted and reusable software is mostly one of chance or adequacy. If a particular module is highly specialized or complex, it probably won’t fit in elsewhere. Providing a rich set of configuration options that anticipate other contexts is one way to encourage reuse.
The third approach is component assembly. In this extreme, during the course of a project there is no need for implementing modules. Rather, you build the system by taking existing modules (called components), configuring and integrating them. These components can’t be modified, but are used “as is”; typically, they’re acquired from a supplier rather than another project within the same organization. To enhance its applicability to multiple projects without modification, each component typically has many built-in configuration options.
Although the software community has seen many technologies and methodologies aimed at increasing productivity and software quality, component software is the most promising approach. It creates a supply chain for software, in which one supplier assembles components acquired from other suppliers into its software products. Competition is shifted from the system level to the component level, resulting in improved quality-cost options.
It’s rare to find any of the three options used exclusively; most often, they’re combined. One organization may find that available components can partially meet the needs of a particular project, so it supplements them with handcrafted modules and modules reused from other projects.
What Is a Component?
Roughly speaking, a software component is a multi-use module: a module suitable for composition into multiple applications. The difference between software reuse and component
components to evolve the system.
Overcoming the Initial Costs
A component methodology demands discipline. Components are more costly to develop and maintain than handcrafted or reusable modules. One rule of thumb states that reusable software requires several times as much effort as similar handcrafted software, and components much more. As a corollary, a reusable module must be used in a few separate projects to break even; components even more.
If well executed, however, the compensatory benefits of components can be substantial. Maintaining and upgrading a single component implementation across many projects and organizations has obvious advantages. Upgrading the component to match the expanding needs of one user can benefit others. The concentrated maintenance on components that are widely deployed and tested can minimize defects and improve quality. Components also offer a promising route to more flexible systems that can evolve to match changing or expanding needs.
In purely economic terms (neglecting technical and organizational challenges), components are more promising than reuse as a way to increase software development productivity, and they will more likely be purchased from the outside. Project managers operate under strict budget and schedule constraints, and developing either reusable or multi-use modules (see sidebar) is likely to compromise those constraints. Rewards are very difficult to create within a given development organization. While companies have tried various ways of requiring or encouraging managers to consider reuse or multiple uses, they are rarely effective.
On the other hand, components are consistent with organizational separation. A separate economic entity looks to maximize its revenue and profits, and thus maximize the market potential of the software products that it develops. It thus has an economic incentive to seek the maximum number of uses, amortizing the extra development cost over increased sales. Where reuse allows the forking of different variations on a reused module to meet the specific needs of future projects, many of the economies of scale and quality advantages inherent in components are lost. It’s hardly surprising that software reuse has been disappointing in practice, while many hold out great hope for component software.
Another Industrial Revolution?
Software components are like standard reusable parts—and as such, they could spur an industrial revolution in software, shifting the emphasis from handcrafting to assembly. This is especially compelling as a way to reduce the time and cost of developing applications. It may even be feasible to enable end users to assemble their own applications. This revolution probably won’t be precipitous, but even so, it’s not an “all or nothing” situation since developed and acquired modules can be mixed.
There are important obstacles to an industrial revolution, however. The first is the flawed analogy between a software program and a material product. If a program were analogous to a material product or machine, it would consist of a predefined set of modules (parts of a machine) interacting to achieve a higher purpose. While software is indeed composed of a set of interacting modules, many aspects of the dynamic configuration of an application’s architecture are determined at the time of execution, not when the software is created. During execution, a large set of modules is created dynamically and opportunistically based on specific needs that can be identified only at that time.
For example, a word processor may create millions of modules at execution time tied to the specific content of the document being processed. For example, each individual drawing in a document, and indeed each individual element comprising that drawing (such as lines, circles and labels), is associated with a software module created specifically to manage that element. The implementers provide the set of available modules, and also specify a detailed plan by which modules are created dynamically at execution time and interact to achieve higher purposes.
Implementing a modern software program is analogous not to a static configuration of interacting parts, but rather to creating a plan for a very flexible factory in the industrial economy. At the time of execution, programs are universal factories that, by following specific plans, manufacture a wide variety of immaterial artifacts on demand and then compose them to achieve higher purposes. Therefore, in its manner of production, a program—the product of development—isn’t comparable to a hardware product, but is more like a factory for hardware components, and one that is highly flexible, at that. The supply of raw materials in such a factory corresponds to the reusable resources of IT: instruction cycles, storage capacity and
Component Architectures Where do frameworks, peer-to-peer networks and infrastructure fit in?
To assemble independently designed components, we must standardize their interactions, making them both interoperable (able to share data and participate in protocols) and complementary (their functionality complements one another, making the whole greater than the sum of the parts). The latter quality, being more context-specific, is trickier, but it can be addressed by domain-specific reference models and architectures. Reference architectures devise a standard way to divide and conquer a particular problem domain, predefining roles that contributing technologies can play. Components that cover such specified roles are then naturally complementary.
Explaining Frameworks
Reusability or multiple use can focus on two levels of design: architecture and individual modules. In software, a multi-use architecture is called a reference architecture, a multi-use architecture cast to use specific technology is called a framework and a multiple-use module is called a component. In all cases, the target of use is typically a narrowed range of applications, not all applications. One reason is that, in practice, both the architecture and the complementarity required for component composition demand some narrowing of application domain. In contrast, infrastructure software targets multiple-use opportunities for a wide range of applications.
Another—as yet unresolved—obstacle to an industrial software revolution is managing trust and risk. When software is assembled from components purchased from external suppliers, warranty and insurance models must mitigate the risk of exposure and liability. Traditional warranty, liability and insurance concepts must be redesigned to fit the peculiarities of software—an issue as important as the technical challenges.
Systemic Building Blocks
An interesting parallel to component software may be biological evolution, which can be modeled as a set of “integrative levels” (such as molecules, cells, organisms and families) in which self-contained entities at each level consist mainly of “innovative composition” of entities from the level below. Like new business relationships in an industrial economy, nature seems to evolve ever more complex entities in part by this innovative composition of existing entities. The optimistic view is that components may unleash a similar wave of innovation in software technology.
Bios: Clemens Szyperski is a software architect at Microsoft in Redmond, Wash., and a former associate professor at Queensland University of Technology in Australia. He is the author of the Jolt award-winning Component Software: Beyond Object-Oriented Programming (Addison-Wesley, 1997). He holds a Ph.D. in computer science from the Swiss Federal Institute of Technology (ETH) in Zurich.
David G. Messerschmitt is the interim dean of the School of Information Management and Systems at the University of California at Berkeley, where his research focuses on the impact of economics on software and telecommunications. He started his career at AT&T Bell Laboratories and is the recipient of the IEEE Alexander Graham Bell Medal. This article is abridged from Software Ecosystem: Understanding an Indispensable Technology and Industry (MIT Press, 2003). Reprinted with permission.
during the application evolution. A framework can be used to bundle all relevant component connections and partial configurations, hierarchically creating a coarser-grained module. A component may “plug into” multiple places in a component framework, if that component is relevant to multiple aspects of the system.
About Infrastructure
Components and infrastructure share some common elements. Like components, infrastructure (such as operating system, DBMS or middleware) is typically intended for multiple uses, licensed from another company, used as is and encapsulated. Infrastructure (as seen by the application developer and operator) is large-grained, while components are typically much smaller-grained. The primary distinction between components and infrastructure lies in composability. Infrastructure is designed to be extended by adding applications. This is a weak form of composability, because it requires that the infrastructure predate the applications, and the applications are developed specifically to match the capabilities of an existing infrastructure. Similarly, an application is typically designed for a specific infrastructure context, and thus lacks the non-context-specific property. Components, on the other hand, embody a strong form of composability in that the goal is to enable the composability of two (or more) components that are developed completely independently, neither with prior knowledge of the other. Achieving this, however, is a difficult technical challenge.
—C. Szyperski and D. Messerschmitt
