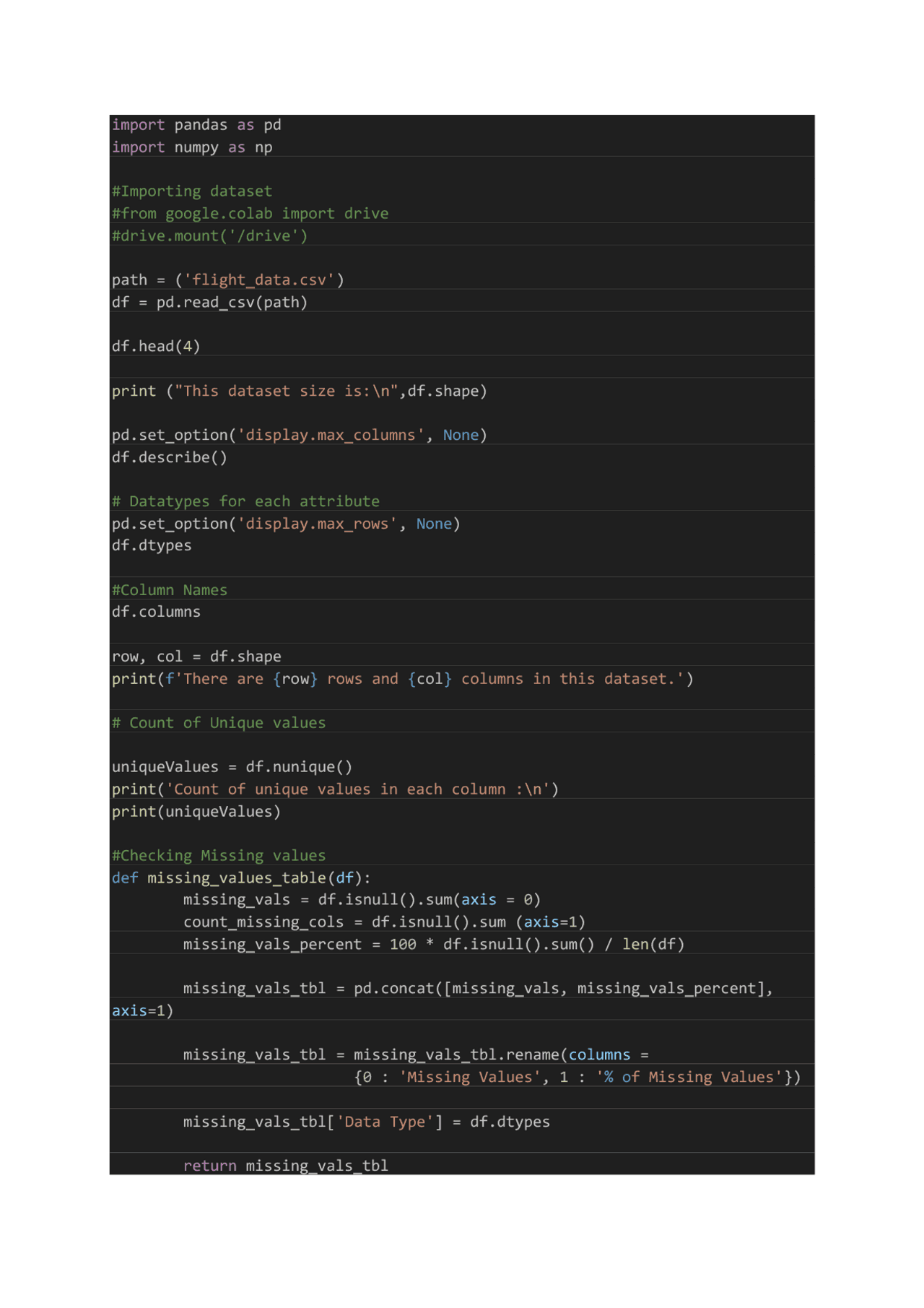

import pandas as pd import numpy as np #Importing dataset #from google.colab import drive #drive.mount('/drive') path = ('flight_data.csv') df = pd.read_csv(path) df.head( 4 ) print ("This dataset size is:\n",df.shape) pd.set_option('display.max_columns', None) df.describe()
Datatypes for each attribute
pd.set_option('display.max_rows', None) df.dtypes #Column Names df.columns row, col = df.shape print(f'There are {row} rows and {col} columns in this dataset.')
Count of Unique values
uniqueValues = df.nunique() print('Count of unique values in each column :\n') print(uniqueValues) #Checking Missing values def missing_values_table(df): missing_vals = df.isnull().sum(axis = 0 ) count_missing_cols = df.isnull().sum (axis= 1 ) missing_vals_percent = 100 * df.isnull().sum() / len(df) missing_vals_tbl = pd.concat([missing_vals, missing_vals_percent], axis= 1 ) missing_vals_tbl = missing_vals_tbl.rename(columns = { 0 : 'Missing Values', 1 : '% of Missing Values'}) missing_vals_tbl['Data Type'] = df.dtypes return missing_vals_tbl
pd.set_option('display.max_rows', None) missing_values_table(df) #target variable = DepDelayMinutes #dropping records of DepDelayMinutes that has '0' value bcus 0 means no delay DropRecords = df[df['DEP_DELAY_NEW'] == 0 ].index df.drop(DropRecords , inplace=True) print("Dataset size after dropping records with '0' values in DepDelayMinutes : \n\n") print(df.shape) flights = df.drop(["Unnamed: 42", "MONTH", "DAY_OF_MONTH", "DAY_OF_WEEK", "FL_DATE", "UNIQUE_CARRIER", "FL_NUM", "ORIGIN_AIRPORT_SEQ_ID", "ORIGIN_CITY_MARKET_ID", "ORIGIN", "ORIGIN_CITY_NAME", "ORIGIN_STATE_ABR", "ORIGIN_STATE_NM", "DEST_AIRPORT_SEQ_ID", "DEST_CITY_MARKET_ID", "DEST", "DEST_CITY_NAME", "DEST_STATE_ABR", "DEST_STATE_NM", "DEP_DELAY", "WHEELS_ON", "TAXI_IN", "CRS_ARR_TIME", "ARR_TIME", "ARR_DELAY", "ARR_DELAY_NEW", "CRS_ELAPSED_TIME", "ACTUAL_ELAPSED_TIME", "FLIGHTS", "FIRST_DEP_TIME"], axis = 1 ) #his is the final dataset size after dropping unwanted rows and columns print ("The dataset size AFTER dropping unneccessary columns is :-\n ")
x = flights.drop(['DEP_DELAY_NEW'], axis= 1 ) y = flights.DEP_DELAY_NEW from sklearn import model_selection from sklearn.model_selection import train_test_split #Split data into train and test x_train, x_test, y_train, y_test = train_test_split(x,y, test_size = 0.30, random_state = 42 ) print(x_train.shape) print(x_test.shape) print(y_train.shape) print(y_test.shape) print('The size of X_train dataset:\n',x_train.shape) print('\n') print('The size of X_test dataset:\n',x_test.shape) """# CNN Base Model""" import pandas as pd import numpy as np from sklearn.model_selection import train_test_split import matplotlib.pyplot as plt plt.rcParams['figure.figsize']=(5.0,5.0) #!pip install keras !pip install tensorflow from keras.models import Sequential import keras from keras.layers import Dense,Flatten, Conv1D import tensorflow as tf #Base Model model6 =Sequential() model6.add(Conv1D( 32 ,( 3 ),input_shape=( 12 , 1 ),activation ='relu')) model6.add(Flatten()) model6.add(Dense( 64 ,activation='relu')) model6.add(Dense( 1 ,activation='linear')) model6.compile(loss='mse',optimizer='adam',metrics=['mse']) callback = tf.keras.callbacks.EarlyStopping(monitor='loss', patience = 3 ) history6 = model6.fit(x_train, y_train, batch_size = 16 , epochs= 10 , callbacks=[callback], verbose= 1 ,validation_data=(x_test,y_test)) #Model Tuning 1
model1 =Sequential() model1.add(Conv1D( 64 ,( 3 ),input_shape=( 12 , 1 ),activation ='relu')) model1.add(Flatten()) model1.add(Dense( 64 ,activation='relu')) model1.add(Dense( 1 ,activation='linear')) model1.compile(loss='mse',optimizer='adam',metrics=['mse']) history1 = model1.fit(x_train, y_train, batch_size = 16 , epochs= 100 , callbacks=[callback], verbose= 1 ,validation_data=(x_test,y_test)) #Model Tuning 2 model2 =Sequential() model2.add(Conv1D( 128 ,( 3 ),input_shape=( 12 , 1 ),activation ='relu')) model2.add(Flatten()) model2.add(Dense( 64 ,activation='relu')) model2.add(Dense( 1 ,activation='linear')) model2.compile(loss='mse',optimizer='adam',metrics=['mse']) history2 = model2.fit(x_train, y_train, batch_size = 16 , epochs= 100 , callbacks=[callback], verbose= 1 ,validation_data=(x_test,y_test)) #Model Tuning 3 model3 =Sequential() model3.add(Conv1D( 64 ,( 3 ),input_shape=( 12 , 1 ),activation ='relu')) model3.add(Flatten()) model3.add(Dense( 64 ,activation='relu')) model3.add(Dense( 32 ,activation='relu')) model3.add(Dense( 1 ,activation='linear')) model3.compile(loss='mse',optimizer='adam',metrics=['mse']) history3 = model3.fit(x_train, y_train, batch_size = 16 , epochs= 100 , callbacks=[callback], verbose= 1 ,validation_data=(x_test,y_test)) #Model Tuning 4 model4 =Sequential() model4.add(Conv1D( 16 ,( 3 ),input_shape=( 12 , 1 ),activation ='relu')) model4.add(Flatten()) model4.add(Dense( 64 ,activation='relu')) model4.add(Dense( 1 ,activation='linear')) model4.compile(loss='mse',optimizer='adam',metrics=['mse']) history4 = model4.fit(x_train, y_train, batch_size = 16 , epochs= 100 , callbacks=[callback], verbose= 1 ,validation_data=(x_test,y_test))
plt.legend() plt.figure() plt.plot(epochs, loss2, 'b', label="Train loss") plt.plot(epochs, val_loss2, 'r', label='Test loss') plt.legend() plt.show() #GRAPH 3 - Model Tuning 3 import matplotlib.pyplot as plt mse3=history3.history['mse'] val_mse3=history3.history['val_mse'] loss3=history3.history['loss'] val_loss3=history3.history['val_loss'] epochs = range( 1 , len(mse3)+ 1 ) plt.plot(epochs, mse3, 'b', label="Train MSE") plt.plot(epochs, val_mse3, 'r', label='Test MSE') plt.legend() plt.figure() plt.plot(epochs, loss3, 'b', label="Train loss") plt.plot(epochs, val_loss3, 'r', label='Test loss') plt.legend() plt.show() #GRAPH 4 - Model Tuning 4 import matplotlib.pyplot as plt mse4=history4.history['mse'] val_mse4=history4.history['val_mse'] loss4=history4.history['loss'] val_loss4=history4.history['val_loss'] epochs = range( 1 , len(mse4)+ 1 ) plt.plot(epochs, mse4, 'b', label="Train MSE") plt.plot(epochs, val_mse4, 'r', label='Test MSE') plt.legend() plt.figure() plt.plot(epochs, loss4, 'b', label="Train loss") plt.plot(epochs, val_loss4, 'r', label='Test loss') plt.legend() plt.show()
