Astro 150: Stars, Galaxies and Cosmology - Lecture 1 - Prof. Steven Kawaler, Study notes of Astronomy

The first lecture of the astro 150 course at iowa state university, focusing on stars, galaxies, and cosmology. It covers the size and distance scales of the universe, the solar system, and the formation of galaxies and the big bang. The document also includes a scale model of solar system distances and a timeline of significant astronomical events.

Typology: Study notes

Pre 2010

Uploaded on 09/02/2009

koofers-user-crv
koofers-user-crv 🇺🇸

10 documents

1 / 5

Toggle sidebar

This page cannot be seen from the preview

Don't miss anything!

bg1

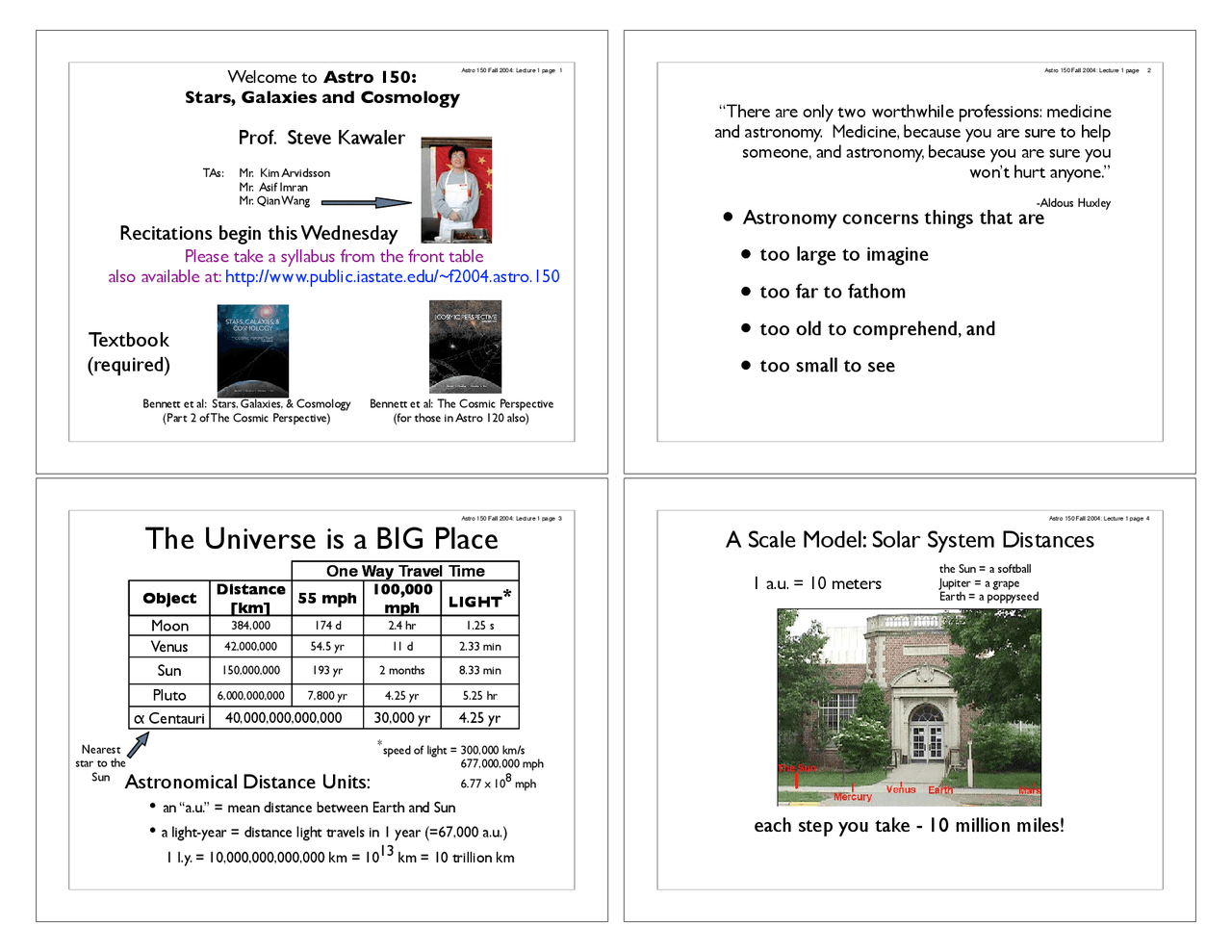

Astro 150 Fall 2004: Lecture 1 page 1
Welcome to Astro 150:
Stars, Galaxies and Cosmology
Prof. Steve Kawaler
TAs: Mr. Kim Arvidsson
Mr. Asif Imran
Mr. Qian Wang
Recitations begin this Wednesday
Please take a syllabus from the front table
also available at: http://www.public.iastate.edu/~f2004.astro.150
Textbook
(required)
Bennett et al: Stars, Galaxies, & Cosmology
(Part 2 of The Cosmic Perspective)
Bennett et al: The Cosmic Perspective
(for those in Astro 120 also)
2
Astro 150 Fall 2004: Lecture 1 page
Astronomy concerns things that are
too large to imagine
too far to fathom
too old to comprehend, and
too small to see
“There are only two worthwhile professions: medicine
and astronomy. Medicine, because you are sure to help
someone, and astronomy, because you are sure you
won’t hurt anyone.
-Aldous Huxley
Astro 150 Fall 2004: Lecture 1 page 3
Astronomical Distance Units:
an “a.u.” = mean distance between Earth and Sun
a light-year = distance light travels in 1 year (=67,000 a.u.)
1 l.y. = 10,000,000,000,000 km = 1013 km = 10 trillion km
The Universe is a BIG Place
Nearest
star to the
Sun
One Way Travel Time
Object
Distance
[km]
55 mph
100,000
mph
LIGHT*
Moon
384,000
174 d
2.4 hr
1.25 s
Venus
42,000,000
54.5 yr
11 d
2.33 min
Sun
150,000,000
193 yr
2 months
8.33 min
Pluto
6,000,000,000
7,800 yr
4.25 yr
5.25 hr
! Centauri
30,000 yr
4.25 yr
*speed of light = 300,000 km/s
677,000,000 mph
6.77 x 108 mph
One Way Travel Time
Object
Distance
[km]
55 mph
100,000
mph
LIGHT*
Astro 150 Fall 2004: Lecture 1 page 4
A Scale Model: Solar System Distances
1 a.u. = 10 meters
the Sun = a softball
Jupiter = a grape
Earth = a poppyseed
each step you take - 10 million miles!
pf3
pf4
pf5

Partial preview of the text

Download Astro 150: Stars, Galaxies and Cosmology - Lecture 1 - Prof. Steven Kawaler and more Study notes Astronomy in PDF only on Docsity!

Welcome to Astro 150:

Stars, Galaxies and Cosmology

Prof. Steve Kawaler

TAs: Mr. Kim Arvidsson

Mr. Asif Imran

Mr. Qian Wang

Recitations begin this Wednesday

Please take a syllabus from the front table

also available at: http://www.public.iastate.edu/~f2004.astro.

Textbook

(required)

Bennett et al: Stars, Galaxies, & Cosmology

(Part 2 of The Cosmic Perspective)

Bennett et al: The Cosmic Perspective

(for those in Astro 120 also)

Astronomy concerns things that are

too large to imagine

too far to fathom

too old to comprehend, and

too small to see

“There are only two worthwhile professions: medicine

and astronomy. Medicine, because you are sure to help

someone, and astronomy, because you are sure you

won’t hurt anyone.”

-Aldous Huxley

Astro 150 Fall 2004: Lecture 1 page 3

Astronomical Distance Units:

• an “a.u.” = mean distance between Earth and Sun

• a light-year = distance light travels in 1 year (=67,000 a.u.)

1 l.y. = 10,000,000,000,000 km = 10

km = 10 trillion km

The Universe is a BIG Place

Nearest

star to the

Sun

One Way Travel Time

Object

Distance

[km]

55 mph

mph

LIGHT

Moon 384,000^ 174 d^ 2.4 hr^ 1.25 s

Venus 42,000,000^ 54.5 yr^ 11 d^ 2.33 min

Sun 150,000,000^ 193 yr^ 2 months^ 8.33 min

Pluto 6,000,000,000 7,800 yr 4.25 yr 5.25 hr

! Centauri 40,000,000,000,000 30,000 yr 4.25 yr

speed of light = 300,000 km/s

677,000,000 mph

6.77 x 10

mph

One Way Travel Time

Object

Distance

[km]

55 mph

mph

LIGHT

Astro 150 Fall 2004: Lecture 1 page 4

A Scale Model: Solar System Distances

1 a.u. = 10 meters

the Sun = a softball

Jupiter = a grape

Earth = a poppyseed

each step you take - 10 million miles!

The Rest of our Solar System

The Sun is one of ~100 billion stars in the

Milky Way Galaxy

- Nearest similar galaxy: M31 (Andromeda)

2,000,000 ly

100,000 ly 1000 ly

- Most distant galaxies known: 13 billion ly away!

•There are as many galaxies in the Universe

as stars in our Galaxy!

Astro 150 Fall 2004: Lecture 1 page 7 Astro 150 Fall 2004: Lecture 1 page 8

The Universe is now expanding,

following a Big Bang

**- Age of the Sun: 4.5 billion years

  • Age of the Universe: ~13.6 billion years**
  • Astro 150 Fall 2004: Lecture 1 page 15 Astro 150 Fall 2004: Lecture 1 page

Some Other Solar Systems (over 100 known) A Scale Model of Time

From:The Evolution of Life, by Frank H.T. Rhodes

Event Date Time Years ago

Big Bang Jan. 1 12:00:00 AM 13,600,000,000 yr

Galaxies form Jan. 24 12:00:00 AM 12,000,000,000 yr

Sun forms Sept. 13 noon 4,500,000,000 yr

Earth forms Sept. 13 12:17 PM 4,470,000,000 yr

1st life appears Oct. 24 8:48 PM 2,800,000,000 yr

1st higher forms Dec. 19 3:07 AM 570,000,000 yr

1st land animals Dec. 25 4:29 AM 280,000,000 yr

1st dinosaurs Dec. 26 12:36 PM 225,000,000 yr

DINOs RULE Dec. 28 4:34 PM 136,000,000 yr

DINOs DIE Dec. 29 10:02 PM 65,000,000 yr

Earliest “human” Dec. 31 9:05 PM 5,000,000 yr

Neanderthal - C.M. Dec. 31 11:50 PM 300,000 yr

Last Ice Age Dec. 31 11:59:37 PM 11,000 yr

Pyramids Dec. 31 11:59:53 PM 3,500 yr

USA Dec. 31 11:59:59.6 PM 227 yr

YOU Dec. 31 11:59:59.96 PM 20 yr
