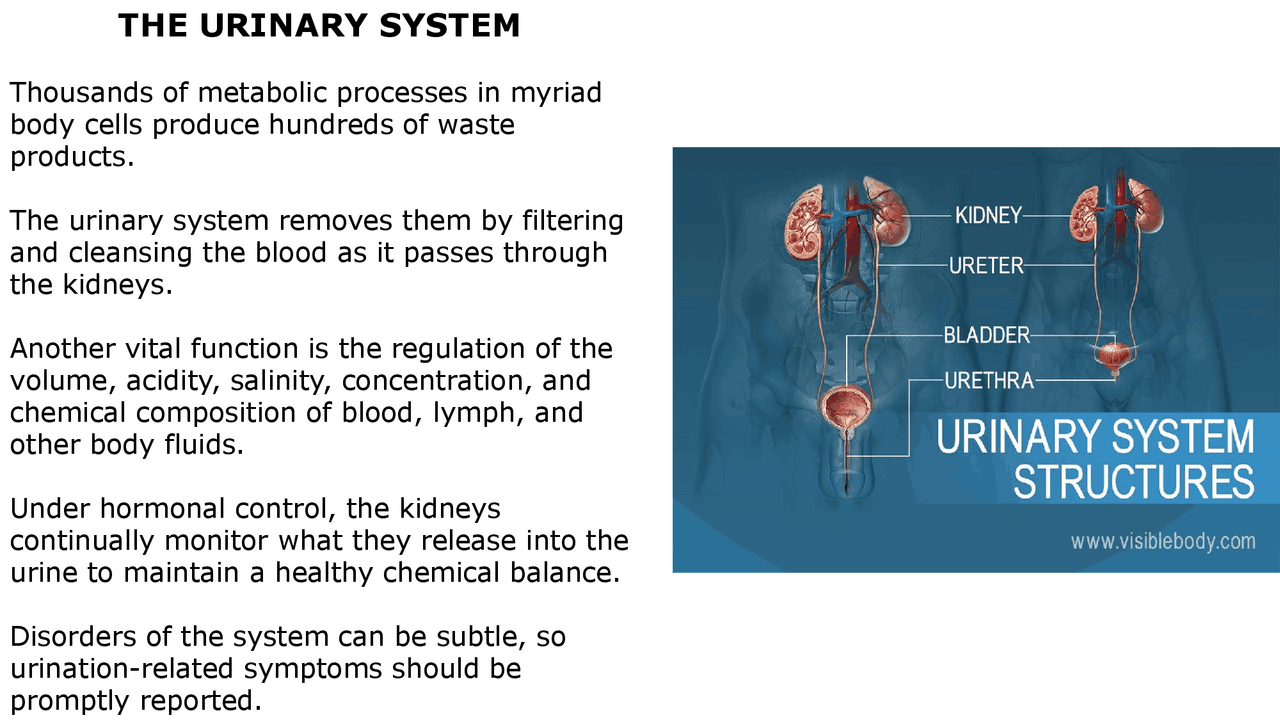

THE URINARY SYSTEM
Thousands of metabolic processes in myriad body cells produce hundreds of waste products.
The urinary system removes them by filtering and cleansing the blood as it passes through the kidneys.
Another vital function is the regulation of the volume, acidity, salinity, concentration, and chemical composition of blood, lymph, and other body fluids.
Under hormonal control, the kidneys continually monitor what they release into the urine to maintain a healthy chemical balance.
Disorders of the system can be subtle, so urination-related symptoms should be promptly reported.
The urinary system is composed of a pair of kidneys, a pair of ureters, a bladder, and a urethra.
These components together carry out the urinary system’s function of regulating the volume and composition of body fluids, removing waste products from the blood, and expelling the waste and excess water from the body in the form of urine.
The two kidneys are reddish organs resembling beans in shape that are situated on either side of the abdomen just above the waist and towards the back of the body.
The kidneys contain microscopic filtering units that remove waste, unwanted minerals, and excess water from the blood as urine.
Each kidney is connected to the bladder by a long tube called a ureter, which transports urine away.
THE KIDNEYS
The kidneys sit at the back of the abdominal wall and at the start of the urinary system.
These organs are constantly at work:
Nephrons, tiny structures in the renal pyramids, filter gallons of blood each day.
The kidneys reabsorb vital substances, remove unwanted ones, and return the filtered blood back to the body.
As if they weren’t busy enough, the kidneys also create urine to remove all the waste.
Kidney cross section
This cutaway shows the kidney’s main layers, the cortex and the medulla, which form segments known as renal pyramids.
The renal artery and vein circulate huge amounts of blood – about 2 1/2 pints/min at rest, which is up to one-quarter of the heart’s total output.
Blood enters the kidneys through renal arteries.
These arteries branch into tiny capillaries that interact with urinary structures inside the kidneys (namely the nephrons).
Here the blood is filtered.
Waste is removed and vital substances are reabsorbed back into the bloodstream.
The filtered blood leaves through the renal veins.
All the blood in the body moves in and out of the kidneys hundreds of times each day—that’s about 200 quarts of liquid to be filtered every 24 hours.
Each kidney contains over 1 million tiny structures called nephrons.
The nephrons are located partly in the cortex and partly inside the renal pyramids, where the nephron tubules make up most of the pyramid mass.
Nephrons perform the primary function of the kidneys: regulating the concentration of water and other substances in the body.
They filter the blood, reabsorb what the body needs, and excrete the rest as urine.
Each nephron has a glomerulus, the site of blood filtration.
The glomerulus is a network of capillaries surrounded by a cuplike structure, the glomerular capsule (or Bowman’s capsule).
As blood flows through the glomerulus, blood pressure pushes water and solutes from the capillaries into the capsule through a filtration membrane.
This glomerular filtration begins the urine formation process.
The nephrons of the kidneys process blood and create urine through a process of filtration, reabsorption, and secretion.
Urine is about 95% water and 5% waste products.
Nitrogenous wastes excreted in urine include urea, creatinine, ammonia, and uric acid.
Ions such as sodium, potassium, hydrogen, and calcium are also excreted.
The internal urethral sphincter and the external urethral sphincter both provide muscle control for the flow of urine.
The internal sphincter is involuntary.
It surrounds the opening of the bladder to the urethra and relaxes to allow urine to pass.
The external sphincter is voluntary.
It surrounds the urethra outside the bladder and must be relaxed for urination to occur.
Smooth muscle stretch initiates the micturition reflex by activating stretch receptors in the bladder wall.
This autonomic reflex causes the detrusor muscle to contract and the internal urethral sphincter muscle to relax, allowing urine to flow into the urethra.
The stretch receptors also send a message to the thalamus and the cerebral cortex, giving voluntary control over the external urethral sphincter.
We usually gain this control of urination between the ages of 2 and 3, as our brains develop.
Of the potential 3D printed organs for transplant, a 3D printed kidney is one of the most difficult. That’s because of the complexity of the organ’s structure, which is necessary for its function.
In 2016, Jennifer Lewis’ lab at Harvard developed a novel printing method that uses ‘inks’ consisting of kidney cells and surrounding material. This ink ends has the consistency of toothpaste and can be extruded at room temperature, allowing them to make complex tissue structures.
Thanks to this novel ink, the research group has been able to recreate part of the nephron, the functional unit of the kidney. The nephron is responsible for filtering the blood and reabsorbing all of the useful components and excreting out the rest. With this achievement, the field of 3D printed organs for transplant is a lot closer now to creating a functional kidney.
After more than a decade, a 3D bio-printed bladder, created by Dr. Anthony Atala at Boston Children’s Hospital, is sustaining the live of a patient.
The 3D bioprinted organ was made to replace patient Luke Massella’s defective bladder in 2004. Since then, Massella has not required any further surgery.
The bladder was made using a sample of Massella’ bladder tissue, and modified inkjet printer, presumably used to build a sort of scaffold/host for the cells.
Incubated in lab condition, the new bladder was grown in 2 months, and then successfully transplanted into the patient.
Massella is 1 of 10 people with a bioprinted bladder grown from his own cells.
According to Dr. Atala, flat structures like skin are easiest to print, whereas tubular structures like blood vessels and hollow non-tubular organs like bladders are more complex.
