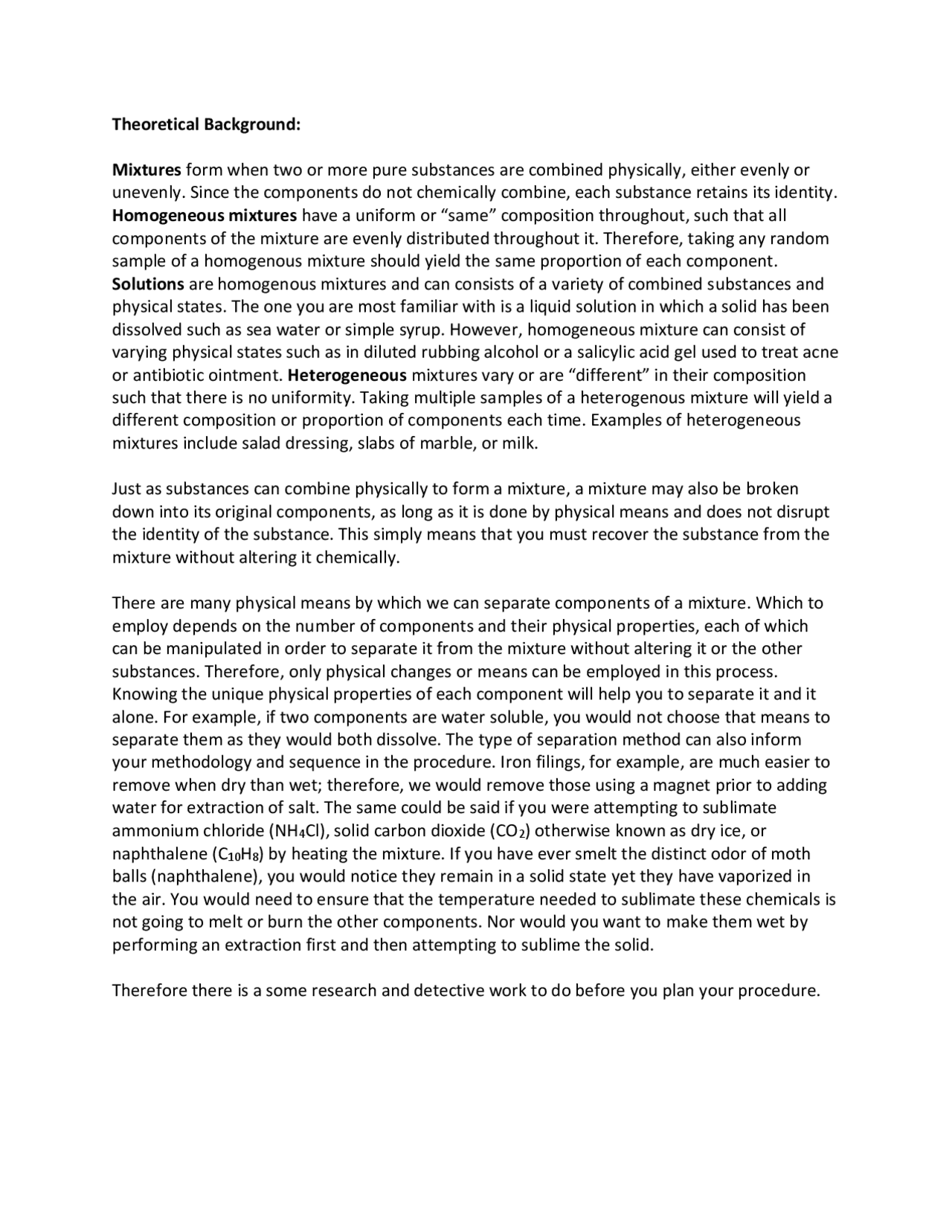

Theoretical Background: Mixtures form when two or more pure substances are combined physically, either evenly or unevenly. Since the components do not chemically combine, each substance retains its identity. Homogeneous mixtures have a uniform or โsameโ composition throughout, such that all components of the mixture are evenly distributed throughout it. Therefore, taking any random sample of a homogenous mixture should yield the same proportion of each component. Solutions are homogenous mixtures and can consists of a variety of combined substances and physical states. The one you are most familiar with is a liquid solution in which a solid has been dissolved such as sea water or simple syrup. However, homogeneous mixture can consist of varying physical states such as in diluted rubbing alcohol or a salicylic acid gel used to treat acne or antibiotic ointment. Heterogeneous mixtures vary or are โdifferentโ in their composition such that there is no uniformity. Taking multiple samples of a heterogenous mixture will yield a different composition or proportion of components each time. Examples of heterogeneous mixtures include salad dressing, slabs of marble, or milk. Just as substances can combine physically to form a mixture, a mixture may also be broken down into its original components, as long as it is done by physical means and does not disrupt the identity of the substance. This simply means that you must recover the substance from the mixture without altering it chemically. There are many physical means by which we can separate components of a mixture. Which to employ depends on the number of components and their physical properties, each of which can be manipulated in order to separate it from the mixture without altering it or the other substances. Therefore, only physical changes or means can be employed in this process. Knowing the unique physical properties of each component will help you to separate it and it alone. For example, if two components are water soluble, you would not choose that means to separate them as they would both dissolve. The type of separation method can also inform your methodology and sequence in the procedure. Iron filings, for example, are much easier to remove when dry than wet; therefore, we would remove those using a magnet prior to adding water for extraction of salt. The same could be said if you were attempting to sublimate ammonium chloride (NH 4 Cl), solid carbon dioxide (CO 2 ) otherwise known as dry ice, or naphthalene (C 10 H 8 ) by heating the mixture. If you have ever smelt the distinct odor of moth balls (naphthalene), you would notice they remain in a solid state yet they have vaporized in the air. You would need to ensure that the temperature needed to sublimate these chemicals is not going to melt or burn the other components. Nor would you want to make them wet by performing an extraction first and then attempting to sublime the solid. Therefore there is a some research and detective work to do before you plan your procedure.
The following are means of physical separation that are most commonly encountered, including ones you will see in this lab. They utilize physical properties such as melting or boiling point, solubility, particle size, density, and magnetism. Sublimation: heating a solid substance to convert it to a gaseous physical state, bypassing the liquid phase altogether. This may be a unique characteristic for some solids as others would require melting prior to vaporizing into a gas. Extraction: separating a solid or liquid from a mixture by adding a solvent in which the substance is soluble (and other components are not) and then removing that extracted solution by either decantation or a separatory funnel. Solubility is key factor in the extraction process. Filtration: means of separating a solid from a liquid by pouring off the liquid portion into a filter or filter paper, that will allow the liquid to permeate through the filter for collection in another vessel, but not the solid, thus preserving the solid component. This means utilizes particle size for separation. Decantation: the careful pouring off of a liquid from a solid such that the liquid is recovered in another vessel and the solid remains undisturbed in the original container. The solid is typically more dense and thus settles to the bottom of the container, which then permits the decantation. Thus, density (and a steady hand) is key to decantation. In future lab courses, you may also learn about distillation, chromatography, condensation, crystallization, or centrifugation. Once a mixture is separated into its individual components, the percentage composition of each component in the mixture may be calculated as follows: ๐๐๐ ๐ ๐๐ ๐๐๐๐๐๐๐๐๐ก "๐ด" ๐๐๐ ๐ ๐๐ ๐๐๐๐๐๐๐๐ ๐๐๐ฅ๐ก๐ข๐๐
Recall the percentage is simple a ratio (x100) of โpartโ to โwhole.โ Ideally, you will recover the entire mass or 100% of the sample. However, in experimental settings, it is sometimes difficult to do so due to loss of sample through splattering during heating, or spills during decantation and so on. Additionally, user error such as not waiting until the evaporating dish cooling to room temperature before weighing, which will result erroneously in a lower mass, differences in digital scale calibration, or inconsistency how measurements were taken can all contribute to less than 100% recovery. On the contrary, you may find that you have more than 100%. This, too, must have occurred in error since we cannot recover more than the amount with which we started. The Law of Conservation of Matter states that matter cannot be created or destroyed. Thus, we cannot simply have more mixture than that in the original sample. Not drying your sample completely
The mixture in this lab will contain iron (Fe) filings, salt (NaCl) and sand (SiO 2 ). The following flow chart illustrates the sequence of steps used to separate the mixture into the three components. 2 (^2) โAbdampfschalen verschiedene Groessenโ by Simon A. Eugster, CC BY-SA 3. , via Wikimedia Commons
Use magnet to remove Fe
pour off into NEW evaporating dish
remains in current evaporating dish
Add H 2 O to dissolve Salt
