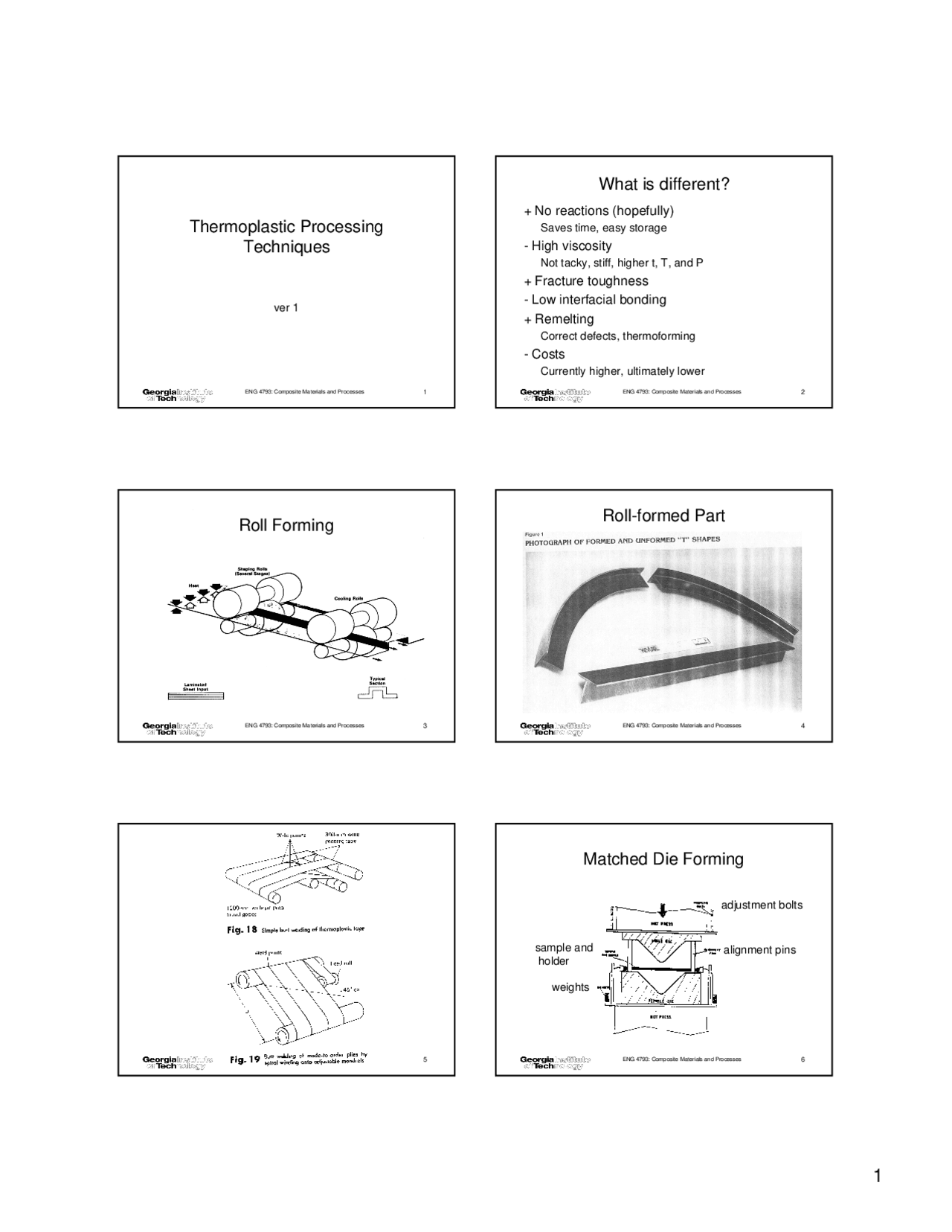

ENG 4793: Composite Materials and Processes (^1)

Thermoplastic Processing

Techniques

ver 1

ENG 4793: Composite Materials and Processes (^2)

What is different?

  • No reactions (hopefully)

Saves time, easy storage

  • High viscosity

Not tacky, stiff, higher t, T, and P

  • Fracture toughness
  • Low interfacial bonding
  • Remelting

Correct defects, thermoforming

  • Costs

Currently higher, ultimately lower

ENG 4793: Composite Materials and Processes 3

Roll Forming

ENG 4793: Composite Materials and Processes 4

Roll-formed Part

ENG 4793: Composite Materials and Processes 5 ENG 4793: Composite Materials and Processes (^6)

Matched Die Forming

sample and

holder

alignment pins

adjustment bolts

weights

ENG 4793: Composite Materials and Processes (^7)

Matched Die Formed Part Defects

ENG 4793: Composite Materials and Processes (^8)

Press Forming of LDF

(long discontinuous fibers)

Formed component

after trimming

Clamp and

Heat material Transfer intoheated dies thermoform

ENG 4793: Composite Materials and Processes 9

Compression Molding

ENG 4793: Composite Materials and Processes 10

Compression Molding Sequence

ENG 4793: Composite Materials and Processes (^11)

Hood Cost vs. Production Volume

ENG 4793: Composite Materials and Processes (^12)

Hydroforming

ENG 4793: Composite Materials and Processes (^19)

Stretch Forming Sequence

ENG 4793: Composite Materials and Processes (^20)

Fiber Position

in Stretch

Formed Part

ENG 4793: Composite Materials and Processes 21

Tape Laying

ENG 4793: Composite Materials and Processes 22 ENG 4793: Composite Materials and Processes (^23)

Thermoplastics Processing Comparison

ENG 4793: Composite Materials and Processes (^24)

Thermoplastics vs. Thermosets

Processing Comparison

Process Comments
Prepreg Harder (melt, commingle, powder)
Manual Lay-up Need heat and pressure
Spray-up not done
Vacuum bag Less material, higher temperature (T)
Autoclave More T and P, less time (t)
Matched Die More T and P, less time (t)
RTM not commercial
Pultrusion More T and P, should be faster
Filament Winding More T and P, currently slower
  • ENG 4793: Composite Materials and Processes
