Time Constant Response, Lecture notes of Electronic Circuits Analysis

Oklahoma State University (OSU) - StillwaterElectronic Circuits Analysis

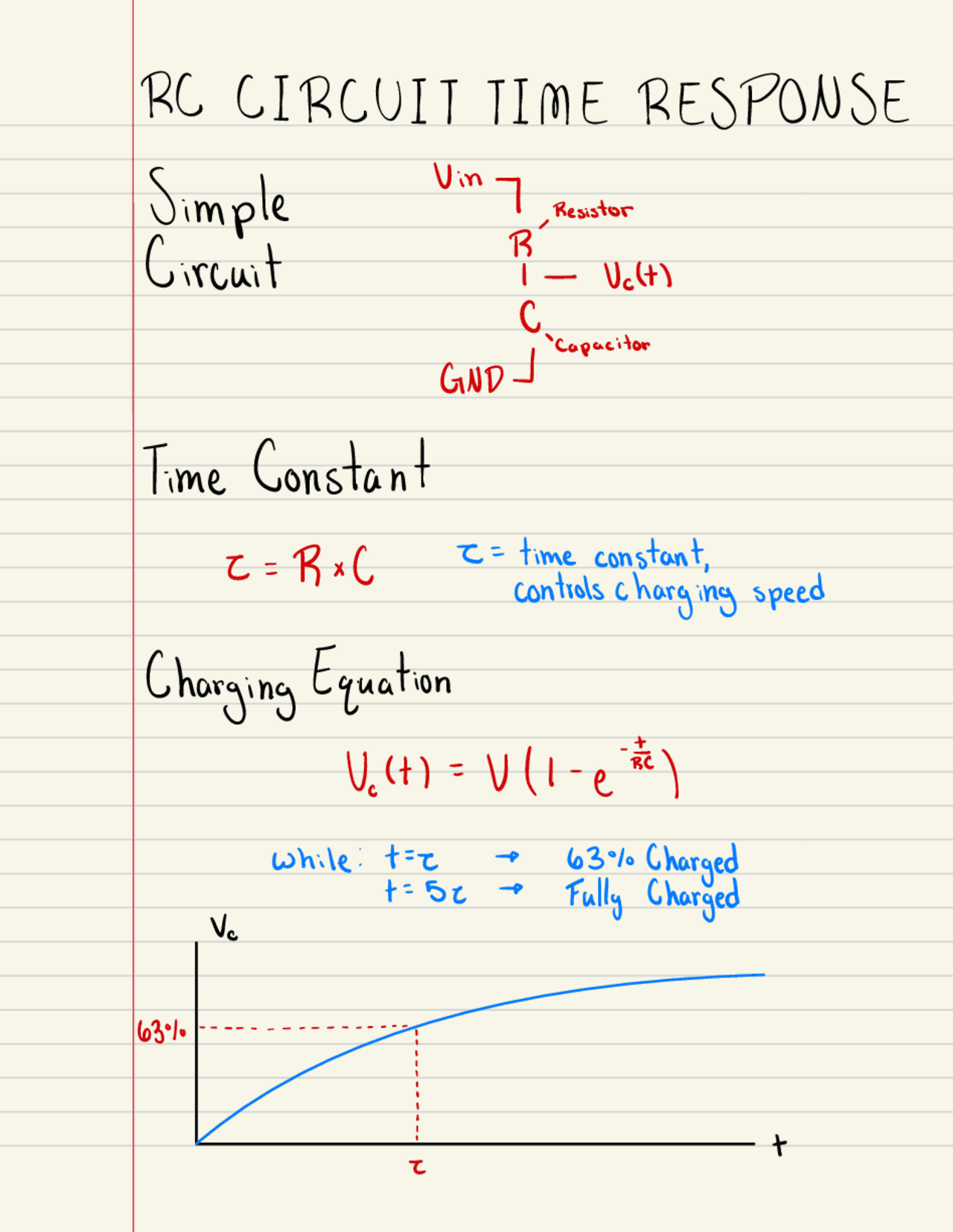

These are notes from the Circuits about the Time Constant Response.
