Assembly language is basic for computer design and deeply used in development of computer parts. This is solved assignment for Computer Architecture and Assembly Language. It includes: Output, Timing, Diagram, Negative, Going-Edge, Clock, Pulses, Binary, Sequence
Typology: Exercises
1 / 1
This page cannot be seen from the preview
Don't miss anything!

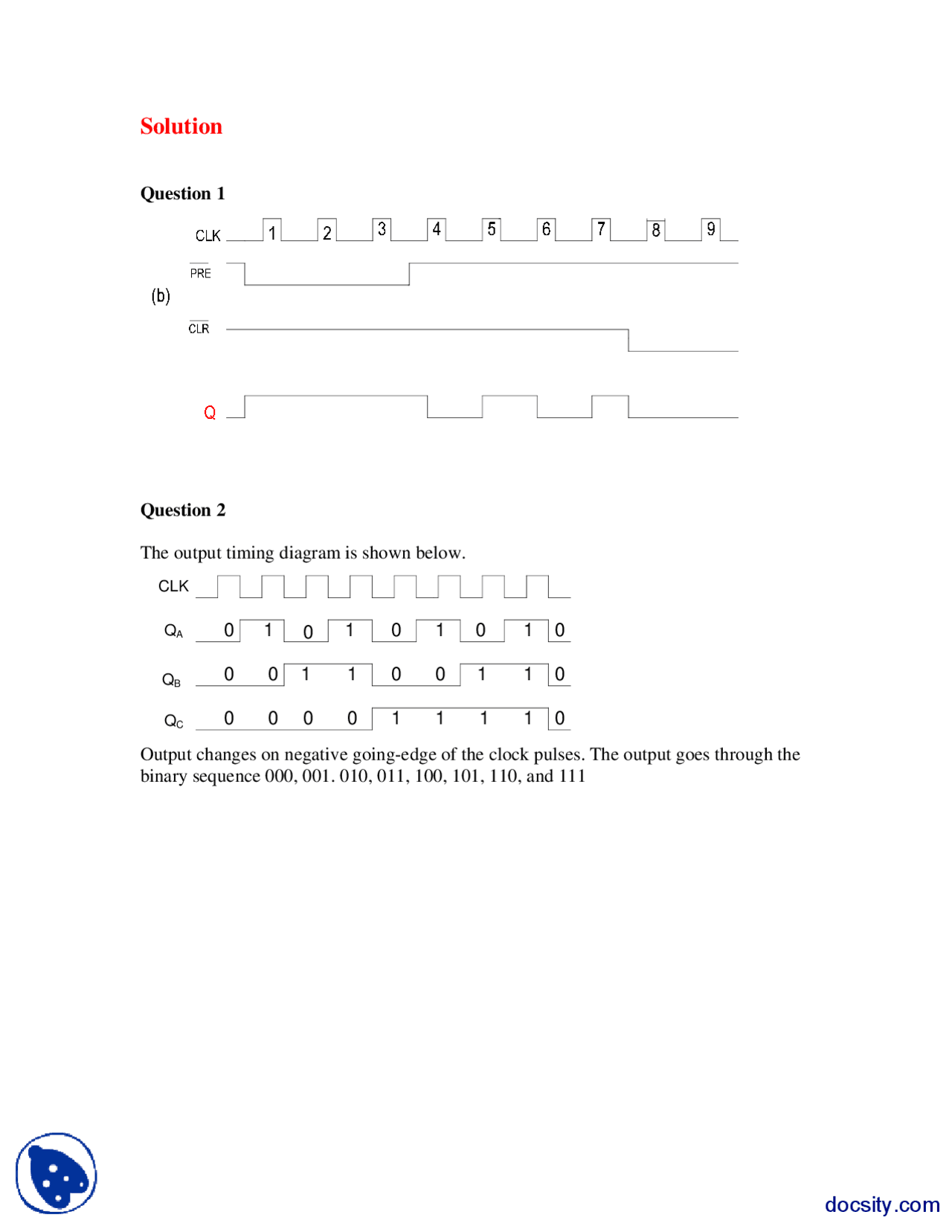

Question 1
Question 2
The output timing diagram is shown below.
Q (^) A
Q (^) B
QC
CLK
Output changes on negative going-edge of the clock pulses. The output goes through the binary sequence 000, 001. 010, 011, 100, 101, 110, and 111
