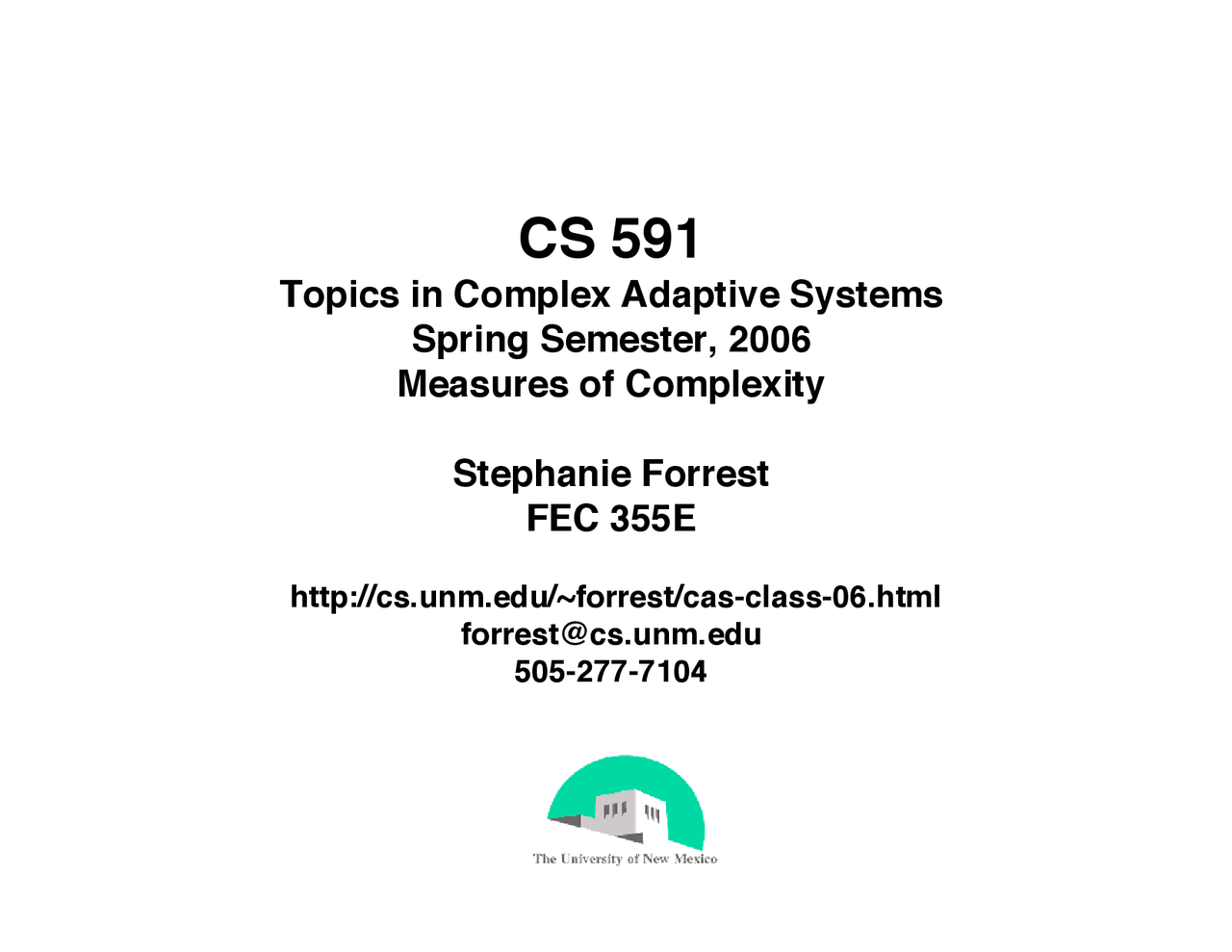

CS 591

Topics in Complex Adaptive Systems

Spring Semester, 2006

Measures of Complexity

Stephanie Forrest

FEC 355E

http://cs.unm.edu/~forrest/cas-class-06.html [email protected] 505-277-

What are Complex Adaptive Systems?

• Collections of agents:
  • Molecules, cells, animals, planets, stars, economic agents.
• Agents interact (locally) with one another and with their environment: - No central controller. - Interactions are nontrivial, I.e. nonlinear. - Chemical reactions, cellular interactions, mating, buy/sell decisions.
• Unanticipated properties often result from the interactions:
  • Immune system responses, flocks of animals, settlement patterns, earthquakes, speculative bubbles and crashes.
• Agents adapt their behavior to other agents and environmental constraints: - Imitation, adaptation, learning.
• System behavior evolves over time:
  • Rules change, unfolding of complex behavior.

Caveat

• Some people believe that there is no general science of complex systems: - “It’s becoming apparent that a theory of complexity in some sense of a great and transforming body of knowledge that applies to a whole range of cases may be untenable.” Sir Robert May (2001)

Understanding Nature and Society Through Computation

• Using information processing methods to learn more about natural systems: - Cognitive science.. - Biological models (e.g., vaccine design, ecological models). - Lattice gas models in physics. - Prisoner’s dilemma in social systems.
• Contrast with computational science:
  • Modeling nature as a mechanical device vs. modeling nature as an information system.
  • E.g., computational biology---genomics and protein folding.

Characteristics of Complex Systems

• What makes a system complex?
  • Nonlinear interactions among components.
  • Multi-scale phenomena.
  • Evolution of underlying components and environments.
• How to measure a system’s complexity?
  • By its unpredictability?
  • By how difficult it is to describe?
    • Length of most concise description.
    • No single model adequate to describe system---the more models that are required, the more complex the system. (Lee Segel)
  • By measuring how long before it halts, if ever? By how long until it repeats itself?
  • Entropy?
  • Multiple levels of organization?
  • Number of interdependencies?
• Is complexity inherent in the system or in our understanding of it?

Representative Measures of Complexity

• Computational complexity (Cook):
  • How long a program runs (or how much memory it uses).
  • Asymptotic.
• Language complexity:
  • Classes of languages that can be computed (recognized) by different kinds of abstract machines.
  • Decidability, computability.
• Logical depth (Bennett).
• Information-theoretic approaches:
  • Algorithmic Complexity (Solomonoff, Komogorov, and Chaitin):
    • Length of the shortest program that can produce the phenomenon.
    • Kolmogorov complexity.
  • Mutual information (many authors)
• Thermodynamic depth (Lloyd and Pagels)
• Effective complexity (Gell-Mann and Lloyd)

Computational Complexity Classes

(from Papadimitriou, 1994)

Algorithmic Complexity (AC)

(also known as Kolmogorov-Chaitin complexity)

• The Kolomogorov-Chaitin complexity K(x) is the length, in bits, of the smallest program that when run on a Universal Turing Machine outputs (prints) x and then halts.
• Example: What is K(x) where x is the first 10 even natural numbers? Where x is the first 5 million even natural numbers?
• Possible representations:
  • 0, 2, 4, 6, 8, 10, 12, 14, 16, 18, … (2n - 2)
  • for (j = 0; j < n: j++) printf(“%d\n”, j * 2);
• How many bits?
  • Alternative 1: O(n log n)
  • Alternative 2: K(x) = O(log n)
• Two problems:
  • Calculation of K(x) depends on the machine we have available (e.g., what if we have a machine with an instruction “print the first 10 even natural numbers”?)
  • In general, it is an uncomputable problem to determine K(x) for arbitrary x.

Structural Complexity

Randomness hμ Randomness hμ

Algorithmic Complexity Measures of Complexity that Capture Properties Distinct from Randomness

• Measures of randomness do not capture pattern, structure, correlation, or organization.
• Mutual information, Wolfram’s CA classification.
• The “edge of chaos.”

Logical Depth

• Bennett 1986;1990:
  • The Logical depth of x is the run time of the shortest program that will cause a UTM to produce x and then halt.
  • Logical depth is not a measure of randomness; it is small both for trivially ordered and random strings.
• Drawbacks:
  • Uncomputable.
  • Loses the ability to distinguish between systems that can be described by computational models less powerful than Turing Machines (e.g., finite-state machines).

Detour into Information Theory

• Shannon Entropy H to measure basic information capacity:
  • For a random variable X with a probability mass function p(x), the entropy of X is defined as:
  • Entropy is measured in bits.
  • H measures the average uncertainty in the random variable.
• Example 1:
  • Consider a random variable with uniform distribution over 32 outcomes.
  • To identify an outcome, we need a label that takes on 32 different values, e.g., 5-bit strings. H ( X)=−∑p(x)log 2 p(x ) log 32 5 bits 32

log 32

( ) ()log ( ) 32 1 32 1 = −∑ =−∑ = = i = i= H X p i p i

What is a Random Variable?

• A function defined on a sample space.
  • Should be called “random function.”
  • Independent variable is a point in a sample space (e.g., the outcome of an experiment).
• A function of outcomes, rather than a single given outcome.
• Probability distribution of the random variable X:
• Example:
  • Toss 3 fair coins.
  • Let X denote the number of heads appearing.
  • X is a random variable taking on one of the values (0,1,2,3).
  • P{X=0} = 1/8; P{X=1} = 3/8; P{X=2} = 3/8; P{X=3} = 1/8.

P{ X = xj }= f(xj) (j= 1,2,...)

Detour into Information Theory cont.

• More generally,
  • the entropy of a random variable is a lower bound on the average number of bits required to represent the random variable.
• The uncertainty (complexity) of a random variable can be extended to define the descriptive complexity of a single string.
• E.g., Kolmogorov (or algorithmic) complexity is the length of the shortest computer program that prints out the string.
• Entropy is the uncertainty of a single random variable.
• Conditional entropy is the entropy of a random variable given another random variable.

Mutual Information

• Measures the amount of information that one random variable contains about another random variable. - Mutual information is a measure of reduction of uncertainty due to another random variable. - That is, mutual information measures the dependence between two random variables. - It is symmetric in X and Y, and is always non-negative.
• Recall: Entropy of a random variable X is H(X).
• Conditional entropy of a random variable X given another random variable Y = H(X | Y).
• The mutual information of two random variables X and Y is: = − = ∑ x y p x p y p x y I X Y H X H X Y p x y , ( ) ( )

( , ) ( ) ( | ) ( , ) log
