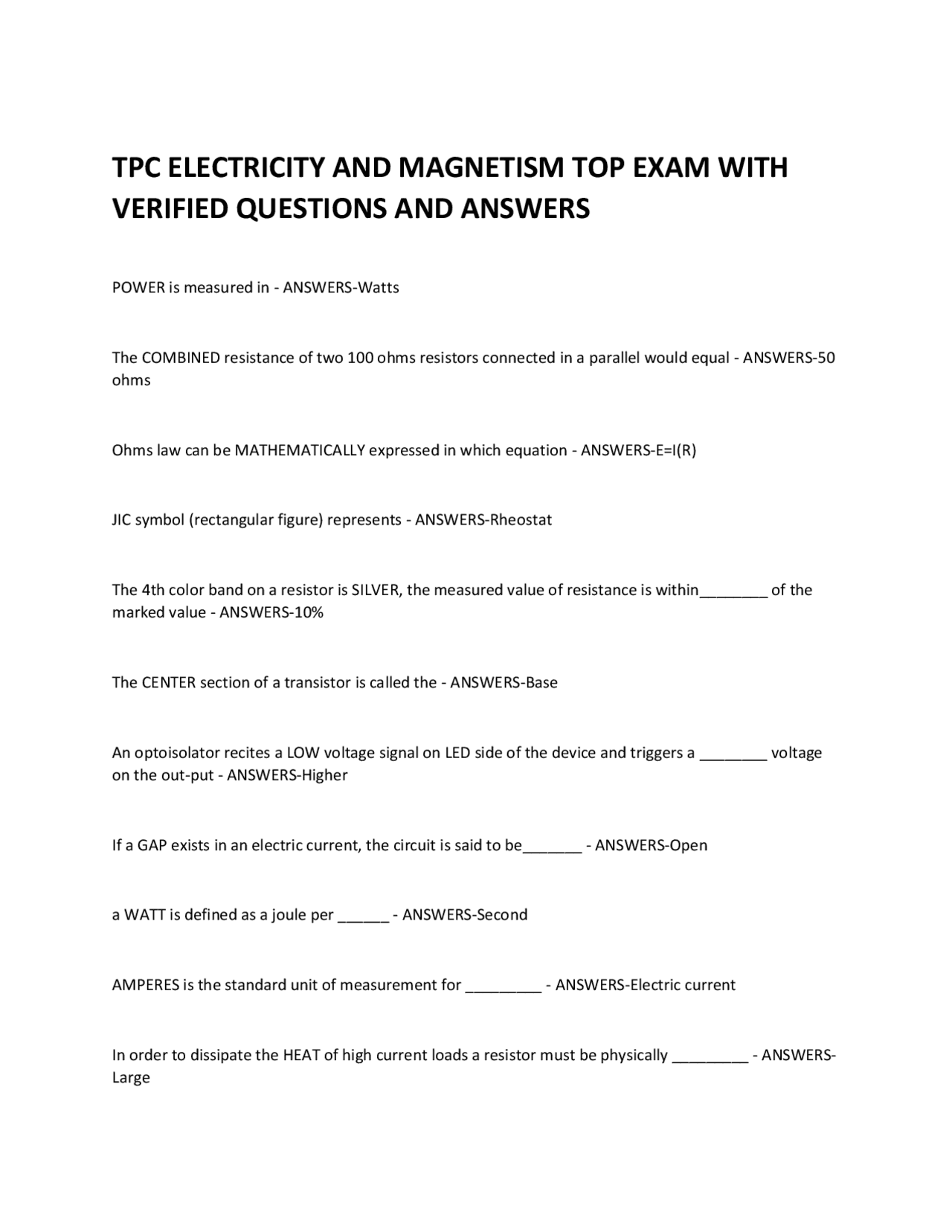

TPC ELECTRICITY AND MAGNETISM TOP EXAM WITH
VERIFIED QUESTIONS AND ANSWERS
POWER is measured in - ANSWERS-Watts
The COMBINED resistance of two 100 ohms resistors connected in a parallel would equal - ANSWERS-50
ohms
Ohms law can be MATHEMATICALLY expressed in which equation - ANSWERS-E=I(R)
JIC symbol (rectangular figure) represents - ANSWERS-Rheostat
The 4th color band on a resistor is SILVER, the measured value of resistance is within________ of the
marked value - ANSWERS-10%
The CENTER section of a transistor is called the - ANSWERS-Base
An optoisolator recites a LOW voltage signal on LED side of the device and triggers a ________ voltage
on the out-put - ANSWERS-Higher
If a GAP exists in an electric current, the circuit is said to be_______ - ANSWERS-Open
a WATT is defined as a joule per ______ - ANSWERS-Second
AMPERES is the standard unit of measurement for _________ - ANSWERS-Electric current
In order to dissipate the HEAT of high current loads a resistor must be physically _________ - ANSWERS-
Large
pf3
pf4
pf5

Partial preview of the text

Download TPC Electricity And Magnetism TOP Exam and more Exams Nursing in PDF only on Docsity!

TPC ELECTRICITY AND MAGNETISM TOP EXAM WITH

VERIFIED QUESTIONS AND ANSWERS

POWER is measured in - ANSWERS-Watts The COMBINED resistance of two 100 ohms resistors connected in a parallel would equal - ANSWERS- 50 ohms Ohms law can be MATHEMATICALLY expressed in which equation - ANSWERS-E=I(R) JIC symbol (rectangular figure) represents - ANSWERS-Rheostat The 4th color band on a resistor is SILVER, the measured value of resistance is within________ of the marked value - ANSWERS-10% The CENTER section of a transistor is called the - ANSWERS-Base An optoisolator recites a LOW voltage signal on LED side of the device and triggers a ________ voltage on the out-put - ANSWERS-Higher If a GAP exists in an electric current, the circuit is said to be_______ - ANSWERS-Open a WATT is defined as a joule per ______ - ANSWERS-Second AMPERES is the standard unit of measurement for _________ - ANSWERS-Electric current In order to dissipate the HEAT of high current loads a resistor must be physically _________ - ANSWERS- Large

If the POTENTIAL DIFFERENCE across a resistor decreases to zero, the current ___________ - ANSWERS- Decreases to Zero a CATHODE has a _________ charge - ANSWERS-Negative When trying to solve a SERIES-PARALLEL problem you should first________ - ANSWERS-Divide the circuit into smaller parts One COMPLETE cycle alternate current is generated by a ____________ rotation of a two pole operation

  • ANSWERS-360 degree The POTENTIAL DIFFERENCE between two points is measured in ________ - ANSWERS-Volts If a circuit has two PARALLEL paths the larger fraction of the current follows the __________ - ANSWERS-Path with the lower resistance The higher resistance HEATING ELEMENT in an electric heater is usually made of __________ - ANSWERS-Nichrome Wire Electricity is easier to understand if you think of VOLTAGE as electrical ____________ - ANSWERS- Pressure POTENTIAL ENERGY is measured in - ANSWERS-Joules The ability to do work - ANSWERS-Energy All modern electrical equipment is based on a understanding of the RELATIONSHIP between____________ - ANSWERS-Electricity and Magnetism If capacitors are connected in PARALLEL their combined capacities is ______________ the sum of their individual capacities - ANSWERS-Equal to

The purpose of a ______ in an ammeter is to carry current AROUND the meter movement - ANSWERS- Shunt a THERMOcouple is an example of a device that uses ______ to generate electricity - ANSWERS-HEAT example of what law - ANSWERS-Ohm's HAS many free electrons - ANSWERS-Conductors DO NOT have many free electrons and serves as a protective barrier between a worker and conductor. - ANSWERS-Insulators To DECREASE the resistance of a conductor, we can increase the _____ of that conductor. - ANSWERS- Cross-Sectional Area What is the flow from NEGATIVE to POSITIVE called? - ANSWERS-Electron Flow Acts similar to resistors, OPPOSES changes in current. (+) or (-). - ANSWERS-Inductors In a SERIES circuit, the ________ is the SAME at all points in the circuit. - ANSWERS-Current In a PARALLEL circuit, the ______ is the SAME at all branches of the circuit. - ANSWERS-Voltage The NEC defines a qualified person as - ANSWERS-someone who is familiar with equipment operation and hazards symbol is (E) in ohms law equation - ANSWERS-Voltage symbol is (I) in ohms law equation - ANSWERS-Current

symbol is (R) in ohms law equation - ANSWERS-Resistance A subatomic particle that has a POSITIVE charge and that is found in the nucleus of an atom - ANSWERS- Proton Has NO electrical charge and is considered neutral - ANSWERS-Neutron One _________ is equal to one coulomb per second. - ANSWERS-Ampere the amount of CHARGE a capacitor can store compared to the potential difference between terminals - ANSWERS-Capacitance A ________ semiconductor has a (-) charge and is also called a DONOR because it donates electrons to other materials. - ANSWERS-N-type A ______ semiconductor has a (+) charge and is also called an ACCEPTOR because it "accepts" electrons from other materials. - ANSWERS-P-type The effect of the current on the human body depends on 3 factors: the intensity of current, the duration of the current, and the _______. - ANSWERS-pathway of the current Which kind of device is used in hazardous conditions, can only release low levels of electricity, and can not explode? - ANSWERS-Intrinsically Safe Wearing heavy cotton clothing is considered safe. What material is not considered safe when working around electricity? - ANSWERS-Polyester Factory Mutual (FM) and Underwriter's Laboratories (UL) are both recognized as certified __________. - ANSWERS-Testing Laboratories
