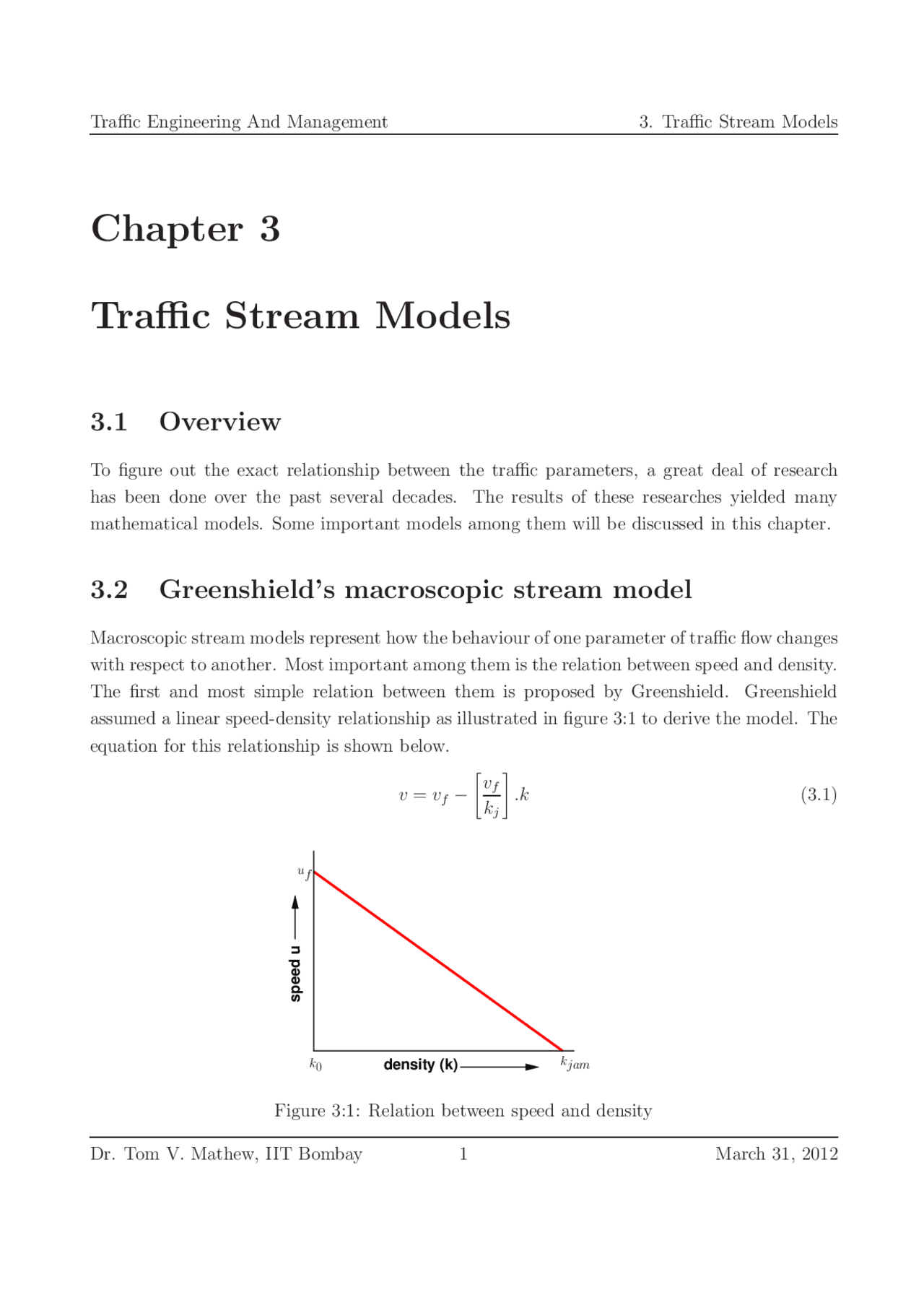

Chapter 3
Traffic Stream Models
3.1 Overview
To figure out the exact relationship between the traffic parameters, a great deal of research has been done over the past several decades. The results of these researches yielded many mathematical models. Some important models among them will be discussed in this chapter.
3.2 Greenshield’s macroscopic stream model
Macroscopic stream models represent how the behaviour of one parameter of traffic flow changes with respect to another. Most important among them is the relation between speed and density. The first and most simple relation between them is proposed by Greenshield. Greenshield assumed a linear speed-density relationship as illustrated in figure 3:1 to derive the model. The equation for this relationship is shown below.
v = vf −
[ vf kj
] .k (3.1)
density (k)
speed u
kjam
uf
k 0
Figure 3:1: Relation between speed and density
speed, u
(^) u
flow, q
q qmax
uf
u 0
Figure 3:2: Relation between speed and flow
flow(q) C
B A q
O density (k)
D E
qmax
k 0 k 1 kmax k 2 kjam
Figure 3:3: Relation between flow and density 1
where v is the mean speed at density k, vf is the free speed and kj is the jam density. This equation ( 3.1) is often referred to as the Greenshields’ model. It indicates that when density becomes zero, speed approaches free flow speed (ie. v → vf when k → 0). Once the relation between speed and flow is established, the relation with flow can be derived. This relation between flow and density is parabolic in shape and is shown in figure 3:3. Also, we know that
q = k.v (3.2)
Now substituting equation 3.1 in equation 3.2, we get
q = vf .k −
[ vf kj
] k^2 (3.3)
3.3 Calibration of Greenshield’s model
Inorder to use this model for any traffic stream, one should get the boundary values, especially free flow speed (vf ) and jam density (kj ). This has to be obtained by field survey and this is called calibration process. Although it is difficult to determine exact free flow speed and jam density directly from the field, approximate values can be obtained from a number of speed and density observations and then fitting a linear equation between them. Let the linear equation be y = a + bx such that y is density k and x denotes the speed v. Using linear regression method, coefficients a and b can be solved as,
b = n^
∑n i=1 xiyi^ −^
∑n i=1 xi.^
∑n i=1 yi n. ∑ni=1 xi^2 − (∑ni=1 xi)^2
a = ¯y − bx¯ (3.8)
Alternate method of solving for b is,
b =
∑n i=1 ∑(xi^ −^ ¯x)(yi^ −^ y¯) ni=1 (xi − ¯x)^2 (3.9)
where xi and yi are the samples, n is the number of samples, and ¯x and ¯y are the mean of xi and yi respectively.
Problem
For the following data on speed and density, determine the parameters of the Greenshields’ model. Also find the maximum flow and density corresponding to a speed of 30 km/hr.
k v 171 5 129 15 20 40 70 25
Solution Denoting y = v and x = k, solve for a and b using equation 3.8 and equation 3.9. The solution is tabulated as shown below. x¯ = Σ nx = 3904 = 97.5, ¯y = Σ ny = 854 = 21.3. From equation 3.9, b = − 131572947 .. 27 = -0.2 a = y − bx¯ = 21.3 + 0.2×97.5 = 40.8 So the linear regression equation will be, v = 40. 8 − 0. 2 k (3.10)
Here vf = 40.8 and v kfj = 0.2. This implies, kj = (^400) .. 28 = 204 veh/km. The basic parameters of Greenshield’s model are free flow speed and jam density and they are obtained as 40.8 kmph
x(k) y(v) (xi − ¯x) (yi − y¯) (xi − ¯x)(yi − y¯) (xi − x¯^2 ) 171 5 73.5 -16.3 -1198.1 5402. 129 15 31.5 -6.3 -198.5 992. 20 40 -77.5 18.7 -1449.3 6006. 70 25 -27.5 3.7 -101.8 756. 390 85 -2947.7 13157.
density, k
speed, v
Figure 3:4: Greenberg’s logarithmic model
and 204 veh/km respectively. To find maximum flow, use equation 3.6, i.e., qmax = 40.^8 × 4 204 = 2080.8 veh/hr Density corresponding to the speed 30 km/hr can be found out by substituting v = 30 in equation 3.10. i.e, 30 = 40.8 - 0.2 × k Therefore, k = 40. 08 .− 2 30 = 54 veh/km.
3.4 Other macroscopic stream models
In Greenshield’s model, linear relationship between speed and density was assumed. But in field we can hardly find such a relationship between speed and density. Therefore, the validity of Greenshields’ model was questioned and many other models came up. Prominent among them are Greenberg’s logarithmic model, Underwood’s exponential model, Pipe’s generalized model, and multiregime models. These are briefly discussed below.
3.4.1 Greenberg’s logarithmic model
Greenberg assumed a logarithmic relation between speed and density. He proposed,
qA, vA, kA qB, vB, kB
Figure 3:6: Shock wave: Stream characteristics
When n is set to one, Pipe’s model resembles Greenshields’ model. Thus by varying the values of n, a family of models can be developed.
3.4.4 Multiregime models
All the above models are based on the assumption that the same speed-density relation is valid for the entire range of densities seen in traffic streams. Therefore, these models are called single-regime models. However, human behaviour will be different at different densities. This is corraborated with field observations which shows different relations at different range of densities. Therefore, the speed-density relation will also be different in different zones of densities. Based on this concept, many models were proposed generally called multi-regime models. The most simple one is called a two-regime model, where separate equations are used to represent the speed-density relation at congested and uncongested traffic.
3.5 Shock waves
The flow of traffic along a stream can be considered similar to a fluid flow. Consider a stream of traffic flowing with steady state conditions, i.e., all the vehicles in the stream are moving with a constant speed, density and flow. Let this be denoted as state A (refer figure 3:6. Suddenly due to some obstructions in the stream (like an accident or traffic block) the steady state characteristics changes and they acquire another state of flow, say state B. The speed, density and flow of state A is denoted as vA, kA, and qA, and state B as vB , kB , and qB respectively. The flow-density curve is shown in figure 3:7. The speed of the vehicles at state A is given by the line joining the origin and point A in the graph. The time-space diagram of the traffic stream is also plotted in figure 3:8. All the lines are having the same slope which implies that they are moving with constant speed. The sudden change in the characteristics of the stream leads to the formation of a shock wave. There will be a cascading effect of the vehicles in the upstream direction. Thus shock wave is basically the movement of the point that demarcates the two stream conditions. This is clearly marked in the figure 3:7. Thus the shock waves produced at state B are propagated in the backward direction. The speed of the vehicles at
density
A flow B
qA qB
vB
kA kB kj
vA
Figure 3:7: Shock wave: Flow-density curve
time
distance
A B
Figure 3:8: Shock wave : time-distance diagram
3.6 Macroscopic flow models
If one looks into traffic flow from a very long distance, the flow of fairly heavy traffic appears like a stream of a fluid. Therefore, a macroscopic theory of traffic can be developed with the help of hydrodynamic theory of fluids by considering traffic as an effectively one-dimensional compressible fluid. The behaviour of individual vehicle is ignored and one is concerned only with the behaviour of sizable aggregate of vehicles. The earliest traffic flow models began by writing the balance equation to address vehicle number conservation on a road. Infact, all traffic flow models and theories must satisfy the law of conservation of the number of vehicles on the road. Assuming that the vehicles are flowing from left to right, the continuity equation can be written as ∂k(x, t) ∂t +^
∂q(x, t) ∂x = 0^ (3.18) where x denotes the spatial coordinate in the direction of traffic flow, t is the time, k is the density and q denotes the flow. However, one cannot get two unknowns, namely k(x, t) by and q(x, t) by solving one equation. One possible solution is to write two equations from two regimes of the flow, say before and after a bottleneck. In this system the flow rate before and after will be same, or k 1 v 1 = k 2 v 2 (3.19)
From this the shockwave velocity can be derived as
v(to)p = (^) kq^2 −^ q^1 2 −^ k 1
This is normally referred to as Stock’s shockwave formula. An alternate possibility which Lighthill and Whitham adopted in their landmark study is to assume that the flow rate q is determined primarily by the local density k, so that flow q can be treated as a function of only density k. Therefore the number of unknown variables will be reduced to one. Essentially this assumption states that k(x,t) and q (x,t) are not independent of each other. Therefore the continuity equation takes the form
∂k(x, t) ∂t
However, the functional relationship between flow q and density k cannot be calculated from fluid-dynamical theory. This has to be either taken as a phenomenological relation derived from the empirical observation or from microscopic theories. Therefore, the flow rate q is a function of the vehicular density k; q = q(k). Thus, the balance equation takes the form
∂k(x, t) ∂t +^
∂q(k(x, t)) ∂x = 0^ (3.22)
Now there is only one independent variable in the balance equation, the vehicle density k. If initial and boundary conditions are known, this can be solved. Solution to LWR models are kinematic waves moving with velocity dq(k) dk (3.23) This velocity vk is positive when the flow rate increases with density, and it is negative when the flow rate decreases with density. In some cases, this function may shift from one regime to the other, and then a shock is said to be formed. This shockwave propagate at the velocity
vs = q(k^2 )^ −^ q(k^1 ) k 2 − k 1
where q(k 2 ) and q(k 1 ) are the flow rates corresponding to the upstream density k 2 and down- stream density k 1 of the shockwave. Unlike Stock’s shockwave formula there is only one variable here.
3.6.1 Extented Topics
- Multi regine model (formulation of both two and three regime models)
- Catastrophe Theory
- Three dimentional models and plots
3.7 Summary
Traffic stream models attempt to establish a better relationship between the traffic parameters. These models were based on many assumptions, for instance, Greenshield’s model assumed a linear speed-density relationship. Other models were also discussed in this chapter. The models are used for explaining several phenomena in connection with traffic flow like shock wave.
3.8 Problems
- Stationary shockwaves will occur
(a) when two streams having the same flow value but different densities meet. (b) when two streams having the different flow value but same densities meet. (c) when two streams having the same flow value and densities meet.
