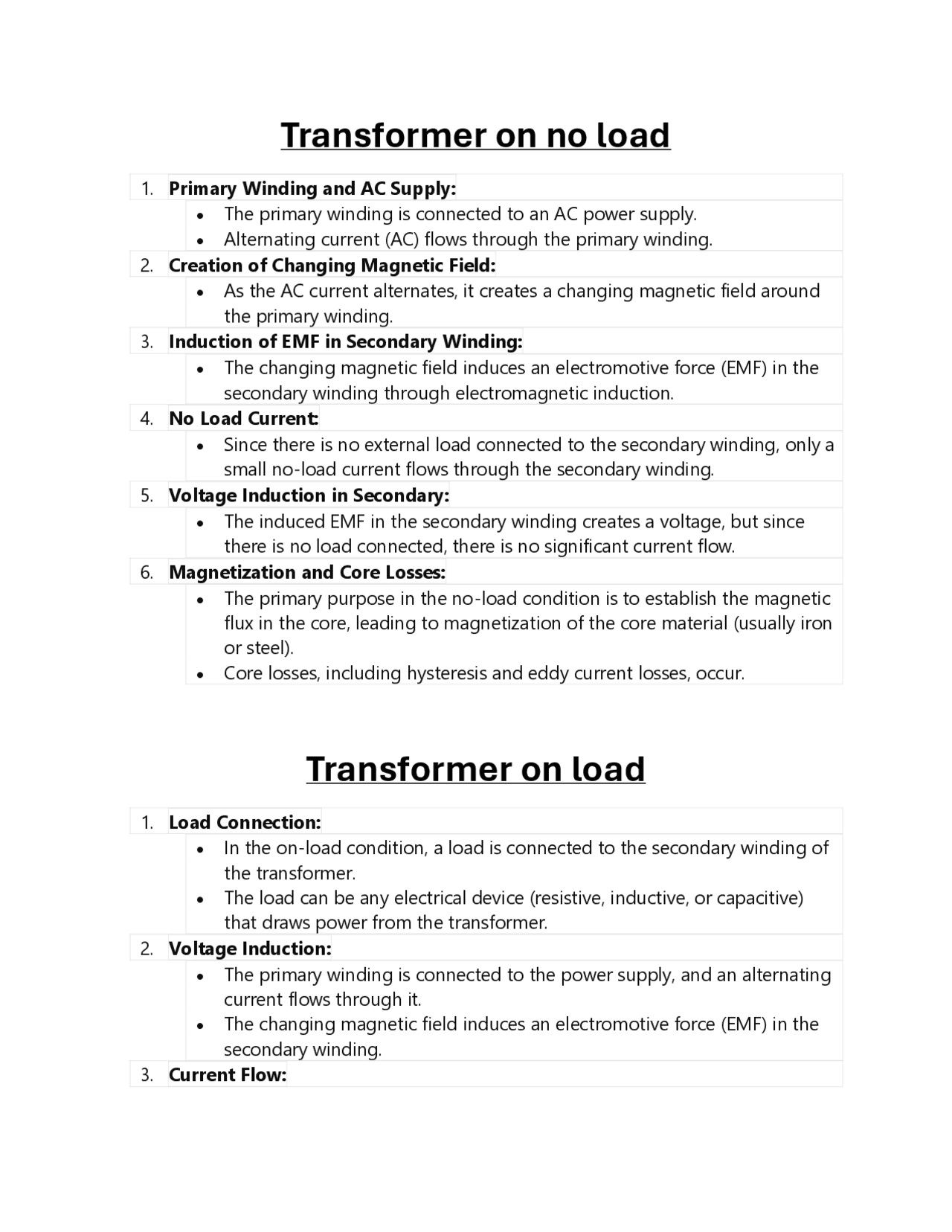

Transformer on no load
1. Primary Winding and AC Supply:
The primary winding is connected to an AC power supply.
Alternating current (AC) flows through the primary winding.
2. Creation of Changing Magnetic Field:
As the AC current alternates, it creates a changing magnetic field around
the primary winding.
3. Induction of EMF in Secondary Winding:
The changing magnetic field induces an electromotive force (EMF) in the
secondary winding through electromagnetic induction.
4. No Load Current:
Since there is no external load connected to the secondary winding, only a
small no-load current flows through the secondary winding.
5. Voltage Induction in Secondary:
The induced EMF in the secondary winding creates a voltage, but since
there is no load connected, there is no significant current flow.
6. Magnetization and Core Losses:
The primary purpose in the no-load condition is to establish the magnetic
flux in the core, leading to magnetization of the core material (usually iron
or steel).
Core losses, including hysteresis and eddy current losses, occur.
Transformer on load
1. Load Connection:
In the on-load condition, a load is connected to the secondary winding of
the transformer.
The load can be any electrical device (resistive, inductive, or capacitive)
that draws power from the transformer.
2. Voltage Induction:
The primary winding is connected to the power supply, and an alternating
current flows through it.
The changing magnetic field induces an electromotive force (EMF) in the
secondary winding.
3. Current Flow:
pf2
