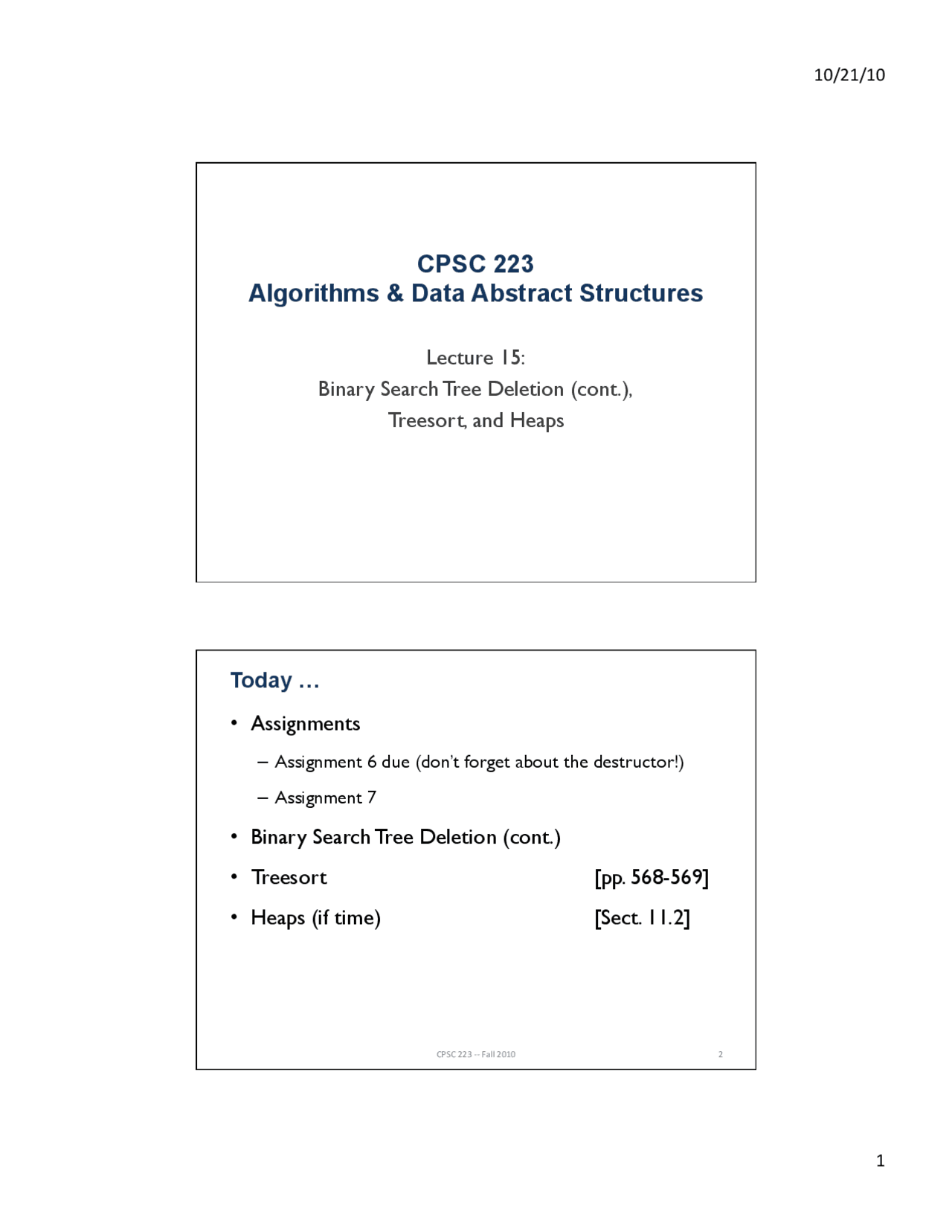

CPSC 223
Algorithms & Data Abstract Structures
Lecture 15:
Binary Search Tree Deletion (cont.),
Treesort, and Heaps
Today …
• Assignments
- Assignment 6 due (don’t forget about the destructor!)
- Assignment 7
• Binary Search Tree Deletion (cont.)
• Treesort [pp. 568-569]
• Heaps (if time) [Sect. 11.2]
CPSC 223 -‐-‐ Fall 2010 2
CPSC 223 -‐-‐ Fall 2010 3
Binary Search Tree Deletion
Removing (Deleting) Nodes
- Removing nodes is where things get tricky …
- If we could restrict remove to just leaf nodes it
would be easy
- For general removal, we need to consider some
special cases …
CPSC 223 -‐-‐ Fall 2010 4
Removing Nodes
- Hardest Case : Remove a node with two children
- Both children cannot be “adopted” by the parent CPSC 223 -‐-‐ Fall 2010 7 D B A C D A C
Remove B
Removing Nodes
- To remove a node with two children
- one solution is to not delete the node …
- and instead replace the item in the node with another node’s item CPSC 223 -‐-‐ Fall 2010 8 D B A C D ? A C Remove B
Removing Nodes
Which item do we then use as a replacement?
- There is more than one we can choose …
- Either the left-most node of the right subtree
- or the right-most node of the left subtree CPSC 223 -‐-‐ Fall 2010 9 D B A C D ? A C Remove B D C A Here, the right subtree does not have a left-most node
Removing Nodes
Which item do we then use as a replacement?
- There is more than one we can choose …
- Either the left-most node of the right subtree
- or the right-most node of the left subtree CPSC 223 -‐-‐ Fall 2010 10 Remove B E B A D C F A more typical example right child le+-‐most node E ? A D C F E C A D F
Removing Nodes
- Remove the inorder successor …
- It will either be a leaf or have one right child (why?)
- Now we simply remove it … CPSC 223 -‐-‐ Fall 2010 13 E B G A C F H ? B G A C E H F Oops … E has a right child! copy item
Removing Nodes
Should we use recursion or iteration to find the inorder
successor?
- Typically use iteration
- By looping until the left most node is found
- Recall : Navigating a path is easy using iteration (loops) CPSC 223 -‐-‐ Fall 2010 14
Exercise: Removing Nodes
- Form groups of 2
- Your job is to write down the steps for remove void remove(const Key& key)
- Remove should delete the first occurrence of the key
- Only need to consider the case where the node to remove has two children
- But consider both sub-cases: (a) when the inorder successor has a child, and (b) when it does not CPSC 223 -‐-‐ Fall 2010 15 CPSC 223 -‐-‐ Fall 2010 16
Treesort
CPSC 223 -‐-‐ Fall 2010 19
Heaps
Heaps
- A heap is another ADT
- In the text …
- Heaps are primarily introduced as a way to implement priority queues
- Also used for heapsort
- We will primarily discuss heaps for heapsort
- But they are also a nice segue into balanced trees … CPSC 223 -‐-‐ Fall 2010 20
The Heap ADT
- A heap is very similar to a binary search tree
- In fact, we are only going to talk about binary heaps …
- There are a number of variants however
- Unlike a binary search tree, a heap is always a
complete tree!
- How does it do this?
- By relaxing the ordering constraint
- … children of nodes have smaller values (max-heap)
- thus, the root always has the max value CPSC 223 -‐-‐ Fall 2010 21 A min heap is just the opposite
The Heap ADT
A (binary) “ heap ” is a complete binary tree such that:
- Every parent node has a larger search key value than its children (for max-heap)
- Trivially, an empty tree is a heap CPSC 223 -‐-‐ Fall 2010 22 10 9 8 5 2 4 This is a heap 15 6 8 7 2 4 This is a not a heap … why? 8 3 6 1 4 This is a not a heap … why?
Array-Based Heap Implementation
- We assume that Heap has data members: Entry items [MAXITEMS]; // array of heap items int size ; // number of items in the heap CPSC 223 -‐-‐ Fall 2010 25 10 9 8 5 2 4 10 9 8 5 2 4 0 1 2 3 4 5 6 we may have empty slots at the end … items = size = 6
Array-Based Heap Implementation
Entry Heap:: findMax () { if(! isEmpty ()) return items[0]; else … handle empty case … } CPSC 223 -‐-‐ Fall 2010 26 10 9 8 5 2 4 10 9 8 5 2 4 0 1 2 3 4 5 6 we may have empty slots at the end … items = size = 6
What is the worst case
Lme complexity of findMax?
Heap Implementation
Deleting the max key
1. Remove root
2. Promote last item to root (becomes a “ semiheap ”)
3. “ Trickle down ” the new root
a). If root’s search key smaller than largest child b). Then exchange (swap) them c). Trickle down new subtree root CPSC 223 -‐-‐ Fall 2010 27
Heap Implementation
Deleting the max key
CPSC 223 -‐-‐ Fall 2010 28 10 9 8 5 2 4 Delete 10 (root) 4 9 8 5 2 Promote last item to root 9 4 8 5 2 Trickle down 4 9 5 8 4 2 Trickle down 4 again
Array-Based Heap Implementation
Cost of deletion
• How many comparisons and swaps?
• Worst case is when we trickle down to a leaf node
- There are O (log n ) such trickle-down steps … why?
• At each step we have
- 2 (item) comparisons and 1 swap
- Therefore, each trickle-down step is O (1)
• Deletion is worst case O (log n )
CPSC 223 -‐-‐ Fall 2010 31
Heap Implementation
Inserting a new item (… opposite of delete)
1. Add new item as leaf (maintain complete tree)
2. “ Trickle up ” the new root
a). If item’s search key is greater than root’s search key b). Then exchange (swap) them c). Trickle up new root CPSC 223 -‐-‐ Fall 2010 32 9 6 7 5 2 4 Insert 10 10 9 6 10 5 2 4 Trickle up 7 10 6 9 5 2 4 Trickle up 7
Array-Based Heap Implementation
void Heap:: insert (const Entry& newItem) { if(size < MAXITEMS – 1) { int loc = size; int parent = (loc – 1)/2; items[loc] = newItem; while(parent >= 0 && items[parent] < newItem) { swap (items[parent], items[loc]); loc = parent; parent = (loc – 1)/ } size++; } } CPSC 223 -‐-‐ Fall 2010 33
Array-Based Heap Implementation
Cost of insertion
- How many comparisons and swaps?
- The worst case is when we trickle up to the root
- There are O (log n ) such trickle-up steps … why?
- At each step we have
- 1 (item) comparisons and 1 swap
- Therefore, each trickle-up step is O (1)
- Insertion is worst case O (log n ) CPSC 223 -‐-‐ Fall 2010 34
