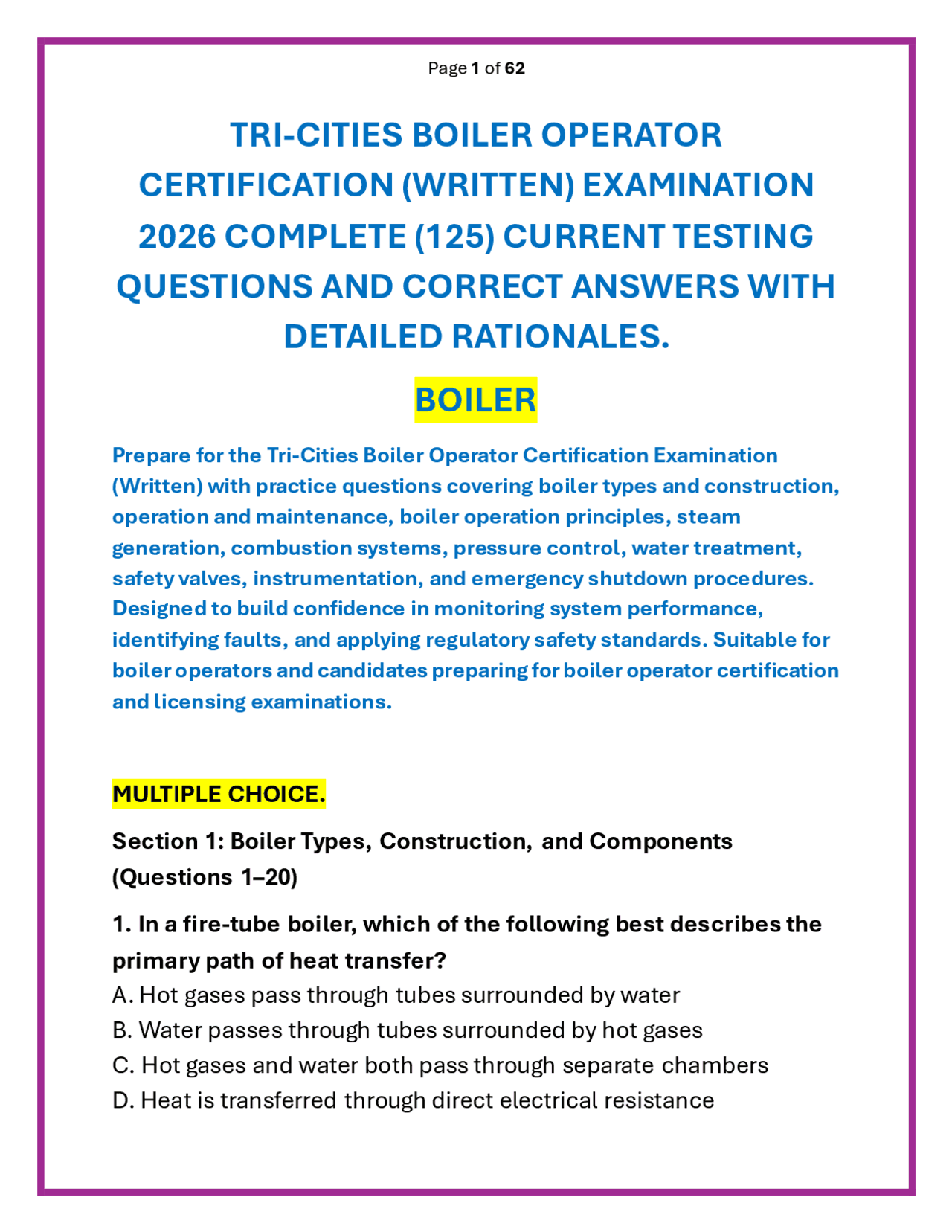

TRI-CITIES BOILER OPERATOR
CERTIFICATION (WRITTEN) EXAMINATION
2026 COMPLETE ( 125 ) CURRENT TESTING
QUESTIONS AND CORRECT ANSWERS WITH
DETAILED RATIONALES.
BOILER
Prepare for the Tri-Cities Boiler Operator Certification Examination (Written) with practice questions covering boiler types and construction, operation and maintenance, boiler operation principles, steam generation, combustion systems, pressure control, water treatment, safety valves, instrumentation, and emergency shutdown procedures. Designed to build confidence in monitoring system performance, identifying faults, and applying regulatory safety standards. Suitable for boiler operators and candidates preparing for boiler operator certification and licensing examinations. MULTIPLE CHOICE. Section 1: Boiler Types, Construction, and Components (Questions 1–20)
1. In a fire-tube boiler, which of the following best describes the primary path of heat transfer? A. Hot gases pass through tubes surrounded by water B. Water passes through tubes surrounded by hot gases C. Hot gases and water both pass through separate chambers D. Heat is transferred through direct electrical resistance
Correct answer: A. Hot gases pass through tubes surrounded by water Rationale: In a fire-tube boiler, combustion gases travel through tubes that are surrounded by water. Heat is transferred from the hot gases through the tube walls to the surrounding water, generating steam.
2. Which of the following is a characteristic of a water-tube boiler compared to a fire-tube boiler? A. Lower steam pressure capability B. Higher steam pressure capability and faster steam generation C. Larger water volume for the same pressure D. Simpler construction and lower cost Correct answer: B. Higher steam pressure capability and faster steam generation Rationale: Water-tube boilers can generate steam at higher pressures and more rapidly than fire-tube boilers because water flows through tubes exposed to hot gases, providing more efficient heat transfer and allowing for higher pressures. 3. What is the primary purpose of a mud drum in a water-tube boiler? A. To collect sediment and blow down impurities B. To store steam for distribution C. To separate steam from water D. To preheat feedwater
Correct answer: A. Determined by the code formula using the shell diameter, pressure, material strength, and joint efficiency Rationale: The ASME Code provides specific formulas for calculating minimum shell thickness based on the boiler's design pressure, shell diameter, material tensile strength, and joint efficiency to ensure safe operation.
6. What is the primary purpose of stay bolts in a fire-tube boiler? A. To support the boiler tubes B. To prevent bulging of flat surfaces such as tube sheets C. To secure the burner assembly D. To connect the steam drum to the mud drum Correct answer: B. To prevent bulging of flat surfaces such as tube sheets Rationale: Stay bolts reinforce flat surfaces such as tube sheets in fire-tube boilers, preventing them from bulging or collapsing under pressure. 7. What is the function of a "telltale hole" in a stay bolt? A. To indicate that the stay bolt is loose B. To provide a visual warning if the stay bolt has cracked or failed C. To allow steam to escape during normal operation D. To measure the temperature of the stay bolt Correct answer: B. To provide a visual warning if the stay bolt has cracked or failed
Rationale: A telltale hole is drilled through the center of a stay bolt to the outside. If the stay bolt cracks, steam or water will leak through the hole, providing a visible warning of failure.
8. Which of the following is NOT a type of boiler commonly used in industrial applications? A. Fire-tube boiler B. Water-tube boiler C. Electric boiler D. Reciprocating boiler Correct answer: D. Reciprocating boiler Rationale: Fire-tube, water-tube, and electric boilers are common types. Reciprocating boilers are not a standard classification; reciprocating refers to engines, not boilers. 9. What is the primary function of a superheater in a boiler system? A. To preheat feedwater before it enters the boiler B. To increase the temperature of steam above its saturation point C. To remove moisture from steam D. To preheat combustion air Correct answer: B. To increase the temperature of steam above its saturation point
Rationale: Steam separators (such as baffles, scrubbers, and cyclone separators) inside the steam drum remove moisture from steam, ensuring dry steam is delivered to the system.
12. What is the primary purpose of a deaerator in a boiler feedwater system? A. To remove dissolved oxygen and other non-condensable gases from feedwater B. To add chemicals to the feedwater C. To preheat feedwater using steam D. To filter suspended solids from feedwater Correct answer: A. To remove dissolved oxygen and other non- condensable gases from feedwater Rationale: A deaerator removes dissolved oxygen and other gases from feedwater, reducing the risk of corrosion in the boiler and associated piping. 13. In a packaged boiler, which of the following is typically included as an integral component? A. Burner, controls, and feedwater system B. Only the pressure vessel C. Only the burner D. Only the controls Correct answer: A. Burner, controls, and feedwater system
Rationale: A packaged boiler is a factory-assembled unit that includes the pressure vessel, burner, controls, feedwater system, and other auxiliary equipment ready for installation.
14. What is the primary purpose of a refractory lining in a boiler? A. To insulate the boiler and protect the metal shell from high temperatures B. To increase heat transfer C. To reduce boiler weight D. To prevent water from contacting the metal Correct answer: A. To insulate the boiler and protect the metal shell from high temperatures Rationale: Refractory linings insulate the boiler shell and other metal components from extreme combustion temperatures, preventing damage and heat loss. 15. Which of the following is a common material used for boiler tubes? A. Carbon steel B. Copper C. Aluminum D. PVC Correct answer: A. Carbon steel Rationale: Boiler tubes are typically made of carbon steel or alloy steel due to their strength, heat resistance, and cost-effectiveness.
18. What is the primary purpose of a boiler's water column? A. To provide a stable water level indication for the operator B. To add water to the boiler C. To remove sediment from the boiler D. To measure boiler pressure Correct answer: A. To provide a stable water level indication for the operator Rationale: The water column provides a steady water level reading by dampening the effects of turbulence in the boiler, allowing the operator to accurately monitor water level through sight glasses and gauge glasses. 19. What is the primary function of a fusible plug in a fire-tube boiler? A. To melt and release steam pressure if the water level drops too low B. To control combustion air flow C. To remove sediment from the boiler D. To measure boiler pressure Correct answer: A. To melt and release steam pressure if the water level drops too low Rationale: A fusible plug is designed to melt at a predetermined temperature if the water level drops below safe limits, allowing steam to escape and alerting the operator to the low-water condition.
20. What is the primary purpose of a boiler's manhole? A. To provide access for internal inspection and maintenance B. To add fuel to the boiler C. To remove steam from the boiler D. To add water to the boiler Correct answer: A. To provide access for internal inspection and maintenance Rationale: Manholes are openings in the boiler shell that allow personnel to enter the boiler for internal inspection, cleaning, and maintenance. **Section 2: Boiler Operation and Water Level Management (Questions 21–40)
- In a boiler system, what is the primary purpose of the safety valve?** A. To release excess pressure and prevent boiler explosion B. To control the burner firing rate C. To maintain water level D. To remove sediment from the boiler Correct answer: A. To release excess pressure and prevent boiler explosion Rationale: The safety valve is a critical safety device that automatically opens when boiler pressure exceeds the set pressure, releasing steam to prevent a catastrophic explosion.
24. What is the primary purpose of a low-water cutoff device in a boiler? A. To shut down the burner if the water level drops below a safe level B. To add water to the boiler automatically C. To measure the water level D. To control the steam pressure Correct answer: A. To shut down the burner if the water level drops below a safe level Rationale: A low-water cutoff is a safety device that automatically shuts down the burner if the water level in the boiler drops below a safe operating level, preventing boiler damage or explosion. 25. What is the primary purpose of a feedwater regulator in a boiler system? A. To maintain proper water level in the boiler B. To control the burner firing rate C. To remove impurities from feedwater D. To measure steam pressure Correct answer: A. To maintain proper water level in the boiler Rationale: A feedwater regulator automatically controls the flow of feedwater into the boiler to maintain the water level within the desired operating range.
26. Which of the following is a common cause of low boiler water level? A. Excessive feedwater flow B. A leak in the boiler or steam system C. High steam demand exceeding feedwater supply D. Both B and C Correct answer: D. Both B and C Rationale: Low water level can be caused by leaks in the boiler or steam system, or by steam demand exceeding the feedwater supply capacity. Excessive feedwater flow would cause high water level. 27. What is the primary purpose of a continuous blowdown system in a boiler? A. To continuously remove dissolved solids from the boiler water B. To remove sediment from the bottom of the boiler C. To add chemicals to the boiler water D. To control steam pressure Correct answer: A. To continuously remove dissolved solids from the boiler water Rationale: Continuous blowdown removes a small but constant flow of boiler water from the surface to control dissolved solids concentration, reducing the need for intermittent bottom blowdown.
30. What is the primary purpose of a boiler's gauge glass? A. To provide a visual indication of the water level B. To measure steam pressure C. To control feedwater flow D. To remove impurities from the water Correct answer: A. To provide a visual indication of the water level Rationale: The gauge glass provides a direct visual indication of the water level in the boiler, allowing the operator to monitor and control water level manually. 31. A boiler operator conducts a bottom blowdown. What is the correct procedure? A. Open the valve slowly and close it quickly B. Open the valve quickly and close it slowly C. Open the valve fully and close it fully in a controlled manner D. Leave the valve partially open continuously Correct answer: C. Open the valve fully and close it fully in a controlled manner Rationale: The correct procedure for bottom blowdown is to open the valve fully to allow maximum flow for a short period (typically 5- 10 seconds) and then close it fully. This creates turbulence that helps remove settled solids.
32. Which of the following is a symptom of high boiler water alkalinity? A. Corrosion of boiler metal B. Foaming and carryover C. Scale formation D. Low steam pressure Correct answer: B. Foaming and carryover Rationale: High alkalinity can cause foaming, which leads to carryover of water with steam, reducing steam quality and potentially damaging downstream equipment. 33. What is the primary purpose of a boiler's steam pressure gauge? A. To indicate the pressure inside the boiler B. To control the burner firing rate C. To measure the water level D. To remove impurities from the steam Correct answer: A. To indicate the pressure inside the boiler Rationale: The steam pressure gauge provides a continuous visual indication of the pressure inside the boiler, allowing the operator to monitor and control boiler operation. 34. What is the primary purpose of a boiler's try cocks? A. To verify the water level in the gauge glass B. To add water to the boiler
C. To add water to the boiler D. To remove sediment from the boiler Correct answer: A. To isolate the boiler from the steam distribution system Rationale: The main steam stop valve isolates the boiler from the steam distribution system, allowing the boiler to be taken offline for maintenance or in an emergency.
37. What is the primary purpose of a boiler's non-return valve? A. To prevent steam from flowing back into the boiler B. To add water to the boiler C. To remove sediment from the boiler D. To control steam pressure Correct answer: A. To prevent steam from flowing back into the boiler Rationale: A non-return valve (check valve) allows steam to flow out of the boiler but prevents it from flowing back in, protecting the boiler from backpressure. 38. What is the primary purpose of a boiler's feedwater check valve? A. To prevent water from flowing back out of the boiler B. To control the burner firing rate C. To remove sediment from the boiler D. To measure water level
Correct answer: A. To prevent water from flowing back out of the boiler Rationale: The feedwater check valve allows feedwater to flow into the boiler but prevents it from flowing back out, maintaining water level and preventing damage.
39. What is the primary purpose of a boiler's blowdown tank? A. To cool blowdown water before discharge B. To store feedwater C. To remove impurities from the boiler D. To control steam pressure Correct answer: A. To cool blowdown water before discharge Rationale: A blowdown tank cools the hot blowdown water and reduces pressure before it is discharged to the sewer, protecting plumbing and personnel from high-temperature water. 40. A boiler operator notices that the steam pressure is rising above the set point and the burner is still firing. What is the most likely cause? A. The burner control is malfunctioning B. The steam demand is too high C. The feedwater temperature is too low D. The safety valve is leaking Correct answer: A. The burner control is malfunctioning
