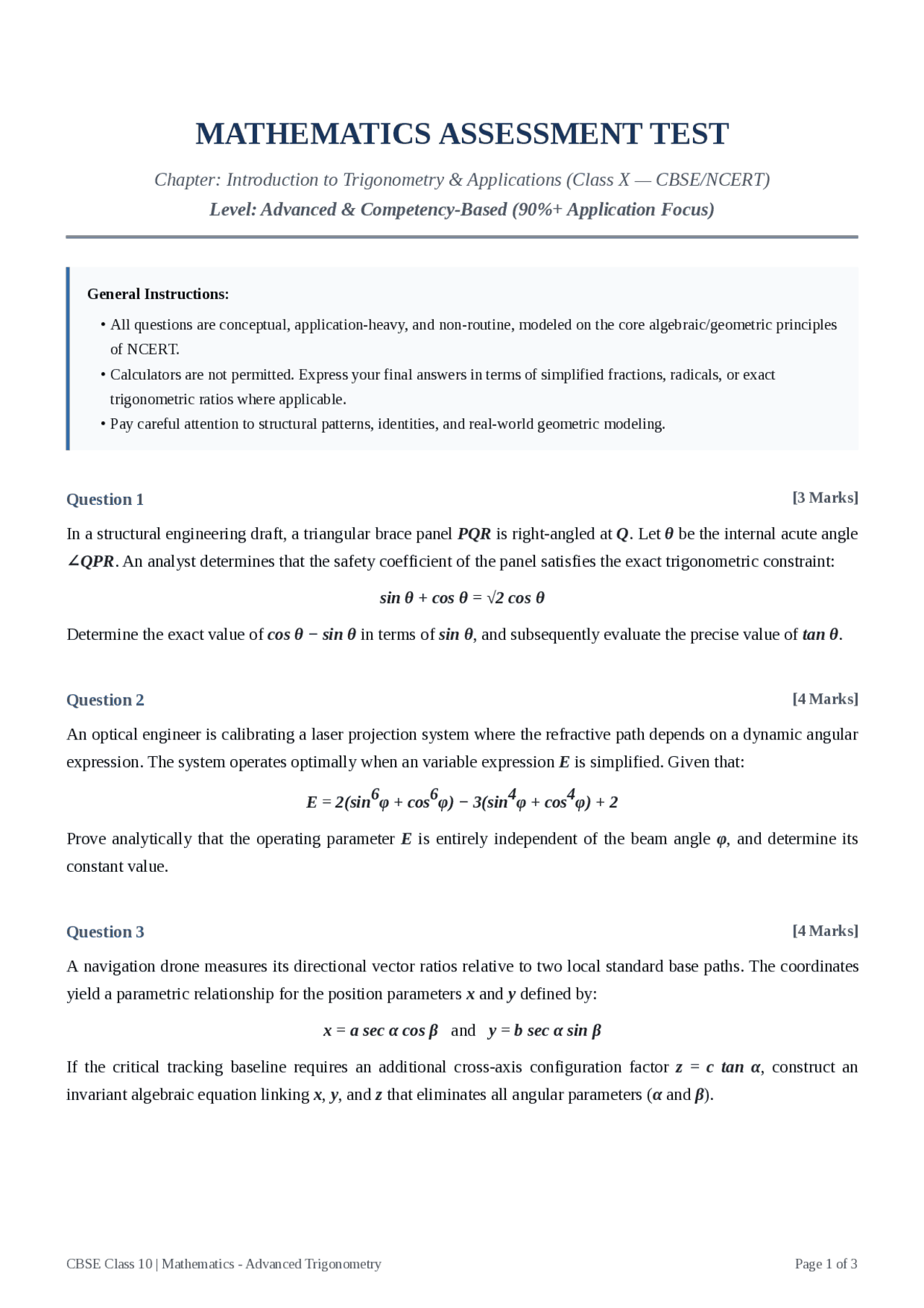

MATHEMATICS ASSESSMENT TEST
Chapter: Introduction to Trigonometry & Applications (Class X — CBSE/NCERT)
Level: Advanced & Competency-Based (90%+ Application Focus)
General Instructions: All questions are conceptual, application-heavy, and non-routine, modeled on the core algebraic/geometric principles of NCERT. Calculators are not permitted. Express your final answers in terms of simplified fractions, radicals, or exact trigonometric ratios where applicable. Pay careful attention to structural patterns, identities, and real-world geometric modeling.
Question 1
In a structural engineering draft, a triangular brace panel PQR is right-angled at Q. Let θ be the internal acute angle ∠QPR. An analyst determines that the safety coefficient of the panel satisfies the exact trigonometric constraint:
sin θ + cos θ = √2 cos θ
Determine the exact value of cos θ − sin θ in terms of sin θ , and subsequently evaluate the precise value of tan θ.
Question 2
An optical engineer is calibrating a laser projection system where the refractive path depends on a dynamic angular expression. The system operates optimally when an variable expression E is simplified. Given that:
E = 2(sin^6 φ + cos^6 φ) − 3(sin^4 φ + cos^4 φ) + 2
Prove analytically that the operating parameter E is entirely independent of the beam angle φ , and determine its constant value.
Question 3
A navigation drone measures its directional vector ratios relative to two local standard base paths. The coordinates yield a parametric relationship for the position parameters x and y defined by:
x = a sec α cos β and y = b sec α sin β
If the critical tracking baseline requires an additional cross-axis configuration factor z = c tan α , construct an invariant algebraic equation linking x , y , and z that eliminates all angular parameters ( α and β ).
[3 Marks]
[5 Marks]
[1 Mark]
[2 Marks]
[2 Marks]
[3 Marks]
[4 Marks]
Question 4
During a physics simulation of simple harmonic motion, a student maps a system where the displacement values conform to the following condition:
tan θ + sin θ = m and tan θ − sin θ = n
Show that the internal kinetic constant of this system, represented by the difference of squares (m^2 − n^2 ) , is exactly equal to 4√mn.
Question 5
Case-Based Competency Question: Astronomical Observation An astronomer at an observatory ( O ) tracking a slow-moving atmospheric meteorological balloon notices that its angle of elevation from her telescope position is α. She steps vertically downwards into an underground tracking bunker located exactly h meters directly below the observatory. From this lower station, the angle of elevation to the exact same balloon is observed to be β.
(i) Construct a fully labeled geometric representative schematic diagram of the scenario. (ii) Derive an analytical expression for the straight-line horizontal distance from the observatory tower to the vertical ground-line of the balloon. (iii) Prove that the absolute vertical height of the balloon above the original observatory level O is given exactly by the relation: H = (h tan α) / (tan α − tan β)
Question 6
An architectural firm is designing an asymmetric wedge roof for a modern gallery. The structural cross-section forms a right-angled triangle where the hypotenuse is of length k units. If the acute base angle is θ , the efficiency of structural load distribution requires maximizing the sum of the base side and vertical side. Given the condition that 3 sin θ + 4 cos θ = 5 , evaluate the exact measure of tan θ without resolving for θ via inverse tables, and state the physical ratio of the vertical height to the horizontal base.
Question 7
In a computational coordinate geometry algorithm, the absolute scaling factors of a shifting polygon are bounded by trigonometric identities. Prove the following identity analytically to verify that the algorithm prevents a mathematical division-by-zero error for all acute scaling profiles:
(1 + cot A + tan A)(sin A − cos A) / (sec^3 A − cosec^3 A) = sin^2 A cos^2 A
