bg1

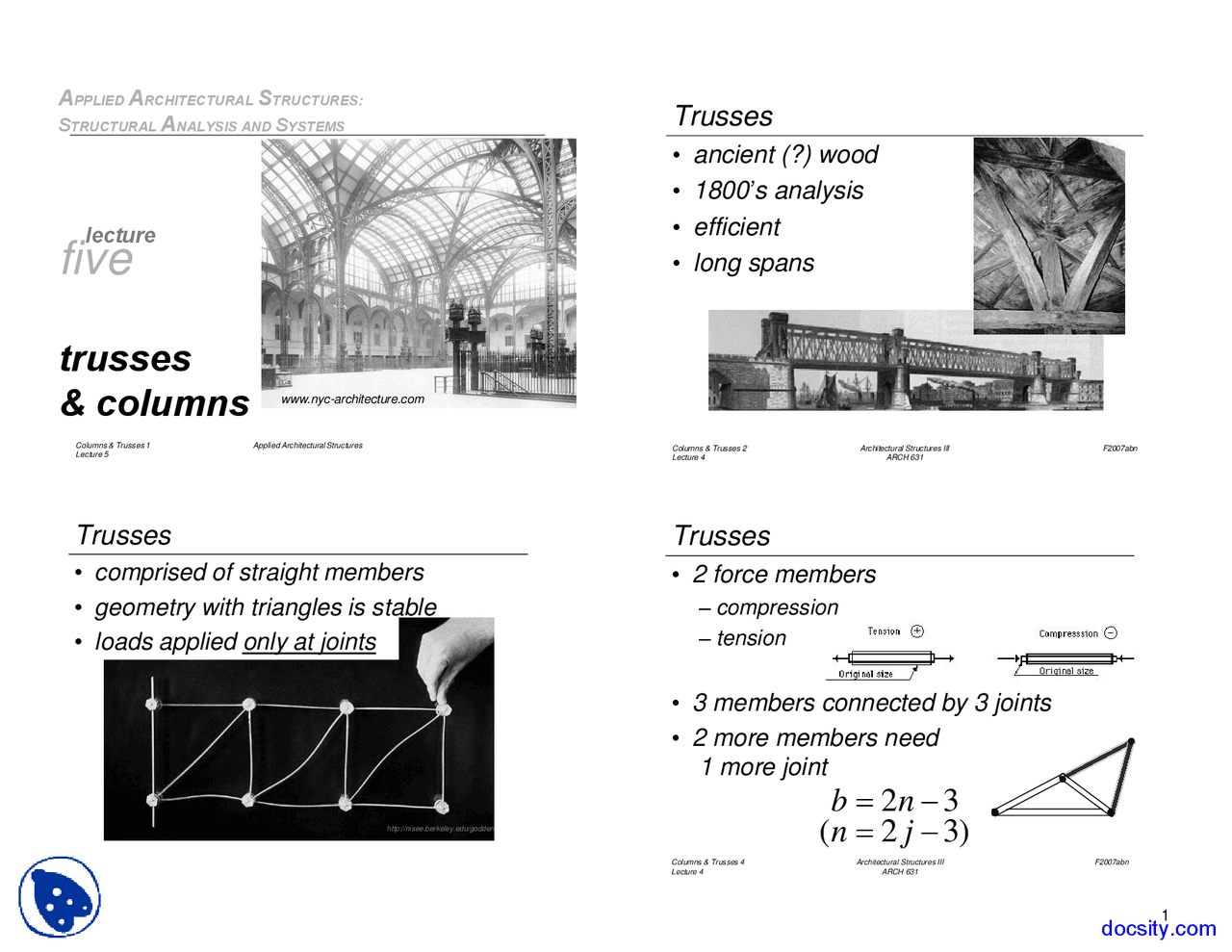

1
five
trusses
& columns
Columns & Trusses 1
Lecture 5 Applied Architectural Structures
lecture
www.nyc-architecture.com
APPLIED ARCHITECTURAL STRUCTUR ES:
STRUCTURAL ANALYSIS AND SYSTEMS
Columns & Trusses 2
Lecture 4 Architectural Structures III
ARCH 631 F2007abn
Trusses
•ancient (?) wood
•1800’s analysis
•efficient
•long spans
•comprised of straight members
•geometry with triangles is stable
•loads applied only at joints
Trusses
http://nisee.berkeley.edu/godden
Columns & Trusses 4
Lecture 4 Architectural Structures III
ARCH 631 F2007abn
Trusses
•2 force members
–compression
–tension
•3 members connected by 3 joints
•2 more members need
1 more joint
32 nb )32( jn
docsity.com
pf3
pf4
pf5
pf8
pf9
pfa

Partial preview of the text

Download Trusses - Architectural Structures - Lecture Slides and more Slides Structural Design and Architecture in PDF only on Docsity!

1

five

trusses

& columns

Columns & Trusses Lecture 5 1 Applied Architectural Structures

lecture

www.nyc-architecture.com

APPLIED ARCHITECTURAL STRUCTURES:
STRUCTURAL ANALYSIS AND SYSTEMS

Columns & Trusses 2Lecture 4 Architectural Structures IIIARCH 631 F2007abn

Trusses

  • ancient (?) wood
  • 1800 ’ s analysis
  • efficient
  • long spans
  • comprised of straight members
  • geometry with triangles is stable
  • loads applied only at joints

Trusses

http://nisee.berkeley.edu/godden Columns & Trusses 4Lecture 4 Architectural Structures IIIARCH 631 F2007abn

Trusses

  • 2 force members
    • compression
    • tension
  • 3 members connected by 3 joints
  • 2 more members need

1 more joint

b  2 n  3

( n  2 j  3 )

2

Columns & Trusses Lecture 4 5 Architectural Structures III

Truss Analysis

  • visualize compression and tension from

deformed shape

http://nisee.berkeley.edu/godden Columns & Trusses Lecture 4^6 Architectural Structures III

Truss Analysis

  • Method of Joints

  • Method of Sections

  • Graphical Methods
  • all rely on equilibrium
    • of bodies
    • internal equilibrium

http:// nisee.berkeley.edu/godden

 F  0
 F  0
 M  0

Columns & Trusses Lecture 4 7 Architectural Structures III

Truss Connections

  • “pins”
    • can’t resist rotation

http:// nisee.berkeley.edu/godden

Columns & Trusses Lecture 4 8 Architectural Structures III

Trusses

  • require lateral bracing
  • consider buckling
  • indeterminate trusses
    • extra members
    • solvable with statics
      • cables can’t hold compression
    • displacement methods
      • elastic elongation
    • too few members, unstable

http:// nisee.berkeley.edu/godden

One Maritime Plaza, SOM 1964

F  0

F  0

M  0

4

5

7

Columns & Trusses Lecture 4 25 Architectural Structures III

Tools – Multiframe

  • to run analysis choose
    • Analyze menu
      • Linear
  • plot
    • choose options
  • results
    • choose options

8

related to E, I, & L

  2

min

2

L

EI

Pcritical

A
I
r 

a

actual

critical F

A

P

f  

weak axis

  2

2 2

2 2

r
L
E
AL
EAr
A
P
f

e e

critical critical

2 e

2 critical

r
L
EA
P

F2011abn

Critical Stresses

  • when a column gets stubby, Fy will limit the load
  • real world has loads with eccentricity
  • buckling for steel when Fe < 0.44Fy

Columns & Trusses Lecture 5 31 Architectural Structures III

Fy

E

r

KL

10

F2010abn

max

FS

f

f  Fcr  cr

  • axial + bending
  • design

M  P  e

I

Mc

A

P

f max  

Columns & Trusses Lecture 5 37 Architectural Structures III

Combined Stresses
