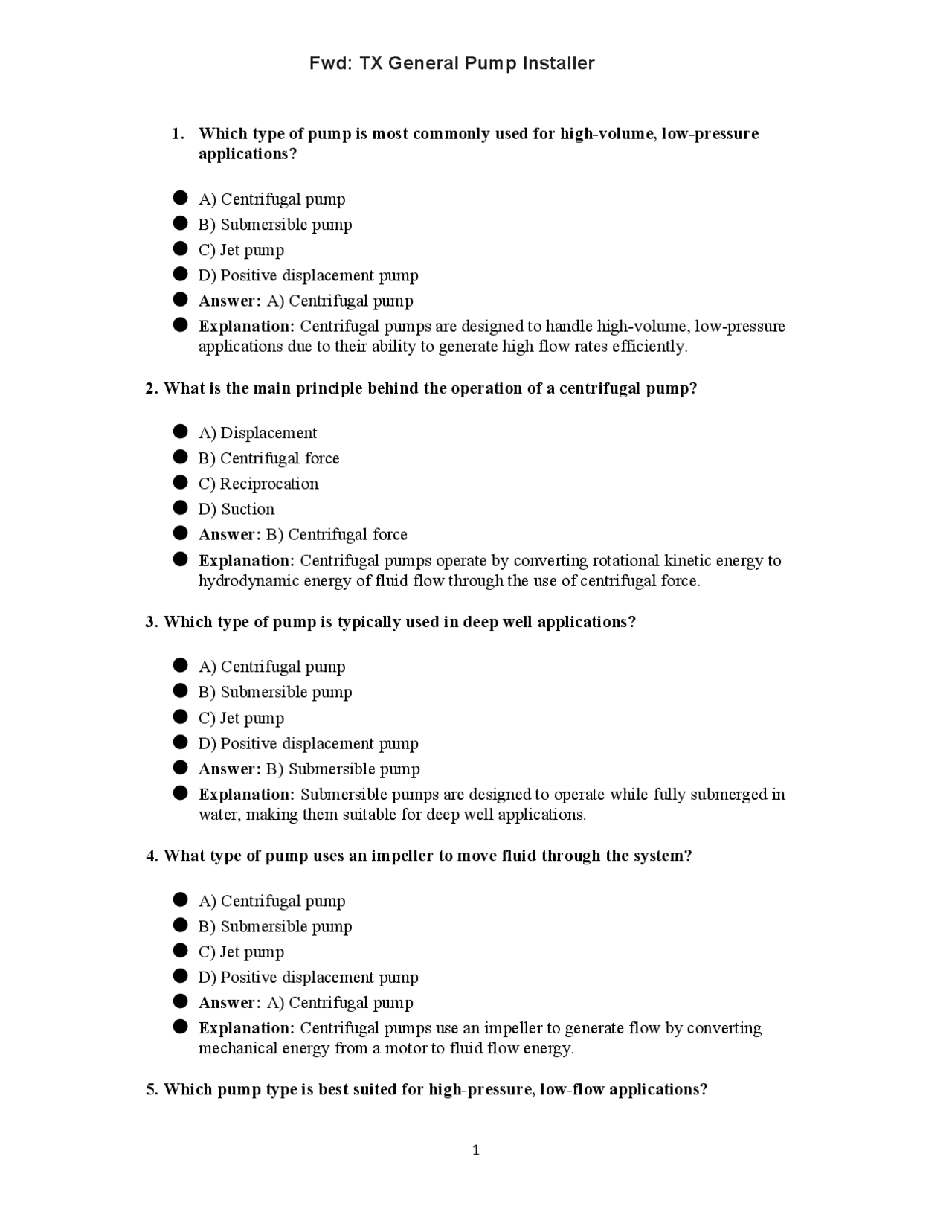

- Which type of pump is most commonly used for high-volume, low-pressure applications?
● A) Centrifugal pump
● B) Submersible pump
● C) Jet pump
● D) Positive displacement pump
● Answer: A) Centrifugal pump
● Explanation: Centrifugal pumps are designed to handle high-volume, low-pressure
applications due to their ability to generate high flow rates efficiently.
- What is the main principle behind the operation of a centrifugal pump?
● A) Displacement
● B) Centrifugal force
● C) Reciprocation
● D) Suction
● Answer: B) Centrifugal force
● Explanation: Centrifugal pumps operate by converting rotational kinetic energy to
hydrodynamic energy of fluid flow through the use of centrifugal force.
- Which type of pump is typically used in deep well applications?
● A) Centrifugal pump
● B) Submersible pump
● C) Jet pump
● D) Positive displacement pump
● Answer: B) Submersible pump
● Explanation: Submersible pumps are designed to operate while fully submerged in
water, making them suitable for deep well applications.
- What type of pump uses an impeller to move fluid through the system?
● A) Centrifugal pump
● B) Submersible pump
● C) Jet pump
● D) Positive displacement pump
● Answer: A) Centrifugal pump
● Explanation: Centrifugal pumps use an impeller to generate flow by converting
mechanical energy from a motor to fluid flow energy.
- Which pump type is best suited for high-pressure, low-flow applications?
● A) Centrifugal pump
● B) Submersible pump
● C) Jet pump
● D) Positive displacement pump
● Answer: D) Positive displacement pump
● Explanation: Positive displacement pumps are effective for high-pressure, low-flow
applications as they displace a fixed amount of fluid per cycle, maintaining consistent flow regardless of pressure.
- Which of the following statements best describes a jet pump?
● A) It uses centrifugal force to move water.
● B) It is designed to operate underwater.
● C) It uses a venturi effect to draw water.
● D) It displaces fluid through a reciprocating action.
● Answer: C) It uses a venturi effect to draw water.
● Explanation: Jet pumps use a venturi effect to create suction, which draws water
from a well or reservoir.
- What characteristic is common to all positive displacement pumps?
● A) They can run dry without damage.
● B) They maintain a constant flow rate regardless of pressure.
● C) They are used primarily for water applications.
● D) They are limited to low-pressure applications.
● Answer: B) They maintain a constant flow rate regardless of pressure.
● Explanation: Positive displacement pumps deliver a consistent flow rate regardless
of the pressure in the system.
- What does a pump curve typically display?
● A) The size of the pump
● B) The efficiency of the pump
● C) The relationship between flow rate and head
● D) The weight of the pump
● Answer: C) The relationship between flow rate and head
● Explanation: A pump curve graphically represents the relationship between the flow
rate and the head (pressure) of the pump, indicating performance characteristics.
- In which application would a submersible pump be inappropriate?
● A) Shallow well
● A) Flow rate increases
● B) Flow rate decreases
● C) Flow rate remains the same
● D) Pump stops working
● Answer: B) Flow rate decreases
● Explanation: In a centrifugal pump, as discharge pressure increases, the flow rate
decreases due to the nature of its performance curve.
- Which factor is least likely to affect the performance of a centrifugal pump?
● A) Impeller size
● B) Pump speed
● C) Fluid viscosity
● D) Color of the fluid
● Answer: D) Color of the fluid
● Explanation: The color of the fluid does not affect the performance of a centrifugal
pump, whereas impeller size, pump speed, and fluid viscosity are significant factors.
- Why are submersible pumps often preferred for deep well applications?
● A) They are less expensive.
● B) They are easier to maintain.
● C) They prevent cavitation issues.
● D) They can handle solids.
● Answer: C) They prevent cavitation issues.
● Explanation: Submersible pumps prevent cavitation issues since they are submerged
and operate below the water level, reducing the risk of cavitation.
- What is the primary function of a pump impeller?
● A) To filter debris from the fluid
● B) To convert electrical energy to mechanical energy
● C) To increase the velocity of the fluid
● D) To measure the flow rate
● Answer: C) To increase the velocity of the fluid
● Explanation: The impeller in a pump increases the velocity of the fluid, which is then
converted to pressure.
- Which type of pump is typically used for irrigation systems?
● A) Centrifugal pump
● B) Submersible pump
● C) Jet pump
● D) Positive displacement pump
● Answer: A) Centrifugal pump
● Explanation: Centrifugal pumps are commonly used in irrigation systems due to their
ability to handle large volumes of water efficiently.
- What does the term 'pump head' refer to?
● A) The physical height of the pump
● B) The height to which a pump can raise water
● C) The diameter of the pump impeller
● D) The length of the pump casing
● Answer: B) The height to which a pump can raise water
● Explanation: Pump head refers to the height to which a pump can raise water,
representing the energy imparted to the fluid.
- What is cavitation in a pump?
● A) The process of water boiling within the pump
● B) The formation of vapor bubbles within the pump
● C) The wear and tear of pump components
● D) The blockage of pump impellers
● Answer: B) The formation of vapor bubbles within the pump
● Explanation: Cavitation occurs when vapor bubbles form in the pump due to a drop
in pressure, which can cause damage when they collapse.
- What is the purpose of a pump's volute casing?
● A) To house the impeller
● B) To increase fluid velocity
● C) To convert velocity to pressure
● D) To filter out impurities
● Answer: C) To convert velocity to pressure
● Explanation: The volute casing in a pump converts the high velocity of the fluid
exiting the impeller into pressure by gradually expanding the flow area.
- In a centrifugal pump, what is the relationship between flow rate and efficiency?
● A) Directly proportional
● B) Inversely proportional
● C) No relationship
● D) Depends on the pump size
● Explanation: Jet pumps often require a foot valve to maintain the prime and prevent
backflow of water when the pump is not operating.
- What is the purpose of a mechanical seal in a pump?
● A) To increase the flow rate
● B) To prevent leakage
● C) To reduce noise
● D) To filter the fluid
● Answer: B) To prevent leakage
● Explanation: A mechanical seal prevents leakage of the fluid being pumped,
ensuring efficient and safe operation.
- What parameter does a pump's specific speed indicate?
● A) The rotational speed of the impeller
● B) The flow characteristics relative to head and flow rate
● C) The power consumption of the pump
● D) The physical dimensions of the pump
● Answer: B) The flow characteristics relative to head and flow rate
● Explanation: Specific speed is a dimensionless parameter that indicates the flow
characteristics of a pump relative to its head and flow rate, helping in pump selection.
- Which type of pump is most effective for moving large volumes of water over short distances?
● A) Centrifugal pump
● B) Submersible pump
● C) Jet pump
● D) Positive displacement pump
● Answer: A) Centrifugal pump
● Explanation: Centrifugal pumps are highly effective for moving large volumes of
water over short distances due to their high flow rate capabilities.
- What is the role of an impeller in a centrifugal pump?
● A) To create suction
● B) To convert pressure into flow
● C) To increase the velocity of the fluid
● D) To regulate the pump's speed
● Answer: C) To increase the velocity of the fluid
● Explanation: The impeller in a centrifugal pump increases the velocity of the fluid,
which is then converted into pressure energy.
- How is the efficiency of a pump defined?
● A) Ratio of output power to input power
● B) Amount of fluid pumped per unit time
● C) Energy consumed per unit of fluid pumped
● D) Maximum head achieved by the pump
● Answer: A) Ratio of output power to input power
● Explanation: The efficiency of a pump is defined as the ratio of the hydraulic power
delivered to the fluid to the mechanical power supplied to the pump.
- What factor is most important when selecting a pump for a specific application?
● A) The color of the pump
● B) The size of the impeller
● C) The material of the pump casing
● D) The pump's head and flow requirements
● Answer: D) The pump's head and flow requirements
● Explanation: Selecting a pump that meets the specific head and flow requirements of
the application is crucial for efficient operation.
- Which of the following is a disadvantage of using a centrifugal pump?
● A) High efficiency at low flow rates
● B) Ability to handle solids
● C) Sensitivity to changes in flow rate
● D) Simple design and low cost
● Answer: C) Sensitivity to changes in flow rate
● Explanation: Centrifugal pumps can be sensitive to changes in flow rate, which may
affect their performance and efficiency.
- What is the function of a volute in a centrifugal pump?
● A) To house the motor
● B) To increase the speed of the fluid
● C) To convert velocity into pressure
● D) To filter debris from the fluid
● Answer: C) To convert velocity into pressure
● Explanation: The volute in a centrifugal pump converts the velocity of the fluid into
pressure by gradually expanding the flow area.
- What type of pump would you use for a well that is 300 feet deep?
● A) Centrifugal pump
● D) Checking the pump's efficiency
● Answer: B) Filling the pump casing with fluid to remove air
● Explanation: Priming involves filling the pump casing with fluid to remove air,
ensuring the pump can operate correctly without air blockages.
- Why is it important to match a pump's materials to the fluid being pumped?
● A) To reduce noise levels
● B) To ensure chemical compatibility
● C) To increase pump speed
● D) To enhance the appearance of the pump
● Answer: B) To ensure chemical compatibility
● Explanation: Matching the pump's materials to the fluid being pumped is crucial to
prevent chemical reactions that can damage the pump and compromise safety.
- What is the main function of a pump's impeller?
● A) To create a vacuum
● B) To convert mechanical energy to fluid energy
● C) To filter out impurities
● D) To measure flow rate
● Answer: B) To convert mechanical energy to fluid energy
● Explanation: The impeller converts the mechanical energy from the motor into fluid
energy, increasing the velocity of the fluid being pumped.
- What type of pump is typically used for high-viscosity fluids?
● A) Centrifugal pump
● B) Submersible pump
● C) Jet pump
● D) Positive displacement pump
● Answer: D) Positive displacement pump
● Explanation: Positive displacement pumps are well-suited for high-viscosity fluids
because they can move fluid through a fixed volume per cycle regardless of viscosity.
- What is the main advantage of a submersible pump over other types?
● A) Lower cost
● B) Easier maintenance
● C) Higher efficiency
● D) Ability to operate underwater
● Answer: D) Ability to operate underwater
● Explanation: Submersible pumps are designed to operate while fully submerged,
making them ideal for applications where the pump needs to be placed underwater.
- In a pump system, what does NPSH stand for?
● A) Net Pumping System Height
● B) Nominal Pressure and Suction Head
● C) Net Positive Suction Head
● D) Normal Pressure System Height
● Answer: C) Net Positive Suction Head
● Explanation: NPSH stands for Net Positive Suction Head, which is the measure of
the absolute pressure in the fluid being pumped to prevent cavitation.
- What factor most affects the performance of a centrifugal pump?
● A) Color of the fluid
● B) Temperature of the fluid
● C) Viscosity of the fluid
● D) Length of the pump shaft
● Answer: C) Viscosity of the fluid
● Explanation: The viscosity of the fluid being pumped significantly affects the
performance of a centrifugal pump, as higher viscosity can reduce flow rates and efficiency.
- Which type of pump would you use for an application requiring precise metering of fluid?
● A) Centrifugal pump
● B) Submersible pump
● C) Jet pump
● D) Positive displacement pump
● Answer: D) Positive displacement pump
● Explanation: Positive displacement pumps are ideal for applications requiring
precise metering of fluid due to their ability to deliver a consistent volume per cycle.
- What is the primary cause of cavitation in pumps?
● A) High flow rates
● B) Low fluid levels
● C) Excessive noise
● D) Air entering the pump
● Answer: D) Air entering the pump
● Explanation: Centrifugal pumps are commonly used in fire suppression systems due
to their ability to provide high flow rates and quick response times.
- What happens if a pump operates outside its recommended range on the pump curve?
● A) Increased efficiency
● B) Reduced wear and tear
● C) Potential for damage and decreased efficiency
● D) Improved performance
● Answer: C) Potential for damage and decreased efficiency
● Explanation: Operating a pump outside its recommended range on the pump curve
can lead to potential damage and decreased efficiency, affecting the overall performance of the pump.
- Which component is critical for the self-priming capability of a jet pump?
● A) Impeller
● B) Diffuser
● C) Venturi
● D) Mechanical seal
● Answer: C) Venturi
● Explanation: The venturi is critical for the self-priming capability of a jet pump as it
creates the necessary suction to draw water into the pump.
- Why are submersible pumps used in sewage applications?
● A) They are less expensive.
● B) They can handle solids.
● C) They are easier to install.
● D) They consume less power.
● Answer: B) They can handle solids.
● Explanation: Submersible pumps are designed to handle solids and are thus suitable
for sewage applications where debris and waste need to be pumped efficiently.
- What does the term 'volumetric efficiency' refer to in pump operation?
● A) The ratio of the actual output to the theoretical output
● B) The amount of fluid pumped per unit time
● C) The pressure generated by the pump
● D) The power consumption of the pump
● Answer: A) The ratio of the actual output to the theoretical output
● Explanation: Volumetric efficiency refers to the ratio of the actual fluid output to the
theoretical output, indicating how effectively a pump moves fluid.
- What is a common issue with improper pump selection?
● A) Increased flow rate
● B) Decreased operational costs
● C) Reduced lifespan and frequent maintenance
● D) Enhanced performance
● Answer: C) Reduced lifespan and frequent maintenance
● Explanation: Improper pump selection can lead to reduced lifespan and frequent
maintenance due to the pump operating outside its optimal performance range.
- How does fluid viscosity affect pump performance?
● A) It increases the flow rate
● B) It decreases the flow rate
● C) It has no effect on performance
● D) It improves pump efficiency
● Answer: B) It decreases the flow rate
● Explanation: Higher fluid viscosity increases resistance to flow, leading to a decrease
in the flow rate and potentially affecting pump performance.
- What is the main purpose of using a foot valve in a pump system?
● A) To regulate flow rate
● B) To prevent backflow and maintain prime
● C) To increase pressure
● D) To reduce noise
● Answer: B) To prevent backflow and maintain prime
● Explanation: A foot valve prevents backflow of fluid and helps maintain the pump's
prime, ensuring efficient operation when the pump is restarted.
- Which pump component converts mechanical energy into fluid flow energy?
● A) Impeller
● B) Diffuser
● C) Shaft
● D) Volute
● Answer: A) Impeller
● Explanation: The impeller converts mechanical energy from the motor into fluid
flow energy, increasing the velocity and pressure of the fluid.
● Answer: A) Gallons per minute (GPM)
● Explanation: Flow rate in hydraulic systems is commonly measured in gallons per
minute (GPM) to quantify the volume of fluid passing through a point in the system.
- What does the term 'head' refer to in fluid mechanics?
● A) The diameter of the pipe
● B) The pressure at the pump outlet
● C) The height to which a pump can raise water
● D) The temperature of the fluid
● Answer: C) The height to which a pump can raise water
● Explanation: Head refers to the height to which a pump can raise water, representing
the energy imparted to the fluid.
- What is the formula for calculating flow rate in a pipe?
● A) Flow rate = Pressure × Diameter
● B) Flow rate = Velocity × Area
● C) Flow rate = Head × Friction Loss
● D) Flow rate = Density × Gravity
● Answer: B) Flow rate = Velocity × Area
● Explanation: The flow rate in a pipe is calculated by multiplying the velocity of the
fluid by the cross-sectional area of the pipe (Flow rate = Velocity × Area).
- How does increasing the diameter of a pipe affect friction loss?
● A) Increases friction loss
● B) Decreases friction loss
● C) Has no effect on friction loss
● D) Increases pressure
● Answer: B) Decreases friction loss
● Explanation: Increasing the diameter of a pipe reduces friction loss because a larger
diameter allows the fluid to flow more easily, reducing resistance.
- Which equation is used to calculate the pressure loss due to friction in a pipe?
● A) Bernoulli's equation
● B) Darcy-Weisbach equation
● C) Pascal's equation
● D) Archimedes' equation
● Answer: B) Darcy-Weisbach equation
● Explanation: The Darcy-Weisbach equation is used to calculate the pressure loss due
to friction in a pipe, taking into account factors such as pipe length, diameter, flow velocity, and fluid viscosity.
- What is the main factor that affects the velocity of fluid in a pipe?
● A) Fluid density
● B) Pipe material
● C) Pipe diameter
● D) Temperature
● Answer: C) Pipe diameter
● Explanation: The diameter of a pipe is the main factor affecting the velocity of fluid;
a larger diameter results in lower velocity and vice versa.
- How is the term 'hydraulic gradient' defined in fluid mechanics?
● A) The angle at which fluid flows
● B) The ratio of pressure to flow rate
● C) The slope of the energy grade line
● D) The change in pressure over a distance
● Answer: C) The slope of the energy grade line
● Explanation: The hydraulic gradient is the slope of the energy grade line,
representing the change in total energy per unit length of pipe.
- What impact does fluid viscosity have on hydraulic system performance?
● A) Increases flow rate
● B) Reduces friction loss
● C) Increases friction loss
● D) Has no impact
● Answer: C) Increases friction loss
● Explanation: Higher fluid viscosity increases friction loss within a hydraulic system,
making it more difficult for the fluid to flow.
- What is the primary method for minimizing hydraulic losses in a pump system?
● A) Increasing pump speed
● B) Decreasing pipe diameter
● C) Using smoother pipe materials
● D) Reducing fluid temperature
● Answer: C) Using smoother pipe materials
● Explanation: Using smoother pipe materials helps minimize hydraulic losses by
reducing the friction between the fluid and the pipe walls.
● A) Reduces losses
● B) Increases losses
● C) Has no effect
● D) Reduces pressure
● Answer: B) Increases losses
● Explanation: Pipe roughness increases hydraulic losses due to the additional friction
and turbulence it creates as fluid flows over the rough surface.
- In fluid mechanics, what is the significance of Reynolds number?
● A) It determines the color of the fluid.
● B) It indicates the type of flow: laminar or turbulent.
● C) It measures fluid temperature.
● D) It defines fluid density.
● Answer: B) It indicates the type of flow: laminar or turbulent.
● Explanation: Reynolds number is a dimensionless quantity used to predict the flow
regime in a fluid system, indicating whether the flow is laminar (smooth) or turbulent (chaotic).
- What is the primary cause of pressure loss in a hydraulic system?
● A) Fluid density
● B) Pipe diameter
● C) Friction loss
● D) Fluid temperature
● Answer: C) Friction loss
● Explanation: Friction loss, caused by the resistance of fluid moving through pipes
and fittings, is the primary cause of pressure loss in a hydraulic system.
- What does the term 'static head' refer to in a pump system?
● A) The pressure required to start the pump
● B) The vertical distance the pump must lift the fluid
● C) The flow rate of the fluid
● D) The horizontal distance of the pipe
● Answer: B) The vertical distance the pump must lift the fluid
● Explanation: Static head refers to the vertical distance that a pump must lift the fluid,
representing the potential energy required to move the fluid vertically.
- How can hydraulic losses be minimized in a pumping system?
● A) Increasing fluid temperature
● B) Reducing pipe diameter
● C) Minimizing pipe bends and fittings
● D) Increasing fluid density
● Answer: C) Minimizing pipe bends and fittings
● Explanation: Hydraulic losses can be minimized by reducing the number of pipe
bends and fittings, which cause additional resistance and turbulence in the fluid flow.
- What is the relationship between pressure and fluid velocity in a pipe according to Bernoulli's equation?
● A) Directly proportional
● B) Inversely proportional
● C) No relationship
● D) Equal at all points
● Answer: B) Inversely proportional
● Explanation: According to Bernoulli's equation, pressure and fluid velocity in a pipe
are inversely proportional; as velocity increases, pressure decreases, and vice versa.
- What is the purpose of a flow meter in a hydraulic system?
● A) To measure pressure
● B) To control fluid velocity
● C) To measure flow rate
● D) To regulate fluid temperature
● Answer: C) To measure flow rate
● Explanation: A flow meter is used to measure the flow rate of fluid in a hydraulic
system, providing valuable data for system performance analysis.
- How does pipe length affect hydraulic losses in a system?
● A) Longer pipes reduce losses
● B) Longer pipes increase losses
● C) Pipe length has no effect
● D) Shorter pipes increase losses
● Answer: B) Longer pipes increase losses
● Explanation: Longer pipes increase hydraulic losses due to the greater frictional
resistance encountered by the fluid as it travels through the pipe.
- What is the primary function of an orifice plate in a fluid system?
● A) To increase pressure
● B) To reduce fluid velocity
