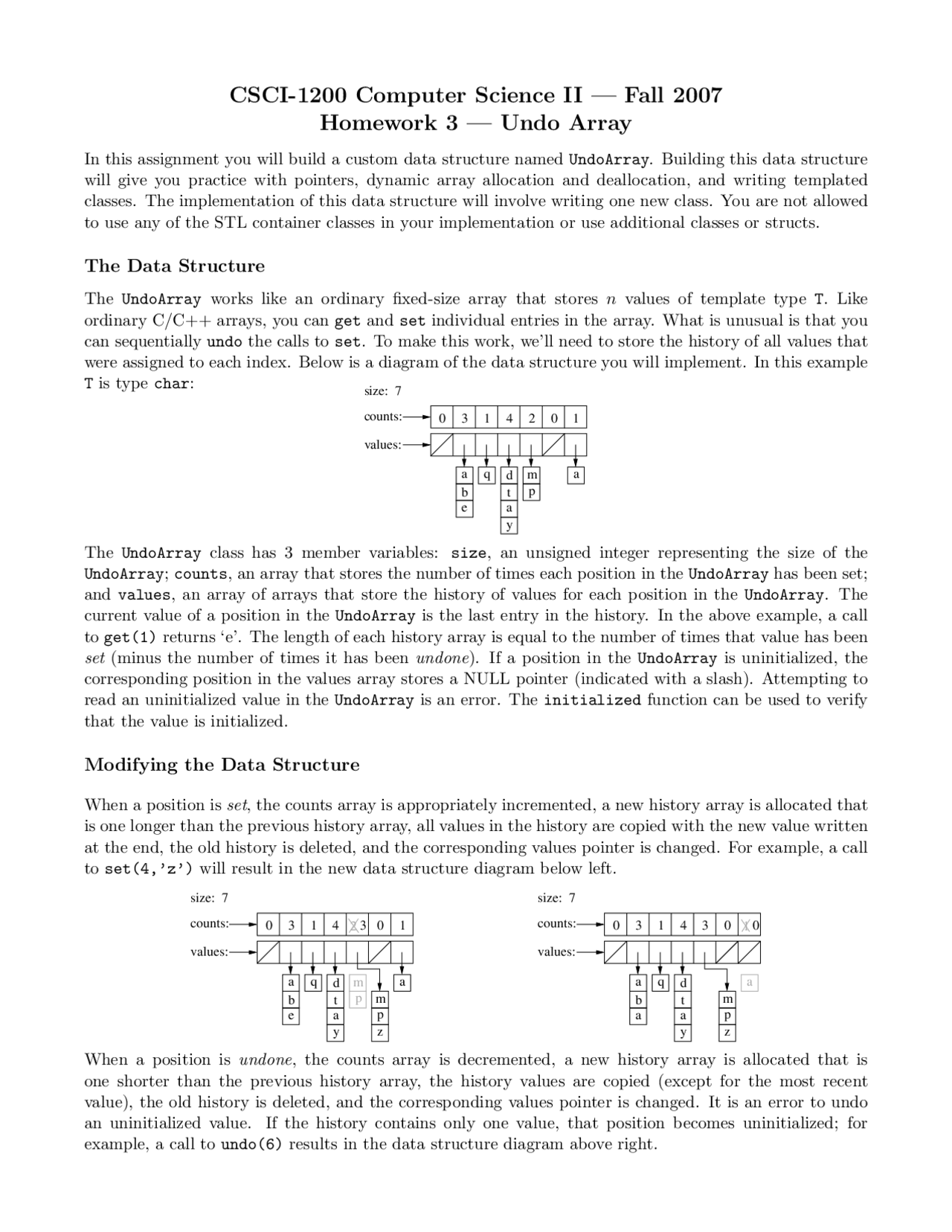

CSCI-1200 Computer Science II — Fall 2007
Homework 3 — Undo Array
In this assignment you will build a custom data structure named UndoArray. Building this data structure will give you practice with pointers, dynamic array allocation and deallocation, and writing templated classes. The implementation of this data structure will involve writing one new class. You are not allowed to use any of the STL container classes in your implementation or use additional classes or structs.
The Data Structure
The UndoArray works like an ordinary fixed-size array that stores n values of template type T. Like ordinary C/C++ arrays, you can get and set individual entries in the array. What is unusual is that you can sequentially undo the calls to set. To make this work, we’ll need to store the history of all values that were assigned to each index. Below is a diagram of the data structure you will implement. In this example T is type char:
e
size: 7
values:
counts:
a q
a y
a b t
d m p
0 3 1 4 2 0 1
The UndoArray class has 3 member variables: size, an unsigned integer representing the size of the UndoArray; counts, an array that stores the number of times each position in the UndoArray has been set; and values, an array of arrays that store the history of values for each position in the UndoArray. The current value of a position in the UndoArray is the last entry in the history. In the above example, a call to get(1) returns ‘e’. The length of each history array is equal to the number of times that value has been set (minus the number of times it has been undone). If a position in the UndoArray is uninitialized, the corresponding position in the values array stores a NULL pointer (indicated with a slash). Attempting to read an uninitialized value in the UndoArray is an error. The initialized function can be used to verify that the value is initialized.
Modifying the Data Structure
When a position is set, the counts array is appropriately incremented, a new history array is allocated that is one longer than the previous history array, all values in the history are copied with the new value written at the end, the old history is deleted, and the corresponding values pointer is changed. For example, a call to set(4,’z’) will result in the new data structure diagram below left.
2
size: 7
values:
counts:
a q a y
a b t
d
0 3 1 4 0 1
m p z
m p e
3 1
m p z
size: 7
values:
counts:
a a
q a y
b t
d
0 3 1 4 0
a
3 0
When a position is undone, the counts array is decremented, a new history array is allocated that is one shorter than the previous history array, the history values are copied (except for the most recent value), the old history is deleted, and the corresponding values pointer is changed. It is an error to undo an uninitialized value. If the history contains only one value, that position becomes uninitialized; for example, a call to undo(6) results in the data structure diagram above right.
Testing
We provide a main function that will exercise your data structure; however, the tests are not thorough. It is your responsibility to add test cases where the template class type T is something other than char, and test cases to ensure that your copy constructor, assignment operator, and destructor are working correctly.
You must also implement an output stream operator for your class which outputs an ascii representation of the private data structures stored by the class. Use the diagrams in this handout as a guide. This output operator will be helpful as you debug your class. Include examples of the use of this function in your new test cases.
Looking for Memory Leaks
The data structure for this assignment (intentionally) involves lots of allocation & deallocation. Certainly it is possible to design more practical and efficient alterate data structures that implement the same functionality. For this assignment, please implement the data structure exactly as described.
To verify that your data structure does not contain any memory leaks and that your destructor is correctly deleting everything, we include a batch test function that repeatedly allocates an UndoArray, performs many operations, and then deallocates the data structure. To run the batch test case, specify 2 command line arguments, a file name (small.txt, medium.txt, or large.txt) and the number of times to process that file. If you don’t have any bugs or memory leaks, this code can be repeated indefinitely with no problems.
On Windows, open the Task Manager (Ctrl-Shift-Esc). Select “View” → “Select Columns” and check the box next to “Memory Usage”. View the “Processes” tab. Now when your program is running, watch the value of “Mem Usage” for your program (it may help to sort the programs alphabetically by clicking on the “Image Name” column). If your program is leaking memory, that number will continuously increase (and eventually crash).
Alternately, on Cygwin/Linux/FreeBSD, open another shell and run the top command. While your pro- gram is running, watch the value of “RES” (resident memory) for your program. If your program is leaking memory, that number will continuously increase.
Extra Credit: Pointer Arithmetic
For extra credit, rewrite your UndoArray implementation to use pointers and pointer arithmetic for access to the internal data arrays instead of the subscripting operator, [].
Submission
Do all of your work in a new folder named hw3 inside of your CSII homeworks directory. Use good coding style when you design and implement your program. Be sure to make up new test cases and don’t forget to comment your code! Please use the provided template README.txt file for any notes you want the grader to read. You must do this assignment on your own, as described in the “Academic Integrity for Homework” handout. If you did discuss the problem or error messages, etc. with anyone, please list their names in your README.txt file. When you are finished please zip up your folder exactly as instructed for the previous assignments and submit it through the course webpage.
