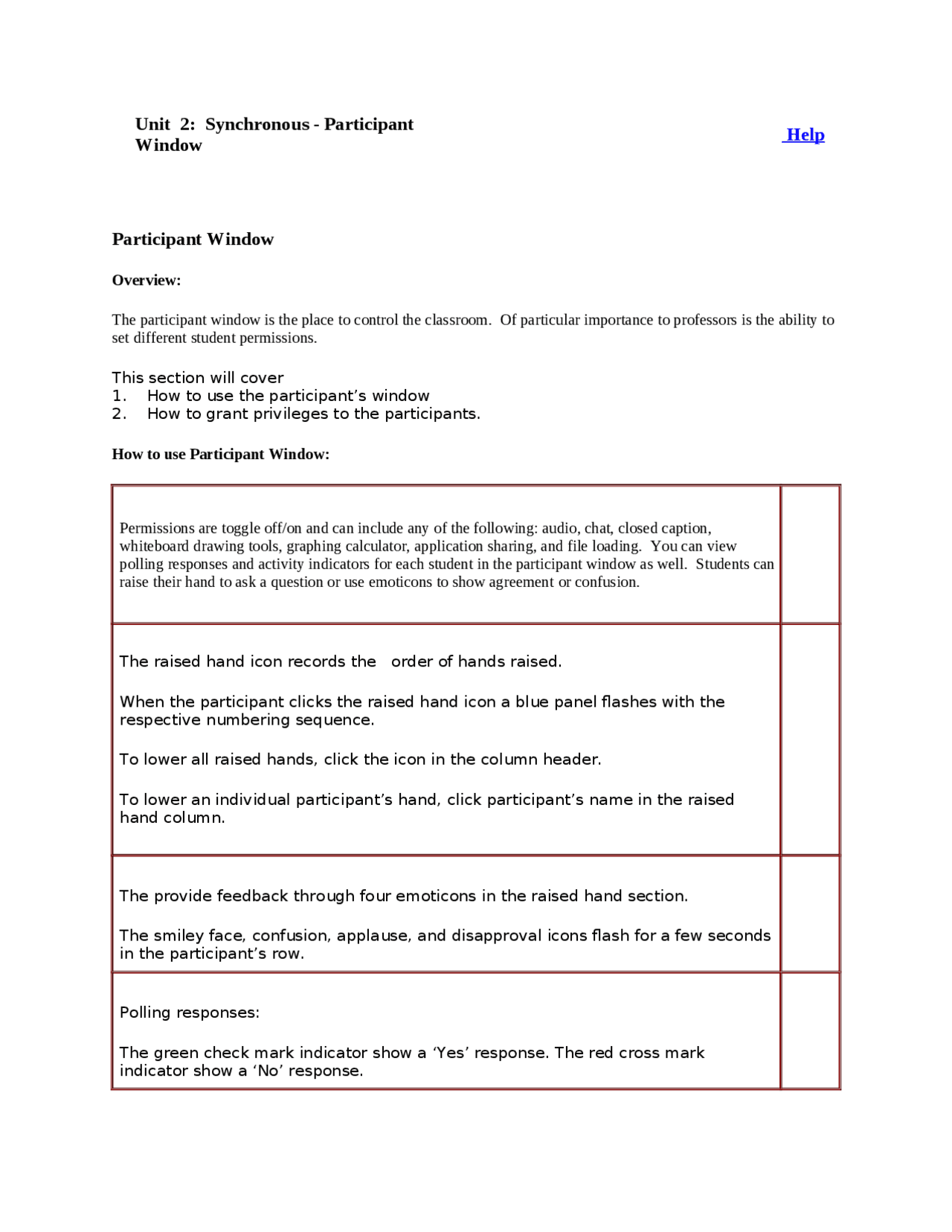

Unit 2: Synchronous - Participant
Window
Help
Participant Window
Overview: The participant window is the place to control the classroom. Of particular importance to professors is the ability to set different student permissions. This section will cover
- How to use the participant’s window
- How to grant privileges to the participants. How to use Participant Window: Permissions are toggle off/on and can include any of the following: audio, chat, closed caption, whiteboard drawing tools, graphing calculator, application sharing, and file loading. You can view polling responses and activity indicators for each student in the participant window as well. Students can raise their hand to ask a question or use emoticons to show agreement or confusion. The raised hand icon records the order of hands raised. When the participant clicks the raised hand icon a blue panel flashes with the respective numbering sequence. To lower all raised hands, click the icon in the column header. To lower an individual participant’s hand, click participant’s name in the raised hand column. The provide feedback through four emoticons in the raised hand section. The smiley face, confusion, applause, and disapproval icons flash for a few seconds in the participant’s row. Polling responses: The green check mark indicator show a ‘Yes’ response. The red cross mark indicator show a ‘No’ response.
The microphone feature grants audio permission. The chat feature allows the participant to send text messages during the session. The whiteboard pen feature allows the participant writing privileges in the whiteboard. The application sharing features allows the participant to view or request permission for sharing an application. The video broadcast feature allows the participant enable or disable a video broadcast.
PRACTICE EXERCISE:
Go to your Practice Shell and click on the "Chat" tab. Lauch ClassLive Pro from under the "CLassLive" tab
by clicking on "Lead the Session" link. If you are practising with a colleague or another individual, practice
allowing and dis-allowing the different capabilities of the participant(s) such as: Audio, Chat, Whiteboard,
etc.
Unit 2: Synchronous - Application
Sharing
Help
Application/Desktop Sharing
Overview: Class Live allows you to share applications and your desktop with your class. This feature becomes especially helpful in creating an interactive classroom environment. For example, you can share an excel document or you can share the application and demonstrate how to insert an item into a cell. When you share a specific application, students will only be able to see what actions you perform in that application.You can also grant a student the privilege to share documents for presentations. There are several methods you can choose to enable application or desktop sharing. How to use Application Sharing: You can enable sharing by selecting the option from the icon on the tool bar You can also access it by the dropdown menu: Go to Tools then Application Sharing Then select Share Application Class Live also gives you the option to share what you see on your desktop so your students can see any window you open. Select Application Sharing then select Share Entire Desktop You can also go to Tools followed by Application Sharing and then Host Applications...
A box will appear where you can select from the applications you have running on your computer. Here you can select the specific application that you would like to host. Your defeault view will not change when you are hosting an application. The way to see if you are currently hosting an application is to go to Application Sharing and see if the Host Applications... dropdown is checked. If it is, then you are hosting and your students can see the application that you previously chose. The way to change your view so that you can see the window your students are seeing is to select the Left or Right Docked minimal layout views. This is an example of the left docked view. You can switch windows, but your students will only see the application that you have selected. They will not see all of your programs unless you choose to share your entire desktop When you share an application or the items on your desktop you cannot have windows overlap the window you are showing, otherwise your students will not be able to see the application where the other window or drop box is on top of what you are sharing. To solve this, Class Live has a mini controller option.
Presentation mode is a differenent method of presenting material to students that allows the student or moderator who is presenting to offer and have a different view window when the mode is selected. This can be useful for those who will frequently be using the whiteboard and its tools. You can also select presentation mode to share the whiteboard and other applications as well. When you select the presenttion mode icon you will get a pop up window that will prompt you to select the conent that is available to share.
PRACTICE EXERCISE:
Go to your Practice Shell and click on the "Chat" tab. Lauch ClassLive Pro from under the "CLassLive" tab
by clicking on "Lead the Session" link. If you are practising with a colleague or another individual,
practice Application and Desktop Sharing. Also practice the use of the mini-controller.
To proceed, click on the File Transfer tab on the Course Content panel on the left hand side.
Unit 2: Synchronous - File
Transfer
Help
File Transfer
Overview: File transfer allows files such as word documents, spreadsheets, power points and other documents to be uploaded to the Elluminate server that will be used during your Class Live meeting. **Participants and Moderators must be sure to save files when transferred through this feature. How to use File Transfer: Click on the file transfer icon or click on the File menu
Open > Transfer from File Click on the Load File button.
You will see the file transfer library window. How to Load a URL File. Click on the file transfer icon or click on the File menu >Open > Transfer from URL
Type URL in Load URL window and click the Load button. NOTE: When the Prompt recipients box is checked, the students will be prompted to save the file to their computer. The URL will then show in the file transfer window.
PRACTICE EXERCISE:
Go to your Practice Shell and click on the "Chat" tab. Lauch ClassLive Pro from under the "CLassLive" tab
by clicking on "Lead the Session" link. Practice transferring a Word document and an Excel spreadsheet into
your virutal classroom. If you are practising with a colleague or another individual, practice the "Prompt
Recipients" option.
To proceed, click on the Multimedia Files tab on the Course Content panel on the left hand side.
Unit 2: Synchronous - Multimedia
Files
Help
Multimedia Files
Overview: This feature enables the instructor to incorporate multimedia files or URLs in their Elluminate sessions.
Click on the icon indicated to load a multimedia URL. Enter URL to the multimedia file. To play selected multimedia file, click on icon indicated. To stop file, click on icon indicted. To delete selected file, click on the icon indicated.
To proceed, click on the Quiz Manager tab on the Course Content panel on the left hand side.**
Unit 2: Synchronous - Quiz Manager Help
Quiz Manager
Overview: The Quiz Manager enables the instructor to create and administer quizzes that contain multiple choice and short answer questions. How to use Quiz Manager: To create quiz, click on Window in the menubar and select quiz manager. Click on the icon indicated to create quiz. Enter a name for the quiz. Click on the icon indicated to create new question. Highlight or delete the words “new question” and type in the first question. Click on the icon indicated to create multiple choice question. For short answer questions click the icon indicated. Type in answer to questions in the space provided.
The quiz manager includes several options the are commonly used.
1. Creates new quiz.
2. Reads quiz from file.
3. Saves quiz to file.
4. Edits the selected quiz
5. Views selected quiz.
To administer quiz to the students click on the last icon to view quiz. While in the view quiz mode you may
1. Stop the quiz.
2. Set the timer for the quiz.
3. Administer the quiz.
While in the quiz adminstration mode the instructor can stop the quiz and collect the answers. Once the quiz is completed the instructor can show the correct answers and the statistics of the quiz.
To proceed, click on the Notes tab on the Course Content panel on the left hand side.**
Unit 2: Synchronous - Notes Help
Notes
Overview: Professors and students can take notes during each class session. Notes are automatically saved on your computer. As you write your notes, they are synchronized to the class being conducted and can be re-opened and read in an archived session. To create notes: To access notes, click on the notes icon on the tool bar. You can manage all notes in the manage notes window. The list view notes can be toggled to the open or closed state by toggling the notes manager icon off and on. You can select notes from the notes manager list in order to display them in the windows below. You can open and close a set of notes as many times as you want during the session and find that the most recent version is always available. You can add, subtract or modify your notes at any time during the presentation. You can export notes as a .txt file or an .eln file. If you want to email your notes to another person, you will want to use the .eln format. You can do this by exporting them, emailing them, and then importing them into another different course. To import notes use the import icon next to the export icon. Select the (.eln) file to import and then choose open. The imported notes will be added to the notes listed in the class based on a time stamp. Imported notes are automatically merged based on a synchronized time stamp. Notes can be edited after they are imported. You can search notes for a specific word or phrase by using the search feature located in the notes window.
Students cannot interact with the graphing calculator when the professor has selected the "follow moderator" option. Students can interact with the graphing calculator when the professor has Roam selected. Pink indicates that the session is private. Students can plot any two functions of their choice in private mode. You can drag a window to an interception point and you can see the coordinates of any particular point of intersection. You can evaluate a function by entering a function statement then selecting x = … and entering an x value. In review : By using the graphing calculator, students can visually see the function they are studying, as well as understand how using different values of x can change the graphed results. To proceed, click on the Polling tab on the Course Content panel on the left hand side.
Unit 2: Synchronous -
Polling
Help
Polling
Overview: Polling can be conducted by the professor and can include multiple choice, none, or yes/no options. Yes/no is the default option when conducting a poll. As you conduct a poll, select show to display results on your whiteboard and publish to display results to the student’s window. Upon publication, all students can see those polling results. You can save poll results for future use. To conduct a poll:
To create a poll, go to Tools, Polling and choose A.E Multiple choice (for example). You can toggle the show button on the toolbar off and on. All displayed results are shown (on) and all displayed results not shown (off). For this example, toggle the show button to the on state. Either type your poll question on the whiteboard or have a slide prepared for the poll. Ask students to respond to your question/poll by choosing A B C or D on their toolbar. If show is already selected, you should be able to see the class results on your whiteboard. You can also see individual results by checking the student participant window. This tells you who is done and who has not yet completed the poll. Save the results of the poll by choosing the save to disk icon, then select whiteboard, and save as .pdf format so that results can be viewed outside of the whiteboard environment. Hide and show poll results to see the toggle effect on the whiteboard. You can lock the poll results so that students cannot change their answer once viewing the results. Do this by choosing the lock results icon on the tool bar. To let students see the poll results, select the publish icon on the tool bar. Breakout groups will be able to see published results as well. Polling is only setup for one question/answer response at a time. To have more than one question on a poll, you will need to create more than one powerpoint screen with the polling questions in your presentation, and then save the results of each poll as a .pdf. In review: Create your poll on the whiteboard, then ask your students to take the poll. Once you see that all students have taken the poll (by checking the participant window), lock the poll results, then publish the results to the whiteboard and discuss the results with your class. Save results in a .pdf format so that you can view the results at a later point in time. To proceed, click on the ESP (Elluminate Sensory Perceptions) tab on the Course Content panel on the left hand side.
Unit 2: Synchronous -
ESP
Help
