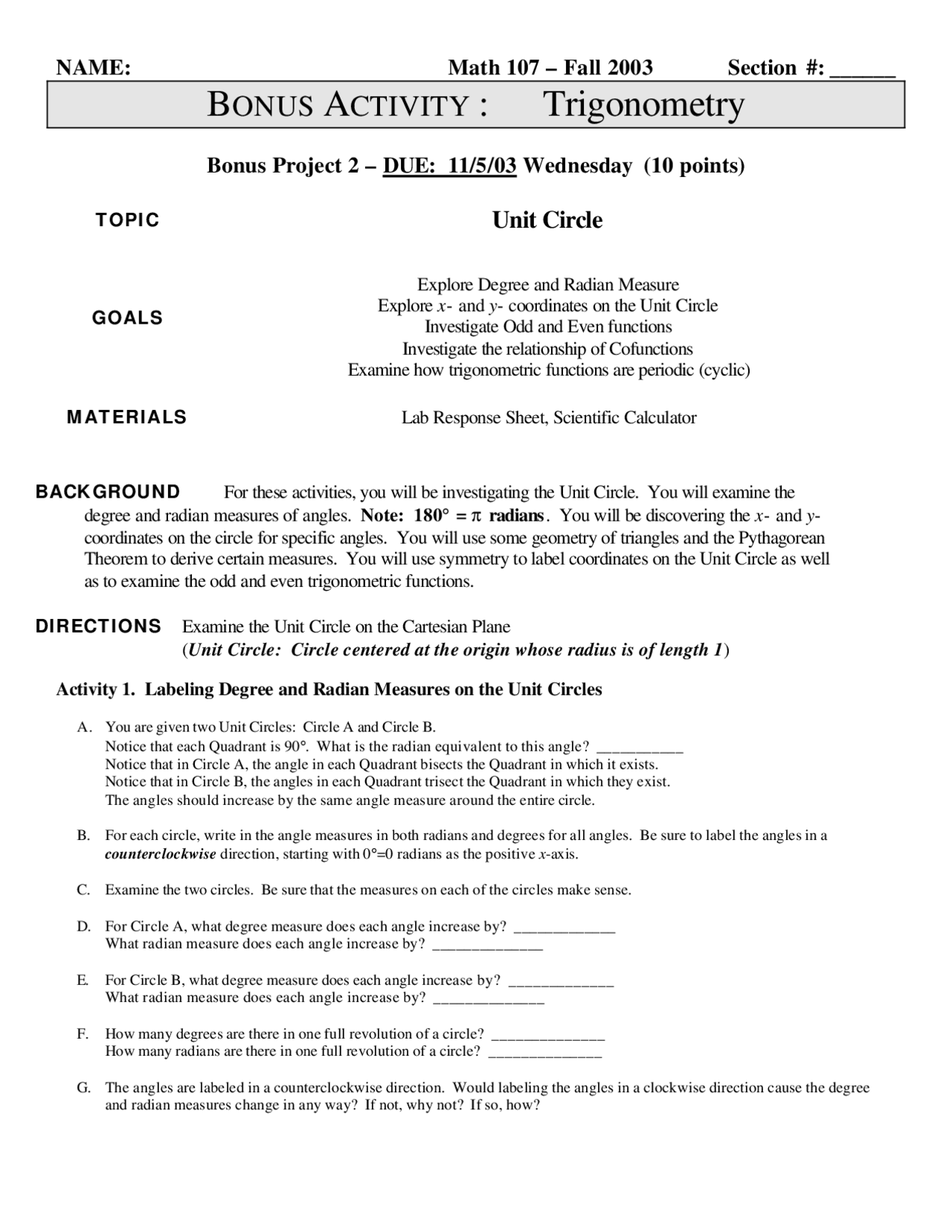

NAME: Math 107 – Fall 2003 Section #: ______
BONUS ACTIVITY : Trigonometry
Bonus Project 2 – DUE: 11/5/03 Wednesday (10 points)
TOPIC Unit Circle
GOALS
Explore Degree and Radian Measure
Explore x - and y - coordinates on the Unit Circle
Investigate Odd and Even functions
Investigate the relationship of Cofunctions
Examine how trigonometric functions are periodic (cyclic)
MATERIALS Lab Response Sheet, Scientific Calculator
BACKGROUND For these activities, you will be investigating the Unit Circle. You will examine the
degree and radian measures of angles. Note: 180° = π radians. You will be discovering the x - and y -
coordinates on the circle for specific angles. You will use some geometry of triangles and the Pythagorean
Theorem to derive certain measures. You will use symmetry to label coordinates on the Unit Circle as well
as to examine the odd and even trigonometric functions.
DIRECTIONS Examine the Unit Circle on the Cartesian Plane
( Unit Circle: Circle centered at the origin whose radius is of length 1 )
Activity 1. Labeling Degree and Radian Measures on the Unit Circles
A. You are given two Unit Circles: Circle A and Circle B. Notice that each Quadrant is 90°. What is the radian equivalent to this angle? ___________ Notice that in Circle A, the angle in each Quadrant bisects the Quadrant in which it exists. Notice that in Circle B, the angles in each Quadrant trisect the Quadrant in which they exist. The angles should increase by the same angle measure around the entire circle.
B. For each circle, write in the angle measures in both radians and degrees for all angles. Be sure to label the angles in a counterclockwise direction, starting with 0°=0 radians as the positive x -axis.
C. Examine the two circles. Be sure that the measures on each of the circles make sense.
D. For Circle A, what degree measure does each angle increase by? _____________ What radian measure does each angle increase by? ______________
E. For Circle B, what degree measure does each angle increase by? _____________ What radian measure does each angle increase by? ______________
F. How many degrees are there in one full revolution of a circle? ______________ How many radians are there in one full revolution of a circle? ______________
G. The angles are labeled in a counterclockwise direction. Would labeling the angles in a clockwise direction cause the degree and radian measures change in any way? If not, why not? If so, how?
Activity 2. Finding the x - and y - coordinates for each angle at the axes and in Quadrant I
A. Consider the Unit Square, meaning a square whose sides are all of an equal length of 1. The diagonal bisects the square into two equal triangles, each of which is called a right isosceles triangle. We will examine one of these triangles.
- You are given a Unit Square. Draw a diagonal bisecting it, and then, next to it draw one of the right isosceles triangles created within it. Label the known lengths of the sides on each figure.
- What are the angle measures of the right isosceles triangle? _______________ Explain above how you determined those measures. Label these measures accordingly inside the triangle that you have just drawn.
- Now use the Pythagorean Theorem (a^2 + b^2 = c^2 ) to find the length of the hypotenuse of the right isosceles triangle. The hypotenuse is the longest side of a right triangle. Label that length on the triangle.
- The hypotenuse of the right isosceles triangle is which part of the Unit Square? ______________
- Similar triangles are triangles whose corresponding angles equal and whose corresponding sides are in proportion. Below are drawn two right isosceles triangles. The first triangle comes from the Unit Square, as the one you were examining above. Label the lengths of its two sides and the length of its hypotenuse. The second triangle is similar to the first, but it has been scaled to be smaller. More specifically, each side and the hypotenuse were scaled so that the hypotenuse is of length 1. Find the lengths of the second triangle. In other words, multiply each side and the hypotenuse of the first triangle by a constant (a scalar). Think about what scalar is needed. (For instance, if you have a length of 5 and you need to have a length of 1, what do you multiply by?) Rationalize any denominators accordingly.
Right Isosceles Triangle
from the Unit Square Scaled Right Isosceles Triangle
B. Now, consider the Unit Equilateral Triangle, a triangle whose sides are all of equal length of 1 and whose angles are all of equal measure of 60°. The altitude (height) of this triangle is drawn from one corner of the triangle to its opposite side, the base of the triangle, meeting the base perpendicularly. The altitude bisects the angle from where it is drawn as well as the base side that it connects to. This bisection creates two similar right triangles. We will examine one of these triangles. Recall: The sum of the interior angles of any triangle is 180°.
- You are given a Unit Equilateral Triangle. First, draw in its altitude. Then, draw one of the two right triangles that are created by the altitude next to it. Label the known lengths of each of the figures.
- What are the angle measures of the right triangle created above? _________________ Label these measures accordingly inside the triangle that you have just drawn.
- What is the length of the base of the right triangle? ____________ What is the length of the hypotenuse of the right triangle? ____________
- Redraw the right triangle below. Use the Pythagorean Theorem to find its altitude. Label the lengths of the sides and the length of the hypotenuse on the triangle.
- Consider the following figure. Note: The hypotenuse of the right triangle is the radius of the circle.
- If the figure is a Unit Circle, then what is the length of the hypotenuse? ___________ Use the right triangle that was derived from the Unit Equilateral Triangle to label the lengths of the sides of the right triangle accordingly.
- Since the left bottom corner of the right triangle sits at the origin (0,0), what are the coordinates of the right top corner of the right triangle, the point where the right triangle intersects the Unit Circle in Quadrant I? _______________ Label this point on the figure above.
- What is the angle measure created by the hypotenuse of the right triangle from the positive x -axis in degrees and radians? _______ Draw in this angle and label its measure in the figure above.
- Consider the following figure. Note: The hypotenuse of the right triangle is still the radius of the circle. The right triangle is the same right triangle as before, but it is rotated to be sitting differently inside the Unit Circle now.
- Label the lengths of the sides of the right triangle accordingly.
- Since the left bottom corner of the right triangle sits at the origin (0,0), what are the coordinates of the right top corner of the right triangle, the point where the right triangle intersects the Unit Circle in Quadrant I? _______________ Label this point on the figure above.
- What is the angle measure created by the hypotenuse of the right triangle from the positive x -axis in degrees and radians? ______ Draw in this angle and label its measure in the figure above.
C. Now, use the coordinates that you found in the preceding figures to label the x - and y - coordinates of the angle in Quadrant I on Circle A and to label the x - and y - coordinates of the angles in Quadrant I on Circle B****.
D. Remember that the Circle A and Circle B are both Unit Circles****. What does that tell you about the points where the Unit Circle intersects the x - and y - axes on the Cartesian Plane? (In other words, what are those points?)
E. Label the x - and y - intercepts on both circles.
Questions to Consider
Think about the questions before responding. Be specific and be thorough.
a. Suppose that you did not have the Unit Circle on Circle A, but rather a circle of radius 5. Will the angle measures in degrees and/or radians change? Why or why not?
b. Suppose that you did not have the Unit Circle on Circle A , but rather a circle of radius 5. What do you suppose the x - and y - coordinates will be for that circle in Quadrant I? (You may want to consider the square and isosceles right triangle before responding.)
c. Consider the two points in Quadrant I on Circle B. What is the special relationship between them? (Consider the relationship between the angles whose terminal sides pass through these points.)
d. How would the point in Quadrant I on Circle A fit into the same kind of relationship? (Think about the angle whose terminal side passes through that point and the y = x line.)
e. Consider the point in Quadrant I that corresponds to the angle 60 ° = π/3. Examine relationship between the angle measures for
those in Quadrants II, III, and IV, where the angle is reflected across the y -axis, x -axis, and the origin. What do you notice about the relationship? (Note: Look at the relationship of the angle measures in degrees and radians, and the x - and y - coordinates.)
f. Consider the point in Quadrant I that corresponds to the angle 30 ° = π/6. Examine relationship between the angle measures for
those in Quadrants II, III, and IV, where the angle is reflected across the y -axis, x -axis, and the origin. What do you notice about the relationship?
Activity 4. Using Trigonometric Functions
Definitions of Trigonometric Functions on the Cartesian Plane
Reciprocal Identities of Trigonometric Functions
A. Cofunctions of Complements
Co functions: sine, co sine tangent, co tangent co secant, secant
- Using the Unit Circles A and B, find the following:
sin 30° = _______ cos 45° = _______ tan 30° = _______ sin (π/3)= _______ cot 30° = ______ cos 60° = _______ sin 45° = _______ cot 60° = _______ cos (π/6)= _______ tan 60° = ______
csc (π/6) = ______ sec (π/4) = ______ tan (π/4) = ______ csc (π/3) = ______ tan (π/2) = ______ sec (π/3) = ______ csc (π/4)= ______ cot (π/4) = ______ sec (π/6) = ______ cot 0 = ______
- What do the problems above tell you about Cofunctions of Complementary Angles?
- Using a calculator, find the following:
sin 40° = _______ sec 32° = _______ tan (3π/10) = _______ cos (π/9) = _______ tan 10° = ______ cos 50° = _______ csc 58° = _______ cot (π/5) = _______ sin (7π/18) = _______ cot 80° = ______
- Do the results from (#3) confirm or conflict with your answer in (#2)? Why?
Pythagorean Theorem: x^2 + y^2 = r^2 for a circle of radius r.
sin θ =
r
y
cos θ =
r
x
tan θ =
x
y
csc θ =
y
r
sec θ =
x
r
cot θ =
y
x
Note: For the Unit Circle ( r = 1 )
sin θ = y cos θ = x tan θ =
x
y
csc θ =
y
sec θ =
x
cot θ =
y
x
sin θ =
csc θ
cos θ =
sec θ
tan θ =
cot θ
csc θ =
sin θ
sec θ =
cos θ
cot θ =
tan θ
Note: Use the Reciprocal Identities to evaluate the cosecant, secant, and cotangent functions in your calculator. sec 32° = 1 ÷ cos 32° csc 58° = 1 ÷ sin 58° cot (π/5) = 1 ÷ tan (3π/10) cot 80° = 1 ÷ tan 80°
Why doesn’t this fit here? Notice the angles. Are they complements?
Circle B
Circle A
