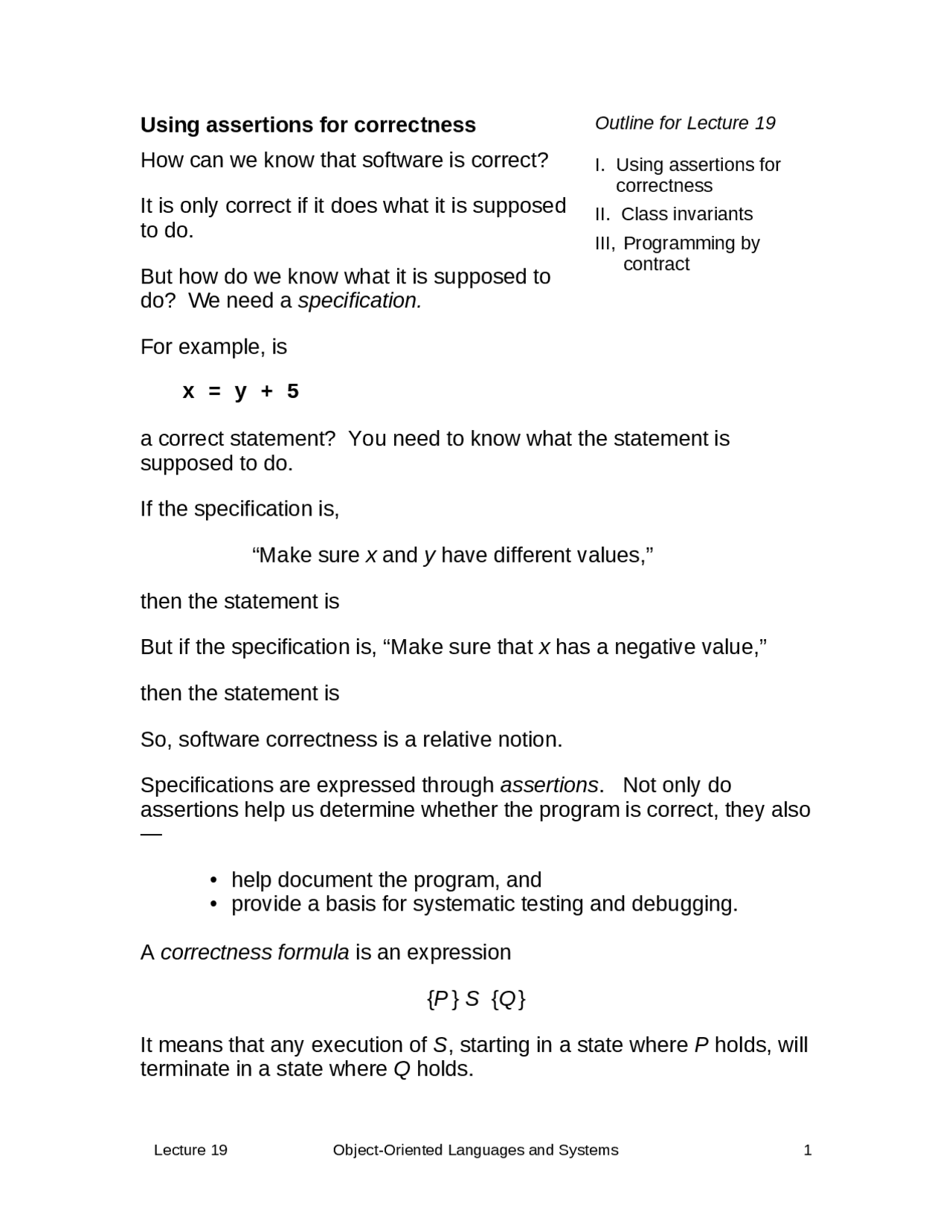

Using assertions for correctness How can we know that software is correct? It is only correct if it does what it is supposed to do. But how do we know what it is supposed to do? We need a specification. Outline for Lecture 19 I. Using assertions for correctness II. Class invariants III, Programming by contract For example, is x = y + 5 a correct statement? You need to know what the statement is supposed to do. If the specification is, “Make sure x and y have different values,” then the statement is But if the specification is, “Make sure that x has a negative value,” then the statement is So, software correctness is a relative notion. Specifications are expressed through assertions. Not only do assertions help us determine whether the program is correct, they also —
- help document the program, and
- provide a basis for systematic testing and debugging. A correctness formula is an expression { P } S { Q } It means that any execution of S , starting in a state where P holds, will terminate in a state where Q holds. Lecture 19 Object-Oriented Languages and Systems 1
In this formula,
- P is called the precondition, and
- Q is called the postcondition. This sounds simple, but the implications take some getting used to. Here is a trivial correctness formula, which holds as long as x is an integer: {x >= 9} x = x + 5 {x >= 13} It looks like this is a typo. After all, we could also strengthen the postcondition to read, {x >= 14} This postcondition is stronger than the original postcondition, because there are values of x which satisfy the original postcondition but do not satisfy it. Given the original precondition, this is the strongest postcondition we can give and still have the program be correct. Similarly, given the original postcondition, we can also weaken the precondition. What is the weakest precondition we can give involving x to have the program be correct? From a formula that holds, you can always get another one that holds by strengthening the or weakening the. It is also interesting to consider what the strongest possible precondition would be. It is possible to give a precondition strong enough that the program is correct regardless of what it does. What would such a precondition be? CSC/ECE 517 Lecture Notes ©2007, Edward F. Gehringer 2
// If n is even, the positive n-th root // is returned. // If n is odd, the n-th root will have // the same sign as the value. // If // public double nthRoot(double value, int n) {...} Why is this better? Is it always good to check whether the (original) preconditions are satisfied? It is a very good idea to write our code so that preconditions and postconditions can be checked. This is done with the Java assert statement. The assert statement has the form assert expression 1 ; or assert expression 1 : expression 2 ; The first form simply raises an AssertionError if the assertion is not true. The second form associates the value of expression 2 with the AssertionError if an error is triggered. The value of expression 2 should be something that will be useful in debugging. We could code the postcondition checks at the end of the nthRoot method (assuming it returns result ): assert Math.pow(result, (float) n) = value); if (n % 2 == 0) assert result > 0; else assert result * value > 0; CSC/ECE 517 Lecture Notes ©2007, Edward F. Gehringer 4
Because checking of assertions may be quite expensive, it can be enabled or disabled at run time: To enable assertions at various granularities, use the
- enableassertions , or -ea , switch. To disable assertions at various granularities, use the -disableassertions , or -da , switch. You specify the granularity with the arguments that you provide to the switch. See http://java.sun.com/j2se/1.4.2/docs/guide/lang/assert.html By default, assertions are disabled at run time. Consider again the Liskov Substitution Principle: Class S should be made a subclass of class C only if, for every method in C ’s and S ’s interface, S ’s method
- accepts as input all the values that C ’s method accepts (and possibly more) and
- does everything with those values that C ’s method does (and possibly more). How should we rephrase it in terms of preconditions and postconditions? Class S should be made a subclass of class C only if, for every method with identical signatures in C ’s and S ’s interface,
- the preconditions for C ’s method are no than the for S ’s method, and
- the postconditions for C ’s method are no than the for S ’s method. Class invariants [Skrien §4.5] Preconditions and postconditions tell us what happens while a method of class C is executing. Class invariants tell us what is true while a method of class C is not executing. Lecture 19 Object-Oriented Languages and Systems 5
Programming by contract By associating pre- and postcondition assertions with a method m , the class tells its clients^1 “If you promise to call m with pre satisfied then I, in return, promise to deliver a final state in which post is satisfied. As in human relationships, any good contract between classes entails obligations as well as benefits for both parties (the “client” and the “supplier”).
- The precondition binds the. It defines the conditions under which a call to the routine is legitimate. It is an obligation for the and a benefit for the .
- The postcondition binds the. It defines the conditions that must be ensured by the routine on return. It is an obligation for the and a benefit for the . Let us take a look at one of the contracts we specified in the the n th- root method. Withdraw Obligations Benefits Client (Satisfy precondition) (From postcond.) Supplier (Satisfy postcond.) (From precond.) In case you haven’t noticed it, one of the contract rules goes against conventional software-engineering wisdom. (^1) This discussion is taken from Bertrand Meyer’s Object-Oriented Software Construction ,§11,6, Lecture 19 Object-Oriented Languages and Systems 7
It is shocking to some, but is one of the method’s main contributions to software reliability. Recall: If the precondition is not satisfied, the supplier doesn’t have to do anything at all. It can go into an infinite loop, or even crash the system without violating the contract. This implies that when you are writing a routine, it’s not your responsibility to check whether the preconditions are satisfied. For example, if a square-root function has the precondition x >= 0 you don’t need to check whether the argument really is ≥ 0. Actually, it is not only useless, but actually harmful, to test whether the precondition is met. This is Meyer’s non-redundancy principle: Under no circumstances shall the body of a routine ever test for the routine’s precondition. This rule is the reverse of “defensive programming” advocated by many software-engineering textbooks. What is the rationale for this rule? Design by contract invites you—
- to identify the consistency conditions that are necessary to the proper functioning of each client-supplier contract, and CSC/ECE 517 Lecture Notes ©2007, Edward F. Gehringer 8
A good routine author “does not try to outsmart his clients.” If he is not sure what to do in a specific case, he excludes it in the precondition. We do not have time to go through it, but I recommend you look at the case study on overriding the equals method in Java, in Skrien § 4.7. CSC/ECE 517 Lecture Notes ©2007, Edward F. Gehringer 10
