Download [UTRJP] Utah UT RJP Residential Journeyman Plumber Certification Exam Guide and more Exams Technology in PDF only on Docsity!
Certification Exam Guide | Exam Focused MCQs (2026)

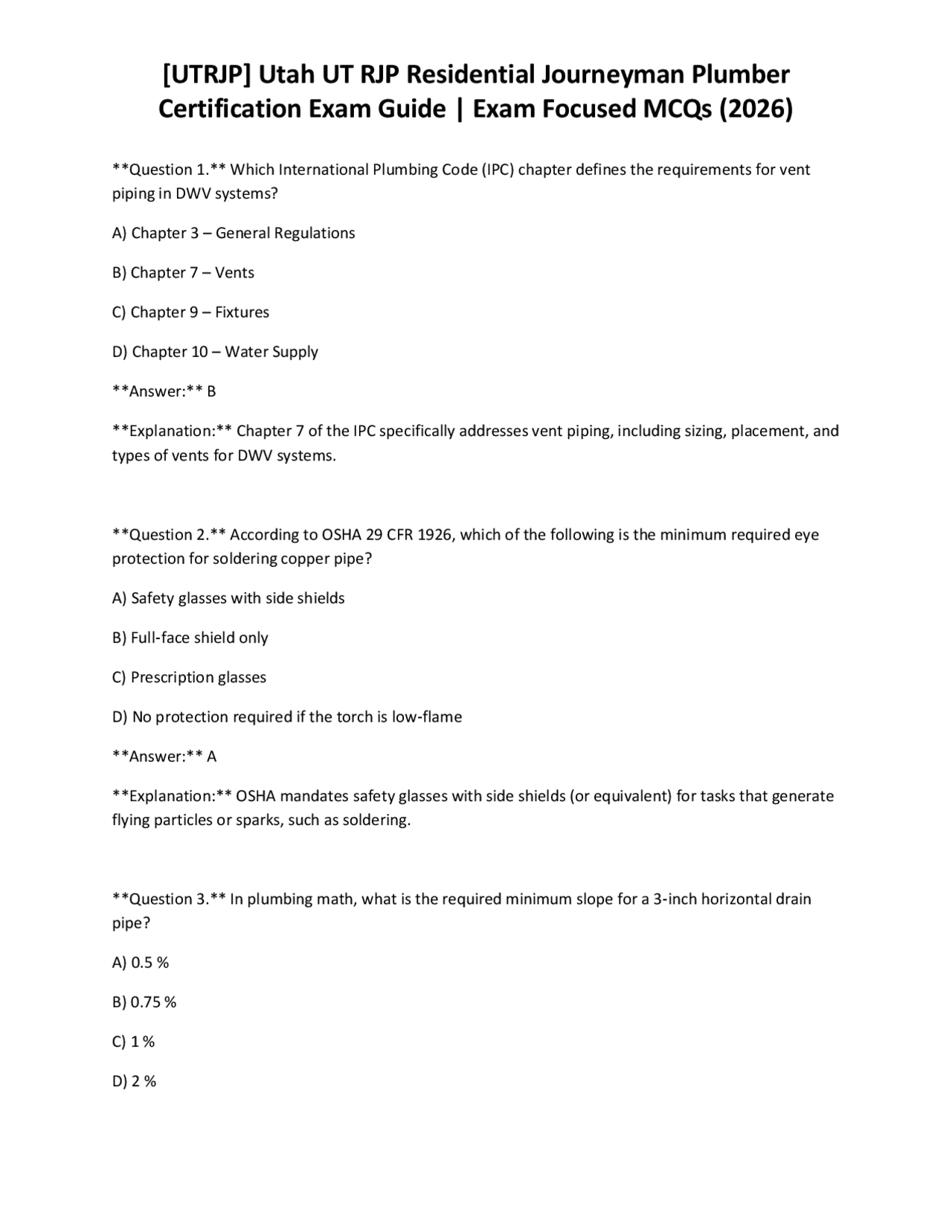

Question 1. Which International Plumbing Code (IPC) chapter defines the requirements for vent piping in DWV systems? A) Chapter 3 – General Regulations B) Chapter 7 – Vents C) Chapter 9 – Fixtures D) Chapter 10 – Water Supply Answer: B Explanation: Chapter 7 of the IPC specifically addresses vent piping, including sizing, placement, and types of vents for DWV systems. Question 2. According to OSHA 29 CFR 1926, which of the following is the minimum required eye protection for soldering copper pipe? A) Safety glasses with side shields B) Full‑face shield only C) Prescription glasses D) No protection required if the torch is low‑flame Answer: A Explanation: OSHA mandates safety glasses with side shields (or equivalent) for tasks that generate flying particles or sparks, such as soldering. Question 3. In plumbing math, what is the required minimum slope for a 3‑inch horizontal drain pipe? A) 0.5 % B) 0.75 % C) 1 % D) 2 %
Certification Exam Guide | Exam Focused MCQs (2026)
Answer: B Explanation: The IPC requires a minimum slope of 1/8 in. per foot (0.75 %) for pipe sizes 3 in. and larger. Question 4. Which type of vent allows a drain to be vented through the same pipe that serves as the drain, provided the pipe is at least 3 in. in diameter? A) Air admittance valve (AAV) B) Wet vent C) Circuit vent D) Common vent Answer: B Explanation: A wet vent permits both drainage and venting in the same pipe when the pipe meets size requirements. Question 5. The International Fuel Gas Code (IFGC) requires a minimum clearance of how many inches between a gas‑fired water heater and combustible material? A) 1 in. B) 3 in. C) 6 in. D) 12 in. Answer: C Explanation: IFGC § 504.2 mandates a minimum of 6 in. clearance from combustible surfaces for gas‑fired water heaters. Question 6. When sizing a water supply line for a single‑family residence, which factor is NOT considered in the calculation? A) Fixture unit load
Certification Exam Guide | Exam Focused MCQs (2026)
Question 9. Which of the following pipe materials is permitted for hot water distribution in Utah residential construction? A) Schedule 40 PVC B) CPVC C) ABS D) Galvanized steel only Answer: B Explanation: CPVC is approved for hot water service; Schedule 40 PVC and ABS are limited to cold water and waste. Question 10. What is the purpose of a temperature‑and‑pressure (T&P) relief valve on a water heater? A) To regulate water temperature B) To vent excess pressure and temperature to prevent tank rupture C) To control water flow rate D) To filter impurities from the water Answer: B Explanation: The T&P valve opens when either temperature or pressure exceeds safe limits, protecting the tank from rupture. Question 11. When installing a backflow preventer on a potable water line, which of the following must be installed downstream of the device? A) A pressure reducing valve B) A shut‑off valve C) A water softener D) A pressure tank
Certification Exam Guide | Exam Focused MCQs (2026)
Answer: B Explanation: A shut‑off valve downstream allows isolation of the backflow preventer for maintenance. Question 12. Under Utah State Plumbing Amendments, the minimum required water flow for a residential kitchen sink faucet is: A) 0.5 gpm B) 0.75 gpm C) 1.0 gpm D) 1.5 gpm Answer: C Explanation: Utah amendments adopt the IPC minimum of 1.0 gallon per minute for kitchen sink faucets. Question 13. Which of the following best describes a “rolling offset” in a PVC DWV assembly? A) Two 45‑degree elbows creating a 90‑degree turn B) A combination of a 45‑degree and a 22.5‑degree fitting to achieve a specific offset distance C) A single 90‑degree elbow with a built‑in offset D) A straight pipe with a reduced diameter section Answer: B Explanation: A rolling offset uses a 45‑degree elbow and a 22.5‑degree fitting to create a precise lateral offset. Question 14. In copper pipe soldering, the “flash” observed at the joint indicates: A) Over‑heating of the pipe B) Proper heat transfer and cleaning of flux
Certification Exam Guide | Exam Focused MCQs (2026)
Question 17. When calculating the pressure loss in a water supply pipe, which factor is most significant for long runs? A) Pipe color B) Pipe material roughness C) Number of fittings D) Ambient temperature Answer: B Explanation: Roughness of the pipe material directly affects friction loss, especially over long distances. Question 18. In the practical exam, the required tolerance for the length of a cut PVC pipe segment is: A) ± 1/8 in. B) ± 1/4 in. C) ± 1/2 in. D) ± 1 in. Answer: A Explanation: The Utah practical exam allows a tolerance of ± 1/8 in. for PVC cuts to ensure proper fit‑up. Question 19. Which of the following is the correct minimum clearance between a wash‑basin faucet handle and the countertop edge? A) 0.5 in. B) 1 in. C) 1.5 in. D) 2 in.
Certification Exam Guide | Exam Focused MCQs (2026)
Answer: B Explanation: The IPC requires at least 1 in. clearance to allow easy operation and cleaning. Question 20. A “wet vent” may serve as a vent for a drain of a fixture that has a drainage fixture unit (DFU) rating of up to: A) 2 DFU B) 4 DFU C) 6 DFU D) 8 DFU Answer: C Explanation: A wet vent can serve fixtures up to 6 DFU, per IPC Table 708.2. Question 21. When installing a gas‑type water heater, the exhaust vent must be sized to handle a minimum of what percentage of the appliance’s input rating? A) 50 % B) 75 % C) 100 % D) 125 % Answer: C Explanation: The vent must be capable of exhausting the full input (100 %) of the appliance to prevent carbon monoxide buildup. Question 22. Which of the following is the correct procedure for notching a joist to accommodate a ¾‑in. PVC vent pipe? A) Cut a 1‑in. wide notch at the joist’s midpoint B) Drill a 1‑in. hole through the joist center
Certification Exam Guide | Exam Focused MCQs (2026)
A) 5 psi above the design pressure B) 10 psi above the design pressure C) 15 psi above the design pressure or 30 psi, whichever is greater D) Equal to the design pressure Answer: C Explanation: The IPC requires a test pressure of 15 psi above design pressure or 30 psi, whichever is greater, for DWV systems. Question 26. Which of the following statements about Air‑Admittance Valves (AAVs) is true? A) They can replace all vent piping in a system B) They must be installed within 6 in. of the fixture they serve C) They are prohibited in Utah residential plumbing D) They require a separate vent pipe to the outside Answer: B Explanation: AAVs must be installed within 6 in. of the fixture’s trap to function properly. Question 27. The correct method to protect a copper water line that passes through a concrete slab is: A) No protection needed B) Use a plastic sleeve with a sealant C) Wrap the pipe with steel tape only D) Embed the pipe directly in the concrete Answer: B Explanation: A plastic sleeve (or conduit) with sealant prevents corrosion and movement within the concrete.
Certification Exam Guide | Exam Focused MCQs (2026)
Question 28. For a residential hydronic heating system, the minimum pipe size for the main supply line serving a 10,000‑BTU furnace is: A) ½ in. B) ¾ in. C) 1 in. D) 1½ in. Answer: B Explanation: Hydronic design tables indicate ¾‑in. pipe for a 10,000‑BTU load to maintain adequate flow. Question 29. Which of the following is the correct minimum clearance between a gas meter and a combustible wall? A) 1 ft. B) 2 ft. C) 3 ft. D) 4 ft. Answer: B Explanation: IFGC requires a minimum of 2 ft. clearance from combustible materials for gas meters. Question 30. When interpreting an isometric drawing of a DWV system, the “X” symbol indicates: A) A pipe joint B) A valve C) A vent stack D) A trap
Certification Exam Guide | Exam Focused MCQs (2026)
D) No slope required Answer: D Explanation: Vent pipes are typically installed level or with a slight upward slope to the outside, but code does not require a specific minimum slope. Question 34. In a water heater installation, the T&P relief valve discharge pipe must terminate: A) Inside the building, above the floor B) Within 6 in. of the floor C) At least 2 ft. above the floor and directed to the outside or a suitable location D) Directly into a sink Answer: C Explanation: The discharge must be directed to a safe location, at least 2 ft. above the floor, per IPC § 504.2. Question 35. Which of the following fixtures is required by the IPC in every dwelling unit? A) Kitchen sink B) Bath tub or shower C) Laundry tub D) One water closet (toilet) Answer: D Explanation: The IPC mandates at least one water closet per dwelling unit. Question 36. When using a pipe wrench on a copper pipe, the proper technique is to: A) Apply the wrench directly to the pipe surface B) Use a pipe strap or soft jaws to avoid denting the pipe
Certification Exam Guide | Exam Focused MCQs (2026)
C) Use excessive force to ensure a tight grip D) Never use a wrench on copper pipe Answer: B Explanation: Soft jaws or a strap prevent damage to the softer copper material. Question 37. The IPC requires that a water supply pipe penetrating a fire‑rated wall must be: A) Unprotected, as long as it is metal B) Sealed with fire‑stop mortar and a listed fire‑stop sleeve C) Wrapped in insulation only D) Covered with a wooden board Answer: B Explanation: Penetrations through fire‑rated assemblies must be sealed with approved fire‑stop systems. Question 38. For an indirect waste system serving a dishwasher, the minimum pipe diameter required is: A) ½ in. B) ¾ in. C) 1 in. D) 1½ in. Answer: B Explanation: IPC Table 704.2.1 specifies a minimum of ¾ in. for indirect waste connections. Question 39. Which of the following is the correct definition of “fixture unit” (FU) in plumbing design?
Certification Exam Guide | Exam Focused MCQs (2026)
A) ½ in. B) ¾ in. C) 1 in. D) 1½ in. Answer: A Explanation: A ½‑in. supply is sufficient for a single hose bib per IPC Table 608.2.1. Question 43. Which of the following statements about lead‑free solder is correct? A) It must contain at least 95 % tin B) It may contain up to 5 % lead for residential applications C) It is not required for water supply lines D) It is prohibited in any plumbing application Answer: A Explanation: Lead‑free solder used in potable water systems must be at least 95 % tin with the remainder being copper or silver. Question 44. When installing a PEX water line, the recommended method for securing the pipe to framing members is: A) Using metal straps only B) Using PEX‑compatible clamps or straps at intervals not exceeding 32 in. C) Nailing the pipe directly to studs D) No securing is required Answer: B Explanation: PEX must be secured with listed clamps or straps at intervals not greater than 32 in. to prevent movement.
Certification Exam Guide | Exam Focused MCQs (2026)
Question 45. The purpose of a “sweep” fitting in a DWV system is to: A) Reduce flow velocity B) Provide a smooth transition that prevents turbulence and pipe wear C) Increase pressure in the line D) Act as a vent Answer: B Explanation: Sweeps provide a gradual bend, minimizing turbulence and reducing stress on the pipe. Question 46. According to the IPC, the minimum height of a water closet (toilet) from the finished floor is: A) 10 in. B) 12 in. C) 15 in. D) 18 in. Answer: C Explanation: The standard height for a water closet is 15 in. measured from the floor to the top of the seat. Question 47. In a gas‑fuel water heater installation, the vent pipe must be sized to a minimum of: A) 2 in. diameter for all units B) The size specified by the manufacturer, not less than 2 in. C) 3 in. for gas‑forced‑air units D) 1 in. for low‑output units
Certification Exam Guide | Exam Focused MCQs (2026)
C) 2 in. D) 3 in. Answer: B Explanation: The IPC requires at least 1½ in. clearance for ease of operation and cleaning. Question 51. A “wet vent” can be used to vent a bathtub and a sink on the same branch provided the combined fixture units do not exceed: A) 2 DFU B) 4 DFU C) 6 DFU D) 8 DFU Answer: C Explanation: Wet venting allows up to 6 DFU on the same branch when the fixtures are compatible. Question 52. The correct procedure for installing a pipe support for a horizontal 2‑in. copper water main is: A) One support every 6 ft. B) One support every 8 ft. C) One support every 10 ft. D) No support needed for copper Answer: B Explanation: For copper water mains, supports are required at intervals not exceeding 8 ft. per IPC. Question 53. Which of the following statements about “backflow” is true? A) It only occurs in gas lines
Certification Exam Guide | Exam Focused MCQs (2026)
B) It can cause contamination of the potable water supply C) It is prevented by installing larger pipe sizes D) It is not a concern in residential plumbing Answer: B Explanation: Backflow can reverse flow and introduce contaminants into the potable water system. Question 54. The minimum required pipe size for a residential main stack (vertical drain) serving three stories is: A) 2 in. B) 3 in. C) 4 in. D) 6 in. Answer: B Explanation: A 3‑in. stack is required for a three‑story building per IPC Table 706.2.1. Question 55. In a residential plumbing system, the required minimum number of water supply shut‑off valves for a single‑family dwelling is: A) One at the water meter only B) One at each fixture only C) One at the water meter and one at each fixture branch D) Two at the water meter only Answer: C Explanation: The IPC requires a main shut‑off at the meter and individual shut‑offs for each fixture branch.
