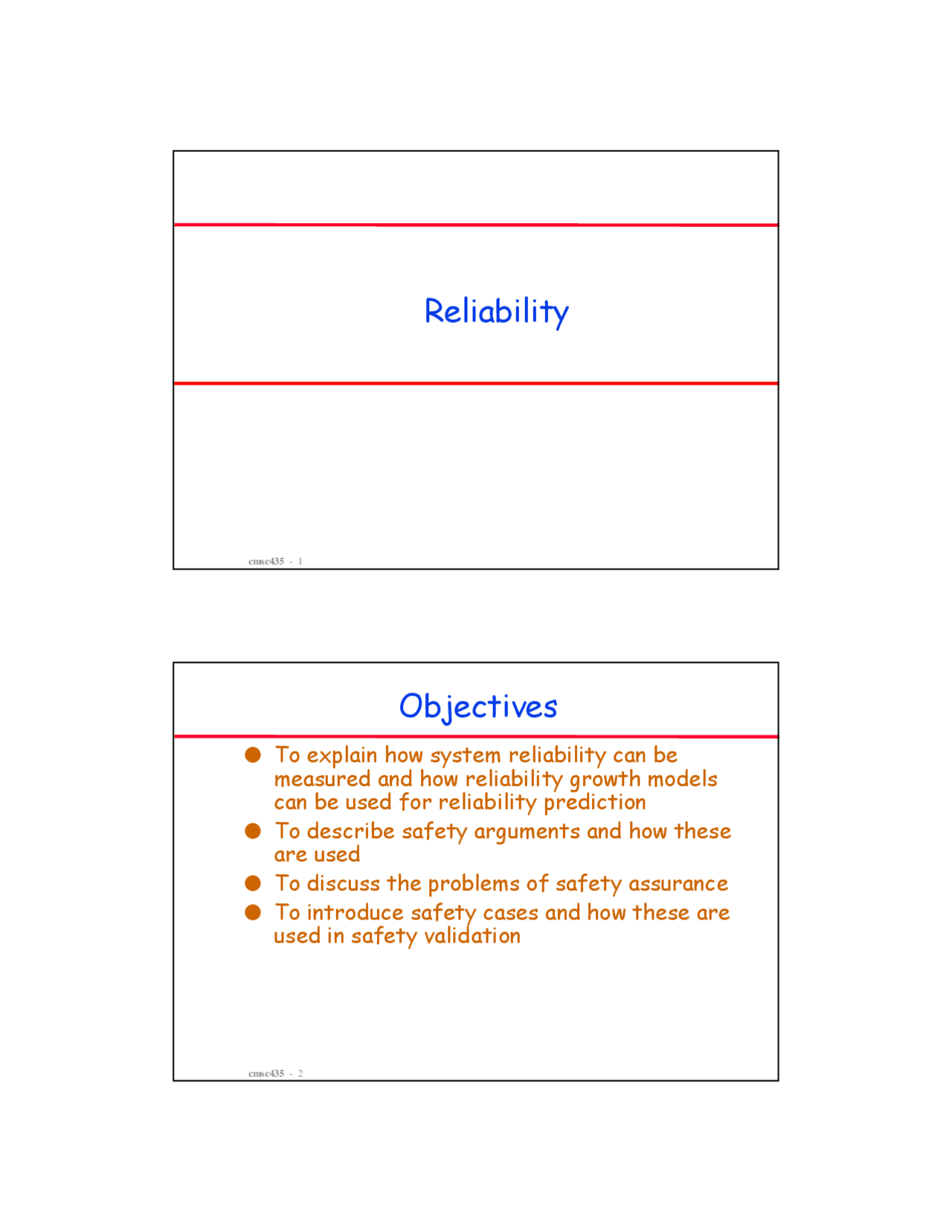

cmsc435 - 1
cmsc435 - 3
l Reliability validation involves exercising the program to assess whether or not it has reached the required level of reliability.
l This cannot normally be included as part of a normal defect testing process because data for defect testing is (usually) atypical of actual usage data.
l Reliability measurement therefore requires a specially designed data set that replicates the pattern of inputs to be processed by the system.
cmsc435 - 7
The operational profile may not be an accurate reflection of the real use of the system.
Costs can be very high if the test data for the system cannot be generated automatically.
You need a statistically significant number of failures to compute the reliability but highly reliable systems will rarely fail.
cmsc435 - 9
l A reliability growth model is a mathematical model of the system reliability change as it is tested and faults are removed.
l It is used as a means of reliability prediction by extrapolating from current data Simplifies test planning and customer negotiations. You can predict when testing will be completed and demonstrate to customers whether or not the reliability growth will ever be achieved.
l Prediction depends on the use of statistical testing to measure the reliability of a system version.
cmsc435 - 13
Reliability
Required reliability
Fitted reliability model curve
Estima ted time of reliability achievement
Time
= Measured reliability
l TIME DEPENDENT APPROACHES TIME BETWEEN FAILURES (Musa Model) FAILURE COUNTS IN SPECIFIED INTERVALS (Goel/Okumoto) l TIME-INDEPENDENT APPROACHES ERROR SEEDING INPUT DOMAIN ANALYSIS l PROBLEMS WITH USE OF RELIABILITY MODELS LACK OF CLEAR UNDERSTANDING OF INHERENT STRENGTHS AND WEAKNESSES UNDERLYING ASSUMPTIONS AND OUTPUTS NOT FULLY UNDERSTOOD BY USER NOT ALL MODELS APPLICABLE TO ALL TESTING ENVIRONMENTS
cmsc435 - 15
ASSUMPTIONS:
WHERE E IS TOTAL ERRORS IN THE SYSTEM t IS THE ACCUMULATED RUN TIME (STARTS at 0) T IS THE MEAN TIME TO FAILURE
(^1) e T =
Reliability measures - Musa
m = Mo 1 - EXP - C t M (^) o T (^) o
CUMULATIVE EXECUTION TIME t
FAILURES EXPERIENCED m
TOTAL FAILURES M (^) o
Reliability measures – Failure rate
cmsc435 - 19
CLEAN ROOM DEVELOPER USES READING TECHNIQUES, TOP DOWN DEVELOPMENT TESTING DONE BY INDEPENDENT ORGANIZATION AT INCREMENTAL STEPS RELIABILITY MODEL USED TO PROVIDE DEVELOPER WITH QUALITY ASSESSMENT FUNCTIONAL TESTING/COVERAGE METRICS USE FUNCTIONAL TESTING APPROACH COLLECT ERROR DISTRIBUTIONS, E.G., OMISSION vs COMMISSION OBTAIN COVERAGE METRICS KNOWING NUMBER OF ERRORS OF OMISSION, EXTRAPOLATE ERROR ANALYSIS AND RELIABILITY MODELS ESTABLISH ERROR HISTORY FROM PREVIOUS PROJECTS DISTINGUISH SIMILARITIES AND DIFFERENCES TO CURRENT PROJECT DETERMINE PRIOR ERROR DISTRIBUTIONS FOR CURRENT PROJECT SELECT CLASS OF STOCHASTIC MODELS FOR CURRENT PROJECT UPDATE PRIOR DISTRIBUTIONS AND COMPARE ACTUAL DATA WITH THE PRIORS FOR THE CURRENT PROJECT
Reliability – Combining approaches
Approaches toward reliability: Fault tolerance
l Fault detection The system must detect that a fault (an incorrect system state) has occurred. l Damage assessment The parts of the system state affected by the fault must be detected. l Fault recovery The system must restore its state to a known safe state. l Fault repair The system may be modified to prevent recurrence of the fault. As many software faults are transitory, this is often unnecessary.
cmsc435 - 21
The fault detection mechanism is initiated before the state change is committed. If an erroneous state is detected, the change is not made.
The fault detection mechanism is initiated after the system state has been changed. This is used when a incorrect sequence of correct actions leads to an erroneous state or when preventative fault detection involves too much overhead.
cmsc435 - 25
l Forward recovery
Apply repairs to a corrupted system state.
l Backward recovery
Restore the system state to a known safe state.
l Forward recovery is usually application specific
l Backward error recovery is simpler. Details of a safe state are maintained and this replaces the corrupted system state.
l Corruption of data coding
Error coding techniques which add redundancy to coded data can be used for repairing data corrupted during transmission.
l Redundant pointers
When redundant pointers are included in data structures (e.g. two-way lists), a corrupted list or filestore may be rebuilt if a sufficient number of pointers are uncorrupted Often used for database and file system repair.
cmsc435 - 27
l Safety assurance and reliability measurement are quite different: Within the limits of measurement error, you know whether or not a required level of reliability has been achieved; However, quantitative measurement of safety is impossible. Safety assurance is concerned with establishing a confidence level in the system.
l Confidence is developed through: Past experience with the company developing the software; The use of dependable processes and process activities geared to safety; Extensive V & V including both static and dynamic validation techniques.
cmsc435 - 31
l Establish the safe exit conditions for a component or a program.
l Starting from the END of the code, work backwards until you have identified all paths that lead to the exit of the code.
l Assume that the exit condition is false.
l Show that, for each path leading to the exit that the assignments made in that path contradict the assumption of an unsafe exit from the component.
currentDose = com puteInsu lin () ; // Safety check - adjust c urrentDose if necessary // if st atem ent 1 if (previousD ose == 0 ) { if (currentDo se > 16) currentDose = 16 ; } else if (currentDo se > (previousD ose * 2) ) currentDose = p reviou sDose * 2 ; // if st atem ent 2 if ( currentDose < m inimumD ose ) currentDose = 0 ; else if ( c urrentDose > ma xDose ) currentDose = m axDose ; administerInsulin (currentDo se) ;
cmsc435 - 33
l Neither branch of if-statement 2 is executed Can only happen if CurrentDose is >= minimumDose and <= maxDose.
l then branch of if-statement 2 is executed currentDose = 0.
l else branch of if-statement 2 is executed currentDose = maxDose.
l In all cases, the post conditions contradict the unsafe condition that the dose administered is greater than maxDose.
cmsc435 - 37
static v oid adm inisterInsulin ( ) throws S afetyException { int ma xIncrements = InsulinPu mp.ma xDo se / 8 ; int incremen ts = InsulinPum p.currentDose / 8 ; // assert currentDose <= Ins ulinPump .maxD ose if (I nsulinP ump .currentDose > InsulinPum p.maxDo se) throw new S afetyExcep tion (Pump .doseH igh); else for (int i=1 ; i<= increm ents; i++) { generateS ignal () ; if (i > ma xIncremen ts) throw new S afetyExcep tion ( Pump.inc orrectIncreme nts); } // for loop } //administerInsulin
cmsc435 - 39
l Security assessment has something in common with safety assessment. l It is intended to demonstrate that the system cannot enter some state (an unsafe or an insecure state) rather than to demonstrate that the system can do something.
l However, there are differences Safety problems are accidental; security problems are deliberate; Security problems are more generic - many systems suffer from the same problems; Safety problems are mostly related to the application domain
l Experience-based validation The system is reviewed and analysed against the types of attack that are known to the validation team. l Tool-based validation Various security tools such as password checkers are used to analyse the system in operation. l Tiger teams A team is established whose goal is to breach the security of the system by simulating attacks on the system.
l Formal verification The system is verified against a formal security specification.
