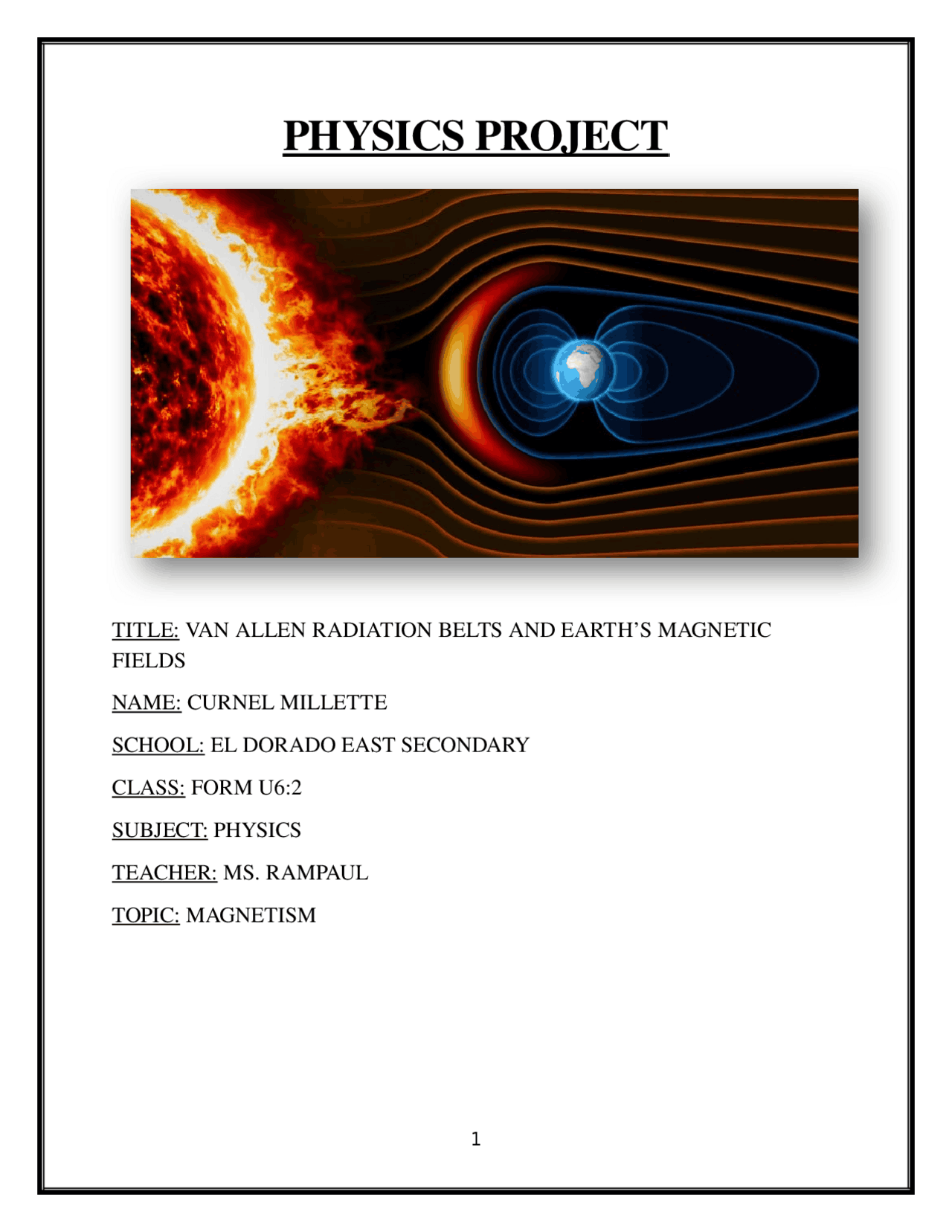

PHYSICS PROJECT
TITLE: VAN ALLEN RADIATION BELTS AND EARTH’S MAGNETIC
FIELDS
NAME: CURNEL MILLETTE
SCHOOL: EL DORADO EAST SECONDARY
CLASS: FORM U6:2
SUBJECT: PHYSICS
TEACHER: MS. RAMPAUL
TOPIC: MAGNETISM
1
Prepare for your exams
Study with the several resources on Docsity
Earn points to download
Earn points by helping other students or get them with a premium plan
Guidelines and tips
Prepare for your exams
Study with the several resources on Docsity
Earn points to download
Earn points by helping other students or get them with a premium plan
A project about the Van Allen radiation belts
Typology: Study Guides, Projects, Research
2025/2026
1 / 8
This page cannot be seen from the preview
Don't miss anything!
Related documents
Partial preview of the text
Download Van Allen Radiation Belts and more Study Guides, Projects, Research Physics in PDF only on Docsity!
PHYSICS PROJECT
TITLE: VAN ALLEN RADIATION BELTS AND EARTH’S MAGNETIC
FIELDS
NAME: CURNEL MILLETTE
SCHOOL: EL DORADO EAST SECONDARY
CLASS: FORM U6:
SUBJECT: PHYSICS
TEACHER: MS. RAMPAUL
TOPIC: MAGNETISM
TABLE OF CONTENTS
- ABSTRACT........................................................................................................
- INTRODUCTION.................................................................................................
- EARTH’S MAGNETIC FIELD................................................................................
- VAN ALLEN RADIATION BELTS..........................................................................
- PHYSICS OF PARTICLE TRAPPING.......................................................................
- IMPLICATIONS AND APPLICATIONS....................................................................
- DISCUSSION......................................................................................................
- CONCLUSION....................................................................................................
- REFERENCES.....................................................................................................
EARTH’S MAGNETIC FIELD
2.1 Dipole Model Earth’s magnetic field can be approximated as a dipole, with field lines emerging near the geographic south pole and re-entering near the north pole. Field strength decreases with distance, approximately as 1 r 3 2.2 Magnetosphere Structure The magnetosphere is the region dominated by Earth’s magnetic field. On the dayside, solar wind compresses it to ~10 Earth radii; on the nightside, it stretches into a long magnetotail. 2.3 Solar Wind Interaction Charged particles from the Sun continuously buffet the magnetosphere. During geomagnetic storms, the belts can swell, intensify, or shift, altering radiation hazards.
VAN ALLEN RADIATION BELTS
3.1 Inner Belt Located between ~1,000–12,000 km altitude. Dominated by energetic protons from cosmic ray interactions with the atmosphere. Relatively stable. 3.2 Outer Belt Extends from ~13,000–60,000 km altitude. Dominated by energetic electrons. Highly variable, strongly influenced by solar wind and geomagnetic storms. 3.3 Dynamics The belts are asymmetric due to solar wind pressure. Their intensity and shape fluctuate with solar activity, making them dynamic rather than static structures.
PHYSICS OF PARTICLE TRAPPING
4.1 Lorentz Force Charged particles spiral along magnetic field lines due to the Lorentz force.
Electromagnetic waves in the magnetosphere can accelerate or scatter particles, altering belt populations.
IMPLICATIONS AND APPLICATIONS
5.1 Satellites Radiation damages electronics, causes bit flips, and degrades solar panels. Engineers design shielding and select orbits to minimize exposure. 5.2 Astronaut Safety Human missions must avoid prolonged belt crossings. Apollo missions, for example, minimized exposure by transiting quickly. 5.3 Space Weather Forecasting Monitoring belt dynamics helps predict radiation hazards for spacecraft and communication systems. 5.4 South Atlantic Anomaly A region where Earth’s magnetic field is weaker, causing satellites in low Earth orbit to experience higher radiation doses.
DISCUSSION
The Van Allen belts illustrate the complex interplay between Earth’s magnetic field and solar activity. While the dipole model explains basic trapping, real dynamics involve wave–particle interactions and solar wind variability. Current research continues to refine models and improve forecasting.
CONCLUSION
Earth’s magnetic field creates a protective magnetosphere that traps charged particles. The Van Allen belts consist of inner (proton-dominated) and outer (electron-dominated) regions.
Particle motion is governed by Lorentz force, bounce, drift, and wave interactions. The belts pose risks to satellites and astronauts, requiring careful engineering and planning. Understanding belt dynamics is essential for space weather prediction and safe exploration.
REFERENCES
- Pulkkinen, T. (2021). Radiation belts and their environment. In Inner Magnetosphere Dynamics (pp. 1–25). Springer. https://link.springer.com/content/pdf/10.1007/978-3-030-82167-8_1.pdf
- Riddle, B. (2020). The Van Allen radiation belts. Science Scope, 43(5), 12–
- https://www.jstor.org/stable/pdf/26898902.pdf
- Wikipedia contributors. (2025). Van Allen radiation belt. Wikipedia. https://en.wikipedia.org/wiki/Van_Allen_radiation_belt
