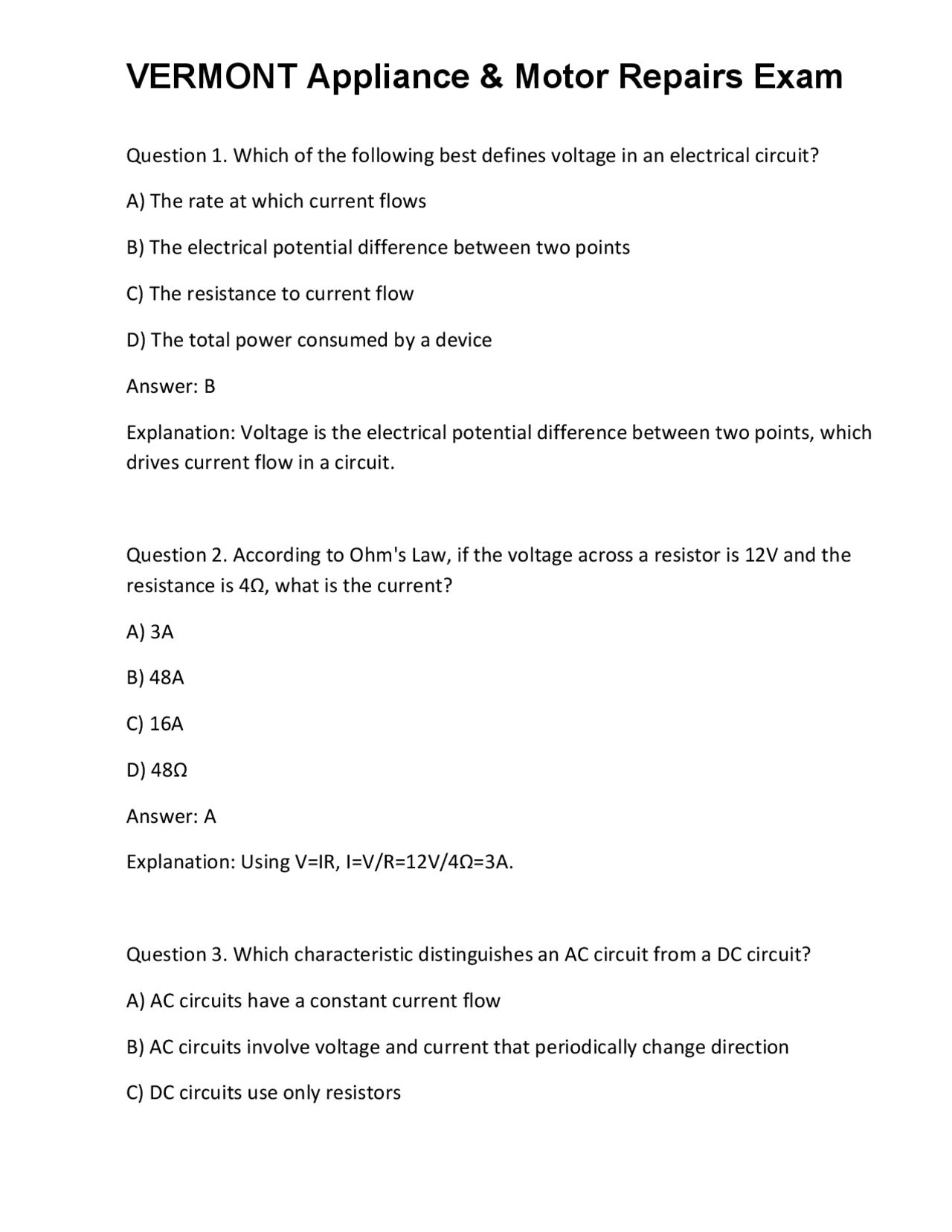

Question 1. Which of the following best defines voltage in an electrical circuit? A) The rate at which current flows B) The electrical potential difference between two points C) The resistance to current flow D) The total power consumed by a device Answer: B Explanation: Voltage is the electrical potential difference between two points, which drives current flow in a circuit. Question 2. According to Ohm's Law, if the voltage across a resistor is 12V and the resistance is 4Ω, what is the current? A) 3A B) 48A C) 16A D) 48Ω Answer: A Explanation: Using V=IR, I=V/R=12V/4Ω=3A. Question 3. Which characteristic distinguishes an AC circuit from a DC circuit? A) AC circuits have a constant current flow B) AC circuits involve voltage and current that periodically change direction C) DC circuits use only resistors
D) AC circuits cannot power motors Answer: B Explanation: AC circuits involve alternating voltage and current that periodically reverse direction, unlike DC which flows in one direction. Question 4. In a series circuit with three resistors of 2Ω, 3Ω, and 5Ω, what is the total resistance? A) 10Ω B) 0.4Ω C) 30Ω D) 1Ω Answer: A Explanation: Total resistance in series is sum of resistances: 2Ω + 3Ω + 5Ω=10Ω. Question 5. When two resistors are connected in parallel, how does the total resistance compare to each individual resistor? A) It is equal to the sum of the resistances B) It is greater than the largest resistor C) It is less than the smallest resistor D) It is the average of the resistances Answer: C Answer: C
Question 8. Why is proper grounding essential in electrical systems? A) To increase current flow B) To prevent electrical shock hazards and ensure safety C) To reduce resistance D) To improve circuit efficiency Answer: B Explanation: Proper grounding provides a safe path for fault current, preventing electrical shock hazards and protecting personnel. Question 9. Which PPE item is most critical when working on energized electrical components? A) Steel-toed boots B) Insulated gloves C) Hard hat D) Steel-toed boots and ear protection Answer: B Explanation: Insulated gloves are essential for preventing electrical shocks when working on energized parts. Question 10. When using a multimeter to measure resistance, what is the correct procedure? A) Connect probes across the component while power is on
B) Disconnect power and connect probes across the component C) Use the current measurement mode D) Short the component before measuring resistance Answer: B Explanation: Resistance measurements should be taken with power off, connecting probes across the component to avoid damage and ensure safety. Question 11. Which type of circuit allows current to flow through multiple paths simultaneously? A) Series circuit B) Parallel circuit C) Open circuit D) Short circuit Answer: B Explanation: Parallel circuits provide multiple paths for current, allowing it to flow through all branches simultaneously. Question 12. In an AC waveform, what does the term 'frequency' refer to? A) The number of cycles per second B) The voltage amplitude C) The time it takes to complete one cycle D) The resistance of the circuit
Explanation: Coils or windings in motors generate magnetic fields when current passes through them, enabling motor operation. Question 15. What is the main safety concern related to arc flash hazards? A) Electric shock during contact with live parts B) Intense heat and light that can cause burns or blindness C) Mechanical injury from moving parts D) Chemical exposure from electrical components Answer: B Explanation: Arc flashes produce extreme heat and light, risking burns, blindness, and other injuries if proper precautions are not taken. Question 16. Which PPE is recommended to protect against arc flash during electrical work? A) Cotton work gloves B) Flame-resistant clothing and face shield C) Regular work boots D) Dust mask Answer: B Explanation: Flame-resistant clothing and face shields are essential for protecting against arc flash burns and injuries.
Question 17. What does a clamp meter measure without breaking the circuit? A) Voltage across a component B) Resistance of a wire C) AC or DC current flowing through a conductor D) Capacitance of a capacitor Answer: C Answer: C Explanation: Clamp meters measure current by clamping around a conductor, allowing current measurement without disconnecting the circuit. Question 18. When testing insulation with a megohmmeter, what reading indicates good insulation? A) Low resistance (less than 1Ω) B) High resistance (in megaohms) C) Zero resistance D) Negative resistance Answer: B Explanation: High resistance readings in megaohms indicate good insulation integrity; low resistance suggests deterioration or damage. Question 19. Which component in an appliance converts electrical energy into heat within a heating element?
D) Ground fault interrupter Answer: B Explanation: Fuses are sacrificial devices that melt when excessive current flows, protecting the circuit. Question 22. How does a start capacitor function in a single-phase motor? A) Provides a continuous current supply B) Creates a phase shift to produce a rotating magnetic field for starting torque C) Converts AC to DC D) Acts as a safety device Answer: B Explanation: Start capacitors create a phase shift in the motor windings, producing a rotating magnetic field that helps start the motor. Question 23. Which motor type is most commonly used in household ceiling fans? A) Shaded-pole induction motor B) Universal motor C) Synchronous motor D) Capacitor-start induction motor Answer: A Explanation: Shaded-pole induction motors are compact, reliable, and commonly used in small appliances like ceiling fans.
Question 24. What is the primary purpose of a relay in an appliance control circuit? A) Store electrical energy B) Switch high-current loads using a low-current control signal C) Convert AC to DC D) Provide a constant voltage supply Answer: B Explanation: Relays use a low-current control circuit to switch high-current loads safely and effectively. Question 25. Which component is responsible for reversing the direction of a universal motor? A) Reversing switch or wiring configuration B) Capacitor C) Thermostat D) Diode Answer: A Explanation: Reversing the motor's direction involves switching the power supply wiring or using a reversing switch. Question 26. Which of the following best describes the function of a thermistor in an appliance?
B) Mechanical float switch C) Electronic sensor based on conductivity D) All of the above Answer: D Explanation: Water level controls can operate via pressure switches, float switches, or electronic sensors. Question 29. Which component in a refrigerator's defrost system is responsible for melting frost buildup? A) Thermostat B) Defrost heater C) Compressor D) Evaporator fan Answer: B Explanation: The defrost heater melts frost accumulated on the evaporator coils during defrost cycles. Question 30. In a microwave oven, what component generates the microwave radiation? A) Magnetron B) Transformer C) Diode
D) Capacitor Answer: A Explanation: The magnetron converts electrical energy into microwave radiation that heats food. Question 31. Which function does the water inlet valve serve in a dishwasher? A) Controls water flow into the wash chamber B) Pumps water out of the dishwasher C) Heats the water during wash cycles D) Drains wastewater Answer: A Explanation: The water inlet valve opens to allow fresh water into the dishwasher's wash chamber. Question 32. What is a common cause of a washing machine not spinning? A) Faulty lid switch or door lock B) Overfilled drum C) Broken drive belt or motor issue D) All of the above Answer: D Explanation: All listed causes can prevent a washing machine from spinning properly.
B) Universal motor C) Induction motor D) Synchronous motor Answer: C Explanation: Small induction motors are commonly used in dishwasher pumps due to their reliability and efficiency. Question 36. What is the main function of a control board in modern appliances? A) Provide mechanical support B) Manage and coordinate appliance functions electronically C) Generate power for the appliance D) Serve as the main heating element Answer: B Explanation: Control boards process inputs, manage operations, and coordinate various components electronically. Question 37. Which test indicates a shorted capacitor in a motor starting circuit? A) Infinite resistance reading B) Zero resistance or very low resistance reading C) High capacitance reading D) No change in resistance reading Answer: B
Explanation: A shorted capacitor shows very low or zero resistance, indicating failure. Question 38. Which of the following is a common failure mode of universal motors in small appliances? A) Brush wear or dropout B) Bearing seizure C) Open windings D) All of the above Answer: D Explanation: Universal motors can fail due to brush wear, bearing failure, or winding issues. Question 39. When troubleshooting a non-heating oven, which component should be tested first? A) Heating element B) Thermostat or temperature sensor C) Control board D) Power supply wiring Answer: A Explanation: The heating element is often the primary suspect; if it’s open or faulty, the oven won’t heat.
C) Condenses refrigerant vapor into liquid D) Evaporates refrigerant to absorb heat from inside the fridge Answer: A Explanation: The compressor compresses refrigerant vapor, increasing pressure and temperature before condensation. Question 43. Which component in a dishwasher prevents water from leaking during operation? A) Drain pump B) Door gasket or seal C) Spray arm D) Detergent dispenser Answer: B Explanation: The door gasket or seal prevents water from leaking out during washing cycles. Question 44. What type of switch senses temperature changes via a bimetallic strip? A) Thermistor B) Thermocouple C) Thermostat D) Limit switch Answer: C
Answer: C Explanation: Thermostats often use a bimetallic strip that bends with temperature changes to control heating elements. Question 45. Which of the following best describes the function of a relay in an appliance? A) Provides a safe interface to switch high current loads with a low current control signal B) Stores electrical energy temporarily C) Converts AC to DC power D) Acts as a fuse for circuit protection Answer: A Explanation: Relays switch high-current loads using a low-current control circuit, protecting control components. Question 46. Which safety device automatically cuts power when detecting a ground fault? A) Circuit breaker B) Ground Fault Circuit Interrupter (GFCI) C) Thermal overload relay D) Fuse Answer: B
