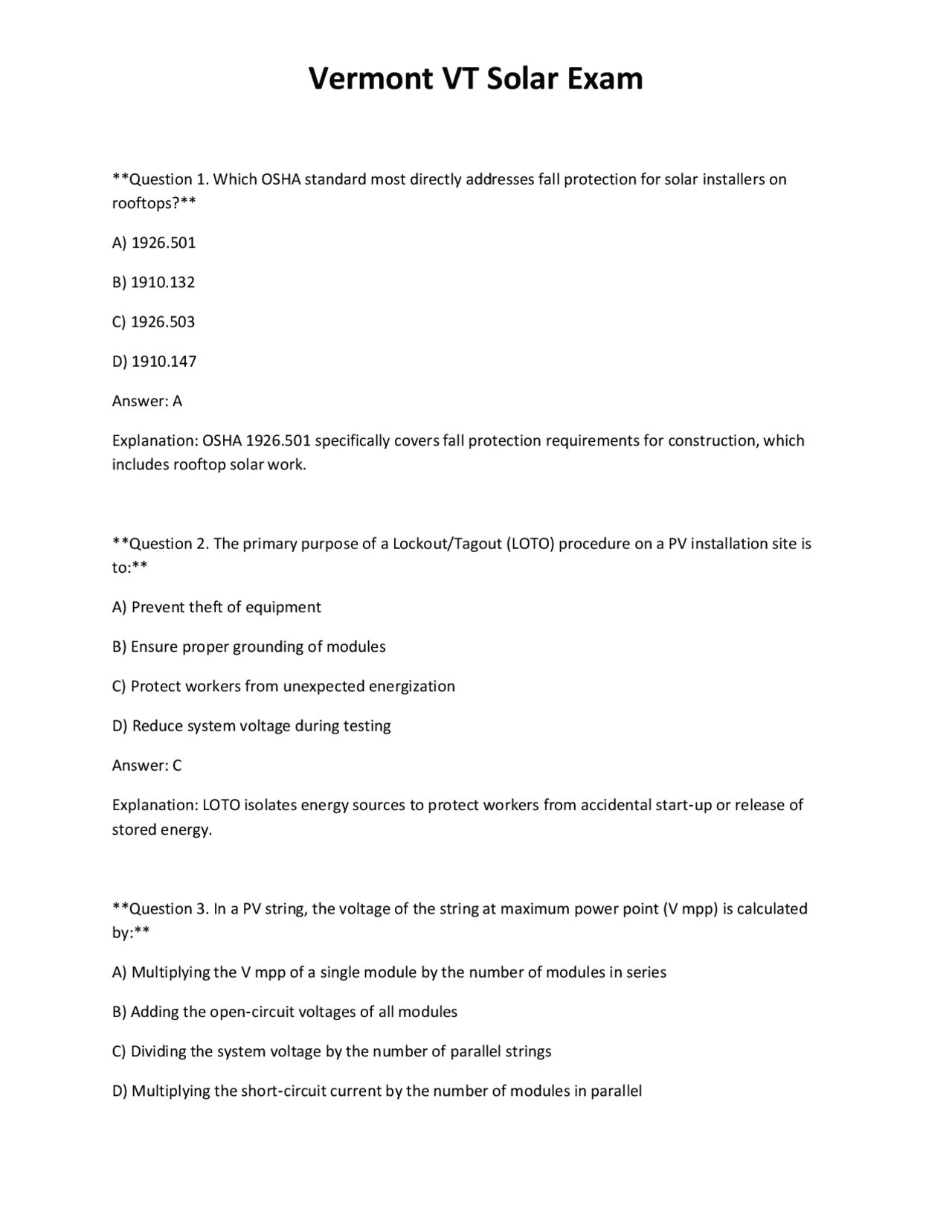

Question 1. Which OSHA standard most directly addresses fall protection for solar installers on rooftops? A) 1926. B) 1910. C) 1926. D) 1910. Answer: A Explanation: OSHA 1926.501 specifically covers fall protection requirements for construction, which includes rooftop solar work. Question 2. The primary purpose of a Lockout/Tagout (LOTO) procedure on a PV installation site is to: A) Prevent theft of equipment B) Ensure proper grounding of modules C) Protect workers from unexpected energization D) Reduce system voltage during testing Answer: C Explanation: LOTO isolates energy sources to protect workers from accidental start‑up or release of stored energy. Question 3. In a PV string, the voltage of the string at maximum power point (V mpp) is calculated by: A) Multiplying the V mpp of a single module by the number of modules in series B) Adding the open‑circuit voltages of all modules C) Dividing the system voltage by the number of parallel strings D) Multiplying the short‑circuit current by the number of modules in parallel
Answer: A Explanation: V mpp scales linearly with series‑connected modules; each module contributes its V mpp to the string voltage. Question 4. Ohm’s Law is expressed as: A) P = VI B) V = IR C) I = P/V D) R = V²/P Answer: B Explanation: Ohm’s Law states that voltage equals current times resistance (V = I R). Question 5. Which NEC article defines the requirements for grounding and bonding of PV systems? A) Article 210 B) Article 250 C) Article 690 D) Article 300 Answer: B Explanation: NEC Article 250 covers grounding and bonding for all electrical systems, including PV. Question 6. The maximum allowable system voltage for a utility‑interconnected PV system under NEC 2020 is: A) 600 V B) 1000 V C) 1500 V
C) The increase in current with temperature D) The module’s efficiency at standard test conditions Answer: B Explanation: The power temperature coefficient quantifies the percent loss in power for each °C above 25 °C. Question 10. When sizing a battery bank for a 5 kWh daily load with 2 days of autonomy and 80 % depth‑of‑discharge, the required storage capacity is: A) 12.5 kWh B) 15.6 kWh C) 10 kWh D) 6.25 kWh Answer: B Explanation: Required capacity = (Load × Days) / DoD = (5 kWh × 2) / 0.8 = 12.5 kWh; accounting for inverter losses (~80 %) yields ≈15.6 kWh. Question 11. Which PV module technology typically has the highest temperature coefficient (i.e., greatest performance loss at high temperatures)? A) Monocrystalline silicon B) Polycrystalline silicon C) Thin‑film CdTe D) Bifacial glass‑glass Answer: B Explanation: Polycrystalline modules generally have a higher temperature coefficient than monocrystalline and thin‑film technologies.
Question 12. In a three‑phase inverter, the line‑to‑line RMS voltage is: A) √3 times the phase voltage B) Equal to the phase voltage C) Half the phase voltage D) Twice the phase voltage Answer: A Explanation: For a balanced three‑phase system, V_LL = √ 3 × V_Ph. Question 13. The purpose of a combiner box in a PV array is to: A) Convert DC to AC power B) Provide over‑current protection for parallel strings C) Store excess energy D) Monitor weather conditions Answer: B Explanation: Combiner boxes aggregate multiple strings and include fuses or breakers for over‑current protection. Question 14. According to Vermont’s GWSA, the state’s renewable energy target for 2030 is: A) 25 % of total electricity B) 40 % of total electricity C) 50 % of total electricity D) 75 % of total electricity Answer: B Explanation: The Global Warming Solutions Act sets a 40 % renewable electricity goal by 2030.
Explanation: Ground mounts allow adjustable tilt, which is useful for optimizing seasonal production in Vermont’s climate. Question 18. The NEC requires a minimum of how many inches of separation between a PV DC circuit and a low‑voltage communication cable in the same conduit? A) 0 in (co‑located allowed) B) 1 in C) 2 in D) 4 in Answer: C Explanation: NEC 300.3(B) requires at least 2 in separation between power and low‑voltage circuits in the same conduit. Question 19. Which of the following is NOT a typical cause of inverter “anti‑islanding” tripping? A) Sudden loss of grid voltage B) Excessive harmonic distortion C) Over‑temperature of the inverter D) Grid frequency deviation beyond limits Answer: C Explanation: Over‑temperature triggers thermal shutdown, not anti‑islanding; anti‑islanding protects against grid loss, frequency, or voltage anomalies. Question 20. The term “NOCT” for a PV module stands for: A) Normal Operating Cell Temperature B) Nominal Output Current Test C) Net Output Conversion Theory
D) Newest Optimized Cell Technology Answer: A Explanation: NOCT is the temperature at which a module’s performance is rated under standardized conditions (800 W/m², 20 °C ambient, 1 m s⁻¹ wind). Question 21. When performing a shade analysis, the “sun path diagram” is used to determine: A) Annual solar irradiance values B) The angle of incidence of sunlight throughout the day C) Wind load on the array D) Electrical resistance of wiring Answer: B Explanation: A sun path diagram plots the sun’s altitude and azimuth, helping assess shading at different times. Question 22. In Vermont, the required snow load for a roof in the northern region is typically: A) 10 psf B) 20 psf C) 30 psf D) 50 psf Answer: C Explanation: Many northern Vermont municipalities adopt a minimum design snow load of 30 psf. Question 23. The correct NEC conduit fill for three #6 AWG THHN conductors in a ¾‑in. EMT is: A) 40 % B) 53 %
B) 25 ft of the module rack or at the building entry point C) 5 ft of any grounding electrode D) The same enclosure as the main service panel Answer: B Explanation: NEC 690.13 requires a disconnect within 25 ft of the PV array or at the building entry point. Question 27. Which of the following is a primary function of a PV module’s bypass diode? A) Increase the module’s open‑circuit voltage B) Prevent hot‑spot damage when part of the string is shaded C) Convert DC to AC directly on the module D) Store excess energy for night‑time use Answer: B Explanation: Bypass diodes allow current to circumvent shaded cells, reducing hot‑spot risk. Question 28. The “Maximum Power Point Tracking” (MPPT) algorithm in an inverter primarily adjusts: A) The inverter’s output frequency B) The DC voltage to keep the array at its V mpp C) The battery charging rate D) The shading tolerance of the system Answer: B Explanation: MPPT varies the DC operating voltage to keep the array at its maximum power point. Question 29. Under Vermont’s Group Net Metering rules, the maximum aggregate capacity for a community solar project is:
A) 50 kW B) 100 kW C) 150 kW D) 250 kW Answer: C Explanation: Vermont caps group net‑metered projects at 150 kW AC. Question 30. Which of the following is considered a “hard‑wired” AC disconnect for a PV system? A) A plug‑in disconnect switch mounted on a wall B) A circuit breaker in the main service panel C) A fused disconnect located in a separate enclosure D) A remote‑controlled relay in the inverter Answer: B Explanation: A circuit breaker in the service panel qualifies as a hard‑wired disconnect per NEC. Question 31. The most common cause of a ground‑fault interrupt (GFI) tripping in a PV installation is: A) Over‑voltage on the DC side B) Moisture ingress into conduit joints C) Incorrect inverter polarity D) Excessive module temperature Answer: B Explanation: Moisture can create unintended conductive paths, causing ground‑fault currents that trip GFI devices.
Question 35. In Vermont, the “Certificate of Public Good” (CPG) is required for solar projects that: A) Exceed 10 kW residential size B) Are installed on agricultural land C) Use battery storage larger than 5 kWh D) Exceed the net‑metering limit or are part of a group net‑metering plan Answer: D Explanation: CPG is needed for projects beyond standard net‑metering thresholds or for community solar. Question 36. Which of the following is the most accurate method to determine the actual energy production of a PV system after installation? A) Manufacturer’s nameplate rating B) Simulation software only C) On‑site performance monitoring data D) Seasonal average insolation tables Answer: C Explanation: Real‑time monitoring captures actual output, accounting for all site‑specific factors. Question 37. The NEC permits the use of a single‑phase inverter on a three‑phase service only if: A) The inverter is rated for 480 V three‑phase input B) The inverter is connected to a phase‑to‑phase conductor only C) The total connected load does not exceed 80 % of the service rating D) The inverter is installed in a dedicated enclosure with a disconnect per phase Answer: D
Explanation: NEC 690.11 requires a disconnect for each ungrounded conductor when connecting to a multi‑phase system. Question 38. Which of the following best describes “anti‑islanding” in a grid‑tied inverter? A) A feature that stores excess energy in batteries B) A protection that shuts down the inverter when the grid is lost C) A method to increase the inverter’s efficiency D) A technique to balance phase currents Answer: B Explanation: Anti‑islanding detects loss of grid power and disconnects the inverter to protect utility workers. Question 39. In a PV system, the term “shading factor” is used to: A) Adjust the inverter’s power factor rating B) Quantify the reduction in energy due to shading C) Determine the required grounding electrode size D) Calculate the voltage drop in conductors Answer: B Explanation: The shading factor represents the percentage of energy loss caused by shading. Question 40. According to Vermont’s building code, the minimum clearance between a ground‑mounted array and a public right‑of‑way is: A) 5 ft B) 10 ft C) 15 ft
B) Micro‑inverters and DC optimizers C) Battery management systems D) AC disconnect switches Answer: B Explanation: MLPE refers to power electronics located at the module level, such as micro‑inverters and optimizers. Question 44. Which of the following is a required document for obtaining a Vermont solar permit? A) A detailed site‑specific wind‑load analysis B) A copy of the homeowner’s deed C) A signed contractor’s insurance policy D) A list of all subcontractors’ names Answer: A Explanation: Structural analysis, including wind and snow loads, is a standard permit requirement in Vermont. Question 45. The NEC defines a “continuous load” as a load that: A) Operates for more than three hours continuously B) Is connected to a dedicated circuit C) Has a power factor less than 0. D) Is protected by a GFCI Answer: A Explanation: A continuous load runs for three hours or more and requires conductor sizing at 125 % of the load.
Question 46. In a PV system, the term “derating factor” is used to: A) Increase the inverter’s maximum output rating B) Adjust the nameplate capacity for real‑world conditions C) Reduce the number of modules needed in a string D) Calculate the required grounding electrode length Answer: B Explanation: Derating factors account for temperature, altitude, and other conditions that lower actual performance. Question 47. Which of the following is a common cause of inverter “no‑output” alarms after commissioning? A) Incorrectly sized battery bank B) Open‑circuit voltage on one or more strings C) Over‑tightened conduit fittings D) Excessive module cleaning frequency Answer: B Explanation: An open‑circuit (e.g., disconnected module) prevents the inverter from detecting voltage, leading to a no‑output condition. Question 48. In Vermont, the “pollinator‑friendly” solar standard primarily addresses: A) The use of non‑toxic cleaning chemicals B) Installation practices that protect native pollinator habitats C) The selection of high‑efficiency modules D) Mandatory bird‑proof fencing around arrays Answer: B
Answer: A Explanation: PR compares actual production to the expected output under given irradiance, indicating overall system efficiency. Question 52. In a PV array, the “string voltage at low temperature” is calculated using which correction factor? A) Temperature coefficient of current B) Temperature coefficient of voltage (positive value) C) NOCT adjustment factor D) Derating factor for humidity Answer: B Explanation: Voltage increases at low temperatures; the temperature coefficient of voltage (negative per °C) is applied inversely. Question 53. Which of the following is the most appropriate tool for measuring the open‑circuit voltage of a PV string? A) Clamp‑on ammeter B) Multimeter set to DC voltage C) Infrared thermometer D) Power quality analyzer Answer: B Explanation: A digital multimeter on the DC voltage range accurately reads V oc. Question 54. Under NEC 2020, a photovoltaic system installed on a commercial building must have a dedicated grounding electrode conductor of at least: A) #12 AWG copper
B) #10 AWG copper C) #8 AWG copper D) #6 AWG copper Answer: C Explanation: NEC 250.122 specifies minimum grounding electrode conductor sizes; for a 100 A service, #8 AWG is required, and larger systems often require #6 AWG; the most common commercial PV system uses #8 AWG, but the safe answer is #8 AWG. Question 55. The “anti‑islanding” test required by UL 1741 for inverters involves: A) Simulating a sudden voltage dip on the grid B) Applying a high‑frequency ripple to the DC input C) Removing the inverter’s output filter D) Varying the temperature of the inverter’s heat sink Answer: A Explanation: UL 1741 tests require the inverter to detect and disconnect when grid voltage or frequency deviates beyond set limits. Question 56. In Vermont, the minimum fire‑resistance rating for a roof‑mounted PV racking system on a Class C roof is: A) 30 minutes B) 60 minutes C) 90 minutes D) No rating required Answer: B Explanation: State fire codes often require a 60‑minute fire‑resistance rating for roof penetrations on Class C construction.
