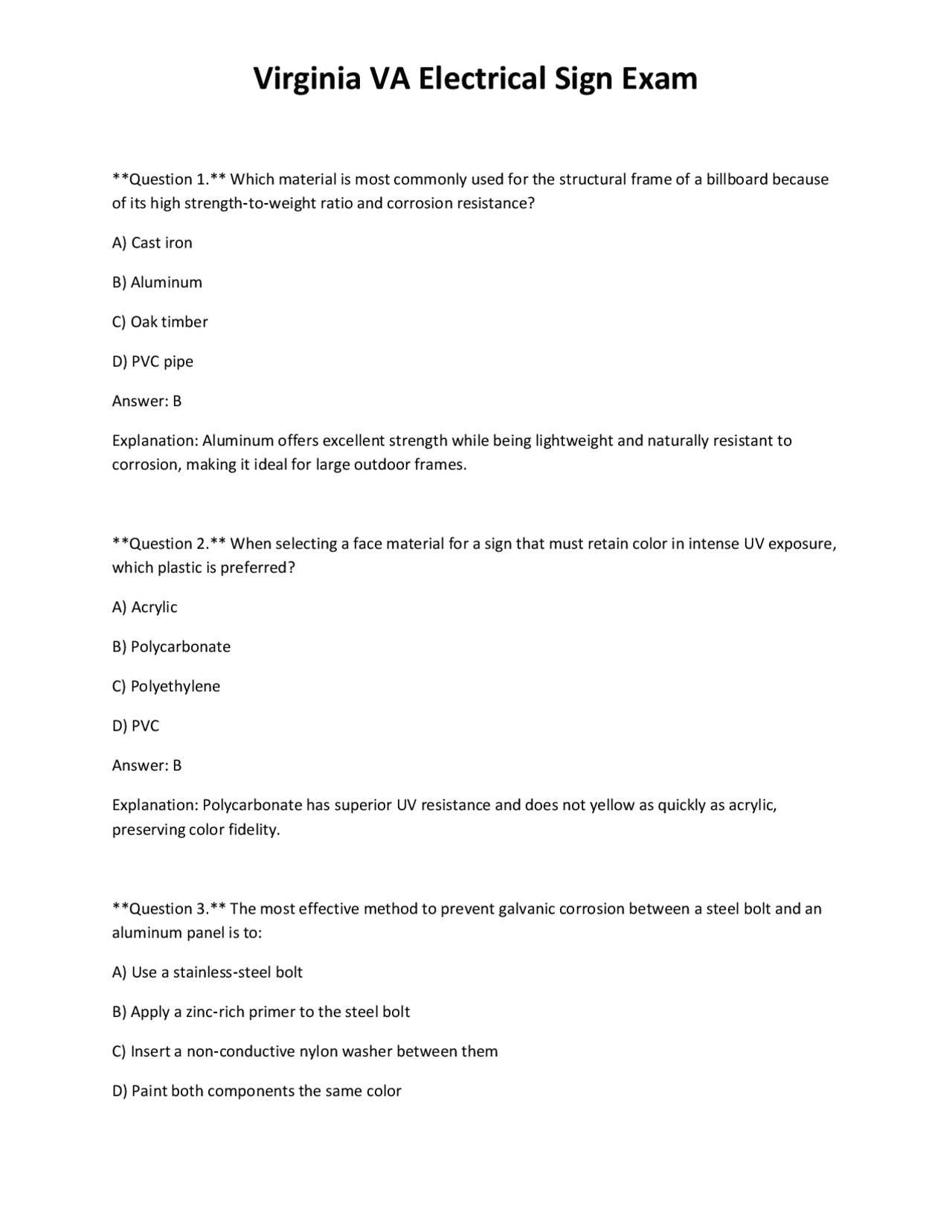

Question 1. Which material is most commonly used for the structural frame of a billboard because of its high strength‑to‑weight ratio and corrosion resistance? A) Cast iron B) Aluminum C) Oak timber D) PVC pipe Answer: B Explanation: Aluminum offers excellent strength while being lightweight and naturally resistant to corrosion, making it ideal for large outdoor frames. Question 2. When selecting a face material for a sign that must retain color in intense UV exposure, which plastic is preferred? A) Acrylic B) Polycarbonate C) Polyethylene D) PVC Answer: B Explanation: Polycarbonate has superior UV resistance and does not yellow as quickly as acrylic, preserving color fidelity. Question 3. The most effective method to prevent galvanic corrosion between a steel bolt and an aluminum panel is to: A) Use a stainless‑steel bolt B) Apply a zinc‑rich primer to the steel bolt C) Insert a non‑conductive nylon washer between them D) Paint both components the same color
Answer: C Explanation: A non‑conductive barrier such as a nylon washer isolates the dissimilar metals, breaking the galvanic circuit. Question 4. Which type of foundation is required for a 30‑ft tall billboard in a zone with 90 mph basic wind speed? A) Concrete pier with a minimum depth of 24 in. B) Driven steel H‑piles to 8 ft depth C) Spread footing of 6 ft × 6 ft × 24 in. reinforced concrete D) Gravel pad 4 ft × 4 ft × 12 in. Answer: C Explanation: High wind loads demand a large reinforced spread footing to resist overturning moments; the dimensions listed meet typical code requirements. Question 5. The Virginia Administrative Code (VAC) requires a permit for a sign that exceeds: A) 4 ft² in area B) 16 ft in height C) 10 ft in width D) 30 ft² in area Answer: B Explanation: Virginia zoning ordinances generally limit sign height to 16 ft without a special permit; larger signs must obtain approval. Question 6. OSHA 29 CFR 1926.502(b)(7) requires that a fall‑arrest system be inspected: A) Only after a fall has occurred B) Every 6 months by a qualified person
Question 9. The primary purpose of bonding a sign structure to ground is to: A) Reduce static electricity buildup on the sign face B) Prevent lightning‑induced voltage from reaching workers C) Eliminate electromagnetic interference with nearby radios D) Improve the structural stability of the frame Answer: B Explanation: Grounding provides a low‑impedance path for lightning currents, protecting personnel and equipment. Question 10. Which hazard is most likely when a sign is being installed near an overhead power line? A) Tripping over cables B) Electrical arc flash C) Falling debris D) Chemical exposure from paint Answer: B Explanation: Proximity to energized lines can cause accidental contact, leading to arc flash or electrocution. Question 11. A sign contractor must follow which NFPA standard for fire safety during welding operations? A) NFPA 70E B) NFPA 241 C) NFPA 1 D) NFPA 30 Answer: B
Explanation: NFPA 241 covers fire prevention during hot‑work activities such as welding. Question 12. When repairing a corroded steel support, the best practice is to: A) Paint over the rust with any exterior paint B) Remove all rust, apply a zinc‑rich primer, then repaint with a topcoat C) Drill holes through the corroded area to relieve stress D) Replace the entire support without inspecting other members Answer: B Explanation: Proper surface preparation and a zinc‑rich primer prevent further corrosion before applying the final coat. Question 13. In Virginia, the minimum clearance required between a sign and a public roadway is: A) 5 ft B) 10 ft C) 15 ft D) 20 ft Answer: B Explanation: State regulations typically mandate a 10‑ft minimum setback from the edge of a public right‑of‑way. Question 14. Which type of fastener is recommended for attaching acrylic panels to an aluminum frame to avoid cracking the acrylic? A) Self‑tapping steel screws B) Stainless‑steel machine screws with rubber washers C) Wood screws
B) Long‑term exposure to high temperatures and UV radiation C) Over‑tightening of mounting bolts D) Improper grounding Answer: B Explanation: Polymers can deform permanently over time when subjected to heat and UV, leading to creep. Question 18. The OSHA requirement for a ladder used to access a sign higher than 24 ft is: A) Must be a straight‑run ladder with a minimum 4:1 angle B) Must be a step ladder with a maximum height of 20 ft C) Must have a personal fall arrest system attached D) Must be a portable ladder inspected daily Answer: C Explanation: For work above 24 ft, OSHA mandates fall protection; a personal fall arrest system must be used when climbing ladders. Question 19. A sign’s illumination circuit is protected by a 15‑amp circuit breaker. The total load of the LED modules is 1,200 W. Is the breaker appropriately sized? A) Yes, because 1,200 W ÷ 120 V = 10 A, which is below 15 A B) No, because LED loads require a 20 A breaker regardless of wattage C) Yes, because LED circuits do not require breakers D) No, because the breaker must be at least 30 % larger than the load Answer: A Explanation: 1,200 W at 120 V draws 10 A; a 15‑amp breaker provides a safe margin.
Question 20. When installing a sign in a flood‑prone area, the foundation should be: A) Built directly on compacted soil B) Elevated on a concrete pad above the Base Flood Elevation (BFE) C) Anchored with steel rods driven 2 ft deep D) Made of untreated wood to allow water drainage Answer: B Explanation: Elevating the foundation above the BFE reduces the risk of flood damage and complies with FEMA guidelines. Question 21. Which inspection is required after a sign’s structural steel has been welded on site? A) Visual inspection only B) Magnetic particle testing of all welds C) Ultrasonic testing of weld penetration D) A qualified welding inspector must verify weld quality per AWS D1. Answer: D Explanation: AWS D1.1 specifies that a qualified inspector must approve on‑site welds to ensure structural integrity. Question 22. The most appropriate method to protect a wooden sign frame from rot in a humid climate is to: A) Paint it with oil‑based paint only B) Apply a pressure‑treated preservative and a water‑resistant sealant C) Cover it with a tarp when not in use D) Use stainless‑steel bolts to hold it together Answer: B
D) Using insulated wiring throughout the sign Answer: B Explanation: A lightning protection system includes air terminals and a low‑impedance grounding path to safely dissipate strikes. Question 26. The minimum size for a safety net used under a sign being installed at 20 ft height is: A) 10 ft × 10 ft B) 12 ft × 12 ft C) 15 ft × 15 ft D) 20 ft × 20 ft Answer: C Explanation: OSHA requires safety nets to extend at least 15 ft in each direction from the point of potential fall. Question 27. Which type of adhesive is recommended for bonding polycarbonate panels to an aluminum frame in a high‑temperature environment? A) Standard epoxy B) Silicone‑based adhesive with high‑temperature rating C) Construction glue (PVA) D) Hot‑melt adhesive Answer: B Explanation: Silicone adhesives retain flexibility and strength at elevated temperatures, making them suitable for polycarbonate‑to‑metal bonds. Question 28. The “load factor” used in sign design for wind is typically: A) 0.6 for all regions
B) 1.0 for low‑rise signs, 1.5 for high‑rise signs C) 1.3 to 1.5 depending on exposure category D) 2.0 for any sign over 10 ft tall Answer: C Explanation: Design codes apply a load factor of 1.3–1.5 to account for gusts and variability in wind pressures. Question 29. Which of the following is a required feature of a sign’s electrical conduit when it runs through a concrete foundation? A) It must be PVC conduit only B) It must be listed for direct burial and have a watertight fitting C] It may be any conduit as long as it is insulated D) It must be metal conduit with a plastic coating Answer: B Explanation: Direct‑burial conduit must be rated for underground use and sealed to prevent moisture ingress. Question 30. During a site hazard assessment, a contractor identifies an underground gas line 3 ft from the proposed foundation. The correct action is to: A) Proceed, as gas lines are not a concern for sign work B) Relocate the foundation at least 5 ft away or obtain a utility clearance permit C) Install a protective steel plate over the gas line D) Use a non‑explosive drilling method and continue Answer: B Explanation: OSHA and local codes require a minimum clearance from underground utilities; relocation or official clearance is necessary.
Answer: B Explanation: Wind tunnel testing evaluates how the sign will respond to wind forces, ensuring safety and compliance. Question 34. Which of the following is the correct OSHA classification for a sign‑installation crew working on a roof with a fall height of 15 ft? A) General construction – no special classification B) Roofing work – requires a 4‑person fall arrest system C) Aerial work – must use a personal fall arrest system or guardrails D) Confined space – must test atmospheric conditions Answer: C Explanation: Working at heights over 6 ft requires fall protection; aerial work standards apply to roof work. Question 35. A sign’s LED driver is rated for 120 V AC input. The site power is 277 V AC three‑phase. The proper solution is to: A) Connect the driver directly to 277 V, it will auto‑adjust B) Install a step‑down transformer to 120 V before the driver C) Replace the driver with a 277 V‑rated unit D) Use a voltage regulator to drop to 120 V Answer: B Explanation: The driver must receive its rated voltage; a step‑down transformer provides the correct 120 V AC. Question 36. Which fastener type provides the highest resistance to vibration for a sign mounted on a steel pole?
A) Standard hex bolt with lock washer B) Self‑locking (Nyloc) nut and bolt C) Rivet D) Wood screw Answer: B Explanation: Nyloc nuts have a nylon insert that prevents loosening under vibration, making them ideal for dynamic loads. Question 37. In a coastal environment, the recommended coating system for a steel sign frame is: A) One coat of oil‑based paint B) Zinc‑rich primer, epoxy intermediate coat, and polyurethane topcoat C) Plain rust‑inhibiting primer only D) No coating; stainless steel is sufficient Answer: B Explanation: A multi‑layer system with zinc primer, epoxy, and UV‑stable polyurethane provides superior protection against salt spray and corrosion. Question 38. When a sign’s wiring must pass through a metal conduit that penetrates a concrete wall, the required seal is: A) Silicone caulk only B) A listed conduit sealing fitting with a grommet and sealant C) Electrical tape wrapped around the conduit D) No seal is needed if the conduit is metal Answer: B Explanation: A listed sealing fitting ensures a fire‑rated, watertight penetration through the wall.
D) Replace the entire support member Answer: B Explanation: Reinforcement with a plate and qualified welding restores structural integrity; replacement is not always necessary if the member can be repaired per engineering judgment. Question 42. Which OSHA standard specifically addresses the use of aerial lifts for sign installation? A) 29 CFR 1926. B) 29 CFR 1910. C) 29 CFR 1926. D) 29 CFR 1926. Answer: D Explanation: 29 CFR 1926.1400 covers aerial lifts, including boom and scissor lifts, used in construction. Question 43. When a sign’s mounting bolts are installed into a concrete foundation, the required embedment depth for a ½‑in. bolt under a 5,000‑lb load is approximately: A) 1 in. B) 2 in. C) 3 in. D) 4 in. Answer: C Explanation: Concrete embedment tables indicate a minimum of 3 in. for a ½‑in. bolt under that load to achieve adequate pull‑out strength. Question 44. The most effective way to reduce the “heat island” effect caused by a large illuminated billboard is to: A) Use lower wattage LEDs
B) Install a reflective backing on the sign face C) Paint the surrounding ground with dark asphalt D) Add a shading canopy over the sign Answer: B Explanation: A reflective backing reflects solar radiation, reducing heat absorption and the overall heat island impact. Question 45. In Virginia, a sign that exceeds 30 ft in height must be reviewed by which authority before installation? A) Local fire department B) Virginia Department of Transportation (VDOT) C) County zoning board of appeals D) State Historic Preservation Office Answer: C Explanation: Tall signs generally require a zoning board of appeals review to ensure compliance with local ordinances. Question 46. Which of the following best describes the “working load limit” (WLL) of a hoist used to lift a billboard? A) The maximum weight the hoist can lift under ideal conditions B) The rated capacity reduced by a safety factor, typically 80 % of the rated load C) The weight of the hoist itself D) The load at which the hoist’s brakes engage Answer: B Explanation: WLL is the rated capacity multiplied by a safety factor (commonly 80 % for electric hoists) to ensure safe operation.
Answer: B Explanation: Industry practice and many codes require a minimum FoS of 1.5 for overturning; 1.2 is insufficient. Question 50. Which fire‑resistant rating is required for a sign enclosure that houses electrical components in a commercial zone? A) No rating needed if the enclosure is metal B) UL 94 V‑0 for all plastics used C) NFPA 70 compliance with a minimum 1‑hour fire‑resistance rating D) ASTM E84 Class A rating for the enclosure material Answer: D Explanation: ASTM E84 Class A indicates the highest flame spread rating for building materials, suitable for electrical enclosures. Question 51. When a sign’s structural steel is to be painted on site, the surface preparation must achieve at least which SSPC (Society for Protective Coatings) standard? A) SSPC‑SP 1 (hand wiping) B) SSPC‑SP 10 (near‑white metal blast) C) SSPC‑SP 5 (white metal blast) D) SSPC‑SP 12 (commercial blast) Answer: C Explanation: SSPC‑SP 5 provides a clean, near‑white metal surface ideal for high‑performance coating adhesion. Question 52. The most appropriate method for disposing of old fluorescent sign tubes is to: A) Throw them in regular trash
B) Recycle them at a certified hazardous waste facility C) Burn them in a metal incinerator D) Submerge them in water before disposal Answer: B Explanation: Fluorescent tubes contain mercury; they must be handled as hazardous waste and recycled accordingly. Question 53. Which of the following is a required feature of a guardrail system on a scaffold used for sign installation? A) Top rail at 42 in. above the platform, mid‑rail at 21 in., and toe‑board 4 in. high B) Only a top rail is required C) Guardrails must be painted red for visibility D) Guardrails may be omitted if a safety net is used Answer: A Explanation: OSHA specifies top rail, mid‑rail, and toe‑board dimensions for scaffold guardrails. Question 54. A sign contractor must verify that a new digital billboard’s data cable is rated for outdoor use. The appropriate cable type is: A) Unshielded twisted pair (UTP) Cat‑5e B) Direct‑burial rated fiber optic cable with UV‑resistant jacket C) Standard coaxial cable without shielding D) Any cable that fits the connector Answer: B Explanation: Direct‑burial fiber optic cable with UV protection is designed for outdoor exposure and ensures signal integrity.
