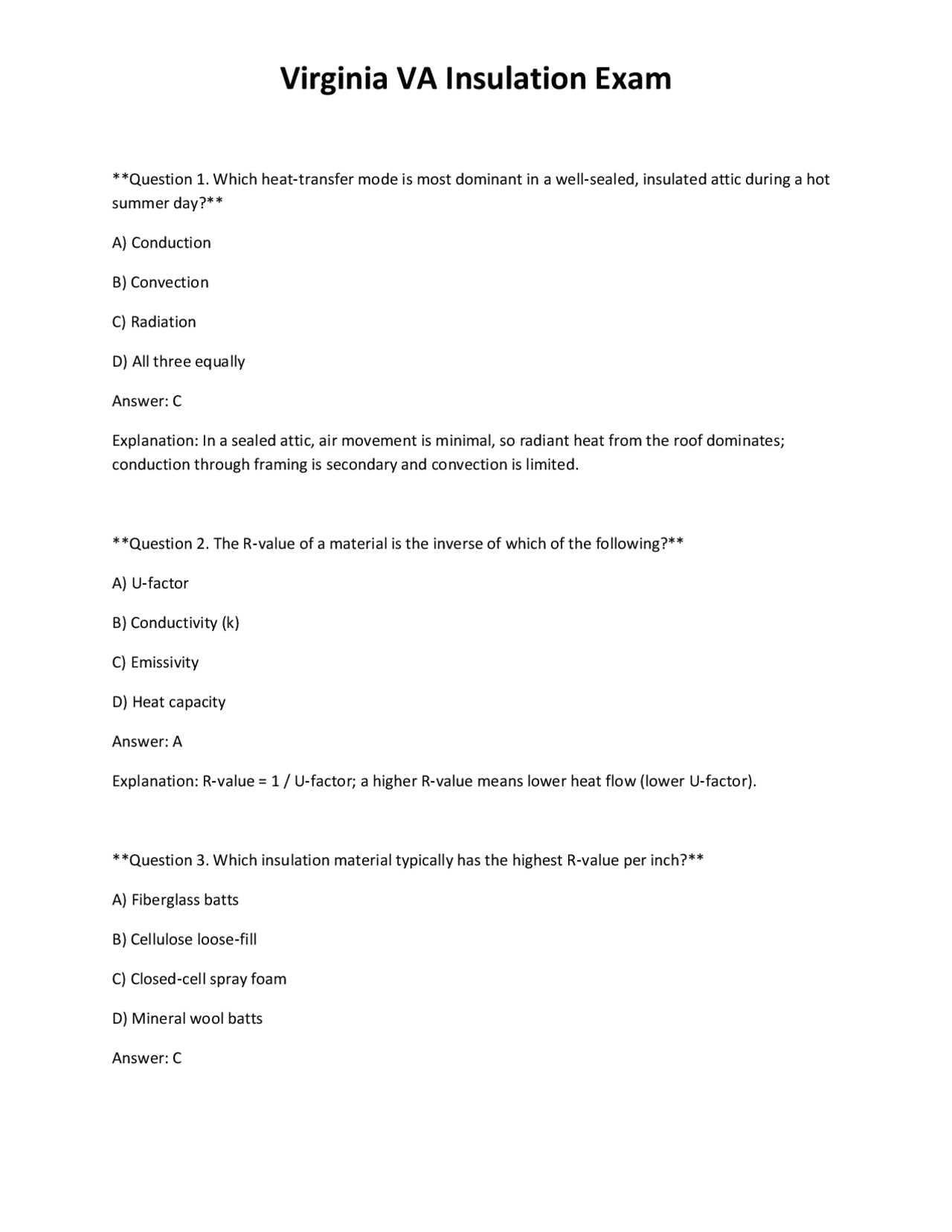

Question 1. Which heat‑transfer mode is most dominant in a well‑sealed, insulated attic during a hot summer day? A) Conduction B) Convection C) Radiation D) All three equally Answer: C Explanation: In a sealed attic, air movement is minimal, so radiant heat from the roof dominates; conduction through framing is secondary and convection is limited. Question 2. The R‑value of a material is the inverse of which of the following? A) U‑factor B) Conductivity (k) C) Emissivity D) Heat capacity Answer: A Explanation: R‑value = 1 / U‑factor; a higher R‑value means lower heat flow (lower U‑factor). Question 3. Which insulation material typically has the highest R‑value per inch? A) Fiberglass batts B) Cellulose loose‑fill C) Closed‑cell spray foam D) Mineral wool batts Answer: C
Explanation: Closed‑cell spray foam provides about R‑6 to R‑7 per inch, higher than the ~R‑3.2 of fiberglass or cellulose. Question 4. In a cold‑climate zone, where should a vapor retarder be installed in a wall assembly? A) On the interior side of the insulation B) On the exterior side of the sheathing C) Between the studs and interior finish D) Directly on the exterior cladding Answer: A Explanation: In cold climates, moisture moves inward; placing the vapor retarder on the warm side (interior) prevents condensation within the wall cavity. Question 5. Which of the following is a primary benefit of continuous insulation (rigid board) applied over studs? A) Reduces stud heat bridging B) Increases acoustic absorption C) Provides fire resistance only D) Eliminates the need for vapor barriers Answer: A Explanation: Continuous insulation creates a thermal break over the studs, minimizing heat loss through framing (thermal bridging). Question 6. When installing batt insulation in a wall cavity, which practice will most likely reduce its effective R‑value? A) Cutting the batts to fit tightly B) Compressing the batts between studs
Question 9. What is the typical fire‑rating classification for unfaced fiberglass batts used in residential walls? A) Class A (non‑combustible) B) Class B (limited flame spread) C) Class C (combustible) D) No fire rating required Answer: B Explanation: Unfaced fiberglass batts are usually rated Class B, indicating limited flame spread and smoke development. Question 10. Which equipment is essential for installing loose‑fill cellulose insulation? A) Hand‑held cutter B) Pneumatic blower machine C) Heat gun D) Roller compactor Answer: B Explanation: A pneumatic blower (or similar machine) propels cellulose into wall cavities or attics to achieve the desired density. Question 11. In a plan, a dashed line labeled “V/R” on the interior side of a wall indicates what? A) Vapor retarder location B) Ventilation duct C) Vertical reinforcement D) Variable resistance Answer: A
Explanation: “V/R” typically denotes the placement of a vapor retarder in construction drawings. Question 12. Which of the following insulation types is most susceptible to moisture absorption and loss of R‑value if exposed to water? A) Closed‑cell spray foam B) Extruded polystyrene (XPS) board C) Mineral wool batts D) Polyisocyanurate (polyiso) board Answer: C Explanation: Mineral wool is hydrophilic; when it absorbs water, its air‑filled structure collapses, reducing thermal performance. Question 13. The primary purpose of baffles in an attic is to: A) Increase R‑value of insulation B) Provide a pathway for air flow from soffit vents to ridge vents C) Support the roof deck D) Seal the attic from the exterior Answer: B Explanation: Baffles maintain a clear channel for ventilation air, preventing insulation from blocking soffit vents. Question 14. Which insulation material typically requires a separate vapor barrier when installed in a warm‑climate zone? A) Closed‑cell spray foam B) Unfaced fiberglass batts C) Polyiso board with foil facing
B) W/(m²·K) C) ft·°F·h/BTU D) J/(s·m·K) Answer: B Explanation: U‑factor is expressed in watts per square meter per Kelvin (W/(m²·K)) in metric, indicating heat transfer rate. Question 18. Which of the following is the most appropriate method for estimating the quantity of batt insulation needed for a 1,200 ft² floor area with 2‑by‑6 studs spaced 16 in on center? A) Multiply floor area by 0. B) Calculate cavity volume (area × stud depth) then divide by batts’ volume per piece C) Use a fixed factor of 1.2 ft³ per ft² D) Estimate based on wall length only Answer: B Explanation: Estimating batts requires determining cavity volume (floor area × stud depth) and then dividing by the volume of each batt to obtain the number of pieces. Question 19. Which type of reflective insulation is most effective when installed with an air gap? A) Fiberglass batt with foil facing B) Radiant barrier foil with perforated backing C) Polyiso board with foil skin D) Mineral wool board with reflective coating Answer: B Explanation: A radiant barrier foil with perforated backing reflects radiant heat when an air gap exists, maximizing its performance.
Question 20. For a residential wall in Climate Zone 5, the International Energy Conservation Code (IECC) requires a minimum R‑value of: A) R‑13 for walls B) R‑19 for walls C) R‑20 for walls D) R‑21 for walls Answer: B Explanation: IECC 2021 for Climate Zone 5 mandates at least R‑19 for exterior walls. Question 21. During spray‑foam installation, which personal protective equipment (PPE) is mandatory? A) Hard hat only B) Safety glasses, gloves, and a full‑face respirator C) Earplugs and steel‑toe boots D) High‑visibility vest only Answer: B Explanation: Spray foam emits isocyanates; a full‑face respirator, goggles, and chemical‑resistant gloves are required to protect eyes, skin, and lungs. Question 22. Which of the following best describes the function of a vapor barrier? A) Stops all air movement B) Prevents water vapor diffusion while allowing some air flow C) Completely blocks moisture and air diffusion D) Reflects radiant heat only Answer: C
D) The moisture content of the material Answer: A Explanation: Loft factor = installed depth ÷ required depth; it indicates whether the installed insulation meets the target R‑value. Question 26. Which of the following is a characteristic of extruded polystyrene (XPS) compared to expanded polystyrene (EPS)? A) Higher compressive strength B) Lower R‑value per inch C) Greater water absorption D) More permeable to vapor Answer: A Explanation: XPS has a closed‑cell structure giving higher compressive strength and slightly higher R‑value per inch than EPS. Question 27. When reading a construction drawing, a “double line with a ¼‑in gap” on a wall section most likely indicates: A) A continuous insulation layer B) A vapor barrier location C) An air space for ventilation D) A thermal break Answer: C Explanation: A double line with a gap often denotes an intentional air cavity, such as a vented crawl space.
Question 28. Which insulation material is most commonly used for sound attenuation in interior partitions? A) Closed‑cell spray foam B) Mineral wool batts C) Polyiso board D) Cellulose loose‑fill Answer: B Explanation: Mineral wool’s dense, fibrous structure provides superior acoustic absorption compared to other insulation types. Question 29. In a cold‑climate attic, the recommended minimum R‑value for insulation on the attic floor is: A) R‑ 13 B) R‑ 19 C) R‑ 30 D) R‑ 38 Answer: C Explanation: Cold‑climate guidelines (e.g., IECC) often require at least R‑30 on attic floors to minimize heat loss. Question 30. Which of the following statements about “thermal bridging” is correct? A) It occurs only in metal framing. B) It can be eliminated by installing continuous exterior insulation. C) It improves the overall R‑value of a wall. D) It is irrelevant in high‑R‑value assemblies. Answer: B
A) Noise exposure B) Electrical shock C) Chemical burns from isocyanates D) Falls from height Answer: C Explanation: Spray‑foam chemicals (isocyanates) can cause skin and eye irritation, requiring specific controls. Question 34. In a wall assembly, the “thermal resistance” contributed by interior drywall is approximately: A) R‑0.1 per inch B) R‑0.45 per inch C) R‑1.0 per inch D) R‑2.0 per inch Answer: B Explanation: Standard ½‑in drywall provides about R‑0.45, a relatively low contribution compared to insulation. Question 35. Which of the following best describes the effect of compressing fiberglass batts to 75 % of their original thickness? A) R‑value increases by 25 % B) R‑value remains unchanged C) R‑value decreases by about 30 % D) R‑value doubles Answer: C
Explanation: Compression reduces trapped air, lowering thermal resistance; a 25 % compression typically reduces R‑value by roughly 30 %. Question 36. When installing rigid foam board on the exterior of a wood‑frame wall, what is the recommended method to ensure a continuous air barrier? A) Overlap seams by at least 2 in and seal with compatible tape B) Leave a ¼‑in gap between boards for drainage C) Use only unfaced boards without sealing D) Install boards only on interior side of sheathing Answer: A Explanation: Overlapping and sealing joints creates a continuous air and vapor barrier, preventing air infiltration. Question 37. Which insulation type is classified as “Class A” for fire resistance? (meaning non‑combustible) A) Mineral wool batts B) Fiberglass batts C) Closed‑cell spray foam D) Cellulose loose‑fill Answer: A Explanation: Mineral wool is non‑combustible and meets Class A fire‑rating criteria. Question 38. In a hot‑dry climate, the recommended placement of a vapor retarder in a wall assembly is: A) Interior side of insulation B) Exterior side of sheathing
Question 41. Which of the following is the most appropriate method to verify installed insulation thickness in an existing wall? A) Visual inspection only B) Use a thermal imaging camera to detect temperature differentials C) Drill a small hole and measure with a ruler D) Rely on contractor’s paperwork Answer: C Explanation: Drilling a small inspection hole and measuring provides a direct, accurate assessment of installed thickness. Question 42. The primary purpose of a “radiant barrier” installed under a roof deck is to: A) Increase convective heat transfer B) Reflect infrared radiation back toward the attic space C) Absorb solar radiation and convert it to heat D) Provide structural support for roofing material Answer: B Explanation: Radiant barriers have low emissivity surfaces that reflect radiant heat, reducing heat gain in the attic. Question 43. In a building code, the term “U‑factor ≤ 0.035 W/(m²·K)” for a window assembly corresponds roughly to which minimum R‑value? A) R‑ 15 B) R‑ 20 C) R‑ 25 D) R‑ 30
Answer: C Explanation: R‑value ≈ 1 / U‑factor; 1 / 0.035 ≈ 28.6 ft²·°F·h/BTU, which is close to R‑ 25 – R‑30; the nearest listed is R‑25. Question 44. Which insulation product is typically installed with a “perforated” foil facing to allow moisture diffusion while still reflecting radiant heat? A) Closed‑cell spray foam B) Reflective foil faced polyiso board C) Fiberglass batt with kraft paper D) Mineral wool board with solid foil Answer: B Explanation: Perforated foil on polyiso permits vapor diffusion while maintaining reflective properties. Question 45. When estimating labor for installing batt insulation in a 2,400 ft² floor, which factor most influences the labor hours? A) R‑value of the batts B) Number of door openings and obstacles C) Color of the insulation D) Brand of the insulation Answer: B Explanation: Obstacles such as HVAC ducts, plumbing, and door frames increase cutting and fitting time, affecting labor. Question 46. Which of the following is a common cause of “settling” in blown‑in cellulose insulation? A) Over‑compression during installation
Question 49. In a plan set, a “C” symbol on a wall detail typically denotes: A) Concrete block B) Continuous insulation C) Crown molding D) Cable tray Answer: B Explanation: “C” in insulation drawings often stands for continuous insulation. Question 50. Which of the following is the most effective way to reduce sound transmission through a partition wall? A) Increase the R‑value of the insulation only B) Use staggered or double stud framing with mineral wool batts C) Add a reflective foil barrier D) Install a thin layer of closed‑cell spray foam Answer: B Explanation: Staggered or double stud walls decouple the two sides, and mineral wool provides high acoustic damping. Question 51. The “thermal resistance” of a 1‑in thick layer of XPS board is approximately: A) R‑2. B) R‑3. C) R‑5. D) R‑6. Answer: B
Explanation: XPS typically offers about R‑3.5 per inch. Question 52. Which OSHA standard addresses the use of respirators for workers exposed to isocyanates from spray foam? A) 29 CFR 1910.134 (Respiratory Protection) B) 29 CFR 1926.55 (Fall Protection) C) 29 CFR 1910.120 (Hazardous Waste Operations) D) 29 CFR 1926.651 (Scaffolding) Answer: A Explanation: Respiratory Protection standard governs selection, use, and maintenance of respirators for chemical hazards. Question 53. In a cold‑climate attic, why is it recommended to leave a 1‑in air space between the insulation and the roof deck? A) To increase R‑value of the insulation B) To allow moisture to evaporate and prevent condensation on the deck C) To provide space for additional wiring D) To improve acoustic performance Answer: B Explanation: An air space permits drying and reduces the risk of condensation on the cold roof deck. Question 54. Which insulation material is most suitable for use in a below‑grade foundation wall where moisture resistance is critical? A) Unfaced fiberglass batts B) Closed‑cell spray foam C) Cellulose loose‑fill
