RAKESH ASERY(09EC73)
CE Amplifier design on Multisim
Figure: CE Amplifier with voltage divider biasing
Figure: Response of CE amplifier
Prepare for your exams
Study with the several resources on Docsity
Earn points to download
Earn points by helping other students or get them with a premium plan
Guidelines and tips
Prepare for your exams
Study with the several resources on Docsity
Earn points to download
Earn points by helping other students or get them with a premium plan
VLSI software Laboratory, Lab Reports of Engineering
CE Amplifier design, Buffer Amplifier design, NMOS Amplifier design, Wein bridge generator design, Square wave generator design, RC phase oscillator design, JFET design, Astable Multivibrator design, Mono-stable Multi-vibrator Design, Introductuion to Xilinx ISE 7.1i software, Design Full Adder, Design Half adder, Design half substractor, Design AND Gate, Design NOR Gate, Design XNOR Gate, Design NAND Gate, Design OR Gate, Design XOR Gate, Design fullsubtractor, Design 4to1Multiplexer, Design 8
Typology: Lab Reports
2013/2014
1 / 66
This page cannot be seen from the preview
Don't miss anything!
Related documents
Partial preview of the text
Download VLSI software Laboratory and more Lab Reports Engineering in PDF only on Docsity!

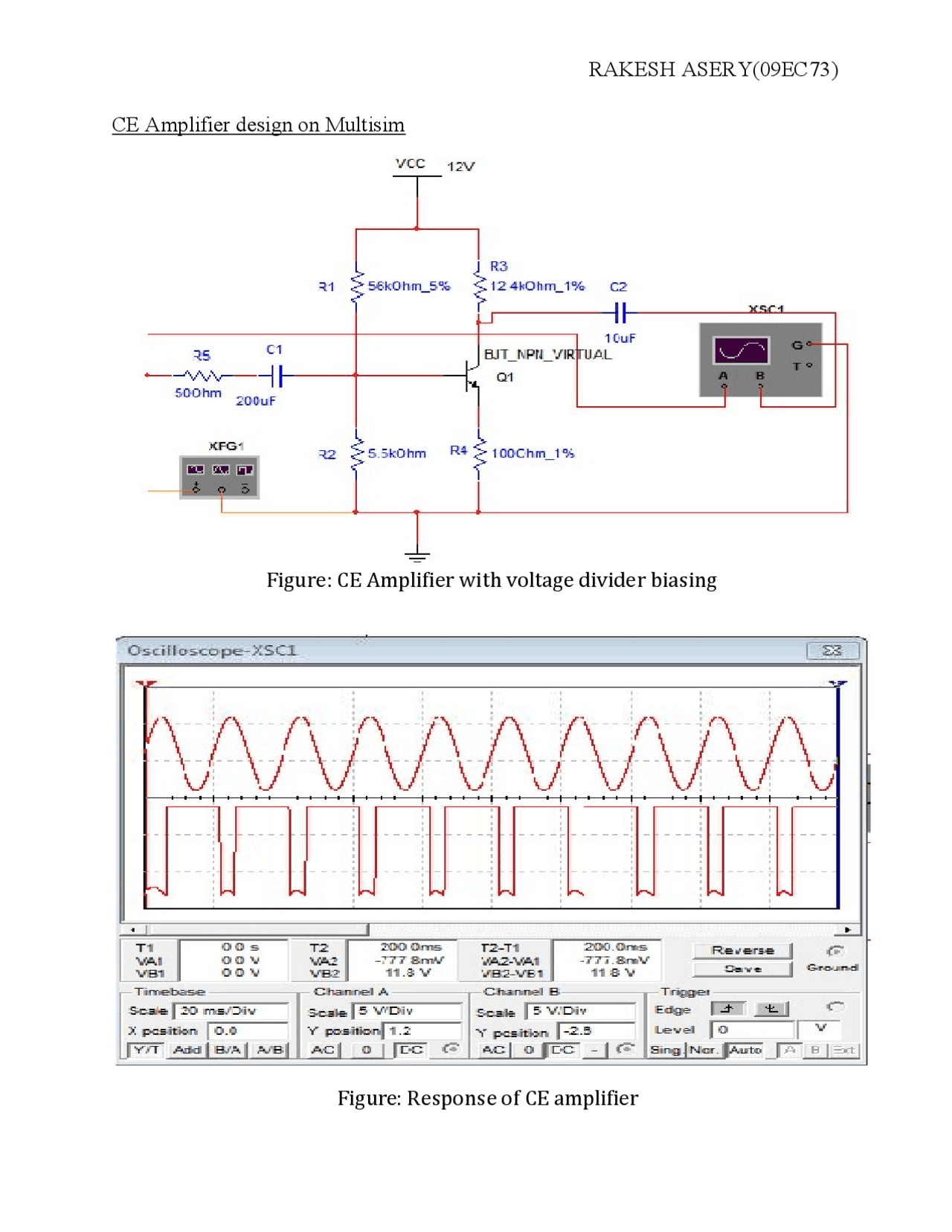

CE Amplifier design on Multisim Figure: CE Amplifier with voltage divider biasing Figure: Response of CE amplifier
