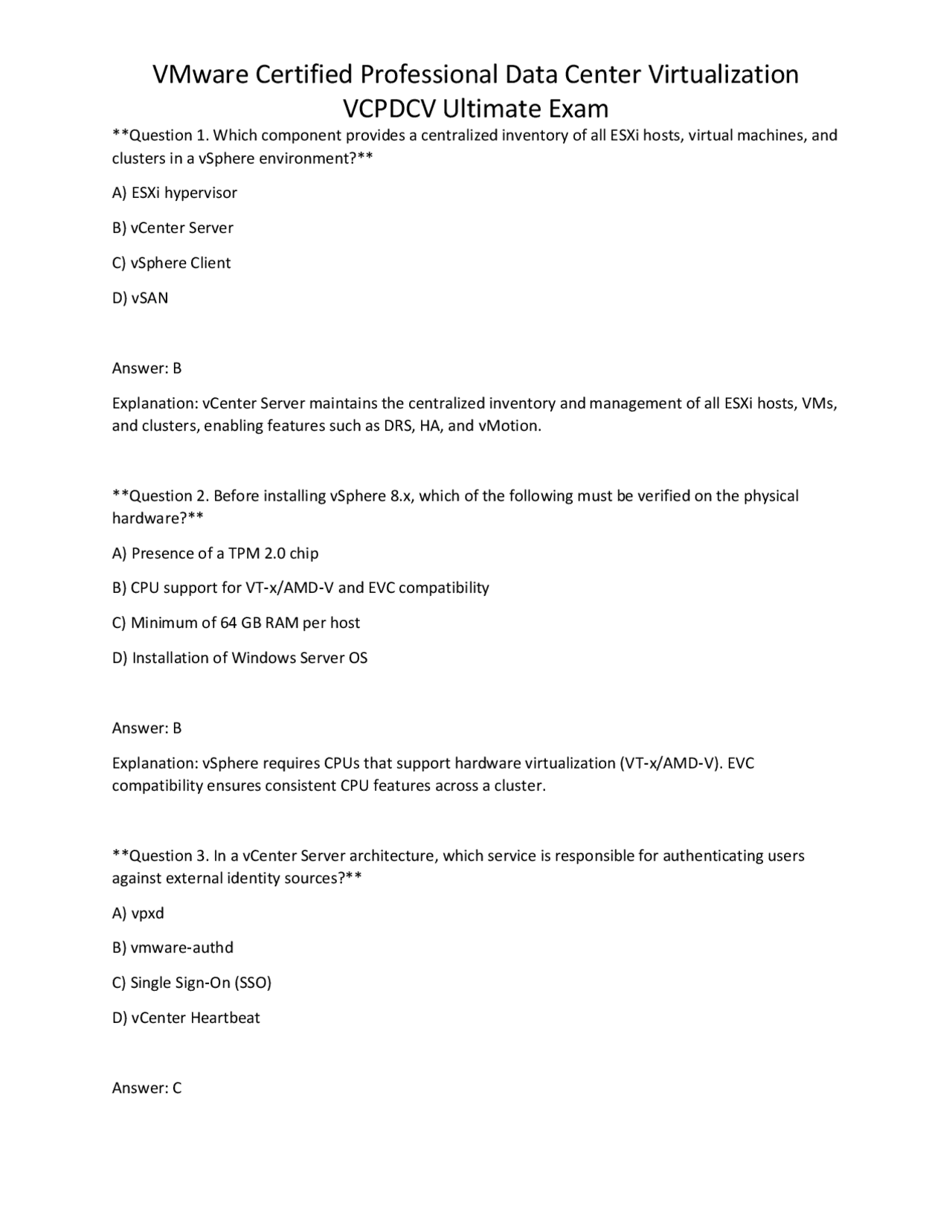

VCPDCV Ultimate Exam
Question 1. Which component provides a centralized inventory of all ESXi hosts, virtual machines, and clusters in a vSphere environment? A) ESXi hypervisor B) vCenter Server C) vSphere Client D) vSAN Answer: B Explanation: vCenter Server maintains the centralized inventory and management of all ESXi hosts, VMs, and clusters, enabling features such as DRS, HA, and vMotion. Question 2. Before installing vSphere 8.x, which of the following must be verified on the physical hardware? A) Presence of a TPM 2.0 chip B) CPU support for VT‑x/AMD‑V and EVC compatibility C) Minimum of 64 GB RAM per host D) Installation of Windows Server OS Answer: B Explanation: vSphere requires CPUs that support hardware virtualization (VT‑x/AMD‑V). EVC compatibility ensures consistent CPU features across a cluster. Question 3. In a vCenter Server architecture, which service is responsible for authenticating users against external identity sources? A) vpxd B) vmware‑authd C) Single Sign‑On (SSO) D) vCenter Heartbeat Answer: C
VCPDCV Ultimate Exam
Explanation: Single Sign‑On (SSO) handles authentication and federation with external identity providers such as AD, LDAP, or OpenID Connect. Question 4. What is the primary function of the ESXi hypervisor in a virtual data center? A) Provide DNS services to VMs B) Directly manage physical storage arrays C) Abstract hardware resources and run virtual machines D) Host the vCenter Server Appliance Answer: C Explanation: ESXi abstracts CPU, memory, storage, and network resources, allowing multiple isolated VMs to run on a single physical host. Question 5. Which scenario best demonstrates a use case for VMware Tools? A) Enabling vMotion across clusters B) Providing guest OS heartbeat to HA C) Configuring vSAN datastore policies D) Managing vCenter licenses Answer: B Explanation: VMware Tools includes a heartbeat mechanism that informs vCenter that the guest OS is responsive, which HA uses to detect failures. Question 6. The Distributed Services Engine (DPU) in vSphere is primarily used to offload which type of workload? A) Storage replication B) Network packet processing and security services C) VM snapshot creation D) vCenter database operations
VCPDCV Ultimate Exam
D) iSCSI Answer: B Explanation: vVOLs (Virtual Volumes) expose storage objects per VM, allowing array‑level policy control and integration via VASA. Question 10. The vStorage APIs for Array Integration (VAAI) primarily help to: A) Encrypt VM disks at rest B) Offload certain storage operations to the array, reducing host CPU usage C) Provide snapshot consistency across clusters D) Enable automatic tiering of VM files Answer: B Explanation: VAAI allows the storage array to perform operations like block zeroing, cloning, and thin provisioning, reducing host overhead. Question 11. Which of the following describes the purpose of vStorage APIs for Storage Awareness (VASA)? A) To enable VM encryption keys to be stored on the array B) To allow vCenter to query storage capabilities and expose storage policies to VMs C) To provide a backup interface for vSAN D) To manage network I/O throttling Answer: B Explanation: VASA enables vCenter to discover array capabilities (e.g., replication, snapshots) and present them as storage policies for VM placement. Question 12. In a vSAN environment, which component is responsible for data distribution and redundancy across host disks? A) vSAN Witness Appliance
VCPDCV Ultimate Exam
B) Disk Group C) vSAN Cache D) vSAN Object Manager Answer: D Explanation: The vSAN Object Manager orchestrates data placement, mirroring, and erasure coding across the cluster’s disks. Question 13. What is the main distinction between a VMware Standard Switch (VSS) and a Distributed Switch (VDS)? A) VSS supports NIC teaming, VDS does not B) VDS provides centralized management of networking across multiple hosts, while VSS is host‑local C) VSS can only be used for VMkernel adapters D) VDS requires a physical NIC per port group Answer: B Explanation: A VDS is created and managed centrally in vCenter and spans multiple ESXi hosts, whereas a VSS is configured individually on each host. Question 14. Which VMkernel network is required for vMotion to function? A) Management B) vMotion C) Provisioning D) Fault Tolerance Answer: B Explanation: The vMotion VMkernel port group provides the dedicated network for live migration of VM memory and state.
VCPDCV Ultimate Exam
Question 18. Which feature provides a hardware‑rooted trust anchor for a virtual machine, enabling secure boot and TPM functionality? A) vSAN B) vTPM C) vMotion D) vSphere HA Answer: B Explanation: Virtual TPM (vTPM) emulates a physical TPM, storing keys in the VM’s encrypted state and supporting Secure Boot. Question 19. The primary difference between BIOS and UEFI firmware for a VM is: A) BIOS supports more than 4 TB of virtual disk size, UEFI does not B) UEFI allows Secure Boot and larger boot disks, while BIOS is legacy firmware C) BIOS enables NVMe‑oF, UEFI does not D) UEFI requires Windows Server as the guest OS Answer: B Explanation: UEFI provides modern boot services, supports Secure Boot, and can handle disks larger than 2 TB, unlike legacy BIOS. Question 20. Microsoft Virtualization‑Based Security (VBS) is best utilized when: A) Deploying vSAN on Windows Server hosts B) Protecting the hypervisor from kernel‑mode attacks using a secure container in the guest OS C) Enabling vMotion across heterogeneous CPU generations D) Configuring vCenter Single Sign‑On Answer: B
VCPDCV Ultimate Exam
Explanation: VBS runs a separate secure container for critical OS components, leveraging hardware isolation to protect against kernel‑mode threats. Question 21. Which component of vSphere with Tanzu creates the Kubernetes control plane on top of vSphere? A) Supervisor Cluster B) vSAN C) vCenter HA D) NSX‑T Answer: A Explanation: The Supervisor Cluster runs a Kubernetes control plane as a set of VMs managed by vSphere, enabling Tanzu workloads. Question 22. A Supervisor Namespace is primarily used to: A) Separate vSAN traffic from VM traffic B) Define a logical boundary for Tanzu workloads, mapping to a specific vSphere resource pool or folder C) Provide a dedicated NIC for Kubernetes services D) Store backup snapshots of Kubernetes clusters Answer: B Explanation: A Namespace isolates Tanzu workloads, assigning them to a particular resource pool, storage policy, and network configuration. Question 23. vSphere Zones are introduced to address which need? A) To separate HA and FT clusters across geographic locations B) To provide workload isolation and policy enforcement across heterogeneous hardware groups within a single cluster C) To enable cross‑vCenter vMotion D) To allocate dedicated storage for VM snapshots
VCPDCV Ultimate Exam
D) Physical network switches Answer: B Explanation: vSphere Replication continuously copies VM disk changes to a target site, enabling point‑in‑time recovery. Question 27. Distributed Resource Scheduler (DRS) makes placement decisions based on: A) Fixed host‑to‑VM mappings defined at VM creation B) Real‑time resource utilization, VM affinity rules, and VM‑VM load balancing scores C) The number of NICs attached to each VM D) The size of the VM’s virtual disks Answer: B Explanation: DRS evaluates CPU, memory, and host utilization, applying affinity/anti‑affinity rules to recommend or automatically migrate VMs. Question 28. Enhanced vMotion Compatibility (EVC) is used to: A) Encrypt vMotion traffic B) Mask CPU feature differences across a cluster so that VMs can vMotion between hosts with different CPU generations C) Increase vMotion bandwidth automatically D) Provide HA for vMotion Answer: B Explanation: EVC creates a common CPU feature set, allowing VMs to migrate without compatibility warnings across heterogeneous CPUs. Question 29. When DRS calculates a migration recommendation, the “Score” it returns represents: A) The number of vCPUs the VM will receive after migration B) A relative measure (0‑100) of how much the migration will improve overall cluster efficiency
VCPDCV Ultimate Exam
C) The latency of the storage array D) The amount of memory reserved for the VM Answer: B Explanation: DRS scores indicate the potential benefit; a higher score means a more favorable migration. Question 30. Which step is required to install an ESXi host from a bootable ISO? A) Enable vCenter Server HA before installation B) Configure the host’s BIOS to boot from the ISO or USB media and follow the installer prompts C) Install Windows Server first, then run the ESXi installer as an application D) Deploy the host via vCenter Server Appliance Answer: B Explanation: ESXi is installed directly on the hardware by booting from the installation media and completing the guided setup. Question 31. The vCenter Server Appliance (VCSA) runs on which underlying operating system? A) Windows Server 2019 B) Photon OS (a lightweight Linux distribution) C) Ubuntu Server D) Red Hat Enterprise Linux Answer: B Explanation: VCSA is a pre‑packaged Linux appliance based on VMware Photon OS. Question 32. Which identity source does NOT require a separate LDAP server to be configured in vCenter Single Sign‑On? A) Active Directory (AD) B) OpenID Connect (OIDC)
VCPDCV Ultimate Exam
A) Automatically apply a standardized configuration (network, storage, syslog, etc.) to multiple ESXi hosts B) Create VM templates for rapid deployment C) Manage vCenter licensing D) Enable vSAN encryption Answer: A Explanation: Host Profiles capture a host’s configuration and can be applied to other hosts to ensure consistency. Question 36. In vLCM, a baseline is used to: A) Define a set of patches and upgrades that can be applied together to hosts or clusters B) Store VM snapshots for rollback C) Configure network VLAN IDs D) Assign storage policies to VMs Answer: A Explanation: A baseline groups specific image versions, patches, or extensions, enabling coordinated lifecycle updates. Question 37. Content Libraries allow administrators to: A) Store and share VM templates, ISO images, and scripts across multiple vCenter instances B) Replicate vCenter configuration files automatically C) Host vSAN metadata D) Manage host BIOS settings Answer: A Explanation: Content Libraries are repositories for items such as VM templates, ISO files, and scripts that can be subscribed to by other vCenter servers.
VCPDCV Ultimate Exam
Question 38. When creating a VM template version, which of the following is true? A) The template version is immutable and cannot be edited after creation B) New VM deployments can select a specific template version to ensure consistent OS patches C) Templates automatically include all snapshots from the source VM D) Template versions are only available for Windows guest OS Answer: B Explanation: Versioned templates allow administrators to maintain multiple baseline images, letting users pick the required version during deployment. Question 39. The vCenter file‑based backup feature stores backup data in which location by default? A) An NFS datastore configured as a backup repository B) The local SSD of the VCSA C) A vSAN datastore with a dedicated backup policy D) The same datastore where the VCSA is installed (default is /storage/db) Answer: D Explanation: By default, VCSA file‑based backup stores the backup files on the same datastore as the VCSA, under the /storage/db directory. Question 40. Resource pools are useful for: A) Enforcing storage I/O limits on individual VMs B) Grouping VMs to share a defined allocation of CPU and memory resources, often for multi‑tenant environments C) Providing a dedicated VLAN for a set of VMs D) Automatically encrypting VMs in the pool Answer: B
VCPDCV Ultimate Exam
Answer: B Explanation: esxtop offers an interactive, real‑time display of host performance counters. Question 44. The Update Planner in vSphere is used to: A. Identify compatible firmware and driver versions for a host before applying an ESXi patch B. Schedule vMotion events during maintenance windows C. Automate VM snapshot creation before upgrades D. Generate compliance reports for security Answer: A Explanation: Update Planner scans hardware and recommends the correct firmware and driver versions needed for a given ESXi update. Question 45. VMware Skyline assists administrators by: A. Providing proactive health monitoring, issue detection, and remediation guidance based on telemetry data from the environment B. Automating vCenter license activation C. Managing DNS zones for VMs D. Enabling cross‑vCenter HA Answer: A Explanation: Skyline collects anonymized telemetry and offers recommendations to prevent known issues before they impact production. Question 46. Which of the following is a prerequisite for enabling vSphere with Tanzu on a cluster? A. All hosts must have at least 64 GB of RAM and a supported GPU B. The cluster must have a vSAN datastore or a compatible shared storage for the Supervisor Cluster VM C. vCenter must be installed on Windows Server D. The cluster must be configured with Fault Tolerance for all VMs
VCPDCV Ultimate Exam
Answer: B Explanation: The Supervisor Cluster requires shared storage (vSAN or supported NFS) to host its control plane VMs. Question 47. When creating a VM snapshot, which component is NOT captured? A. The VM’s memory state (if “snapshot the VM’s memory” is selected) B. The VM’s power state at the time of the snapshot C. The underlying ESXi host’s BIOS configuration D. The VM’s virtual disk delta files Answer: C Explanation: Snapshots capture the VM’s disk and optionally memory state, but they do not include host BIOS settings. Question 48. Live vMotion differs from Cold Migration in that: A. vMotion moves only the VM’s configuration files, while Cold Migration moves the running memory state B. vMotion requires the VM to be powered off, Cold Migration does not C. vMotion transfers the VM’s memory and CPU state over the network without downtime, whereas Cold Migration copies the VM files while the VM is powered off D. Cold Migration can only be performed between vCenter instances Answer: C Explanation: vMotion provides zero‑downtime migration by moving the live VM state; Cold Migration requires the VM to be powered off. Question 49. Storage vMotion is primarily used to: A. Move a powered‑on VM’s virtual disks to a different datastore with no downtime B. Change the VM’s CPU count while it is running
VCPDCV Ultimate Exam
A. Assign a single global password to all users B. Define custom roles with specific privileges and assign them to users or groups for granular permission control C. Automatically encrypt all VMs in a datacenter D. Disable vMotion for certain hosts Answer: B Explanation: RBAC lets you create roles (e.g., Read‑Only, Datastore Admin) and bind them to AD/LDAP users or groups. Question 53. A VM‑VM anti‑affinity rule ensures that: A. Two VMs are always placed on the same host for performance B. Two VMs are never placed on the same host, improving fault tolerance C. A VM is always placed on a specific host D. VMs share the same resource pool Answer: B Explanation: Anti‑affinity rules keep VMs apart, reducing the risk that a single host failure impacts both. Question 54. Which alarm type can automatically trigger a script when a VM’s CPU usage exceeds a threshold? A. Metric alarm with a custom action (Run a script) B. Health alarm C. vCenter Server alarm only D. Storage alarm Answer: A Explanation: Metric alarms can be configured with custom actions such as running scripts when a specified condition is met.
VCPDCV Ultimate Exam
Question 55. The VMware Certificate Authority (VMCA) provides which of the following? A. A public CA for external customers B. Self‑signed certificates for vCenter and ESXi hosts, as well as the ability to act as an intermediate CA for custom certificates C. Encryption keys for VM disks D. License activation for vSphere Answer: B Explanation: VMCA issues default self‑signed certificates and can be configured as an intermediate CA for issuing custom certificates. Question 56. The vpxa service runs on which component? A. ESXi host, acting as the vCenter agent that communicates with the vCenter Server B. vCenter Server Appliance only C. Windows vCenter Server installation only D. vSAN Witness Answer: A Explanation: vpxa is the host agent on each ESXi host that forwards inventory and health data to vCenter. Question 57. Which log file contains information about virtual machine power operations on an ESXi host? A. hostd.log B) vmkernel.log C) vmware.log (inside the VM’s directory) D) vpxd.log Answer: C
