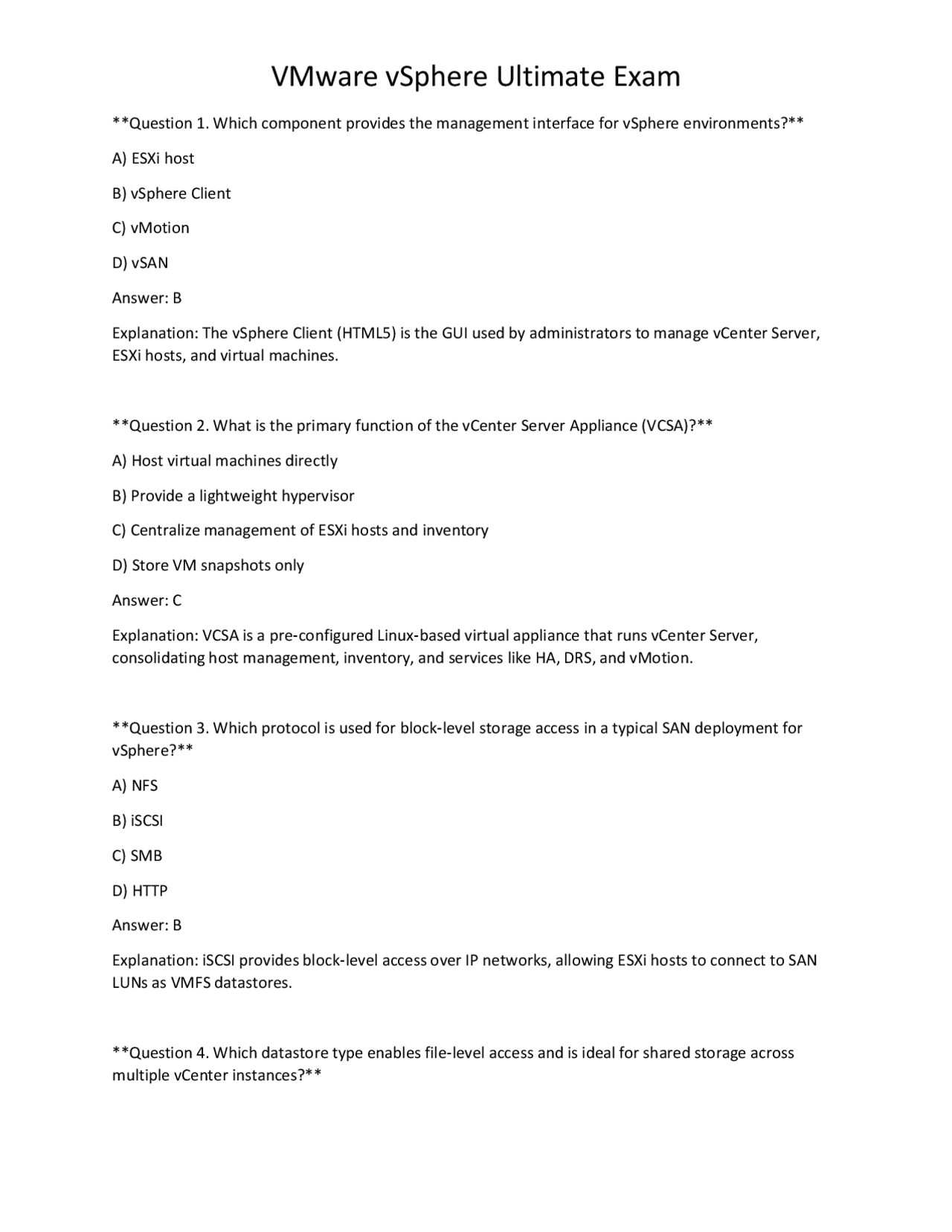

Question 1. Which component provides the management interface for vSphere environments? A) ESXi host B) vSphere Client C) vMotion D) vSAN Answer: B Explanation: The vSphere Client (HTML5) is the GUI used by administrators to manage vCenter Server, ESXi hosts, and virtual machines. Question 2. What is the primary function of the vCenter Server Appliance (VCSA)? A) Host virtual machines directly B) Provide a lightweight hypervisor C) Centralize management of ESXi hosts and inventory D) Store VM snapshots only Answer: C Explanation: VCSA is a pre‑configured Linux‑based virtual appliance that runs vCenter Server, consolidating host management, inventory, and services like HA, DRS, and vMotion. Question 3. Which protocol is used for block‑level storage access in a typical SAN deployment for vSphere? A) NFS B) iSCSI C) SMB D) HTTP Answer: B Explanation: iSCSI provides block‑level access over IP networks, allowing ESXi hosts to connect to SAN LUNs as VMFS datastores. Question 4. Which datastore type enables file‑level access and is ideal for shared storage across multiple vCenter instances?
A) VMFS
B) NFS
C) vVOLs D) RDM Answer: B Explanation: NFS presents storage as a network file system, allowing multiple vCenter servers to mount the same datastore simultaneously. Question 5. What does VAAI (vStorage APIs for Array Integration) primarily improve? A) Network latency B) Storage performance and efficiency C) VM security D) License management Answer: B Explanation: VAAI offloads certain storage operations (e.g., cloning, block zeroing) to the array, reducing host CPU usage and speeding up tasks. Question 6. Which feature allows a storage array to advertise its capabilities to vSphere for policy‑based placement? A) VASA B) VSS C) VDS D) VCF Answer: A Explanation: VASA (vStorage APIs for Storage Awareness) enables arrays to provide metadata to vSphere, facilitating Storage Policy Based Management (SPBM). Question 7. In a multipathing configuration, what does PSA (Pluggable Storage Architecture) manage? A) Virtual switch tagging
D) FCoE Answer: B Explanation: NVMe over Fabrics (NVMe‑oF) extends the NVMe protocol across Ethernet or Fibre Channel, delivering high‑performance remote storage. Question 11. What does a Datastore Cluster primarily provide? A) Automated VM provisioning B) Storage DRS for load balancing and capacity management C) Network segmentation D) Host firewall rules Answer: B Explanation: Datastore Clusters use Storage DRS to balance VM storage I/O and automatically migrate VMs to avoid capacity hot spots. Question 12. Which switch type is managed centrally and provides consistent networking across a vSphere environment? A) VSS B) VDS C) VDS‑Lite D) vBridge Answer: B Explanation: The vSphere Distributed Switch (VDS) is configured at the vCenter level and applied uniformly to all hosts in a datacenter. Question 13. Which VMkernel port is required for live migration of VMs? A) Management B) vMotion C) Fault Tolerance D) vSAN Answer: B
Explanation: The vMotion VMkernel port carries the memory and state of a VM during live migration between hosts. Question 14. What does the “Promiscuous Mode” security policy on a vSwitch control? A) Whether a VM can send traffic with any MAC address B) Whether a VM can receive all traffic on the segment C) Whether a VM can change its MAC address D) Whether a VM can use jumbo frames Answer: B Explanation: Enabling Promiscuous Mode allows virtual NICs to receive all frames on the broadcast domain, not just those addressed to them. Question 15. Which feature of Network I/O Control (NIOC) allows bandwidth reservation for specific traffic types? A) Traffic Shaping B) Resource Pools C) Network Health Check D) vSphere Distributed Firewall Answer: A Explanation: Traffic Shaping in NIOC lets administrators set average, peak, and burst limits for VMkernel or VM traffic on a port group. Question 16. What is a primary use case for Private VLANs (PVLANs) in vSphere? A) Isolate traffic between VMs on the same host while allowing communication with a router B) Increase storage bandwidth C) Enable vMotion across datacenters D) Provide VM encryption Answer: A Explanation: PVLANs segregate VM traffic at Layer 2, preventing direct communication between isolated ports while still permitting uplink access.
Question 20. Which VM hardware version introduced support for NVMe controllers? A) 10 B) 12 C) 14 D) 17 Answer: C Explanation: Hardware version 14 added native NVMe controller support, enabling high‑performance storage devices in VMs. Question 21. Which VMware product is primarily used to orchestrate site‑to‑site disaster recovery? A) vCenter Server B) Site Recovery Manager (SRM) C) vRealize Operations D) vSphere Update Manager Answer: B Explanation: SRM automates failover, failback, and testing of disaster recovery plans across protected and recovery sites. Question 22. When configuring vCenter Replication, what does an RPO of 5 minutes indicate? A) Recovery Time Objective of 5 minutes B) Recovery Point Objective of 5 minutes C) Replication bandwidth of 5 Mbps D) Number of replicas per VM Answer: B Explanation: RPO (Recovery Point Objective) defines the maximum acceptable data loss; a 5‑minute RPO means data is replicated at most every five minutes. Question 23. Which tool can convert a physical server into a virtual machine? A) vSphere HA B) vCenter Converter
C) vMotion D) vSAN Answer: B Explanation: vCenter Converter performs P2V (physical‑to‑virtual) and V2V (virtual‑to‑virtual) conversions, allowing legacy hardware to be virtualized. Question 24. In a vSphere with Tanzu deployment, which component provides the Kubernetes control plane? A) vSAN B) Supervisor Cluster C) NSX‑T Edge D) vCenter Server Answer: B Explanation: The Supervisor Cluster runs on vSphere and hosts the Kubernetes control plane, enabling developers to deploy workloads directly on the hypervisor. Question 25. What role does vSAN play in a hyper‑converged infrastructure? A) Provides network routing B) Acts as shared storage across the ESXi cluster C) Manages VM snapshots only D) Hosts the vCenter Server virtual appliance Answer: B Explanation: vSAN aggregates local disks from ESXi hosts to create a distributed, high‑performance datastore for VM storage. Question 26. Which feature offloads network processing to a dedicated hardware accelerator? A) vSphere Distributed Services Engine (DSE) B) vMotion compression C) VMkernel swap D) Host Profiles
Explanation: The PSC provides Single Sign‑On (SSO), identity management, and certificate services for the vSphere suite. Question 30. What does a Host Profile primarily automate? A) VM provisioning B) Standardized host configuration across multiple ESXi servers C) vMotion scheduling D) License compliance checks Answer: B Explanation: Host Profiles capture a reference host’s settings and apply them to other hosts, ensuring consistent configuration. Question 31. Which feature enables a vSphere environment to trust the integrity of the underlying hardware platform? A) vSphere Trust Authority (vTA) B) vMotion Encryption C) VM Encryption D) vSAN Encryption Answer: A Explanation: vTA uses TPM and attestation to verify that hosts meet a defined security baseline before joining a cluster. Question 32. Which authentication method allows users to log in to vCenter using corporate Active Directory credentials? A) Local OS authentication B) LDAP C) SAML identity federation D) vCenter Single Sign‑On (SSO) with AD as an identity source Answer: D Explanation: Adding Active Directory as an identity source in vCenter SSO enables AD users to authenticate directly.
Question 33. What does the “Quick Boot” option reduce during ESXi host reboots? A. Network latency B. Time spent initializing hardware drivers C. Number of VM snapshots D. Storage I/O latency Answer: B Explanation: Quick Boot skips hardware re‑initialization, allowing the host to reboot faster while preserving device state. Question 34. In vLCM, what is the difference between a Baseline and an Image? A) Baseline is a collection of patches; Image is a full ESXi install package B) Baseline defines VM hardware; Image defines networking C) Baseline is for vCenter only; Image is for ESXi only D) There is no difference; they are synonyms Answer: A Explanation: A Baseline groups patches, updates, or extensions, while an Image is a complete ESXi installation used for host provisioning. Question 35. Which tool is used to assess hardware compatibility before adding a host to a vSphere cluster? A) vSphere Client B) VMware Compatibility Guide (VCG) web site C) esxcli hardware list D) vCenter Server Appliance UI Answer: B Explanation: The VMware Compatibility Guide provides a searchable database of supported servers, CPUs, and I/O devices for each ESXi version. Question 36. Which RBAC element defines what actions a user can perform on a specific object?
D) vSAN Answer: C Explanation: vTPM emulates a hardware TPM for a VM, enabling features like BitLocker and VBS within the guest OS. Question 40. Which firewall setting on an ESXi host restricts remote access to management services? A) Lockdown Mode B) vMotion traffic shaping C) Storage I/O Control D) NTP configuration Answer: A Explanation: Lockdown Mode limits direct host access to users with SSO privileges, forcing management through vCenter. Question 41. Which performance chart would you use to monitor CPU ready time for a VM? A) Memory usage chart B) CPU Ready chart in vSphere Client > Performance > Advanced > CPU > Ready C) Disk latency chart D) Network throughput chart Answer: B Explanation: The CPU Ready chart displays the time a VM is ready to run but waiting for CPU resources, indicating contention. Question 42. Which command-line utility provides real‑time host resource statistics? A) esxcfg‑info B) esxtop C) vmkfstools D) vpxd‑cli Answer: B
Explanation: esxtop offers interactive, real‑time metrics for CPU, memory, disk, and network usage on an ESXi host. Question 43. What is the purpose of a Content Library in vSphere? A) Store VM logs B) Centralize VM templates, ISO images, and scripts for reuse across multiple vCenter instances C) Provide backup for vCenter database D) Host vCenter Server Appliance updates Answer: B Explanation: Content Libraries enable sharing of VM templates, OVF/OVA packages, and other assets, supporting versioning and synchronization. Question 44. Which backup method captures a VM’s files at the file‑system level without requiring VM power‑off? A) vSphere Snapshot backup B) File‑based backup using VADP (vStorage APIs for Data Protection) C) Host‑level image backup D) Cold backup via datastore export Answer: B Explanation: VADP enables backup solutions to read VM disks directly from the datastore while the VM is running, using snapshot technology. Question 45. Which DRS feature automatically places VMs based on storage capacity and I/O load? A) DRS Affinity Rules B) Storage DRS (within a Datastore Cluster) C) vMotion Scheduler D) Admission Control Answer: B Explanation: Storage DRS monitors datastore capacity and I/O, migrating VMs to balance load and prevent over‑provisioning.
A) Determines how many VM snapshots can be taken B) Defines the number of host failures the cluster can tolerate while keeping VMs powered on C) Controls vMotion bandwidth D) Sets the maximum number of VMs per host Answer: B Explanation: Admission Control reserves capacity so that, after a host failure, there are enough resources to restart affected VMs on remaining hosts. Question 50. Which HA feature allows a VM to run on two hosts simultaneously for zero‑downtime protection? A) vMotion B) Fault Tolerance (FT) C) DRS D) vSAN Answer: B Explanation: FT creates a secondary VM that executes in lockstep with the primary; if the primary fails, the secondary takes over instantly. Question 51. What does the vSphere Cluster Service (vCLS) provide? A) Distributed storage replication B) Guarantees that a small set of agents run on each host to support HA/DRS when the vCenter server is unavailable C) Manages VM snapshots D) Provides DNS services for VMs Answer: B Explanation: vCLS runs lightweight agents on each host to maintain HA, DRS, and other cluster services even if vCenter is down. Question 52. Which lifecycle operation can be performed using the vSphere Update Manager (now part of vLCM)? A) Create a new VM template
B) Apply a host patch baseline to a cluster of ESXi hosts C) Configure vSwitch security policies D) Set up vMotion IP addresses Answer: B Explanation: Update Manager (vLCM) automates patching and upgrading of ESXi hosts based on defined baselines. Question 53. Which command lists the installed ESXi image profile and its version? A) esxcli system version get B) esxcli software profile get C) vmware - v D) esxcfg‑info - a Answer: B Explanation: esxcli software profile get displays the current image profile name and version installed on the host. Question 54. Which of the following is a prerequisite for enabling vSphere HA on a cluster? A) All hosts must have identical CPU models B) Each host must have at least one VMkernel adapter configured for Management traffic C) vSAN must be enabled D) Distributed Switch must be present Answer: B Explanation: HA requires a management network on each host to communicate heartbeat and orchestrate VM restarts. Question 55. Which role in vCenter provides the ability to create and manage Datastore Clusters? A) Read‑Only B) Datastore Administrator C) vSphere Administrator D) Content Library Administrator
Explanation: SPBM can specify capabilities such as “Inline Deduplication” to direct VMs to storage that offers those features. Question 59. In a vSphere Distributed Switch, which feature provides per‑port bandwidth guarantees? A) Port Mirroring B) Network I/O Control (NIOC) C) LACP D) Private VLAN Answer: B Explanation: NIOC on a VDS can allocate bandwidth shares, limits, and reservations per port group, ensuring QoS for critical traffic. Question 60. What is the default behavior of a VM snapshot regarding its memory state? A) Memory is always included B) Memory is never included unless explicitly selected C) Memory is compressed automatically D) Memory is stored on a separate datastore Answer: B Explanation: By default, snapshots capture only the VM’s disk state; the memory state must be selected manually. Question 61. Which hardware version introduced support for EFI Secure Boot in VMs? A) 11 B) 13 C) 14 D) 15 Answer: B Explanation: Hardware version 13 added EFI Secure Boot support, allowing VMs to boot with a signed bootloader.
Question 62. Which of the following is a valid use case for a “Persistent Memory” (PMem) device in a VM? A) Storing VM configuration files B) Providing ultra‑low latency storage for in‑memory databases C) Hosting ISO images for installation D) Acting as a backup target Answer: B Explanation: PMem offers byte‑addressable, non‑volatile memory, ideal for workloads that require fast, persistent storage such as SAP HANA. Question 63. Which vSphere feature allows automatic migration of VMs to a host with a newer CPU feature set? A) vMotion B) DRS with EVC disabled C) vSphere HA D) vCenter Server Appliance upgrade Answer: B Explanation: When EVC is disabled, DRS can place VMs on hosts with higher CPU capabilities, leveraging advanced instructions. Question 64. Which command would you use to add a new VMkernel NIC for vMotion on an ESXi host? A) esxcli network vswitch standard portgroup add B) esxcli network ip interface add – interface-name vmk1 – type vmkernel – portgroup “vMotion” C) esxcli storage nfs add D) vim-cmd hostsvc/maintenance_mode_enter Answer: B Explanation: The esxcli network ip interface add command creates a VMkernel NIC and assigns it to a port group, such as vMotion.
