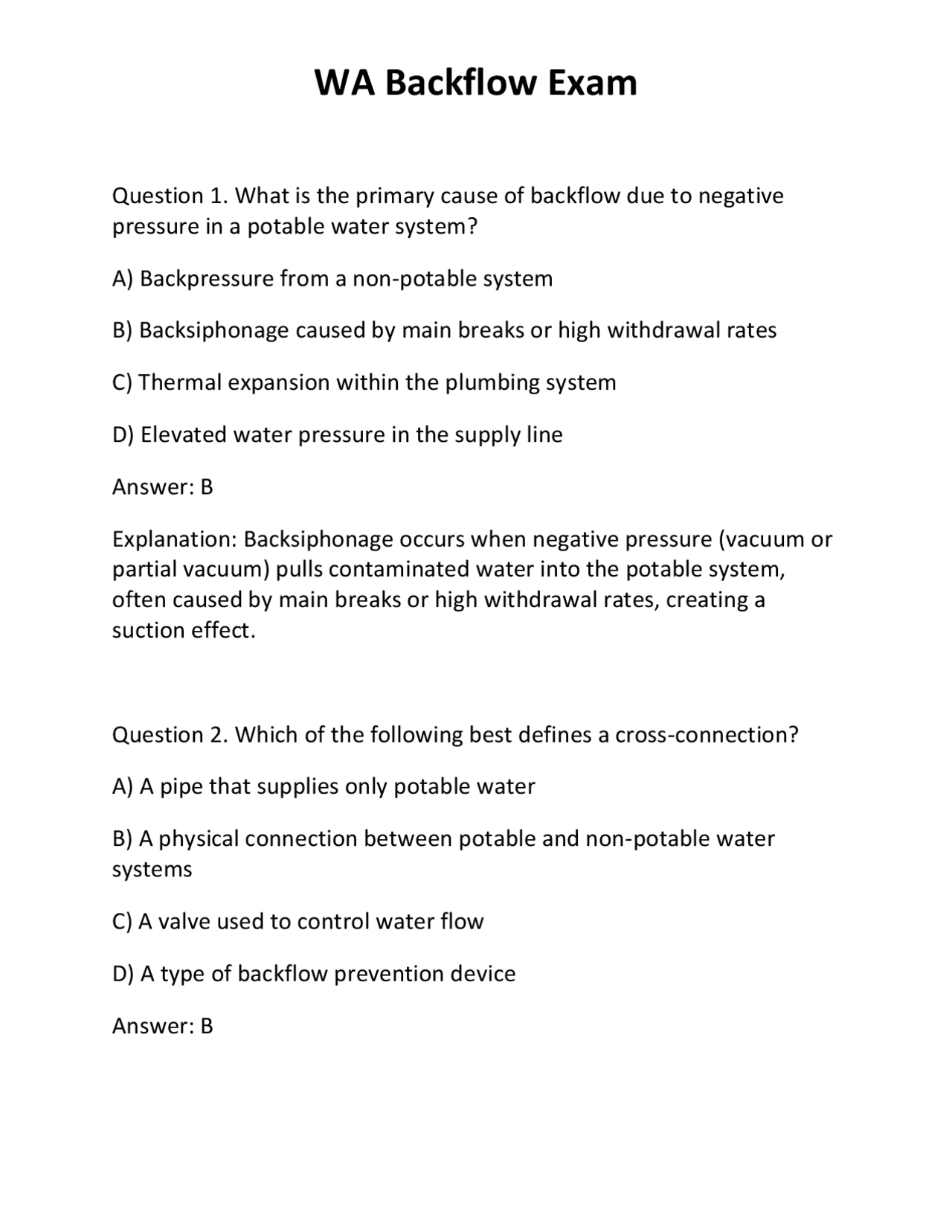

Question 1. What is the primary cause of backflow due to negative pressure in a potable water system? A) Backpressure from a non-potable system B) Backsiphonage caused by main breaks or high withdrawal rates C) Thermal expansion within the plumbing system D) Elevated water pressure in the supply line Answer: B Explanation: Backsiphonage occurs when negative pressure (vacuum or partial vacuum) pulls contaminated water into the potable system, often caused by main breaks or high withdrawal rates, creating a suction effect. Question 2. Which of the following best defines a cross-connection? A) A pipe that supplies only potable water B) A physical connection between potable and non-potable water systems C) A valve used to control water flow D) A type of backflow prevention device Answer: B
Explanation: A cross-connection is a direct or potential connection between a potable water system and a non-potable source or contaminated area, which can allow backflow if not properly protected. Question 3. Which scenario is most likely to be a potential cross- connection in a residential setting? A) Water heater drain pipe B) Garden hose submerged in a swimming pool C) Indoor sink drain D) Main water supply line Answer: B Explanation: An improperly connected or unattended garden hose submerged in a swimming pool can create a potential cross-connection, risking backflow of pool water into the potable system. Question 4. What health hazard is associated with backflow contaminated with sewage? A) Skin irritation B) Gastrointestinal illness C) Respiratory issues
B) Two check valves and a relief valve C) Float check valve D) Atmospheric vent Answer: B Explanation: An RPBA contains two check valves and a hydraulically operated differential pressure relief valve to prevent backflow, especially in high hazard situations. Question 7. Which backflow prevention assembly is most suitable for high hazard applications? A) Double check valve assembly (DCVA) B) Pressure vacuum breaker assembly (PVBA) C) Reduced pressure backflow assembly (RPBA) D) Atmospheric vacuum breaker (AVB) Answer: C Explanation: RPBAs are designed for high hazard situations because they provide the most reliable protection against backflow. Question 8. What is the primary function of a double check valve assembly (DCVA)?
A) Prevent backpressure only B) Prevent backsiphonage only C) Provide low hazard backflow prevention D) Protect against thermal expansion Answer: C Explanation: DCVAs are suitable for low hazard backflow prevention, preventing backflow through two check valves but offering less protection than RPBAs. Question 9. Why must a Pressure Vacuum Breaker (PVBA) be installed above downstream piping? A) To prevent backpressure B) To allow for easy repair C) To prevent spillage from the vent during operation D) To ensure proper drainage Answer: C Explanation: PVBAs must be installed above downstream piping to prevent water from siphoning out through the vent, ensuring proper operation and protection.
Explanation: The air gap (AG) is purely a physical separation (a vertical space) and is considered the most reliable method to prevent backflow. Question 12. Which statement best describes the purpose of field testing backflow prevention assemblies? A) To determine the age of the assembly B) To verify proper operation and identify failures C) To inspect for physical damage only D) To replace worn parts Answer: B Explanation: Field testing ensures the assembly functions correctly and helps identify any malfunction that could lead to backflow. Question 13. Which test equipment is essential for performing backflow assembly tests? A) A multimeter B) Differential pressure test kit C) A flow meter D) A thermometer Answer: B
Explanation: A differential pressure test kit is used to measure pressure differences across check valves and relief valves, crucial for verifying proper operation. Question 14. During a backflow test of an RPBA, what indicates a faulty relief valve? A) No change in pressure at the relief port B) Excessive leakage at check valves C) Relief valve opens at too high a pressure D) The assembly does not shut off Answer: C Explanation: If the relief valve opens at too high a pressure, it may not provide adequate protection, indicating malfunction. Question 15. What is a common cause of check valve leakage during testing? A) Proper installation B) Foul or debris accumulation C) Correct calibration D) High system pressure
Answer: A Explanation: Accurate documentation ensures compliance with regulations, provides proof of testing, and facilitates follow-up actions. Question 18. Which regulation in Washington State governs backflow prevention and testing? A) WAC 246- 290 B) WAC 246- 200 C) WAC 246- 300 D) WAC 246- 350 Answer: A Explanation: WAC 246-290 covers drinking water regulations, including cross-connection control and backflow prevention. Question 19. Which certification is required to perform backflow assembly testing in Washington? A) Plumbing contractor license B) Water treatment operator license C) Backflow Assembly Tester (BAT) certification D) Environmental health specialist license
Answer: C Explanation: A certified BAT license issued by the state is required to legally perform backflow testing. Question 20. What safety measure should be taken when working around pressurized water systems? A) Wear PPE such as gloves and eye protection B) Work only during off-peak hours C) Use non-conductive tools only D) Turn off all water supplies before testing Answer: A Explanation: PPE protects against hazards like high pressure, water spray, or electrical contact during testing. Question 21. Which of the following is a typical component of an RPBA? A) Float check valve B) Two check valves and a relief valve C) Atmospheric vent D) Single check valve
Answer: C Explanation: DCVAs are generally used for low hazard situations; high hazard applications require more robust assemblies like RPBAs. Question 24. In field testing, what indicates a properly functioning check valve? A) It leaks continuously B) It passes pressure tests without leakage C) It makes noise during operation D) It is visibly corroded Answer: B Explanation: A properly functioning check valve should seal tightly and pass pressure tests without leakage. Question 25. Which assembly type is most suitable for protecting against backsiphonage only? A) RPBA B) PVBA C) DCVA D) AVB
Answer: D Explanation: Atmospheric Vacuum Breakers (AVB) are designed to prevent backsiphonage but do not protect against backpressure. Question 26. Why is it important to calibrate test equipment regularly? A) To comply with insurance requirements B) To ensure accurate and reliable test results C) To reduce maintenance costs D) To extend the lifespan of the gauges Answer: B Explanation: Regular calibration ensures that test measurements are accurate, which is critical for proper assessment. Question 27. What is the main purpose of a spill-resistant pressure vacuum breaker (SVBA)? A) To provide high hazard protection B) To prevent vent spillage during operation C) To be installed below downstream piping D) To replace atmospheric vacuum breakers
Explanation: The relief valve opens to release pressure if it exceeds set limits, preventing backflow and protecting the system. Question 30. Which document must be completed and submitted after backflow testing? A) Plumbing permit application B) Backflow assembly test report C) Water usage statement D) Annual water quality report Answer: B Explanation: A backflow assembly test report documents the test results, assembly condition, and compliance, and must be submitted as required. Question 31. Which of the following is a key responsibility of a certified backflow tester? A) Installing new backflow preventers B) Performing and documenting assembly tests C) Repairing backflow devices D) Designing plumbing systems
Answer: B Explanation: Certified testers are responsible for performing tests, diagnosing malfunctions, and submitting reports; installation and repair are typically performed by licensed plumbers. Question 32. When performing a test on a PVBA, what indicates a malfunctioning atmospheric vent? A) The vent is blocked or clogged B) The check valve leaks C) The assembly is installed below grade D) The assembly has no shut-off valves Answer: A Explanation: A blocked vent prevents proper operation of the PVBA, impairing its ability to prevent backsiphonage. Question 33. What is a common cause of backflow device failure? A) Proper maintenance B) Debris accumulation and corrosion C) Correct installation D) Regular testing
Answer: C Explanation: WAC 246- 290 - 490 specifically addresses cross-connection control and backflow prevention requirements. Question 36. Why is record-keeping important for backflow testing? A) To schedule future tests B) To verify compliance and facilitate regulatory review C) To reduce water bills D) To identify plumbing defects Answer: B Explanation: Accurate records demonstrate compliance with regulations and are essential for audits and future reference. Question 37. Which safety practice is essential during backflow testing? A) Working alone B) Wearing PPE and following confined space procedures if applicable C) Ignoring leaks D) Using uncalibrated gauges Answer: B
Explanation: PPE and proper safety procedures protect against hazards like high pressure, leaks, and confined space risks. Question 38. What is the significance of using only approved backflow prevention assemblies? A) They are cheaper B) They meet safety and performance standards mandated by authorities C) They are easier to install D) They require no testing Answer: B Explanation: Approved assemblies conform to regulatory standards, ensuring reliable backflow prevention. Question 39. Which component is NOT part of a typical RPBA? A) Hydraulic relief valve B) Two check valves C) Float check valve D) Shut-off valves Answer: C
