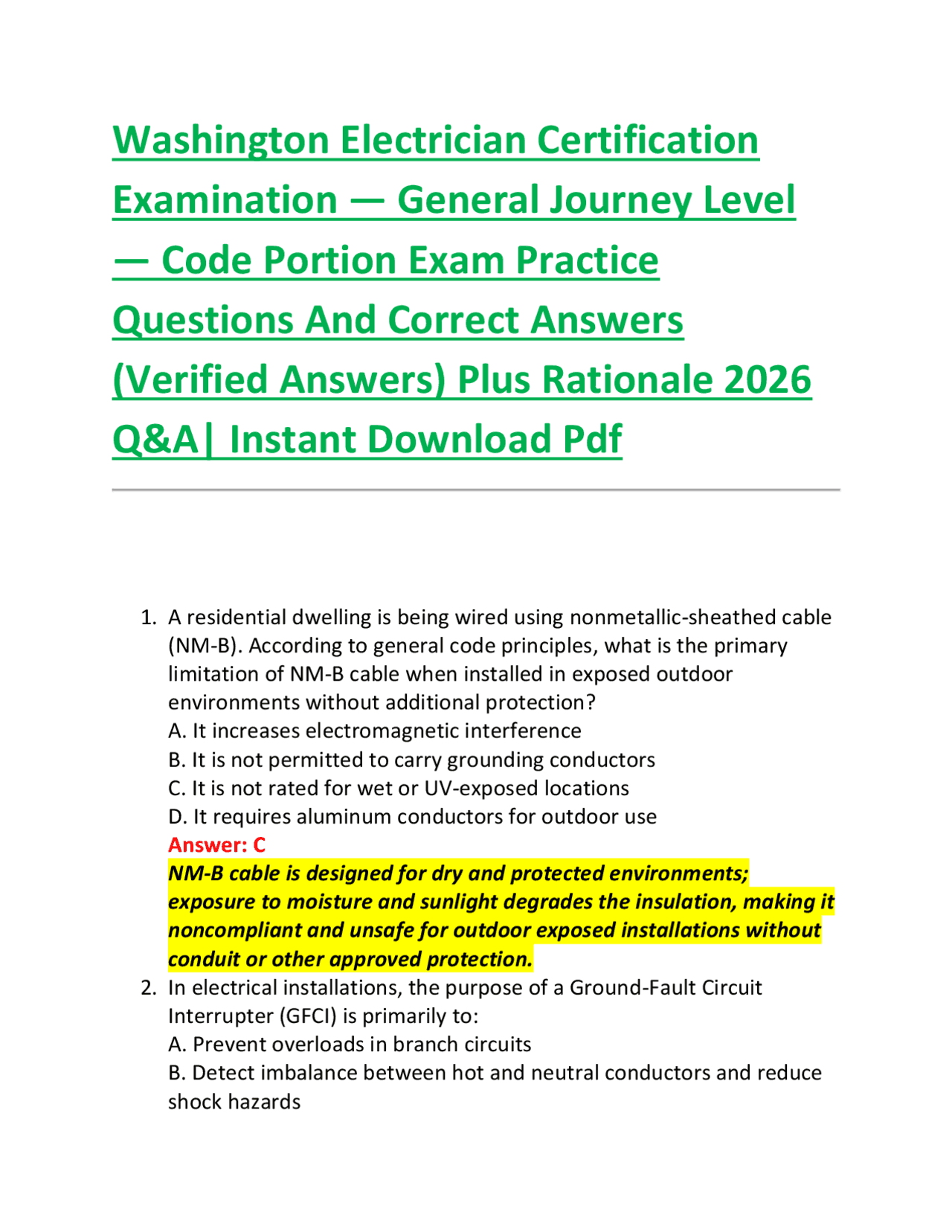

Washington Electrician Certification
Examination — General Journey Level
— Code Portion Exam Practice
Questions And Correct Answers
(Verified Answers) Plus Rationale 2026
Q&A| Instant Download Pdf
1. A residential dwelling is being wired using nonmetallic-sheathed cable
(NM-B). According to general code principles, what is the primary
limitation of NM-B cable when installed in exposed outdoor
environments without additional protection?
A. It increases electromagnetic interference
B. It is not permitted to carry grounding conductors
C. It is not rated for wet or UV-exposed locations
D. It requires aluminum conductors for outdoor use
Answer: C
NM-B cable is designed for dry and protected environments;
exposure to moisture and sunlight degrades the insulation, making it
noncompliant and unsafe for outdoor exposed installations without
conduit or other approved protection.
2. In electrical installations, the purpose of a Ground-Fault Circuit
Interrupter (GFCI) is primarily to:
A. Prevent overloads in branch circuits
B. Detect imbalance between hot and neutral conductors and reduce
shock hazards
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe
pff
pf12
pf13
pf14
pf15
pf16
pf17
pf18
pf19
pf1a

Partial preview of the text

Download Washington Electrician Certification Examination — General Journey Level — Code Portion and more Exams Electrical Engineering in PDF only on Docsity!

Washington Electrician Certification

Examination — General Journey Level

— Code Portion Exam Practice

Questions And Correct Answers

(Verified Answers) Plus Rationale 2026

Q&A| Instant Download Pdf

  1. A residential dwelling is being wired using nonmetallic-sheathed cable (NM-B). According to general code principles, what is the primary limitation of NM-B cable when installed in exposed outdoor environments without additional protection? A. It increases electromagnetic interference B. It is not permitted to carry grounding conductors C. It is not rated for wet or UV-exposed locations D. It requires aluminum conductors for outdoor use Answer: C NM-B cable is designed for dry and protected environments; exposure to moisture and sunlight degrades the insulation, making it noncompliant and unsafe for outdoor exposed installations without conduit or other approved protection.
  2. In electrical installations, the purpose of a Ground-Fault Circuit Interrupter (GFCI) is primarily to: A. Prevent overloads in branch circuits B. Detect imbalance between hot and neutral conductors and reduce shock hazards

C. Increase circuit voltage stability D. Replace standard circuit breakers in all applications Answer: B A GFCI continuously monitors current balance and quickly disconnects power when it detects leakage current to ground, significantly reducing the risk of electric shock.

  1. When installing a 20-amp branch circuit using copper conductors, what is the minimum required conductor size under standard code requirements? A. 14 AWG B. 12 AWG C. 10 AWG D. 8 AWG Answer: B 12 AWG copper conductors are the minimum size permitted for 20- amp circuits to safely handle current without overheating under normal electrical code standards.
  2. Which of the following is the correct color identification for a grounded (neutral) conductor in a typical North American electrical system? A. Green B. Black C. White or gray D. Red Answer: C White or gray insulation is reserved for grounded (neutral) conductors to maintain consistent identification and safety across electrical installations.
  3. A conductor is installed in EMT conduit with more than nine current- carrying conductors. What adjustment must be made according to code principles? A. Increase conductor insulation rating B. Apply ampacity adjustment (derating factors) C. Replace EMT with PVC conduit D. Double the grounding conductor size

A. Neutral conductor B. Phase conductor C. Conductor connecting system to grounding electrode D. Equipment bonding jumper only Answer: C The grounding electrode conductor connects the electrical system to earth grounding electrodes, ensuring fault currents are safely dissipated.

  1. What is the primary purpose of arc-fault circuit interrupters (AFCIs)? A. Prevent lightning surges B. Detect dangerous arcing conditions in wiring C. Increase circuit voltage D. Replace grounding systems Answer: B AFCIs detect unintended arcing conditions that can lead to electrical fires and disconnect power before ignition occurs.
  2. In a three-phase system, what is the phase angle difference between each phase? A. 60 degrees B. 90 degrees C. 120 degrees D. 180 degrees Answer: C Three-phase systems are spaced 120 degrees apart to ensure balanced power delivery and efficient motor operation.
  3. What is the minimum clearance required for overhead service drop conductors above residential driveways? A. 10 feet B. 12 feet C. 15 feet D. 18 feet Answer: C Overhead conductors must maintain safe clearance above driveways to prevent contact with vehicles and ensure public safety.
  1. Which type of conduit is commonly used for underground direct burial applications when properly rated? A. EMT B. Rigid metal conduit only C. PVC schedule 40 or 80 D. Flexible metal conduit Answer: C PVC conduit is commonly used underground due to its corrosion resistance and suitability for direct burial applications when properly rated.
  2. What is the purpose of a neutral conductor in a 120/240V single- phase system? A. Carry fault current only B. Provide a return path for unbalanced current C. Increase system voltage D. Act as a grounding electrode Answer: B The neutral conductor carries unbalanced current back to the source, completing the circuit in split-phase systems.
  3. Which of the following best describes voltage drop? A. Increase in current due to resistance B. Reduction in voltage as current flows through resistance C. Gain in voltage over long distances D. Conversion of AC to DC voltage Answer: B Voltage drop occurs when electrical energy is lost due to resistance in conductors over distance, reducing usable voltage at the load.
  4. What is the primary reason for bonding metal piping systems in electrical installations? A. Improve water pressure B. Reduce electrical resistance in pipes C. Ensure electrical continuity and safety D. Prevent corrosion only Answer: C

D. Weaker mechanical strength Answer: C Copper offers superior conductivity and mechanical strength, making it more reliable in many electrical applications compared to aluminum.

  1. In conduit fill calculations, exceeding allowable fill limits primarily risks: A. Increased brightness of loads B. Overheating and difficulty pulling conductors C. Higher voltage supply D. Reduced grounding requirements Answer: B Overfilled conduit increases heat buildup and makes conductor installation difficult, risking insulation damage.
  2. What is the purpose of a circuit breaker trip curve? A. To color-code conductors B. To determine response time under overload or fault conditions C. To measure voltage drop D. To increase current flow Answer: B Trip curves define how quickly a breaker responds to different levels of overcurrent, ensuring proper protection.
  3. Which of the following is considered a grounding electrode? A. Light fixture B. Metal conduit only C. Ground rod or metal water pipe D. Circuit breaker Answer: C Ground rods and metal water pipes are commonly used grounding electrodes to connect systems to earth.
  4. What is the maximum allowable voltage for standard residential branch circuits in North America? A. 24V B. 120/240V C. 480V

D. 600V

Answer: B Residential systems typically operate at 120/240 volts for general use and appliances.

  1. What is the function of a transformer in an electrical system? A. Convert AC to DC B. Change voltage levels through electromagnetic induction C. Store electrical energy D. Measure current flow Answer: B Transformers use electromagnetic induction to step voltage up or down for distribution and use.
  2. What type of fault does a short circuit represent? A. Excess resistance in a load B. Direct unintended connection between conductors C. Open neutral condition D. Voltage stabilization Answer: B A short circuit occurs when conductors unintentionally contact each other, creating excessive current flow.
  3. Which material is commonly used for grounding electrodes? A. Plastic pipe B. Copper-clad steel rod C. Rubber insulation D. Aluminum foil Answer: B Copper-clad steel rods are commonly used due to strength and corrosion resistance in grounding systems.
  4. What is the purpose of a disconnect switch in electrical systems? A. Increase voltage B. Provide a means to safely isolate equipment from power C. Convert AC to DC D. Reduce resistance Answer: B

Ampacity is influenced by temperature and insulation rating, which determine safe current-carrying capacity.

  1. What is the primary purpose of a fuse? A. Store energy B. Protect circuit by melting under excessive current C. Increase voltage D. Reduce resistance Answer: B Fuses provide overcurrent protection by melting and opening the circuit when excessive current flows.
  2. What is required when installing multiple services in a building? A. Only one grounding system B. Each service must have its own disconnect C. No labeling required D. Shared neutral conductors Answer: B Each service must have a separate disconnect to ensure safe isolation and control.
  3. What is the purpose of strain relief in electrical wiring? A. Increase current flow B. Prevent mechanical stress on electrical connections C. Reduce voltage D. Improve conductivity Answer: B Strain relief prevents tension on conductors, protecting terminations from damage.
  4. What is the main purpose of insulation on electrical conductors? A. Improve conductivity B. Prevent unintended current flow and contact C. Increase conductor size D. Reduce grounding Answer: B Insulation prevents accidental contact between conductors and other conductive materials.
  1. What type of current is produced by most utility power systems? A. Direct current B. Alternating current C. Pulsating DC only D. Static electricity Answer: B Utility systems supply alternating current due to its efficiency in transmission and transformation.
  2. What is the purpose of load calculation in electrical design? A. Determine conductor color B. Ensure system is sized properly for expected demand C. Increase voltage output D. Eliminate grounding Answer: B Load calculations ensure electrical systems are properly sized to safely handle anticipated demand.
  3. Which of the following is a violation of good electrical practice? A. Tight connections B. Proper grounding C. Using undersized conductors D. Correct labeling Answer: C Undersized conductors can overheat and create fire hazards, violating safe installation practices.
  4. What is the purpose of a panelboard? A. Generate electricity B. Distribute power to branch circuits C. Store electrical energy D. Convert voltage types Answer: B Panelboards distribute incoming electrical power to multiple branch circuits in a building.
  5. What is the function of an isolating transformer? A. Increase current B. Electrically separate primary and secondary circuits

Answer: B Color coding ensures correct identification of conductors, improving safety and installation accuracy.

  1. What is the primary function of a circuit conductor insulation rating? A. Indicates current capacity only B. Specifies maximum safe operating temperature C. Determines voltage output D. Measures resistance Answer: B Insulation ratings define the maximum temperature a conductor can safely withstand during operation.
  2. What is the main purpose of equipment labeling in electrical installations? A. Decoration B. Identification for safety and maintenance C. Increase voltage D. Reduce resistance Answer: B Proper labeling ensures safe operation, troubleshooting, and maintenance of electrical systems.
  3. What is the effect of excessive voltage drop in a circuit? A. Increased device efficiency B. Poor equipment performance and overheating C. Higher voltage at load D. Reduced resistance only Answer: B Excessive voltage drop reduces equipment efficiency and can cause overheating or malfunction.
  4. What is the primary purpose of a grounding system in electrical installations? A. Increase current flow B. Provide safety by directing fault current to earth C. Reduce insulation D. Convert AC to DC

Answer: B Grounding systems protect people and equipment by safely directing fault current into the earth.

  1. What is the most important reason for following electrical code standards? A. Reduce installation time B. Ensure safety and uniformity in electrical systems C. Increase power output D. Lower material costs Answer: B Electrical codes establish minimum safety requirements to protect people, property, and ensure consistent installation practices.
  2. A 120V receptacle is tested and shows reversed polarity. What is the most likely cause? A. Open ground conductor B. Hot and neutral conductors reversed C. Overloaded circuit D. Excessive voltage drop Answer: B Reversed polarity typically occurs when the hot and neutral conductors are incorrectly connected, creating a hazardous condition even if the device appears to function normally.
  3. What is the minimum clearance required for working space in front of electrical equipment rated 120/240V? A. 2 feet B. 3 feet C. 4 feet D. 5 feet Answer: B A minimum of 3 feet of clear working space is required in front of electrical equipment to ensure safe operation and maintenance access.
  4. Which of the following best describes a “branch circuit”? A. Circuit between transformer and service panel

B. Damaged insulation C. Correct breaker sizing D. Color-coded wiring Answer: B Damaged insulation exposes live conductors, significantly increasing the risk of electrical shock.

  1. What is the function of a multiwire branch circuit neutral conductor? A. Carries only fault current B. Shares return current between phases C. Prevents voltage drop entirely D. Acts as grounding electrode Answer: B In multiwire branch circuits, the neutral carries the imbalance of current between two phase conductors.
  2. What is the maximum voltage drop recommended for branch circuits for efficient operation? A. 1% B. 3% C. 10% D. 15% Answer: B A 3% voltage drop limit is recommended for branch circuits to ensure efficient and reliable equipment operation.
  3. What is the primary function of a neutral bus bar in a panel? A. Connect grounding electrodes B. Provide termination for neutral conductors C. Increase voltage stability D. Store electrical energy Answer: B The neutral bus bar provides a connection point for grounded (neutral) conductors in the panelboard.
  4. What is the purpose of derating conductors in high-temperature environments? A. Increase conductor size

B. Prevent overheating by reducing allowable current C. Increase voltage capacity D. Improve insulation color coding Answer: B Derating reduces allowable current to prevent overheating when ambient temperature is high.

  1. What does “open circuit” mean? A. Excess current flow B. Broken path preventing current flow C. High voltage condition D. Ground fault condition Answer: B An open circuit is a break in the electrical path that stops current flow.
  2. What is the primary reason for using conduit in wiring systems? A. Increase voltage B. Protect conductors from damage C. Reduce current flow D. Replace grounding systems Answer: B Conduit protects electrical conductors from physical damage and environmental exposure.
  3. Which device protects against overloads and short circuits? A. Transformer B. Circuit breaker C. Switch only D. Receptacle Answer: B Circuit breakers automatically disconnect power during overload or short circuit conditions.
  4. What is the purpose of a grounding electrode system? A. Increase system voltage B. Connect electrical system to earth C. Store electrical charge D. Reduce conductor size

Excessive bending can damage insulation and compromise conductor integrity.

  1. What is the function of a load center? A. Generate power B. Distribute electrical circuits in a building C. Store energy D. Increase resistance Answer: B A load center distributes electrical power to branch circuits throughout a structure.
  2. What is the purpose of a bonding jumper? A. Increase voltage B. Ensure electrical continuity between metal parts C. Reduce current flow D. Store energy Answer: B Bonding jumpers ensure all metal parts are electrically connected for safety.
  3. What is the effect of loose neutral connections? A. Increased efficiency B. Voltage fluctuations and equipment damage C. Reduced resistance D. Improved grounding Answer: B Loose neutrals can cause unstable voltage conditions and damage equipment.
  4. What is the function of a receptacle outlet? A. Generate power B. Provide connection point for electrical devices C. Increase voltage D. Store electricity Answer: B Receptacles provide a safe point for connecting electrical devices to the power supply.
  1. What is the primary reason for using GFCI protection outdoors? A. Increase voltage stability B. Reduce shock risk in wet environments C. Improve lighting D. Reduce conductor size Answer: B Outdoor environments increase shock risk, making GFCI protection essential for safety.
  2. What is the purpose of phase identification in electrical systems? A. Improve aesthetics B. Ensure correct connection and load balancing C. Increase voltage D. Reduce grounding needs Answer: B Phase identification ensures correct wiring and balanced load distribution.
  3. What is the primary cause of electrical fires in wiring systems? A. Proper grounding B. Overheating due to overloads or poor connections C. Correct conductor sizing D. Voltage regulation Answer: B Electrical fires commonly result from overheating caused by overloads or loose connections.
  4. What is the purpose of a service entrance? A. Distribute branch circuits B. Bring power into a building from utility supply C. Store electricity D. Increase resistance Answer: B The service entrance is the point where electrical power enters a building from the utility system.
  5. What is the purpose of a grounding bus bar? A. Carry load current B. Terminate grounding conductors
