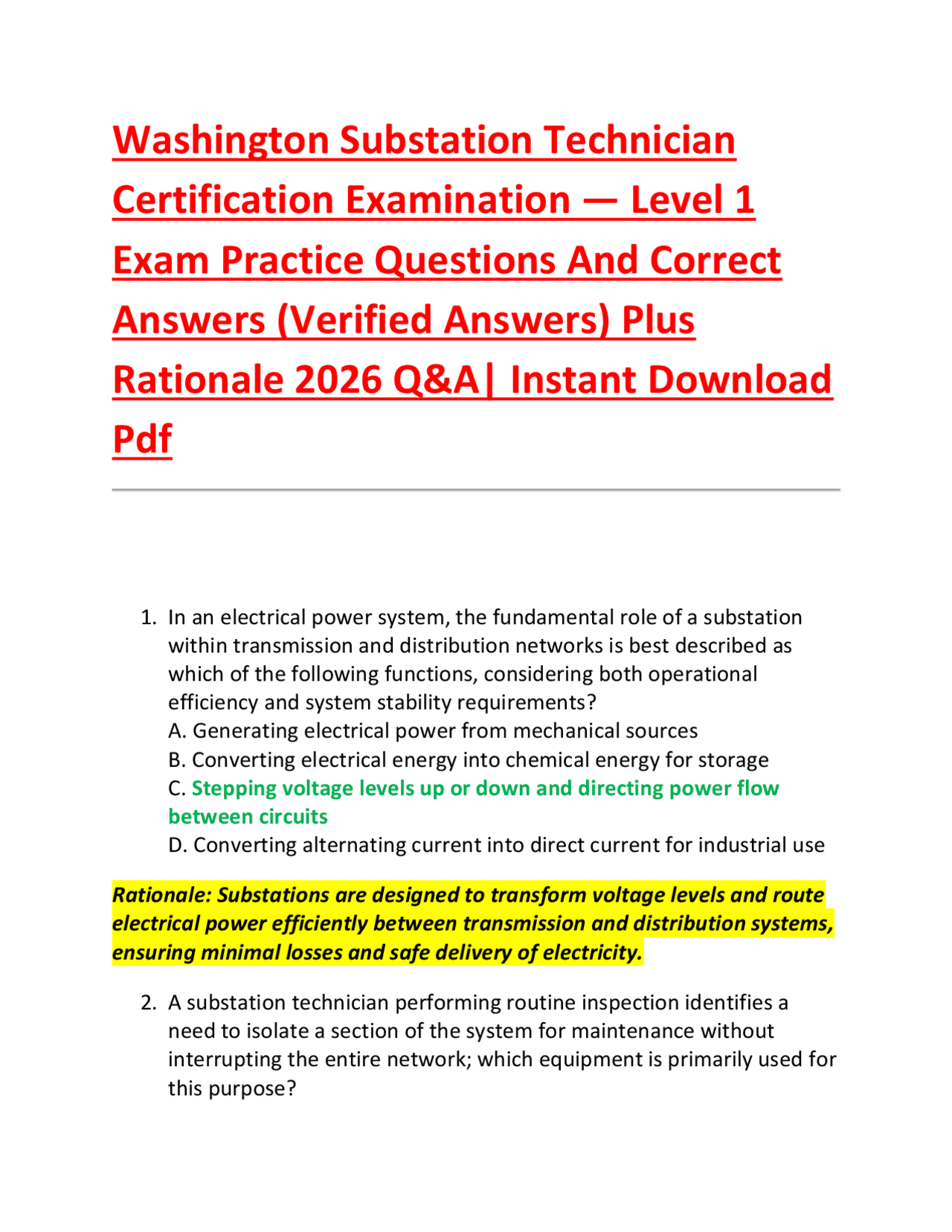

Washington Substation Technician
Certification Examination — Level 1
Exam Practice Questions And Correct
Answers (Verified Answers) Plus
Rationale 2026 Q&A| Instant Download
Pdf
1. In an electrical power system, the fundamental role of a substation
within transmission and distribution networks is best described as
which of the following functions, considering both operational
efficiency and system stability requirements?
A. Generating electrical power from mechanical sources
B. Converting electrical energy into chemical energy for storage
C. Stepping voltage levels up or down and directing power flow
between circuits
D. Converting alternating current into direct current for industrial use
Rationale: Substations are designed to transform voltage levels and route
electrical power efficiently between transmission and distribution systems,
ensuring minimal losses and safe delivery of electricity.
2. A substation technician performing routine inspection identifies a
need to isolate a section of the system for maintenance without
interrupting the entire network; which equipment is primarily used for
this purpose?
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe
pff
pf12
pf13
pf14
pf15
pf16
pf17
pf18
pf19

Partial preview of the text

Download Washington Substation Technician Certification Examination — Level 1 Exam Practice Quest and more Exams Electrical Engineering in PDF only on Docsity!

Washington Substation Technician

Certification Examination — Level 1

Exam Practice Questions And Correct

Answers (Verified Answers) Plus

Rationale 2026 Q&A| Instant Download

Pdf

  1. In an electrical power system, the fundamental role of a substation within transmission and distribution networks is best described as which of the following functions, considering both operational efficiency and system stability requirements? A. Generating electrical power from mechanical sources B. Converting electrical energy into chemical energy for storage C. Stepping voltage levels up or down and directing power flow between circuits D. Converting alternating current into direct current for industrial use Rationale: Substations are designed to transform voltage levels and route electrical power efficiently between transmission and distribution systems, ensuring minimal losses and safe delivery of electricity.
  2. A substation technician performing routine inspection identifies a need to isolate a section of the system for maintenance without interrupting the entire network; which equipment is primarily used for this purpose?

A. Transformer B. Busbar C. Capacitor bank D. Circuit breaker Rationale: Circuit breakers are designed to interrupt current flow safely and isolate portions of the system, allowing maintenance without affecting the entire substation.

  1. Which of the following components is specifically designed to protect substation equipment from voltage surges caused by lightning strikes or switching operations? A. Current transformer B. Potential transformer C. Lightning arrester D. Bus coupler Rationale: Lightning arresters divert high-voltage surges safely to ground, preventing damage to substation equipment.
  2. In substation operations, what is the primary function of a power transformer installed between transmission and distribution lines? A. Regulate current frequency B. Store electrical energy C. Convert AC to DC D. Change voltage levels to suit transmission or distribution needs Rationale: Transformers adjust voltage levels to enable efficient transmission over long distances and safe distribution to consumers.
  3. A technician analyzing a one-line diagram observes multiple conductors connected at a common node; this configuration represents which essential substation component? A. Relay panel B. Busbar system

Rationale: Distribution substations step down voltage levels for safe delivery to residential and commercial users.

  1. In a substation grounding system, what is the primary purpose of the ground grid installed beneath equipment and structures? A. Increase voltage levels B. Improve insulation resistance C. Provide a low-resistance path for fault currents to earth D. Enhance transformer efficiency Rationale: Ground grids ensure safety by dissipating fault currents into the earth, reducing shock hazards.
  2. Which instrument transformer is used to step down high current levels to measurable values for metering and protection devices? A. Potential transformer B. Current transformer C. Distribution transformer D. Isolation transformer Rationale: Current transformers reduce high current levels to safe values for measurement and protection systems.
  3. A substation technician must verify insulation integrity of equipment; which test is commonly used for this purpose? A. Load test B. Continuity test C. Insulation resistance (Megger) test D. Voltage drop test Rationale: Insulation resistance testing evaluates the condition of insulation to prevent failures and faults.
  4. Which switching device is designed to open or close a circuit under no-load conditions only and is not intended to interrupt fault currents? A. Circuit breaker

B. Recloser C. Disconnect switch (isolator) D. Fuse Rationale: Disconnect switches are used for isolation and cannot safely interrupt load or fault currents.

  1. In substation terminology, what does the term “SCADA” refer to in monitoring and control systems? A. Secondary circuit analysis device array B. Supervisory Control and Data Acquisition system C. Substation current distribution assembly D. System control and distribution algorithm Rationale: SCADA systems provide real-time monitoring and remote control of substation operations.
  2. Which type of relay operates based on the magnitude of current exceeding a preset value? A. Differential relay B. Distance relay C. Overcurrent relay D. Frequency relay Rationale: Overcurrent relays activate when current exceeds safe thresholds, protecting equipment.
  3. What is the primary purpose of a capacitor bank installed in a substation? A. Increase voltage fluctuations B. Store energy permanently C. Improve power factor and voltage stability D. Convert AC to DC Rationale: Capacitor banks improve power factor, reduce losses, and stabilize voltage levels.

Rationale: Preventive maintenance ensures transformer reliability by monitoring oil condition and insulation.

  1. In a substation, what is the primary purpose of insulators? A. Conduct electricity B. Increase voltage C. Support conductors and prevent unwanted current flow to ground D. Store energy Rationale: Insulators isolate energized conductors from grounded structures to prevent leakage currents.
  2. Which type of fault involves a conductor making contact with ground? A. Line-to-line fault B. Three-phase fault C. Single line-to-ground fault D. Open circuit fault Rationale: A line-to-ground fault occurs when one conductor contacts the ground, causing imbalance.
  3. What is the purpose of a bus coupler in a substation? A. Increase voltage B. Connect two busbars to allow load transfer C. Measure current D. Protect transformers Rationale: Bus couplers enable flexibility by connecting bus sections for maintenance or load sharing.
  4. Which device is commonly used to measure electrical energy consumption in substations? A. Relay B. Transformer C. Energy meter D. Capacitor

Rationale: Energy meters record electrical energy usage for monitoring and billing.

  1. What is the main function of a voltage regulator in a substation? A. Reduce current B. Maintain constant voltage levels despite load variations C. Store energy D. Increase frequency Rationale: Voltage regulators ensure stable voltage output regardless of changing loads.
  2. Which condition is most likely to cause overheating in substation equipment? A. Low voltage B. Balanced load C. Overloading beyond rated capacity D. Proper grounding Rationale: Overloading increases current flow, leading to excessive heat and potential equipment failure.
  3. Which type of transformer allows voltage adjustment without interrupting power supply? A. Isolation transformer B. Load tap changer transformer C. Step-up transformer D. Instrument transformer Rationale: Load tap changers adjust voltage while the transformer remains energized.
  4. What is the purpose of protective coordination in substations? A. Increase system voltage B. Reduce power consumption C. Ensure only the faulted section is isolated D. Improve aesthetics

Rationale: Load flow analysis determines how power is distributed across the system.

  1. Which factor most affects the efficiency of a transformer? A. Color of insulation B. Core and copper losses C. Size of busbar D. Type of relay Rationale: Transformer efficiency depends on minimizing core and copper losses.
  2. What is the function of a sectionalizer in distribution systems? A. Increase voltage B. Isolate faulted sections after a recloser operates C. Store energy D. Measure voltage Rationale: Sectionalizers work with reclosers to isolate faults and maintain service continuity.
  3. Which type of maintenance is performed after a fault or failure occurs? A. Preventive maintenance B. Predictive maintenance C. Corrective maintenance D. Routine inspection Rationale: Corrective maintenance addresses issues after failures to restore functionality.
  4. What is the main purpose of a substation control panel? A. Increase voltage B. Store energy C. Monitor and control substation operations D. Reduce current

Rationale: Control panels provide centralized monitoring and operational control.

  1. Which device measures resistance in an electrical circuit? A. Voltmeter B. Ammeter C. Ohmmeter D. Wattmeter Rationale: Ohmmeters are used to measure resistance values in circuits.
  2. What is the significance of a one-line diagram in substation design? A. Shows physical layout B. Represents electrical connections in simplified form C. Measures voltage D. Indicates safety hazards Rationale: One-line diagrams simplify complex systems into understandable representations.
  3. Which term describes the maximum current a conductor can carry safely? A. Voltage rating B. Power factor C. Ampacity D. Resistance Rationale: Ampacity defines the safe current-carrying capacity of a conductor.
  4. What is the function of a grounding rod in substations? A. Increase resistance B. Provide a path for fault currents to dissipate into earth C. Store energy D. Measure voltage

C. Higher noise levels D. Increased maintenance Rationale: GIS systems are compact and suitable for areas with limited space.

  1. Which device is used to measure electrical power in a circuit? A. Ammeter B. Voltmeter C. Wattmeter D. Ohmmeter Rationale: Wattmeters measure electrical power consumption in circuits.
  2. What is the purpose of surge protection devices in substations? A. Increase voltage B. Store energy C. Protect equipment from transient overvoltages D. Reduce current Rationale: Surge protection devices safeguard equipment from voltage spikes.
  3. Which term refers to the ratio of real power to apparent power? A. Efficiency B. Voltage regulation C. Power factor D. Resistance Rationale: Power factor indicates how effectively electrical power is being used.
  4. What is the function of an isolator in substation operations? A. Interrupt fault current B. Provide visible isolation for maintenance safety C. Increase voltage D. Measure current

Rationale: Isolators ensure safe working conditions by visibly disconnecting circuits.

  1. Which type of relay operates based on impedance measurement? A. Overcurrent relay B. Differential relay C. Distance relay D. Thermal relay Rationale: Distance relays determine faults based on impedance between relay and fault location.
  2. What is the purpose of a load flow study in substation planning? A. Increase voltage B. Analyze power distribution and system performance C. Store energy D. Reduce resistance Rationale: Load flow studies help engineers understand system behavior and optimize performance.
  3. Which factor is most critical when selecting personal protective equipment for substation work? A. Color preference B. Cost C. Voltage level and hazard risk assessment D. Brand name Rationale: PPE must match the hazard level, especially voltage exposure, to ensure worker safety.
  4. In a substation, which device is primarily responsible for automatically re-energizing a circuit after a temporary fault has cleared?

D. Disconnect switch Rationale: Voltage relays detect overvoltage or undervoltage conditions and initiate protective action.

  1. What is the primary function of a surge arrester in a substation? A. Increase system efficiency B. Regulate steady-state voltage C. Protect equipment from transient overvoltage spikes D. Store electrical energy Rationale: Surge arresters divert lightning and switching surges safely to ground.
  2. Which type of fault involves all three phases short-circuiting together? A. Line-to-ground fault B. Line-to-line fault C. Open circuit fault D. Three-phase fault Rationale: A three-phase fault is a severe symmetrical fault involving all phases simultaneously.
  3. What is the purpose of a busbar in a substation? A. Convert AC to DC B. Measure voltage levels C. Distribute electrical power to multiple outgoing circuits D. Store reactive power Rationale: Busbars act as common connection points for distributing power within substations.
  4. Which device is used to detect and isolate faults by comparing input and output currents of equipment? A. Overcurrent relay B. Distance relay C. Differential relay D. Thermal relay Rationale: Differential relays detect internal faults by comparing current entering and leaving equipment.
  5. What is the main purpose of grounding in a substation? A. Increase voltage stability

B. Reduce load current C. Provide a safe path for fault currents to dissipate into earth D. Improve transformer efficiency Rationale: Grounding systems protect personnel and equipment by safely dispersing fault energy.

  1. Which instrument is used to measure electrical current in a circuit? A. Voltmeter B. Ohmmeter C. Wattmeter D. Ammeter Rationale: Ammeters are designed specifically to measure current flow in electrical circuits.
  2. What is the function of a potential transformer in substations? A. Step down current B. Store energy C. Step down voltage for metering and protection purposes D. Increase frequency Rationale: Potential transformers reduce high voltages to measurable safe levels.
  3. Which maintenance approach focuses on predicting equipment failure before it occurs? A. Corrective maintenance B. Emergency repair C. Predictive maintenance D. Routine shutdown maintenance Rationale: Predictive maintenance uses monitoring data to anticipate failures and prevent outages.
  4. What is the purpose of a sectionalizer in distribution systems? A. Increase voltage B. Convert AC to DC C. Isolate faulted sections after a recloser has operated D. Measure resistance Rationale: Sectionalizers improve system reliability by isolating persistent faults.

D. Thermal relay Rationale: Distance relays estimate fault location by measuring impedance along the line.

  1. What is the main purpose of a circuit breaker in a substation? A. Increase voltage B. Store energy C. Interrupt current flow during fault conditions D. Measure current Rationale: Circuit breakers safely interrupt abnormal currents to protect equipment and systems.
  2. Which condition is most likely to cause transformer overheating? A. Balanced load B. Low voltage C. Overloading beyond rated capacity D. Proper cooling Rationale: Excess load increases current and causes excessive heat generation.
  3. What is the purpose of an energy meter in a substation? A. Measure voltage spikes B. Convert AC to DC C. Measure electrical energy consumption over time D. Regulate frequency Rationale: Energy meters record consumption for monitoring and billing purposes.
  4. Which factor primarily determines transformer efficiency? A. Color of insulation B. Type of busbar C. Core and copper losses D. Relay settings Rationale: Efficiency depends on minimizing electrical losses in core and windings.
  5. What is the function of an overcurrent relay? A. Detect voltage imbalance B. Measure resistance

C. Trip when current exceeds a preset threshold D. Store energy Rationale: Overcurrent relays protect equipment from excessive current conditions.

  1. Which device is designed to protect against lightning-induced surges? A. Circuit breaker B. Fuse C. Lightning arrester D. Load tap changer Rationale: Lightning arresters divert surge energy safely to ground.
  2. What is the main function of a substation ground grid? A. Increase system voltage B. Store energy C. Provide a low-resistance path for fault currents to earth D. Improve load distribution Rationale: Ground grids enhance safety by dissipating fault currents effectively.
  3. Which type of current flows in only one direction? A. Alternating current B. Reactive current C. Direct current D. Inductive current Rationale: Direct current maintains a constant flow direction.
  4. What is the purpose of a power factor correction system? A. Increase resistance B. Reduce voltage stability C. Improve efficiency by reducing reactive power D. Increase frequency Rationale: Power factor correction reduces losses and improves system efficiency.
  5. Which device measures electrical power in watts? A. Ammeter B. Voltmeter C. Ohmmeter
