Exam

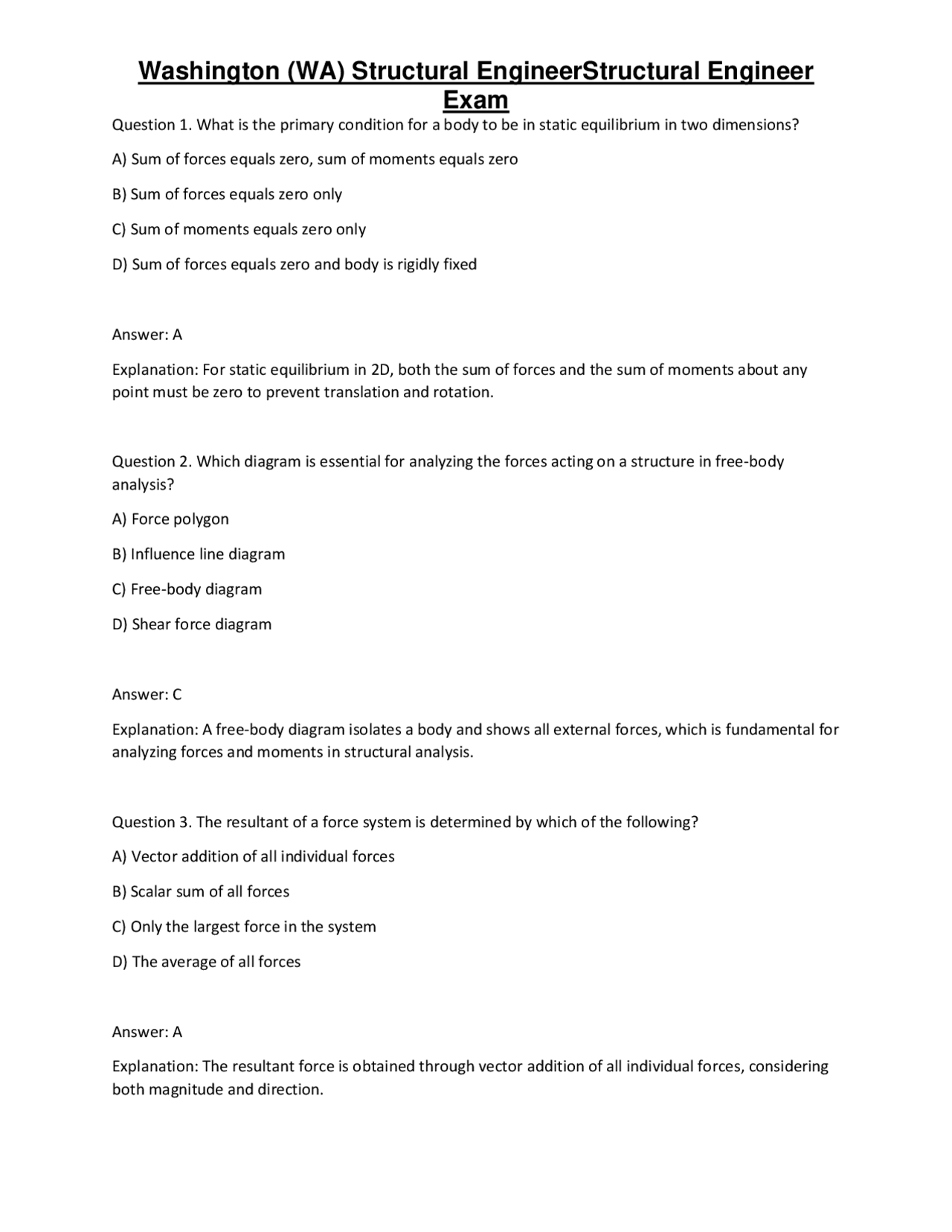

Question 1. What is the primary condition for a body to be in static equilibrium in two dimensions? A) Sum of forces equals zero, sum of moments equals zero B) Sum of forces equals zero only C) Sum of moments equals zero only D) Sum of forces equals zero and body is rigidly fixed Answer: A Explanation: For static equilibrium in 2D, both the sum of forces and the sum of moments about any point must be zero to prevent translation and rotation. Question 2. Which diagram is essential for analyzing the forces acting on a structure in free-body analysis? A) Force polygon B) Influence line diagram C) Free-body diagram D) Shear force diagram Answer: C Explanation: A free-body diagram isolates a body and shows all external forces, which is fundamental for analyzing forces and moments in structural analysis. Question 3. The resultant of a force system is determined by which of the following? A) Vector addition of all individual forces B) Scalar sum of all forces C) Only the largest force in the system D) The average of all forces Answer: A Explanation: The resultant force is obtained through vector addition of all individual forces, considering both magnitude and direction.
Exam
Question 4. The centroid of an area can be found using which of the following methods? A) Moment of inertia method B) First moment of area method C) Second moment of area method D) Force equilibrium method Answer: B Explanation: The centroid is located by calculating the first moments of area about reference axes, often using standard formulas or integration. Question 5. The moment of inertia of an area about a given axis is used to determine which of the following? A) Resistance to bending B) Shear stress distribution C) Stress concentration factor D) Axial load capacity Answer: A Explanation: The moment of inertia influences a member's resistance to bending; higher inertia means greater bending stiffness. Question 6. In a truss analysis using the method of joints, what is typically assumed about the members? A) Members are axial force-only members (axial loads only) B) Members carry bending moments C) Members are subjected to combined shear and tension D) Members are solid and continuous Answer: A
Exam
Explanation: The work-energy principle relates the work done by forces to the resulting change in the particle's kinetic energy. Question 10. Vibration analysis of multi-degree-of-freedom systems primarily involves solving which of the following? A) Eigenvalue problems for natural frequencies and mode shapes B) Shear and bending moment diagrams C) Influence lines for static loads D) Shear force and bending moment Answer: A Explanation: Multi-degree-of-freedom vibration analysis involves solving eigenvalue problems to find natural frequencies and mode shapes. Question 11. In mechanics of materials, shear stress in a beam is primarily caused by which of the following? A) Transverse loads causing shear force B) Axial loads causing tension C) Bending moments causing tension and compression D) Torsion only Answer: A Explanation: Shear stress results from transverse loads that produce shear forces within the beam, causing the material to shear. Question 12. The shear modulus (G) of a material measures its response to which type of deformation? A) Shear deformation B) Axial deformation C) Bending deformation D) Torsional deformation
Exam
Answer: A Explanation: Shear modulus quantifies a material's stiffness under shear stress, relating shear stress to shear strain. Question 13. Thermal effects in structural members typically cause which of the following? A) Expansion or contraction of the material B) Increased shear strength C) Decreased stiffness with no dimensional change D) No effect on structural behavior Answer: A Explanation: Temperature changes cause materials to expand or contract, which can induce stresses if restrained. Question 14. Stress concentrations occur primarily at which locations in a structure? A) Sharp corners, holes, notches, or sudden cross-section changes B) Uniform sections of members C) Areas of maximum bending moment only D) Bottom of beams only Answer: A Explanation: Stress concentrations are high localized stresses typically found at geometric discontinuities like notches or holes. Question 15. Mohr's circle is a graphical method used to determine which of the following? A) Various states of stress at a point under combined loading B) The centroid location of an area C) The influence line for shear D) The deflection of a beam
Exam
D) Torsional buckling of plates Answer: A Explanation: Euler's formula calculates the critical buckling load for long, slender columns considering effective length and end conditions. Question 19. Which of the following loads is considered a gravity load? A) Dead load B) Wind load C) Seismic load D) Impact load Answer: A Explanation: Dead loads include the weight of structural and non-structural components, acting vertically downward. Question 20. Snow loads on flat roofs are primarily influenced by which factor? A) Roof inclination and snow drift accumulation B) Wind speed only C) Live load occupancy D) Earthquake zones Answer: A Explanation: Snow load on flat roofs depends on factors like roof inclination, snow drift, and accumulation patterns. Question 21. Which load component is considered in seismic design categories? A) Earthquake loads based on site response spectrum and category B) Only dead loads C) Only wind loads
Exam
D) Only live loads Answer: A Explanation: Seismic design incorporates earthquake forces derived from site-specific response spectra and seismic categories. Question 22. Seismic earth pressures are classified as which type? A) Active, passive, at-rest, and surcharge earth pressures B) Dead and live earth pressures only C) Dynamic earth pressures only D) Hydrostatic pressures only Answer: A Explanation: Earth pressures during seismic events are categorized as active, passive, at-rest, and surcharge depending on the state of the soil and movement. Question 23. Hydrostatic pressure on a submerged surface is proportional to which of the following? A) Depth of the fluid above the surface B) Width of the surface C) Volume of fluid D) Surface area only Answer: A Explanation: Hydrostatic pressure increases linearly with depth, proportional to the weight of fluid above the point. Question 24. Impact loads are most significant in which of the following? A) Structural elements subject to moving loads such as vehicles or cranes B) Permanent loads like dead weight C) Uniform wind pressures
Exam
C) Improved stability D) Reduced load demands Answer: A Explanation: Unequal settlement leads to stress concentrations, cracking, and potential structural damage. Question 28. Which foundation type is typically used to support very heavy loads or poor soil conditions? A) Deep foundations such as piles or drilled shafts B) Isolated spread footings C) Mat foundations only in shallow soils D) Raft slabs Answer: A Explanation: Deep foundations transfer loads to deeper, more stable soil layers or bedrock, suitable for heavy loads or weak soils. Question 29. The main purpose of a retaining wall is to resist which type of force? A) Earth pressure B) Wind load C) Live load D) Impact load Answer: A Explanation: Retaining walls are designed to resist earth pressures that tend to move or topple the wall. Question 30. Which type of retaining wall is best suited for high earth pressures and heavy loads? A) Counterfort retaining wall B) Gravity retaining wall
Exam
C) Cantilever retaining wall D) Segmental retaining wall Answer: A Explanation: Counterfort walls incorporate reinforced concrete counterforts to resist high earth pressures effectively. Question 31. In bridge design, expansion joints are used primarily to accommodate which movement? A) Thermal expansion and contraction B) Seismic lateral movement C) Load-induced deflections only D) Torsional movements Answer: A Explanation: Expansion joints allow for thermal movements to prevent stress buildup and structural damage. Question 32. Fatigue in structural members primarily results from which of the following? A) Cyclic loading causing progressive damage B) Static loads applied slowly C) Sudden impact loads only D) Overstrength materials Answer: A Explanation: Repeated cyclic stresses can initiate and propagate cracks, leading to fatigue failure over time. Question 33. Progressive collapse mitigation strategies often include which of the following? A) Redundancy and load path continuity B) Reducing material strength
Exam
C) Minimizing design costs regardless of safety D) Ignoring client requirements if safety is threatened Answer: A Explanation: Engineers have a professional responsibility to prioritize public safety and welfare in all projects. Question 37. Construction sequencing impacts which aspect of structural design? A) Material selection and detailing B) Only aesthetic considerations C) Only foundation design D) The color of finishes Answer: A Explanation: Construction sequence influences material choices, connection details, and overall constructability. Question 38. Structural observation and inspection are primarily performed to ensure: A) Compliance with design specifications and safety standards B) Aesthetic quality of finishes C) Cost estimation accuracy D) Material procurement efficiency Answer: A Explanation: Inspection verifies that construction work aligns with design and safety requirements. Question 39. When evaluating an existing structure for seismic retrofit, which standard is commonly referenced? A) ASCE 41 B) ACI 318
Exam
C) AISC 360
D) NDS
Answer: A Explanation: ASCE 41 provides guidelines for seismic evaluation, retrofit, and strengthening of existing structures. Question 40. In legal and business practice, which document defines the scope, responsibilities, and liabilities of a project? A) Contract B) Specification C) Inspection report D) Design calculation Answer: A Explanation: The contract formalizes the agreement, including scope, responsibilities, and liabilities among parties. Question 41. Which of the following is a key component of quality control in construction? A) Regular site inspections and testing B) Ignoring non-conforming work C) Delaying inspections until project completion D) Reducing documentation Answer: A Explanation: Regular inspections and testing help ensure construction quality aligns with specifications. Question 42. What is the purpose of a foundation's coefficient of subgrade reaction? A) To relate soil reaction to foundation movement B) To determine seismic load capacity
Exam
C) Foundation footing D) Roof truss Answer: A Explanation: Shear walls are designed to resist lateral forces such as wind or seismic loads. Question 46. What is a typical characteristic of a braced frame? A) Uses diagonal braces to resist lateral loads B) Uses only shear walls for lateral resistance C) Supports only vertical loads D) Is primarily a foundation system Answer: A Explanation: Braced frames incorporate diagonal braces to provide lateral stability by resisting shear forces. Question 47. Which of the following is a primary concern in designing for blast loads? A) Structural resilience and energy absorption capacity B) Aesthetic appearance C) Cost minimization only D) Fire resistance only Answer: A Explanation: Blast design aims to ensure structures can withstand sudden, high-energy impacts without catastrophic failure. Question 48. The primary goal of progressive collapse mitigation is to: A) Prevent the failure of one member from triggering a chain reaction of failures B) Reduce seismic forces
Exam
C) Increase structural weight D) Minimize construction time Answer: A Explanation: Strategies focus on creating alternative load paths so failure in one part does not lead to widespread collapse. Question 49. Forensic failure investigation often includes which of the following activities? A) Material testing, visual inspection, and analysis of failure modes B) Only reviewing design drawings C) Ignoring corrosion effects D) Conducting only destructive testing Answer: A Explanation: Forensic investigations combine various activities to determine causes of failure comprehensively. Question 50. Which of the following is an essential aspect of construction administration? A) Ensuring compliance with specifications and safety standards B) Reducing inspection frequency to save costs C) Avoiding documentation of issues D) Ignoring client concerns during construction Answer: A Explanation: Construction administration ensures that work meets design, quality, and safety standards through oversight. Question 51. Which document is used to communicate the engineer's findings and technical decisions clearly? A) Engineering report
Exam
B) Increase bending strength C) Reduce deflection only D) Anchor reinforcement bars Answer: A Explanation: Shear reinforcement, such as stirrups, enhances shear capacity and prevents shear failure. Question 55. Which steel member classification is associated with its susceptibility to local buckling? A) Non-compact and slender sections B) Compact sections only C) All sections equally D) Only cast-in-place members Answer: A Explanation: Non-compact and slender sections are more prone to local buckling under compression. Question 56. Which connection type is typically used for structural steel that requires high slip resistance? A) Slip-critical bolted connection B) Bearing-type bolted connection C) Welded connection only D) Pinned connection only Answer: A Explanation: Slip-critical connections use tensioned bolts to prevent slip and transfer shear forces effectively. Question 57. The main advantage of using laminated timber (Glulam) is its: A) High strength-to-weight ratio and aesthetic appeal
Exam
B) Resistance to fire only C) Inability to be shaped or curved D) Low cost compared to all other materials Answer: A Explanation: Glulam offers high strength, flexibility in shaping, and aesthetic benefits. Question 58. Which material property is most critical for designing a wood shear wall? A) Shear strength of the wood panels and hold-downs B) Tensile strength only C) Plasticity of the material D) Conductivity Answer: A Explanation: Shear walls rely on the shear capacity of panels and the anchorage to resist lateral forces. Question 59. Masonry walls are most effective in resisting which type of loading? A) In-plane shear loads B) Out-of-plane bending only C) Axial compression only D) Torsional loads only Answer: A Explanation: Masonry shear walls are designed primarily to resist lateral shear forces within the plane of the wall. Question 60. Reinforced masonry structures differ from unreinforced in that they primarily provide better: A) Seismic and shear resistance
