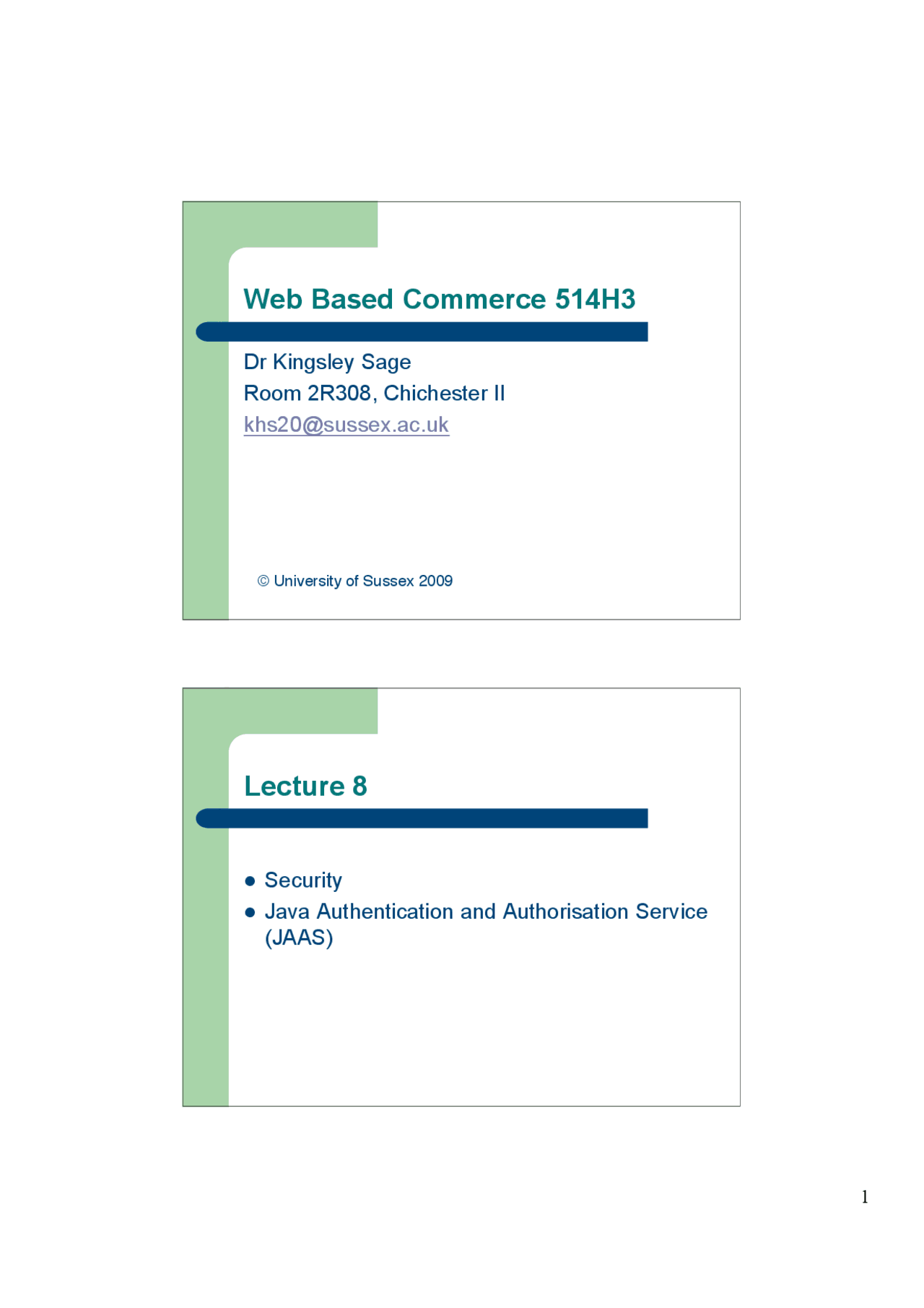

Web Based Commerce 514H

Dr Kingsley Sage

Room 2R308, Chichester II

[email protected]

© University of Sussex 2009

Lecture 8

 Security

 Java Authentication and Authorisation Service

(JAAS)

Security concepts

 Encryption

 Public Key Infrastructure

 Digital signatures

 Digital certificates

 More details in the notes on the course web

site

Encryption and PKI

 The science of rendering message unintelligible to a

third party should they intercept your message

 Message can only be unscrambled using a special

code, or “key”

 “Traditional” encryption uses same key to scramble

and unscramble the message

 “public” key algorithms have a public key used to

scramble the message and a private key (or set of keys)

used to unscramble the message

JAAS

 Java Authentication and Authorisation Service (JAAS)

is a set of APIs that can be used for:

• Authentication of users : to reliably and securely determine who

is executing Java code, regardless of whether the code is

running as an application, an applet, a bean or a servlet

• Authorisation of users : to ensure that they have the access

control rights (permissions) required to do the actions

performed

 JAAS authentication is performed in a pluggable

manner. This permits Java applications to remain

independent from the underlying authentication

technologies

JAAS (2)

 At a high level, the steps to enable JAAS based

security are:

• Identify the resources that need to be secured. We shall

consider a web application and an EJB application

• Identify a suitable security provider. In our case, security is

provided by the JBOSS security manager

• Use a security implementation to secure the identified

resources

• Make the clients of the secured resources aware of the

security implementation and usage mechanisms. Security

identifiers will, in most cases, be username/password

combination or digital certificates

JAAS classes

 To achieve all this, JAAS provides classes:

• LoginModule: authenticates and authorises clients
• LoginContext:user needs this to login
• CallbackHandler and Callback: these are the classes that allow interaction/data transfer between the clients and the LoginModule. The LoginModule uses a Callback to request information from the clients. The CallbackHandler on the client side provides that information
• Principal and Group: LoginModule populates identification information about the client into the Principal class and authorisation information (role list) into the Group class
• Subject: The result of a successful login. Contains the authenticated Principal and Group. Can be viewed as a secure representation of the client after authentication

Login process sequence

Using JAAS from your application

 Performing a privileged action …

Subject sub = lc.getSubject(); Subject.doAs(sub, new MyPrivilegedAction()); private class MyPriviligedAction implements PriviligedAcion { public Object run() { try { /* Whatever code you want, call session beans … */ } catch (Exception e) {}; return null; } }

Security mechanisms in JBOSS

 The JBOSS application server provides pluggable security managers  The web and EJB containers use the security managers to perform authentication and authorisation  The JAAS based security manager is the default security manager provided with JBOSS  The JAAS security manager obtains the required configuration information from the login-config.xml file located in the conf folder  The XML file provides a list of security domains that are available on the server. Each domain specifies a list of LoginModules that protect the domain  To gain access to the resources protected by a domain, the client must be able to satisfy all the LoginModules that are configured as required

Security mechanisms in JBOSS (2)

 Any options to the LoginModule can be specified in a

configuration file. These will be passed to the Module during the

call to the initialize() method

 Each security domain will be read by the JAAS security

manager, converted into a SecurityDomainContext object,

and bound in JNDI at java:/jaas/<domain_name>

 An application can choose from one (and only one) of the

configure security domains to protect itself

 The JAAS security manager itself does not perform the

authentication. Instead it instantiates the LoginModules that

perform the actual authentication and authorisation

 JBOSS provides LoginModules “out of the box” and you can

also implement your own

JBOSS LoginModules

 Some of those provided “out of the box” with JBOSS:

• UserRolesLoginModule: reads the username, password and role information from the files that are packaged with the applications
• DatabaseServerLoginModule: reads the username, password and role information from tables in a database. The database is accessed using JDBC and the JDBC driver needs to be available in application classpath
• LDAPLoginModule: requires a username and password. If successful, the roles are based on the group memberships of the user
• BaseCertLoginModule: uses client certificates to perform authentication. It cannot provide role information. Typically used in conjunction with another LoginModule that provides role information

Securing a web application in

JBOSS (2)

 All the resources with the URL pattern /secure/* are protected, and the client must belong to the “Secure” role to access these resources <security-constraint>

Restricted to Secure role Declarative security /secure/* HEAD GET POST PUT DELETE Secure

Securing a web application in

JBOSS (3)

 During application packaging, the administrator must choose the security domain that will protect the application. This is specified in the JBOSS specific deployment descriptor jboss-web.xml. A sample file might be:

java:/jaas/securedomain

Securing an EJB application in

JBOSS

 Only applies to session beans

 Once again, let’s examine declarative security

 Declarative security for a EJB application provides select access

to EJB methods based on the roles that a client is assigned

 This is achieved using the <method-permission> tag in the

ejb-jar.xml file

 Also need to add appropriate annotations to the session beans

themselves

 Let’s see an example …

Securing an EJB application in

JBOSS (2)

 Here method1 is available only to the client belonging to the

“Secure” role. But method2 in the same bean (MyBean) is

available to all clients

<method-permission> <role-name>Secure</role-name> <ejb-name>MyBean</ejb-name> <method-name>Method1</method-name> </method-permission> <method-permission> <ejb-name>MyBean</ejb-name> <method-name>Method2</method-name> </method-permission>

Introduction to Assignment 2 –

Ourspace

 Mathematically, a social network is a directed

(not necessarily fully) connected cyclic graph.

In the context of a human social network,

human beings represent nodes in the social

network graph and the edges signify relations

between people.

 Free public social network examples: MySpace,

Friendster, Orkut, Facebook, Bebo, LinkedIn

Introduction to Assignment 2 –

Ourspace (2)

 Ourspace simplified model: bi-directed, equally

weighted edges in the social network graph.

This means that if person A considers B as a

friend then it is essential that person B

considers A as a friend (bi-directed); and the

friendship level from A to B is the same as that

from B to A (equal weighting).

 Given functionality: create new profile, edit

profile, add/remove friend profiles, search

Introduction to Assignment 2 –

Ourspace (3)

 Layers:

• Relational database layer holds the data about each social network nodes, their relations and other related entities (MySQL database).
• Persistence layer provides the object-to-relational mapping and provides an object-oriented way of accessing the persistent data in the database (Entity beans).
• Business logic layer consists of the data manipulation algorithms, which represent the business functionality of the system (Session beans).
• Web presentation layer , consisting of a model-view-controller (MVC) architecture, interacts with the user requests from the web client (front-end) and the business logic layer at the back-end.

OurSpace and security

 Out of the box, OurSpace security isn’t provided by JAAS, so how is user information taken into account?  If you look, you will find the LoginFilter. This is not a JAAS module, but an Interceptor  LoginFilter intercepts HTTP requests  Information about current logged in users is kept in a Hashtable. You will find a StatelessSessionBeanCache in the code  LoginFilter stores user profile data stored in the HTTP session object  So when an action requires a profile, LoginFIlter intercepts, looks up user properties in the Hashtable, populates the HTTP session object with user profile data, then control passes back to the action  One of the assignment tasks is to use JAAS to provide A&A services
