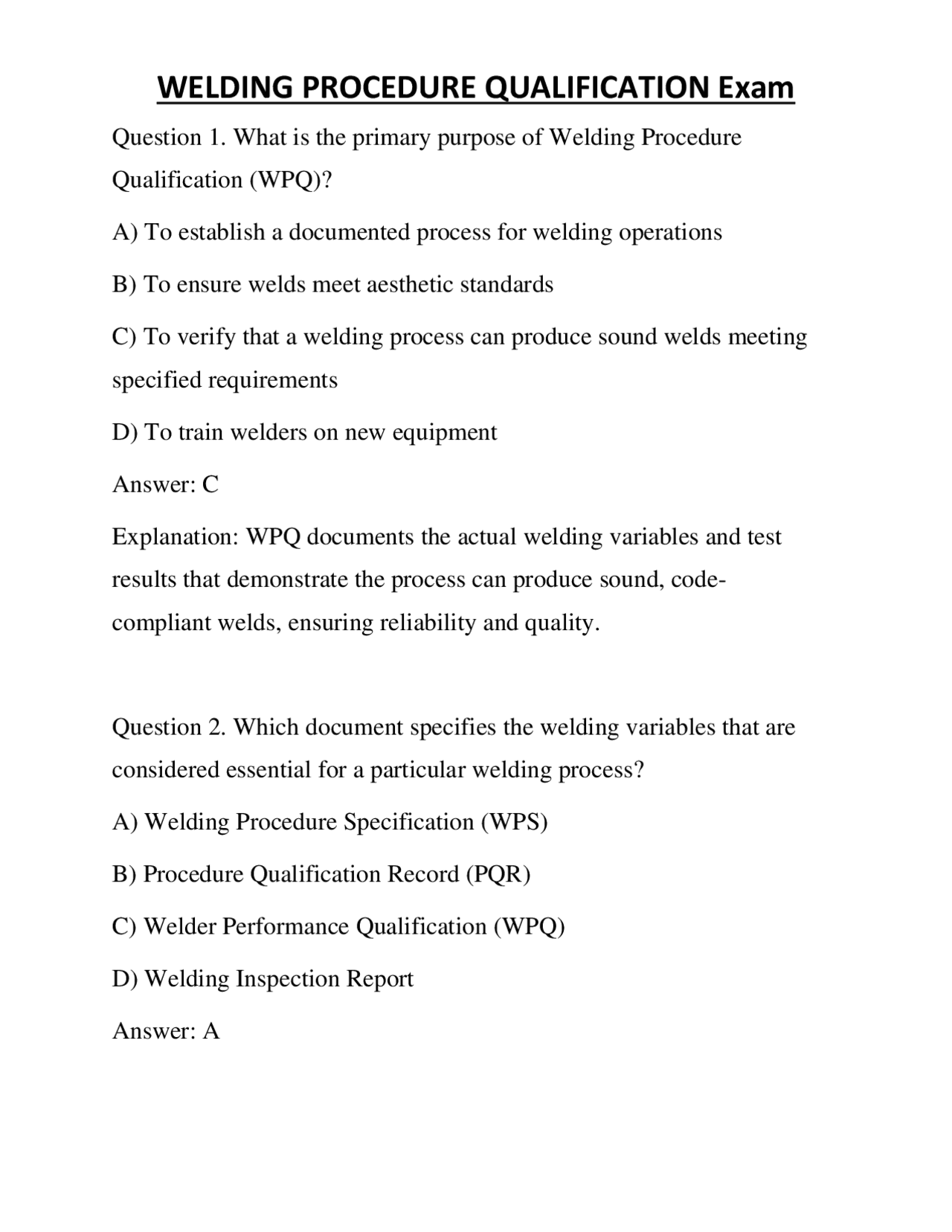

Question 1. What is the primary purpose of Welding Procedure Qualification (WPQ)? A) To establish a documented process for welding operations B) To ensure welds meet aesthetic standards C) To verify that a welding process can produce sound welds meeting specified requirements D) To train welders on new equipment Answer: C Explanation: WPQ documents the actual welding variables and test results that demonstrate the process can produce sound, code- compliant welds, ensuring reliability and quality. Question 2. Which document specifies the welding variables that are considered essential for a particular welding process? A) Welding Procedure Specification (WPS) B) Procedure Qualification Record (PQR) C) Welder Performance Qualification (WPQ) D) Welding Inspection Report Answer: A
Explanation: The WPS details the welding variables, including essential variables that, if changed, require requalification. Question 3. What is the role of a Procedure Qualification Record (PQR)? A) To specify welding techniques for operators B) To record actual variables used during qualification testing and test results C) To outline the inspection procedures D) To list the approved welding materials Answer: B Explanation: The PQR documents the actual welding variables and test results from qualification tests, providing evidence that the WPS can produce qualified welds. Question 4. Which of the following is considered an essential variable that can affect weld integrity? A) Welding process type B) Welder's experience level C) Ambient temperature
B) A WPS that is based on an approved standard or code without additional testing C) A WPS developed in-house without external approval D) A WPS that is only valid for specific projects Answer: B Explanation: Prequalified WPSs are based on standardized procedures and meet specific code requirements, eliminating the need for testing. Question 7. Which information is typically included in a WPS? A) List of approved suppliers B) Welding process, base and filler materials, welding parameters, joint design, and heat treatment C) Employee training records D) Inspection reports Answer: B Explanation: A WPS contains detailed instructions, including process, materials, parameters, joint design, and post-weld heat treatment. Question 8. What is the main function of a Procedure Qualification Record (PQR) when supporting a WPS?
A) To provide a detailed drawing of the weld joint B) To record the actual variables and test results that validate the WPS C) To specify the welder's qualification D) To list project-specific safety procedures Answer: B Explanation: The PQR documents the actual test parameters and results that confirm the WPS's validity. Question 9. How does the qualification of a PQR support multiple WPSs? A) It only supports one specific WPS B) It can support multiple WPSs that fall within the same qualifying ranges of variables C) It replaces the need for a WPS D) It is only used for initial certification Answer: B Explanation: A single PQR can support multiple WPSs if they stay within the qualified ranges of variables documented in the PQR.
Question 12. Which destructive test is used to evaluate the tensile strength of a welded coupon? A) Bend test B) Charpy impact test C) Tensile test D) Hardness test Answer: C Explanation: Tensile testing measures the ultimate tensile strength and ductility, confirming the weld's mechanical properties. Question 13. What is the primary purpose of bend testing in procedure qualification? A) To assess weld toughness B) To evaluate weld ductility and detect cracks or discontinuities C) To measure hardness D) To determine weld corrosion resistance Answer: B Explanation: Bend tests evaluate weld ductility and reveal surface or subsurface discontinuities such as cracks.
Question 14. Which nondestructive testing method uses gamma rays or X-rays to evaluate weld quality? A) Ultrasonic testing B) Magnetic particle testing C) Radiographic testing D) Liquid penetrant testing Answer: C Explanation: Radiographic testing employs gamma or X-rays to detect internal flaws within the weld. Question 15. Which condition would typically necessitate requalification of a WPS? A) Changing the welding process from GMAW to SMAW B) Changing the color of the welding consumables C) Changing the welder's name D) Changing the project location Answer: A Explanation: Altering an essential variable like the welding process requires requalification to ensure weld integrity.
Explanation: Developing a WPS involves gathering process variables and conducting tests to confirm the procedure's validity. Question 18. Which document must a welder possess to demonstrate their ability to produce qualified welds? A) Welding Procedure Specification (WPS) B) Procedure Qualification Record (PQR) C) Welder Performance Qualification (WPQ) D) Inspection Report Answer: C Explanation: The WPQ certifies that a welder has demonstrated the ability to produce welds meeting specified standards. Question 19. How does a change in preheat temperature generally affect welding? A) It has no impact B) It can influence weld microstructure, toughness, and residual stresses C) It only affects the appearance D) It speeds up the welding process
Answer: B Explanation: Preheat temperature impacts microstructure and residual stresses, affecting weld toughness and distortion. Question 20. What is the significance of base metal grouping (P/N and S/N numbers)? A) They determine the color of the weld B) They classify materials for qualification purposes, affecting the scope of PQR and WPS C) They specify the welding speed D) They are used solely for inventory management Answer: B Explanation: P/N and S/N groupings classify base metals for qualification, influencing the qualified ranges of a WPS. Question 21. Which of the following is an essential variable specific to GMAW (MIG) welding? A) Shielding gas type and flow rate B) Electrode diameter C) Welding helmet type
D) Visual inspection Answer: B Explanation: The Charpy impact test measures the energy absorption capacity of a weld at different temperatures, indicating toughness. Question 24. Which document provides the detailed procedure for welding that is used directly by the welder? A) PQR B) WPS C) WPQ D) Inspection plan Answer: B Explanation: The WPS provides step-by-step instructions for welders to ensure proper welding execution. Question 25. When qualifying a WPS, what is the typical number of test coupons required for a single process and position? A) One B) Two or three, depending on code requirements C) Ten
D) None Answer: B Explanation: Codes often specify two or three test coupons to account for variability and ensure qualification. Question 26. Which nondestructive testing method is most suitable for detecting surface-breaking discontinuities like cracks? A) Radiographic testing B) Liquid penetrant testing C) Ultrasonic testing D) Macro-examination Answer: B Explanation: Liquid penetrant testing is effective for detecting surface-breaking flaws such as cracks. Question 27. In the context of a WPS, what is "backing"? A) A method to support the weld during fabrication B) Material or backing strips used to support the weld root C) The sequence of welding passes D) A type of weld defect
D) Precise dimensions Answer: B Explanation: Visual acceptance criteria include absence of cracks, porosity, undercut, and other surface discontinuities. Question 30. Which mechanical test is used to assess the ductility and weld soundness by bending the test specimen? A) Tensile test B) Bend test C) Charpy impact test D) Hardness test Answer: B Explanation: The bend test evaluates ductility and detects cracks or discontinuities in the weld. Question 31. Which code or standard is most widely used for structural steel welding in the US? A) ISO 15614 B) AWS D1. C) ASME BPVC Section IX
D) API 1104
Answer: B Explanation: AWS D1.1 specifies requirements for welding steel structures, including qualification procedures. Question 32. What is the primary reason for controlling heat input during welding? A) To minimize welding fumes B) To control microstructure, residual stresses, and mechanical properties C) To reduce welding time D) To improve visual appearance Answer: B Explanation: Controlling heat input influences microstructure development, residual stresses, and ultimately weld quality. Question 33. Which of the following is an example of a nonessential variable that can be freely changed after qualification? A) Welding process B) Filler metal classification
B) Examine weld fusion, penetration, and weld profile at a macro level C) Measure hardness D) Evaluate microstructure Answer: B Explanation: Macro-examination involves visual and microscopic assessment of fusion, penetration, and weld profile. Question 36. Which process involves the use of a consumable electrode with flux core, often requiring specific qualification variables? A) SMAW B) FCAW C) GTAW D) SAW Answer: B Explanation: Flux-Cored Arc Welding (FCAW) uses a tubular wire with flux core, requiring qualification of process variables including flux composition.
Question 37. Which of the following is an essential variable in submerged arc welding (SAW)? A) Electrode type B) Shielding gas composition C) Wire feed speed D) Filler metal classification Answer: C Explanation: Wire feed speed is an essential variable in SAW, impacting heat input and weld quality. Question 38. How often must a welder's performance qualification be renewed according to typical standards? A) Every 6 months B) Every 1 to 2 years, depending on the code C) Every 5 years D) Only once Answer: B Explanation: Most standards require renewal every 1-2 years to ensure ongoing proficiency.
