The Physical Layer The Physical Layer
Curt Schurgers
Sources:
- Mani Srivastava, http://nesl.ee.ucla.edu/courses/ee206a/2002s/
2 ECEECE 284284
Electrical waveform
Electro-magnetic
waveform

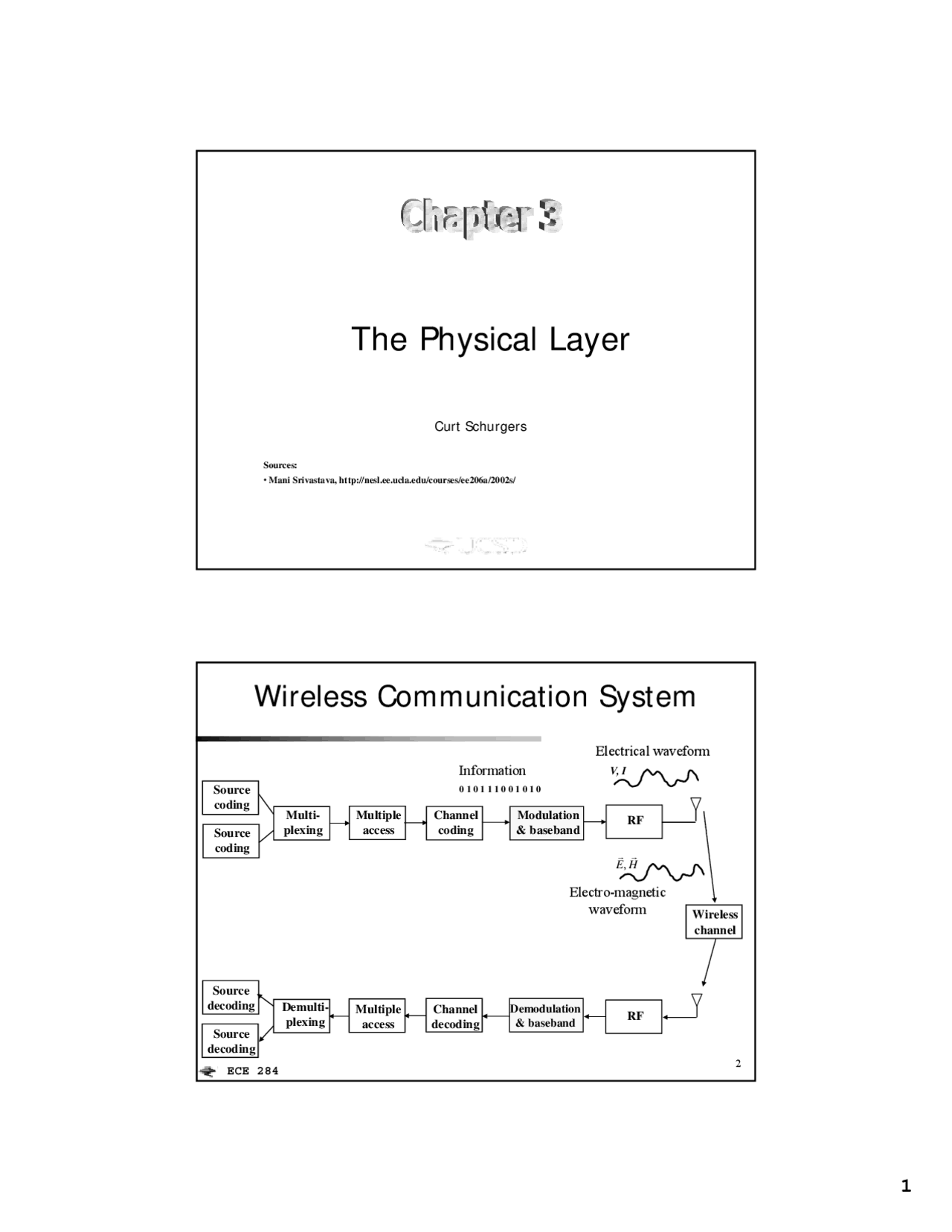

Wireless Communication System Wireless Communication System
Source coding
Source coding
Multiple access
Modulation & baseband
Wireless channel
Channel coding
RF
Source decoding
Source decoding (^) Multiple
access
Demodulation & baseband
Channel decoding
RF
0 1 0 1 1 1 0 0 1 0 1 0
V, I
E H
r r ,
Multi- plexing
Demulti- plexing
Information
3 ECEECE 284284
Packet Structure Packet Structure
MPDU (MAC Protocol Data Unit): Link layer frames
PPDU (PLCP Protocol Data Unit) of PLCP (Physical Layer Convergence Protocol)
Correct packet reception involves many steps:
● Synchronization in frequency and time ● Packet detection ● Header reception: passing CRC check
Packet reception on the higher layers assumes all these
E.g. 802.11b DSSS
4 ECEECE 284284
Bits versus Symbols Bits versus Symbols
Modulation: information is grouped together into waveforms
Demodulation: inverse process (best effort)
● If M → ∝ the ‘performance’ goes up, but at a cost of complexity (Shannon limit)
(^01)
00 01 10 11
1 bit/symbol
2 bits/symbol
b bits/symbol = M possible waveforms
b = log 2 (M)
7 ECEECE 284284
QAM and PSKQAM and PSK
cos( ω t)
sin( ω t) (^) + Upconversion to fC
I input
Q input
I
Q
Based on two orthogonal waveforms: sin() and cos() at the same frequency
● Symbols are represented by various amplitude scalings of these basis waveforms: I (in-phase) and Q (quadrature) inputs for cos() and sin() respectively ● At the receiver, the I and Q parts can be separated again due to the orthogonality of the basis waveforms
8 ECEECE 284284
QAM and PSKQAM and PSK
4-QAM 16-QAM^ 64-QAM
4-PSK 8-PSK^ 16-PSK
QAM (Quadrature Amplitude Modulation)
PSK (Phase Shift Keying)
9 ECEECE 284284
Performance Evaluation Performance Evaluation
Q
I
ai + j·b i
r i
θ i
2 Ei ∝ r i
=
∝ =
M
i
S RMS ri M
E r 1
The average energy when each 2 1 2 symbol is transmitted with an equal probability
Energy in symbol i
(in-phase)
(quadrature)
● The demodulator chooses the symbol that is closest to the received one (maximum likelihood decoding) ● If the noise (and distortions) is such that we are closer to another symbol than the correct one, a symbol error occurs. Therefore the ‘closeness’ of symbols is an indication of the maximum tolerable noise. ● Each symbol error results in a number of bit errors. By carefully choosing the mapping from bits to symbols (Gray encoding), one symbol error typically results in just one bit error.
10 ECEECE 284284
Performance Metrics Performance Metrics
Signal to Noise Ratio (SNR):
● Signal energyE (^) S is per symbol
Energy per bit:
Symbol Error Rate (SER)
● Bit Error Rate (BER): if one symbol error corresponds to one bit error due to Gray coding
N W
E R
N
P
SNR R S S
0
log 2 ( M )
E
E b = S
S
b
M R
W
SNR
N
E
0 log^2 ( )
log 2 ( M )
SER
BER =
SER
N 0
E b
Note: Performance of a modulation scheme is expressed as function of E (^) b/N 0 rather than SNR
2
N 0
W^ frequency
13 ECEECE 284284
Example: Performance QAM Example: Performance QAM
log( )
log ( )
2
2 M
W
R M
W
R b S
b =
η = =
R S
T
W ≈ =
Data rate Error rate
log 2 ( )
0 0 0
M
N
E
N
E
N W
E R
N
P
SNR R^ S S = S = b ⋅
N 0
Eb
SER
14 ECEECE 284284
Comparison Comparison
SER = 10 -
Source: http://www.mhhe.com/e ngcs/electrical/proakis/s tudent/images.mhtml
FSK
W
Rb
η b =
N 0
Eb
15 ECEECE 284284
Other Issues Other Issues
Coherent versus non-coherent receiver
● Coherent: carrier phase is needed. E.g. QAM, PSK, … ● Non-coherent or envelope detection. E.g. DPSK, FSK (could also be coherent), …
Constant envelope or not
● If constant envelope, efficient amplifier can be used. E.g. PSK, FSK
Implementation complexity
Resilience against Interference
Out-of-band radiation
Effect of frequency offset, fading, time-variations, etc.
16 ECEECE 284284
Direct Sequence Spread Spectrum Direct Sequence Spread Spectrum
(DSSS)(DSSS)
1 1 -1 1 -1 -1 1 -
Receiver with correct code Receiver with incorrect code
T (^) c
8 -
1 -1 1
8 0 0 0
The input sequence is multiplied by a faster sequence, called the ‘chip’ sequence. Chip rateR (^) c = 1/T (^) c This chip sequence is PN (pseudo noise) The received sequence is multiplied by the same chip sequence and integrated over one symbol time.
T S
19 ECEECE 284284
CDMA versus FDMA CDMA versus FDMA
FDMA: frequency division multiple access ● Users have different frequency bands (possible use DSSS) CDMA: code division multiple access ● Users occupy the same frequency band, but use orthogonal codes
Time
Frequency
User k
Code
CDMA
User k…
Time
Frequency
FDMA
20 ECEECE 284284
Frequency Hopped Spread Spectrum Frequency Hopped Spread Spectrum
(FHSS)(FHSS)
Jump around between frequency bands in a pseudo random fashion.
Avoids being stuck in a bad frequency band.
As a multi-access technique, transmissions can collide, but occurrences are
infrequent.
Fast FHSS: jump multiple times during one symbol
Slow FHSS: multiple symbols per jump
21 ECEECE 284284
OFDM OFDM
FDM
● Frequency Division Multiplexing ● Frequency guard bands
OFDM
● Orthogonal Frequency Division Multiplexing ● Overlapping, but orthogonal bands (e.g. sinc functions) ● Much denser than FDM ● Multiplexing done in the digital domain using an FFT
frequency
frequency
22 ECEECE 284284
Frequency Response Frequency Response
time frequency
FFT
time
FFT
frequency
- Cyclic convolution results in multiplication of frequency data points with the
FFT of the channel response (= channel frequency response)
- Each data point is thus multiplied by a single factor
- As a result, equalization is easy in the frequency domain
25 ECEECE 284284
Ultra Wideband (UWB)Ultra Wideband (UWB)
Impulse radio is a form of ultra wideband radio transmission
● Narrow pulses in the time domain, nanoseconds or less ● Modulation: PPM, PAM, bi-phase ● Very broad spectrum ● Two definitions: BW > 500 MHz; BW > 0.2 * fcenter
Source: http://bwrc.eecs.berkeley.edu/Research/UWB/overview.htm
Conventional (narrowband)
Ultra Wideband (UWB)
Reference: [Siw01]
26 ECEECE 284284
UWB Properties UWB Properties
Operating conditions ● Limited power to reduce interference with existing systems: -41.3 dBm/MHz ● Limited range: few 10s of meters Benefits ● High data rate possible (up to Gbps) over short distances ● Simple radio design: mostly digital ● Reuse spectrum ● Inherent security: hard to detect ● Position determination: Aetherwire
Source: http://dessr2m.adm-eu.uvsq.fr/pdfsportesouvertes/Presentation_Ultra-Wideband.pdf
Research: ● Aetherwire, Time Domain, Intel, TI, XtremeSpectrum, etc. ● IEEE 802.15.3a http://www.ieee802.org/15/pub/TG3a.html ● IEEE 802.15.4a http://www.ieee802.org/15/pub/TG4a.html
27 ECEECE 284284
Smart AntennasSmart Antennas
Sectorized antennas ● Current cellular systems: 120º sectors with different frequencies Switched beam antennas ● M beams provide an M-fold gain ● Improve capacity by limiting interferers: space division multiplexing (SDMA)
Adaptive arrays ● Signals from the M antennas are weighted and combined
Reference: [Win98]
● Line-of-sight environment Steer antenna beam Can create M-1 nulls to cancel out M- interferers ● Multipath environment Consider signal space Cancel N interferers and provide (M-N) fold diversity gain
28 ECEECE 284284
MIMO MIMO
MIMO: multi-input multi-output system: 2 types
Space time diversity coding
● Provide diversity gain
Spatial multiplexing: e.g. BLAST
● Data is split in parallel streams ● The channel itself provides the decorrelation (orthogonalization) ● Capacity proportional to min(Tx-antennas, Rx-antennas)
Reference: [Wol98]
31 ECEECE 284284
Near- Near-FieldField IntrabodyIntrabody CommunicationCommunication
Near-field electrostatic coupling
Low carrier frequency (MHz)
Low power (few mW)
Prototype: 2.4 Kbps
Personal area network (PAN): e.g.
business card handshake
Reference: [Zim96]
32 ECEECE 284284
Smart DustSmart Dust
Sensor network project at UC Berkeley project
● Based on MEMS (Micro Electronic Mechanical Systems) ● Target volume: cube millimeter ● Target power: < 10 μW average ● Optical transmission: short wavelength fits in small package (as opposed to RF antennas)
Applications: defense, inventory control, virtual keyboard, etc.
Source: http://www- bsac.eecs.berkeley.edu/archive/use rs/warneke-brett/SmartDust/
33 ECEECE 284284
Smart Dust Optical Communication Smart Dust Optical Communication
● Active transmission: semiconductor laser and MEMS beam-steering mirror (mW so only short durations) ● Passive optical transmission: corner-cube reflector ● Spatial multiplexing: directed light and parallel read-out ● Transmission very directional, reception more omnidirectional
Reference: [Kah99]
34 ECEECE 284284
