APPRENTICE Exam

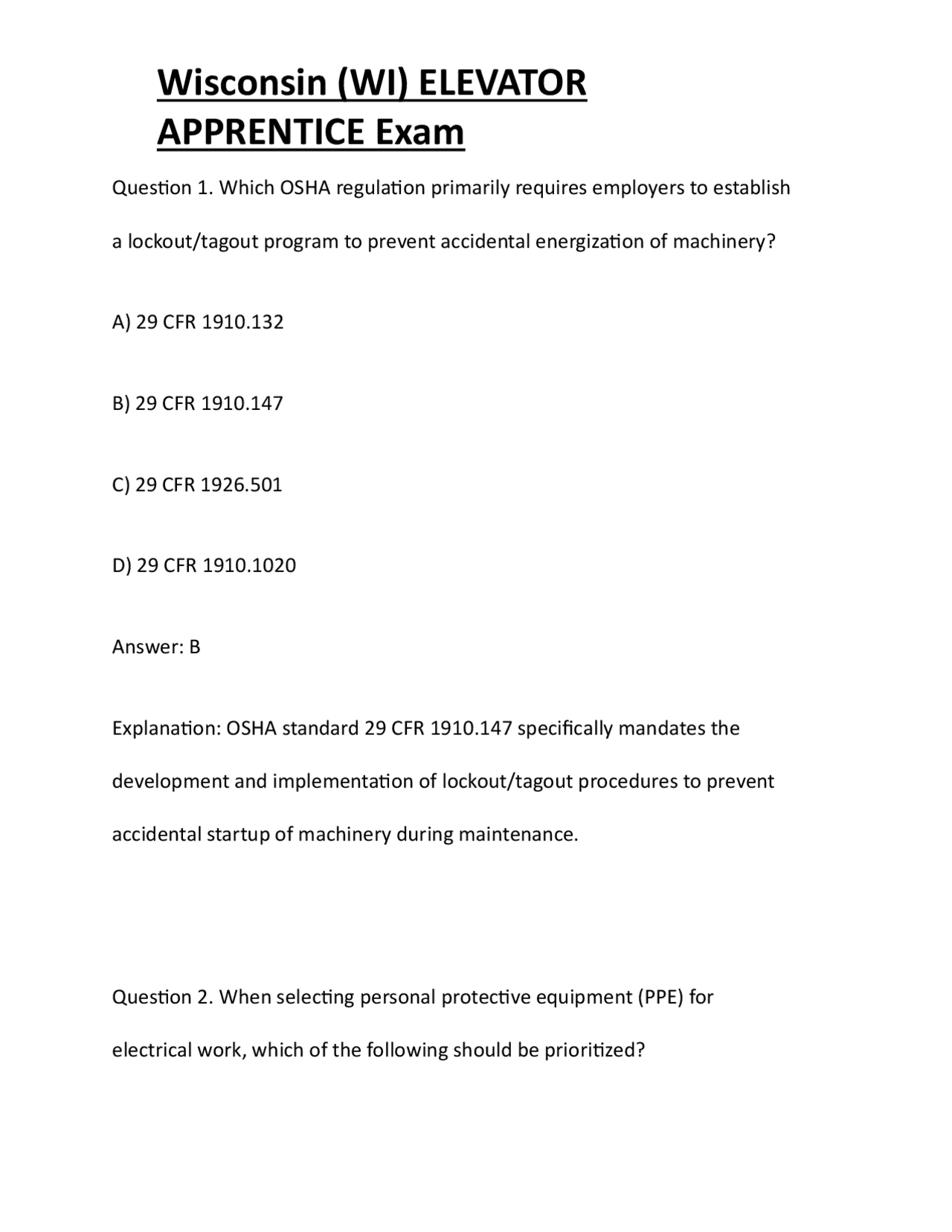

Question 1. Which OSHA regulation primarily requires employers to establish a lockout/tagout program to prevent accidental energization of machinery? A) 29 CFR 1910. B) 29 CFR 1910. C) 29 CFR 1926. D) 29 CFR 1910. Answer: B Explanation: OSHA standard 29 CFR 1910.147 specifically mandates the development and implementation of lockout/tagout procedures to prevent accidental startup of machinery during maintenance. Question 2. When selecting personal protective equipment (PPE) for electrical work, which of the following should be prioritized?
APPRENTICE Exam
A) Non-conductive materials to prevent electrical shock B) Heavy-duty leather gloves for all tasks C) Respirators for dust protection D) Steel-toed boots exclusively Answer: A Explanation: For electrical work, PPE should include non-conductive insulating gloves and gear to prevent electrical shock hazards. Question 3. Which safety device is used to prevent a ladder from slipping sideways during use? A) Ladder levelers B) Slip-resistant feet or pads C) Fall arrest harness
APPRENTICE Exam
Explanation: Proper ventilation is essential to remove hazardous gases and ensure a safe environment before confined space entry. Question 5. When working at heights, which of the following is the most effective fall protection method? A) Using a harness attached to an approved anchor point B) Relying on guardrails alone C) Standing on stable furniture D) Holding onto nearby structures Answer: A Explanation: A personal fall arrest harness attached to a secure anchor point provides effective fall protection when working at heights.
APPRENTICE Exam
Question 6. Which lockout/tagout step is essential immediately before beginning maintenance on equipment? A) Remove all PPE B) Notify the supervisor only C) Isolate energy sources and apply lockout/tagout devices D) Turn off the power switch without further action Answer: C Explanation: Lockout/tagout procedures require isolating energy sources and applying lockout/tagout devices to prevent accidental energization. Question 7. What is a key safety consideration when working around hoistway doors? A) Doors do not need to be tested regularly
APPRENTICE Exam
Answer: B Explanation: Buffers absorb impact energy and cushion the car's descent, preventing damage or injury if the car overspeeds or fails to stop properly. Question 9. In elevator safety, what is the primary function of a governor rope? A) To power the elevator motor B) To detect overspeed and activate safety devices C) To guide the elevator car D) To hoist the counterweight Answer: B Explanation: The governor rope detects overspeed conditions and triggers safety mechanisms such as safeties to stop the elevator.
APPRENTICE Exam
Question 10. Which type of hoistway door swings open into the hoistway and requires a swinging mechanism? A) Sliding door B) Swing door C) Retiring cam door D) Bi-parting door Answer: B Explanation: Swing doors pivot outward into the hoistway and require hinges and mechanisms to open and close properly. Question 11. What is the main purpose of a shear sheave in an elevator hoisting system?
APPRENTICE Exam
D) To guide the car doors Answer: A Explanation: Tension sheaves help maintain proper tension in the hoist ropes, ensuring safe and smooth operation. Question 13. Which component is critical for controlling elevator speed and ensuring smooth stopping? A) Governor B) Encoder C) Brake system D) Variable voltage control Answer: D
APPRENTICE Exam
Explanation: Variable voltage control adjusts motor power, enabling smooth acceleration and deceleration, thus controlling elevator speed. Question 14. When inspecting hoist ropes, what is a primary indicator of a defective or unsafe rope? A) Worn or broken strands B) Slight discoloration C) Slightly loose winding D) Presence of lubricant Answer: A Explanation: Worn, broken, or frayed strands indicate rope deterioration, which is unsafe and requires replacement.
APPRENTICE Exam
B) To connect the hydraulic pump to the motor C) To provide emergency lowering D) To adjust the counterweight position Answer: A Explanation: The control valve regulates hydraulic fluid flow, controlling the elevator's movement and speed. Question 17. Which safety device is used to prevent the elevator from exceeding its maximum speed? A) Over-speed governor B) Limit switch C) Safety brake D) Emergency stop button
APPRENTICE Exam
Answer: A Explanation: The over-speed governor detects excessive speed and activates safety brakes to prevent accidents. Question 18. Which type of wiring diagram is most useful for troubleshooting elevator control circuits? A) Mechanical drawing B) Electrical schematic or wiring diagram C) Architectural plan D) Elevation view Answer: B Explanation: Electrical schematics depict circuit wiring and components, essential for troubleshooting control issues.
APPRENTICE Exam
A) International Building Code (IBC) B) ASME A17.1 and Wisconsin Electrical Code (NEC) C) OSHA 29 CFR 1926 D) ANSI B Answer: B Explanation: ASME A17.1 (Elevator Safety Code) and the NEC establish wiring, grounding, and safety standards for elevators in Wisconsin. Question 21. In the context of mechanical systems, what is the purpose of a limit switch? A) To stop elevator movement at predetermined points B) To control the speed of the elevator C) To activate emergency brakes only
APPRENTICE Exam
D) To measure the weight of the car Answer: A Explanation: Limit switches detect the position of the elevator and stop movement at set points to prevent over-travel. Question 22. What is the typical material used for elevator guide rails to meet code requirements? A) Steel, properly aligned and gauged B) Aluminum, lightweight and flexible C) PVC, corrosion-resistant plastic D) Copper, for electrical conductivity Answer: A
APPRENTICE Exam
Question 24. Which safety feature prevents the elevator from descending if the governor detects overspeed? A) Overspeed safety device (safety brake) B) Door interlock C) Emergency alarm D) Limit switch Answer: A Explanation: The overspeed safety device activates the safety brake to prevent uncontrolled descent during overspeed conditions. Question 25. What is the primary function of a car operating panel (COP)? A) To display elevator status and allow passenger control of car direction and floor selection
APPRENTICE Exam
B) To control the elevator's motor speed C) To monitor the elevator's weight load D) To serve as a backup power source Answer: A Explanation: The COP provides user interface for passengers to select floors and view elevator status. Question 26. Which type of door system is most suitable for freight elevators that require large openings? A) Sliding doors B) Swing doors C) Retiring cam doors D) Bi-parting doors
