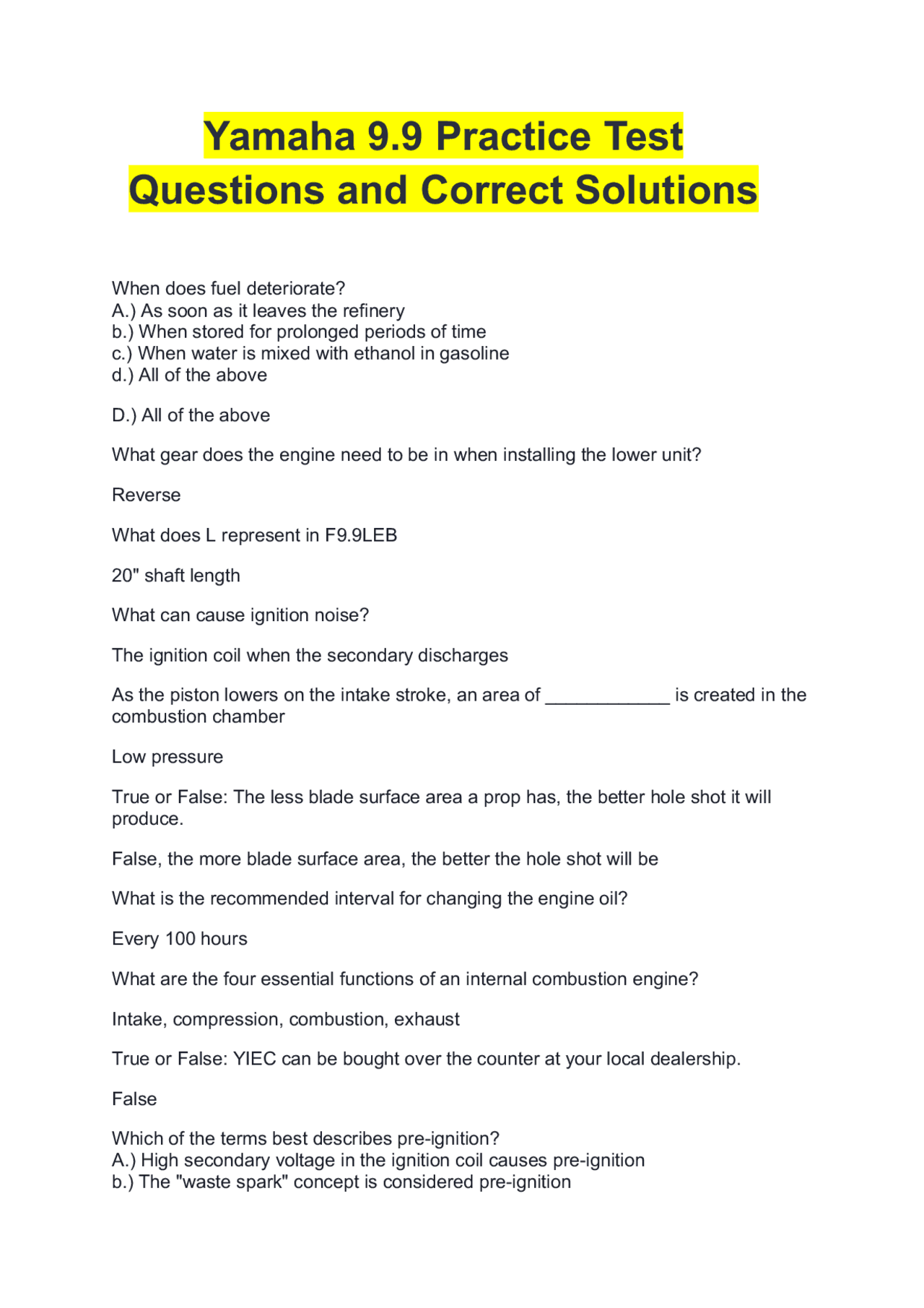

Yamaha 9.9 Practice Test Questions and Correct Solutions
Typology: Exams
1 / 6
This page cannot be seen from the preview
Don't miss anything!




When does fuel deteriorate? A.) As soon as it leaves the refinery b.) When stored for prolonged periods of time c.) When water is mixed with ethanol in gasoline d.) All of the above D.) All of the above What gear does the engine need to be in when installing the lower unit? Reverse What does L represent in F9.9LEB 20" shaft length What can cause ignition noise? The ignition coil when the secondary discharges As the piston lowers on the intake stroke, an area of ____________ is created in the combustion chamber Low pressure True or False: The less blade surface area a prop has, the better hole shot it will produce. False, the more blade surface area, the better the hole shot will be What is the recommended interval for changing the engine oil? Every 100 hours What are the four essential functions of an internal combustion engine? Intake, compression, combustion, exhaust True or False: YIEC can be bought over the counter at your local dealership. False Which of the terms best describes pre-ignition? A.) High secondary voltage in the ignition coil causes pre-ignition b.) The "waste spark" concept is considered pre-ignition
c.) Igniting a fuel mixture before the timed ignition occurs d.) The igniting of the fuel mixture before the piston reaches TDC C.) Igniting a fuel mixture before the timed ignition occurs Service manuals call for the engine oil capacity to be a certain amount, but the periodic maintenance quantity is different. Why? All of the engine oil cannot be removed During which two events does the piston move toward the top of the cylinder? Exhaust and compression When discussing propellor pitch, each inch of pitch is equal to about how many RPM? 150+/-50 RPM When should you replace the anodes on a Yamaha outboard? When only 1/2 replace (50% depleted) True or False: Pitch is the distance a 3 bladed prop would theoretically travel in three full revolutions, if traveling through a solid False Anodes are replaced at ____ % gone 50% True or False: The F/T 9.9 uses an SDS prop hub False, they used a standard pressed in model What best describes the stroke of a piston? The movement of the piston either UP or DOWN the cylinder True or False: No water coming out of the overboard indicator means the engine is running hot. False Before you do any extensive valve adjustment on a four stroke engine, what should you do first? Decarbonize the engine Why is it best to warm up the engine prior to draining the oil? This ensures any impurities will be suspended in the oil
300 hours What should you do prior to checking the engine oil level on an engine that has been run? Tilt the engine at least half way up for 5 minutes, then tilt down until level When you see O.L. displayed on the DMM, what does this mean? The circuit being tested is overloaded with continuity What does FCW stand for? Four cycle, water cooled True or False: Propellor hubs are mechanisms for softening the sound associated with shifting and light load operation True Why should you never run a Yamaha outboard out of the water? Damages the water pump because it is lubricated by the water being pumped through it When checking for ignition coil cap resistance, the DMM should be set to _____ Ohms Which NGK spark plug is considered hotter? LFR6A-12 or LFR5A-11?Why? The LFR5A-11 is hotter because the 5 indicates the heat range and the smaller number is always hotter According to the workbook, the engine tag is typically on which side of the engine Engine tag is on the starboard side, the serial number is on the port side How many revolutions of the crankshaft and cam shaft are required to complete the four strokes in a 4-cycle engine (V-6)? One revolution of the camshaft and two revolutions of the crankshaft What is the normal recommended operating hours on an F/T9.9 between lower unit oil changes? 100 hours Radio frequency interference occurs When the ignition coil discharges, resistor caps are made to prevent this interference
True or False: On an F9.9, you should NEVER replace the resistor spark plug caps with regular spark plug caps. True Anodes are not necessary in freshwater applications False Identify the engine that uses model code F9.9LMHA 4 stroke, 9.9 horsepower, 20" shaft, manual start, tiller handle True or False: You should only check spark plug gap when a piston has contacted the spark plug. False True or False: The maintenance charts in the service manual always match the charts found in the owner's manual. False A four stroke outboard produces one power stroke: Every other time it reaches TDC True or False: The water pump housing comes with the water pump repair kit False After running the outboard in saltwater, which of the following is recommended? Flush the engine with freshwater for at least 15 minutes The engine specs call for a B7HS-10 NGK spark plug, but someone has installed a BR7HS-10. How will the engine be affected? It would not be affected What is an "essential" special tool? Required tools automatically shipped to dealers What is the difference between "oil pan capacity" and "amount required for periodic maintenance"? Periodic maintenance considers that not all oil can be removed when changing True or False: The purpose of the propeller hub is to protect the propeller from corrosion. False
