Middle Button (Wheel) Scroll Zoom Click-Drag Orbit Shift+Click-Drag Pan Double-Click re-center view
L R L R

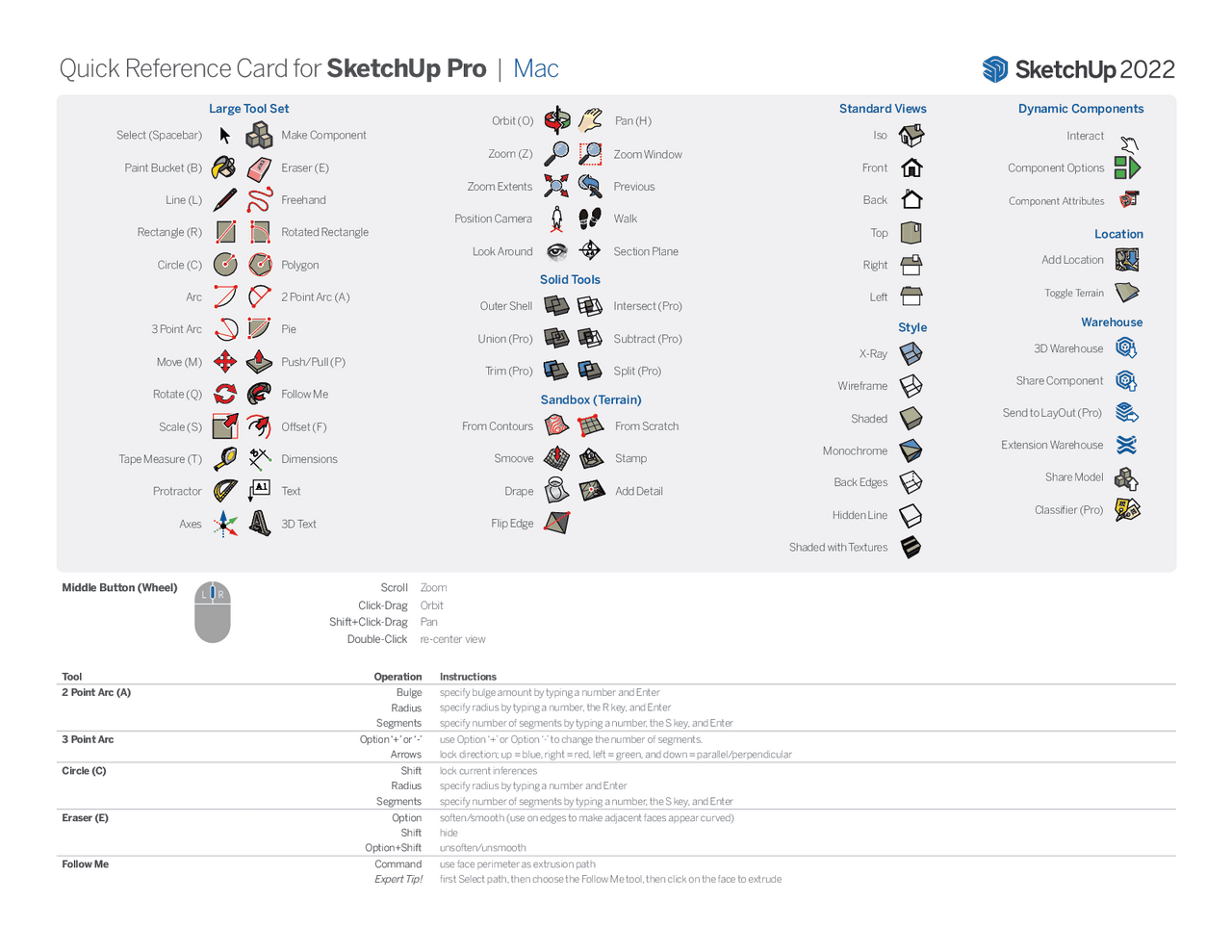

Quick Reference Card for SketchUp Pro | Mac
Make Component Dimensions Rotated Rectangle Zoom Window Freehand 3D Text Follow Me Walk Eraser (E) Text Push/Pull (P) 2 Point Arc (A) Previous Polygon Pan (H) Offset (F) Section Plane Select (Spacebar) Tape Measure (T) Circle (C) Zoom (Z) Line (L) Axes Rotate (Q) Position Camera Paint Bucket (B) Protractor Move (M) Arc Zoom Extents Rectangle (R) Orbit (O) Scale (S) Look Around
Large Tool Set
Intersect (Pro) Split (Pro) Subtract (Pro) Outer Shell Trim (Pro) Union (Pro)
Solid Tools
3 Point Arc pink Pie From Contours Drape Smoove Flip Edge From Scratch Add Detail Stamp
Sandbox (Terrain)
Iso Front Right Top Left Back
Standard Views
Interact Component Options Component Attributes
Dynamic Components
Add Location Toggle Terrain
Location
Shaded with Textures Back Edges Hidden Line X-Ray Wireframe Shaded
Style
Monochrome 3D Warehouse Share Model Extension Warehouse Share Component
Warehouse
Send to LayOut (Pro) Classifier (Pro) Tool Operation Instructions 2 Point Arc (A) Bulge specify bulge amount by typing a number and Enter Radius specify radius by typing a number, the R key, and Enter Segments specify number of segments by typing a number, the S key, and Enter 3 Point Arc Option ‘+’ or ‘-’ use Option ‘+’ or Option ‘-’ to change the number of segments. Arrows lock direction; up = blue, right = red, left = green, and down = parallel/perpendicular Circle (C) Shift lock current inferences Radius specify radius by typing a number and Enter Segments specify number of segments by typing a number, the S key, and Enter Eraser (E) Option soften/smooth (use on edges to make adjacent faces appear curved) Shift hide Option+Shift unsoften/unsmooth Follow Me Command use face perimeter as extrusion path Expert Tip! first Select path, then choose the Follow Me tool, then click on the face to extrude
© 2022 Trimble
SketchUp Pro Quick Reference Card | Mac
Lasso Shift add/subtract from selection Option add to selection Shift+Option subtract from selection Line (L) Shift lock in current inference direction Arrows lock direction; up = blue, right = red, left = green, and down = parallel/perpendicular Length specify length by typing a number and Enter Look Around Eye Height specify eye height by typing a number and Enter Move (M) Option toggle copy mode, allows multiple consecutive Shift hold down to lock in current inference direction Command auto-fold (allow move even if it means adding extra edges and faces) Arrows lock direction; up = blue, right = red, left = green, and down = parallel/perpendicular Distance specify move distance by typing a number and Enter External Copy Array X copies in a row: move first copy, type a number, the X key, and Enter Internal Copy Array X copies in between: move first copy, type a number, the / key, and Enter Offset (F) Command allow results to overlap Distance specify an offset distance by typing a number and Enter Orbit (O) Option hold down to disable “gravity-weighted” orbiting Shift hold down to activate Pan tool Paint Bucket (B) Option fill material – paint all matching adjacent faces Shift replace material – paint all matching faces in the model Option+Shift replace material on object – paint all matching faces on the same object Command hold down to sample material Protractor (^) Option toggle guide creation Arrows toggle lock rotation plane Push/Pull (P) Option push/pull a copy of the face (leaving the original face in place) Double-Click apply last push/pull amount to this face Distance specify a push/pull amount by typing a number and Enter Rectangle (R) Option start drawing from center Dimensions specify dimensions by typing length, width and Enter (ie. 20,40) Rotated Rectangle Shift lock in current direction/plane Command lock drawing plane for first edge (after first click) Dimensions, Angle click to place first two corners, then type width, angle and Enter (ie. 90,20) Rotate (Q) Option rotate a copy Angle specify an angle by typing a number and Enter Slope specify an angle as a slope by typing a rise, a colon (:), a run, and Enter (ie. 3:12) Scale (S) Option hold down to scale about center Shift hold down to scale uniformly (don’t distort) Amount specify a scale factor by typing a number and Enter (ie. 1.5 = 150%) Length specify a scale length by typing a number, a unit type, and Enter (ie. 10m) Search (Shift+S) search SketchUp command list for tools or commands Select (Spacebar) Option add to selection Shift add/subtract from selection Option+Shift subtract from selection Tape Measure (T) Option toggle create guide or measure only Arrows lock direction; up = blue, right = red, left = green, and down = parallel/perpendicular Resize resize model: measure a distance, type intended size, and Enter Zoom (Z) Shift hold down and click-drag mouse to change Field of View
