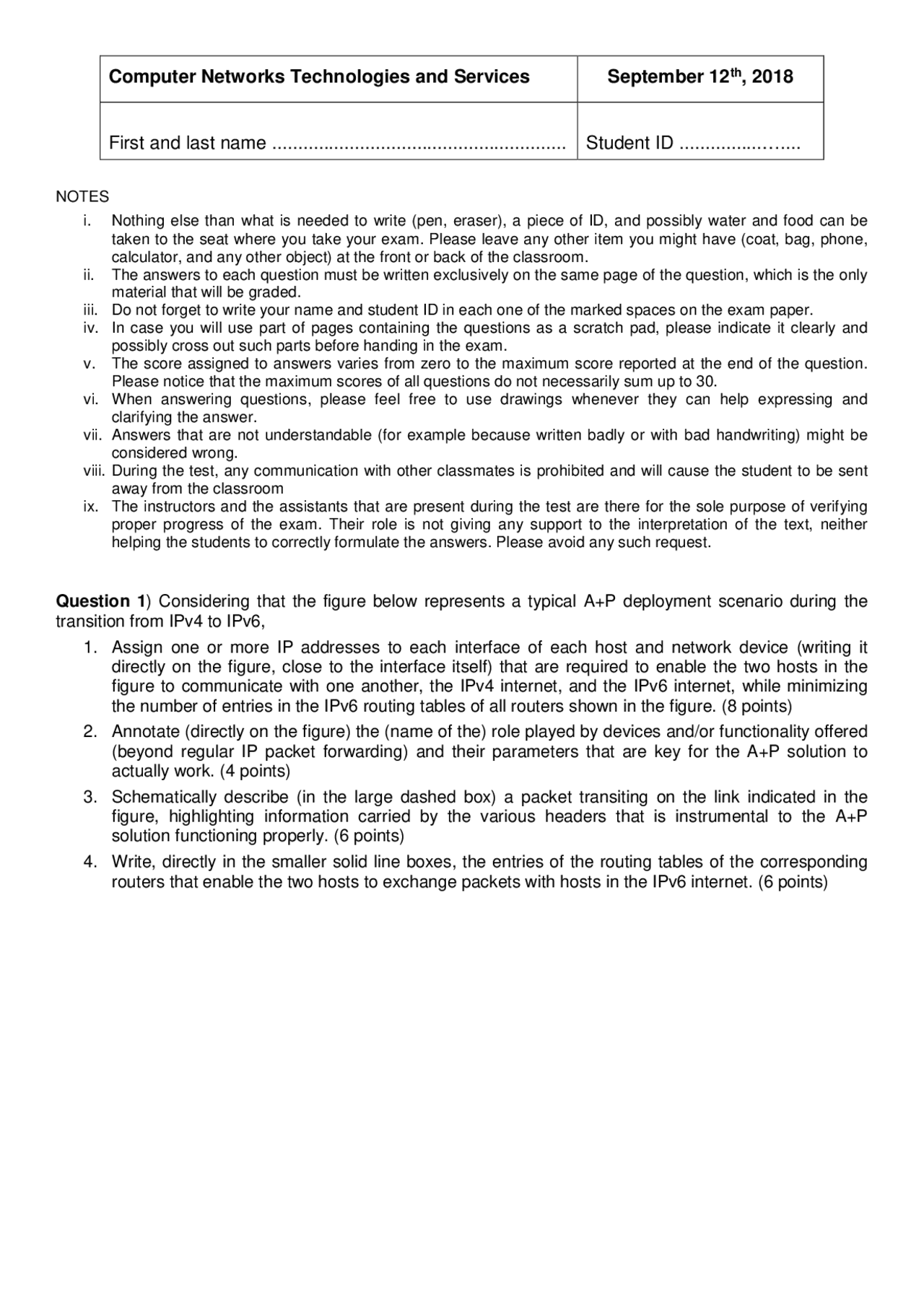

Question 1) Considering that the figure below represents a typical A+P deployment scenario during the
transition from IPv4 to IPv6,
1. Assign one or more IP addresses to each interface of each host and network device (writing it
directly on the figure, close to the interface itself) that are required to enable the two hosts in the
figure to communicate with one another, the IPv4 internet, and the IPv6 internet, while minimizing
the number of entries in the IPv6 routing tables of all routers shown in the figure. (8 points)
2. Annotate (directly on the figure) the (name of the) role played by devices and/or functionality offered
(beyond regular IP packet forwarding) and their parameters that are key for the A+P solution to
actually work. (4 points)
3. Schematically describe (in the large dashed box) a packet transiting on the link indicated in the
figure, highlighting information carried by the various headers that is instrumental to the A+P
solution functioning properly. (6 points)
4. Write, directly in the smaller solid line boxes, the entries of the routing tables of the corresponding
routers that enable the two hosts to exchange packets with hosts in the IPv6 internet. (6 points)
