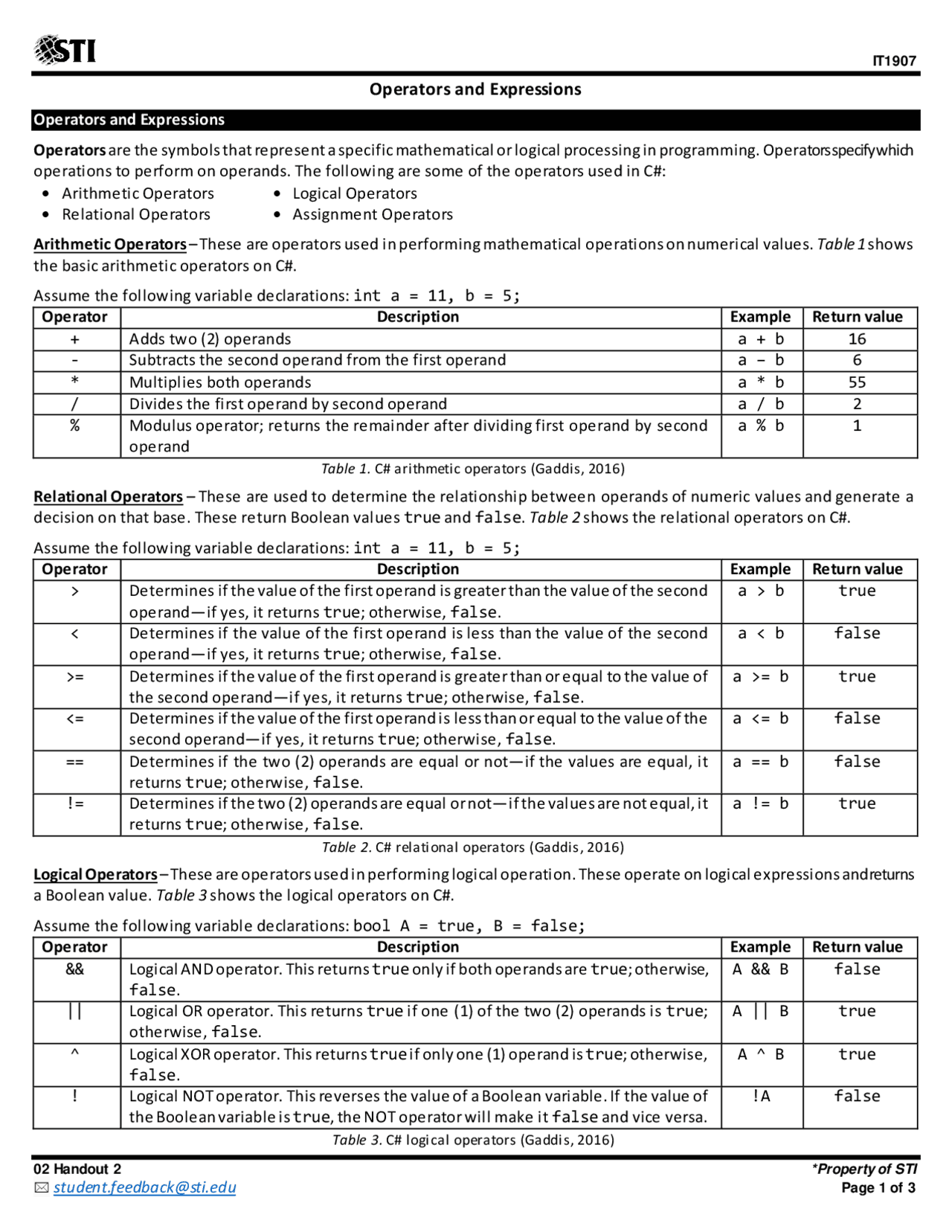

bg1
IT1907
02 Handout 2 *Pr operty of STI
student.feedback@sti.edu Page 1 of 3
Operators and Expressions
Operators and Expressions
Operators are the symbols that represent a specific mathematical or logical processi ng in programming. Ope rators spe ci fy which
operations to perform on operands. The following are some of the operators used in C#:
Arithmetic Operators
Logi cal Operators
Relational Operators
Assignment Ope rators
Arithmeti c Operators These are operators used in performing mathematical ope rations on numerical values. Table 1 shows
the basic arithmetic operators on C#.
Assume the following variable declarations: int a = 11, b = 5;
Operator
Description
Exampl e
Return value
+
Adds two (2) operands
a + b
16
-
Subtracts the second operand from the first operand
a – b
6
*
Multiplies both operands
a * b
55
/
Divides the first operand by second operand
a / b
2
%
Modulus operator; returns the remainder after dividing first operand by second
operand
a % b
1
Table 1. C# ari thmeti c oper ator s (Gaddis, 2016)
Relational Ope ratorsThese are used to determine the relationship between operands of numeric values and ge nerate a
decision on that base. These return Boolean values true and false. Table 2 shows the re lational operators on C#.
Assume the following variable declarations: int a = 11, b = 5;
Operator
Description
Exampl e
Return value
>
Determines if the value of the fi rst operand is greater than the value of the secon d
operandif yes, it return s true; otherwise, false.
a > b
true
<
Determines if the value of the first operand is less than the value of the se cond
operandif yes, it return s true; otherwise, false.
a < b
false
>=
Determines if the value of the first operand is greate r than or equal to the value of
the second operandif yes, it returns true; otherwise, false.
a >= b
true
<=
Determines if the value of the fi rst operand i s less than or equal to the value of the
second operandif yes, it re turns true; otherwise, false.
a <= b
false
==
Determines if the two (2) operands are equal or notif the values are equal, it
return s true; otherwise, false.
a == b
false
!=
Determines if the two (2) operands are e qual or notif the val ues are not equal, it
return s true; otherwise, false.
a != b
true
Table 2. C# relational operators (Gaddis, 2016)
Logical Operators These are operato rs used in perf orming logical operation. These operate on logical expressi ons and returns
a Boole an val ue. Table 3 shows the logical operators on C#.
Assume the following variable declarations: bool A = true, B = false;
Operator
Description
Exampl e
Return value
&&
Logical AND op erator. This returns true only if both operands are true; othe r wise,
false.
A && B
false
||
Logical OR operator. This returns true if one (1) of the two (2) operands is true;
otherwise, false.
A || B
true
^
Logical XOR operator. This returns true if on ly one (1) operand is true; otherwise,
false.
A ^ B
true
!
Logical NOT operator. This reve rses the val ue of a Bool ean variable. If the value of
the Boolean variable is true, the NOT operator will make it false and vice versa.
!A
false
Table 3. C# logical operators (Gaddis, 2016)
pf3

Partial preview of the text

Download C# Operators and Expressions: Arithmetic, Relational, Logical, and Assignment and more Study Guides, Projects, Research Computer Science in PDF only on Docsity!

02 Handout 2 _Property of STI_*

Operators and Expressions

Operators and Expressions

Operators are the symbols that represent a specific mathematical or logical processing in programming. Operatorsspecifywhich operations to perform on operands. The following are some of the operators used in C#:

  • Arithmetic Operators • Logical Operators
  • Relational Operators • Assignment Operators

Arithmetic Operators – These are operators used in performing mathematical operations on numerical values. Table 1 shows the basic arithmetic operators on C#.

Assume the following variable declarations: int a = 11, b = 5; Operator Description Example Return value

  • Adds two (2) operands a + b 16
  • Subtracts the second operand from the first operand a – b 6
  • Multiplies both operands a * b 55 / Divides the first operand by second operand a / b 2 % Modulus operator; returns the remainder after dividing first operand by second operand

a % b 1

Table 1. C# arithmetic operators (Gaddis, 2016)

Relational Operators – These are used to determine the relationship between operands of numeric values and generate a decision on that base. These return Boolean values true and false. Table 2 shows the relational operators on C#.

Assume the following variable declarations: int a = 11, b = 5; Operator Description Example Return value

Determines if the value of the first operand is greater than the value of the second operand—if yes, it returns true; otherwise, false.

a > b true

< Determines if the value of the first operand is less than the value of the second operand—if yes, it returns true; otherwise, false.

a < b false

= Determines if the value of the first operand is greater than or equal to the value of the second operand—if yes, it returns true; otherwise, false.

a >= b true

<= Determines if the value of the first operand is less than or equal to the value of the second operand—if yes, it returns true; otherwise, false.

a <= b false

== Determines if the two (2) operands are equal or not—if the values are equal, it returns true; otherwise, false.

a == b false

!= Determines if the two (2) operands are equal or not—if the values are not equal, it returns true; otherwise, false.

a != b true

Table 2. C# relational operators (Gaddis, 2016)

Logical Operators – These are operators used in performing logical operation. These operate on logical expressions andreturns a Boolean value. Table 3 shows the logical operators on C#.

Assume the following variable declarations: bool A = true, B = false; Operator Description Example Return value && Logical AND operator. This returns true only if both operands are true; otherwise, false.

A && B false

|| Logical OR operator. This returns true if one (1) of the two (2) operands is true; otherwise, false.

A || B true

^ Logical XOR operator. This returns true if only one (1) operand is true; otherwise, false.

A ^ B true

! Logical NOT operator. This reverses the value of a Boolean variable. If the value of the Boolean variable is true, the NOT operator will make it false and vice versa.

!A false

Table 3. C# logical operators (Gaddis, 2016)

02 Handout 2 _Property of STI_*

Assignment Operators – These are used to assign a value or the result of an expression to a variable. Table 4 shows the assignment operators on C#.

Assume the following variable declarations: int a = 2, b = 5; Operator Description Example Value = This assigns a value of a variable or expression to the variable on its left side. b = a 2 += This adds left operand to the first operand and assigns the result to the first operand. b+=a 7

  • = This subtracts the second operand from the first operand and assigns the result to the first operand.

b-=a 3

= This multiplies both operands and assigns the result to the first operand. b=a 10 /= This divides the first operand by the second operand and assigns the result to the first operand.

b/=a 2

%= This assigns the remainder result to the first operand after dividing the first operand bythe second operand.

b%=a 1

++ This adds 1 to the first operand and assigns the result to the first operand. b++ 6 -- This subtracts 1 from the first operand and assigns the result to the first operand. b-- 4 Table 4. C# assignment operators (Gaddis, 2016)

An expression in C# is a combination of operands (or variables) and operators that can be evaluated to a single value.

If all operands in an expression are integers, the expression evaluates to an integer value. For example: int x = 10 + 5 * 2; //evaluates to 20.

If an expression contains a floating-point value, it evaluates to a floating-point value. For example: double y = 10 + 5 * 2.0; //evaluates to 20.0.

Precedence and Associativity

The operator precedence and associativity defines a set of rules indicating the order in which the operator should be evaluated in an expression. When two (2) or more operators are used in an expression, the operators with the higher precedence are executed first, followed by the operators of lower precedence. Table 5 displays common C# operators’ precedence and their associativity. The operators in the table are arranged in order of precedence from highest to lowest.

Precedence Operators Associativity Highest !, ++,^ --,^ ()^ Left to right

Intermediate

*, /, % (^) Left to right +, - Left to right <, <=, >, >= (^) Left to right ==, != (^) Left to right ^ (^) Left to right &&, || (^) Left to right Lowest =, *=, /=, %=, +=, - = Right to left Table 5. Common C# operators’ precedence and associativity (Harwani, 2015)

Consider the following expression: int a = 2 + 3 * 4;

The precedence of the multiplication operator is higher than the plus operator, and the assignment operator has the lowest precedence. Therefore, 3 * 4 is evaluated first, and the result is added to 2.

When operators of the same precedence are used in a single expression, they are evaluated from left to right.

The Math Class

The System.Math class includes several methods that perform a variety of calculations that can be used in a program. Table 6 shows some of methods provided by Math class. Method Description Pow() Raises a number to the given power.
