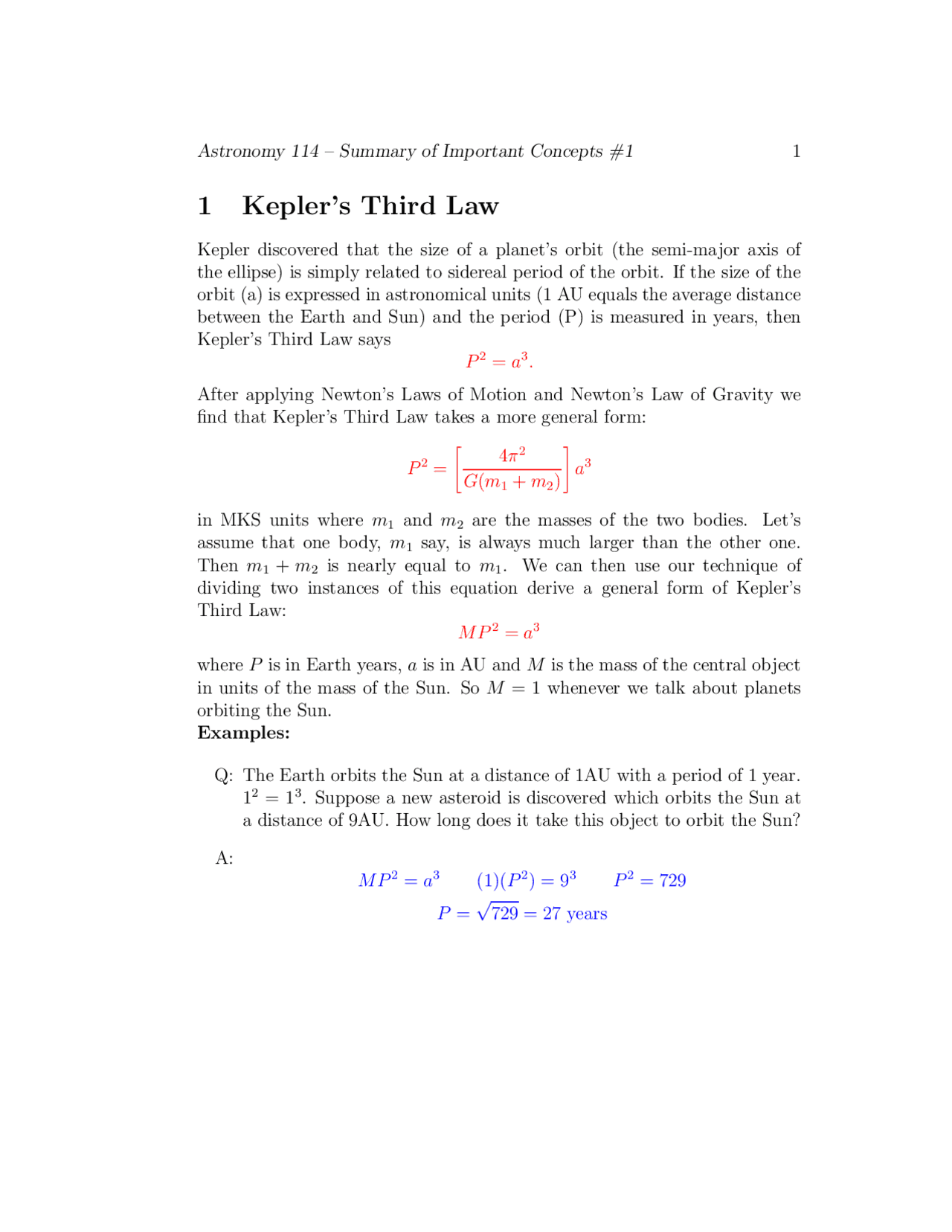

1 Kepler’s Third Law
Kepler discovered that the size of a planet’s orbit (the semi-major axis of the ellipse) is simply related to sidereal period of the orbit. If the size of the orbit (a) is expressed in astronomical units (1 AU equals the average distance between the Earth and Sun) and the period (P) is measured in years, then Kepler’s Third Law says P 2 = a^3.
After applying Newton’s Laws of Motion and Newton’s Law of Gravity we find that Kepler’s Third Law takes a more general form:
P 2 =
[ 4 π^2 G(m 1 + m 2 )
] a^3
in MKS units where m 1 and m 2 are the masses of the two bodies. Let’s assume that one body, m 1 say, is always much larger than the other one. Then m 1 + m 2 is nearly equal to m 1. We can then use our technique of dividing two instances of this equation derive a general form of Kepler’s Third Law: MP 2 = a^3
where P is in Earth years, a is in AU and M is the mass of the central object in units of the mass of the Sun. So M = 1 whenever we talk about planets orbiting the Sun. Examples:
Q: The Earth orbits the Sun at a distance of 1AU with a period of 1 year. 12 = 1^3. Suppose a new asteroid is discovered which orbits the Sun at a distance of 9AU. How long does it take this object to orbit the Sun?
A: MP 2 = a^3 (1)(P 2 ) = 9^3 P 2 = 729 P =
729 = 27 years
2 Newton’s Law of Gravitation
Any two objects, no matter how small, attract one another gravitationally. The attractive force depends linearly on the mass of each gravitating object (doubling the mass doubles the force) and inversely on the square of the distance between the two objects
F = −
Gm 1 m 2 r^2
G is the gravitational constant which is just a number which makes the results of the equation match-up with our systems of measurement. The ‘−’ sign indicates that the force is attractive. Example:
Q: Halley’s Comet travels on an eccentric elliptical orbit which carries it as close as about 1AU to the Sun and as far as about 20AU. Compare the gravitational force between Halley’s Comet and the Sun at these extremes in its orbit.
A: The comet changes its distance from the Sun by a factor of 20. Since the gravitational force depends on the inverse square of the distance, then the force when the comet is far from the Sun is 20^2 or 400 times weaker than when the comet is near the Sun.
3 The Propagation of Waves
Waves of light, sound, or even water each have a well defined frequency (ν) and wavelength (λ). If you think carefully about the definition of these two numbers it should be obvious that their product is the velocity of propagation of the waves: λν = c
where c is the symbol for the velocity of the wave. For light c=300,000 km/s. Example:
Q: On a quiet pond you observe water waves with a wavelength of 10 cm which pass a floating cork at the rate of 2 wave crests per second. How fast are the waves moving along the water?
6 Wien’s Law
This law permits you to calculate the peak wavelength (i.e. color) of the continuous spectrum emitted by a hot object if you know the temperature.
λmax =
- 29 cm T (◦K)
peak wavelength =
- 29 cm T emperature in Kelvins
Remember red light has a wavelength of 700 nm = 7× 10 −^5 cm and blue light has a wavelength of 400 nm = 4× 10 −^5 cm. Examples:
Q: The temperature of the Sun is about 5800◦K. What is the peak wave- length of its blackbody spectrum?
A: λmax =
- 29 cm T (◦K)
- 29 cm 5800 K
= 5 × 10 −^5 cm or 500 nm
500 nm is the wavelength of yellow light and indeed the Sun appears yellow.
Q: Star A is twice as hot as Star B. Star B appears red (λmax = 700 nm). What color is Star A?
A: Since the peak wavelength depends inversely on the temperature, if the temperature doubles the peak wavelength is halved. 700 nm/2=350 nm. Light with a wavelength of 350 nm is blue.
7 The Stefan-Boltzmann Law
This law quantifies the amount of energy emitted by one unit of surface area of a hot blackbody per second. Energy flux = σT^4. Note that the amount of energy emitted depends very strongly on the temperature. Example:
Q: How much more energy does a blackbody emit if its temperature triples?
A: Since E=σT^4 the increase in emitted energy is 3^4 or 3 × 3 × 3 × 3 =81.
8 The Luminosity of a Star
The luminosity of a star is a measure of the total amount of energy it emits. Since stars behave like blackbodies we can use the Stefan-Boltzmann law for the amount of energy emitted by one square centimeter of the surface of the star with the equation for the surface area of a sphere. The surface area of a sphere, i.e. the number of square centimeters emitting radiation, is 4πR^2 where R is the radius of the star. Thus the luminosity of a star is
L = (surf ace area)(energy emitted) = (4πR^2 )(σT 4 ).
Examples:
Q: Suppose the size of a star doubles while it maintains the same temper- ature. How does the luminosity of the star change?
A: Since the luminosity depends on the radius squared the new luminosity will be 2^2 = 2×2 = 4 times greater. If the radius tripled instead, the luminosity would increase by a factor of 9.
Two stars have the same size. One star is 3 times hotter than the other. How much more luminous is the second star? The luminosity of a star depends on the temperature raised to the fourth power. If the temperature increases 3 times the luminosity increases by 3^4 = 3 × 3 × 3 × 3 =81.
For additional review questions, check the ends of chapters in your textbook!
